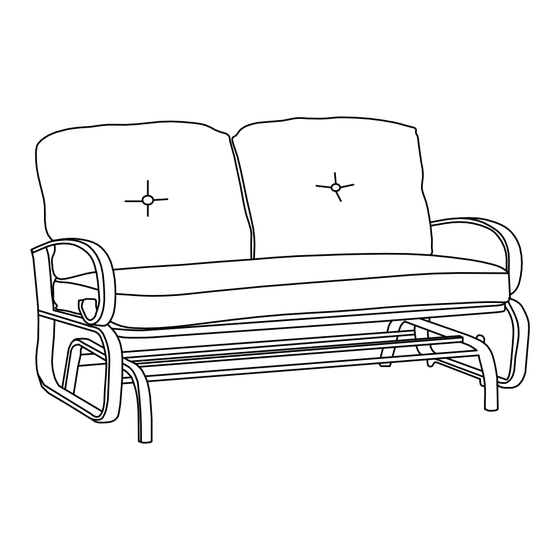

- Page 1 Cozy Rocking Love Seat Bench Glider Assembly Manual Kozyard LLC Products...
- Page 2 PART LIST FIGURE QUANTITY DESCRIPTION RIGHT ARM LEFT ARM BACK SEAT BASE GLIDER 6+1PCS SHORT BOLT ( M6*18 ) 2+1PCS MEDIUM BOLT ( M6*40 ) 8+1PCS LONG BOLT ( M6*30 ) 8+1PCS FLAT WASHER 16+1PCS FLAT WASHER ALLEN WRENCH SEAT CUSHION 2PCS BACK CUSHION...
- Page 3 Step-1 A. PLACE RIGHT ARM (A) UPSIDE DOWN ON A FLAT, PROTECTED SURFACE. B. ATTACH SEAT (D) TO RIGHT ARM (A) WITH FLAT WASHER (K) AND SHORT BOLT (G) USING ALLEN WRENCH (L). DO NOT TIGHTEN COMPLETELY. C. ATTACH LEFT ARM (B) TO SEAT (D) WITH FLAT WASHER (K) AND SHORT BOLT (G) USING ALLEN WRENCH (L).
- Page 4 Step-3 A. GENTLY TIP CHAIR FORWARD TO FLOOR. B. ATTACH LONG ARM OF GLIDER SUPPORT GLIDER (F) TO BOTTOM OF RIGHT ARM (A) WITH FLAT WASHER (J), FLAT WASHER (K) AND LONG BOLT (I) USING WRENCH (L). DO NOT TIGHTEN COMPLETELY. C.
- Page 5 Step-5 A. TURN GLIDER TO UPRIGHT POSITION SO THAT IT STANDS SQUARELY ON THE FLOOR. B. TIGHTEN ALL BOLTS SECURELY USING ALLEN WRENCH (L). C. RETAIN ALLEN WRENCH (L) FOR USE TO TIGHTEN BOLTS PERIODICALLY OR AS NEEDED. Step-6 A. PUT SEAT CUSHION (N) WITH BANDAGE TIES ON THE SEAT, THEN PUT ON THE BACK CUSHIONS.
- Page 6 Kozyard LLC 2825 80th ST SE, Suite 202 Mercer Island, WA 98040 Email: info@kozyard.com www.kozyard.com Toll-free: 866-355-0018...
