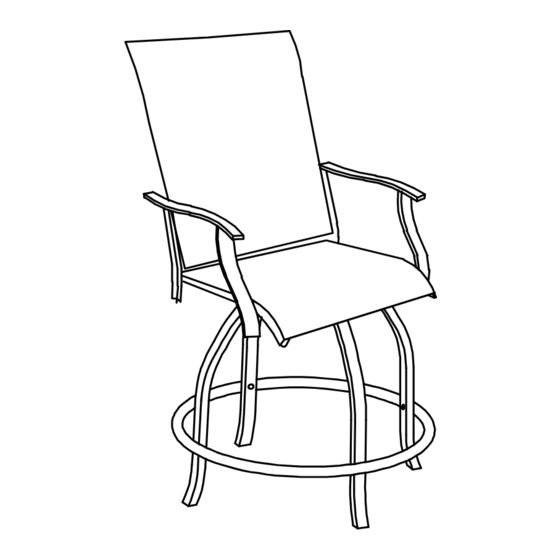

Bistro Bar Swivel Chair
Assembly Manual
Kozyard LLC Products
www.kozyard.com
© Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
Version:20231006

Assembly Instructions

Prior to assembly, ensure that you lay out and identify all
the parts listed in the parts list.
Tighten all nuts and bolts securely. Hand-tighten all bolts
before use. Avoid using power tools or applying excessive
force during assembly and bolt tightening.
If you encounter any difficulties during assembly or if any
part is missing or damaged, please don't hesitate to
contact our customer service team via email at
info@kozyard.com or by calling our toll-free number at
866-355-0018.

Care and warranty

The weight capacity of this recline chair is 250 lbs.
Clean the frame components and fabric with a mild soap
solution, then rinse thoroughly. Avoid using bleach, acid,
or any other solvents on either the fabric or frame compo-
nents.
For a comprehensive warranty policy, please visit
www.kozyard.com. Be aware that warranty terms can
change without prior notification.
For the best performance and safety of your chair, inspect
and tighten all bolts and fasteners regularly

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bistro Bar Swivel Chair and is the answer not in the manual?

Questions and answers

Summary of Contents for Kozyard Bistro Bar Swivel Chair

  • Page 1 Be aware that warranty terms can change without prior notification. Kozyard LLC Products www.kozyard.com • For the best performance and safety of your chair, inspect © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved. and tighten all bolts and fasteners regularly Version:20231006...
  • Page 2 Part list Part Description Part Description M6*15 Right Arm Bolt M6*32 Left Arm Bolt M6*35 Bolt Seat Washer Back Spring Washer Wheel Leg Connector Allen Key Bolt Screw Driver...
  • Page 3 Connect the Right Arm (Part A) and Left Arm (Part Swivel Chair B) to the Seat (Part C) using Bolt (J), Spring Washer (N), Washer (L), and Cap (P) as shown in the diagram. Connect the Back (Part D) to the Right Arm (Part A) and Left Arm (Part B) using Bolt (J), Spring Washer (N), Washer (L), and Cap (P), as shown in the diagram.
  • Page 4 Attach Leg (Part E) and Leg Connector (Part G) Swivel Chair using Bolt (K), Spring Washer (N), Washer (L), and Cap (P) as shown in the diagram. Attach Leg (Part E) to Wheel (Part F) using Bolt (I),Spring Washer (N),Washer (L), and Cap(P) as shown in the diagram.
  • Page 5 Washer (L), Nut (M), and Caps (P & Q) as shown in the diagram. 866-355-0018 Kozyard LLC Eventually, Ensure that all bolts are securely tightened © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved. before using the product on level ground.
