Kozyard Bistro Bar Assembly Manual

Kozyard Bistro Bar Assembly Manual

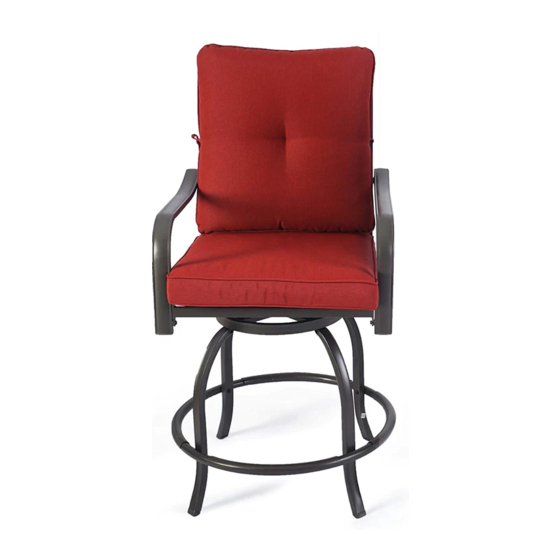

Swivel chair

Advertisement

Quick Links

Bistro Bar Swivel Chair
Assembly Manual
Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
ASSEMBLY INSTRUCTIONS
Prior to assembly, make sure you lay out and identify all the parts listed
below in the parts list.
Tighten all nuts and bolts securely. All bolts should be hand tightened
before use. Never use power tools or excessive force during assembly
and tightening of bolts.
Should you experience any difficulty during assembly or if any part is
missing or damaged:
Contact our customer service by email: info@kozyard.com or call toll
free: 866-355-0018.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bistro Bar and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kozyard Bistro Bar

  • Page 1 Should you experience any difficulty during assembly or if any part is missing or damaged: Contact our customer service by email: info@kozyard.com or call toll free: 866-355-0018. Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
  • Page 2 Part list Part Description Part Description Left Arm Back Cushion 10+1 M6*20 Right Arm Bolt M6*35 Bolt Seat 12+2 Bolt M6*32 Back 38+4 Spring Washer Wheel 38+4 Washer 12+2 Leg Connector Screw Driver Allen Key Seat Cushion...
  • Page 3 Connect Right Arm &Left Arm (Part A&Part B) to Seat (Part C) Swivel Chair using Bolt(J) , Spring Washer (M) and Washer (N) as shown in diagram. Connect Back (Part D) to arm (Part A&Part B) and Seat(Part C) using Bolt(J) , Spring Washer (M) and Washer (N) as shown in diagram.
  • Page 4 Attach Wheel (Part E) to Seat (Part C) using Bolt(L) , Loveseat Spring Washer (M) , Washer (N) and Nut(Q) as shown in diagram. Connect Leg Connector (Part G ) to legs (Part F) using Bolt(J) , Spring Washer (M) and Washer (N) as shown in diagram.
  • Page 5 Attach Leg Base to Wheel (Part E) using Bolt(L) , Loveseat Spring Washer (M) , Washer (N) and Nut(Q) as shown in diagram. Place Back Cushion (Part I) and Seat Cushion (Part H) on the frame.then tie them on the Back (Part D) as shown in diagram.
  • Page 6 Kozyar 10808 6th St Ste 100 Rancho Cucamonga CA 91730 © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
