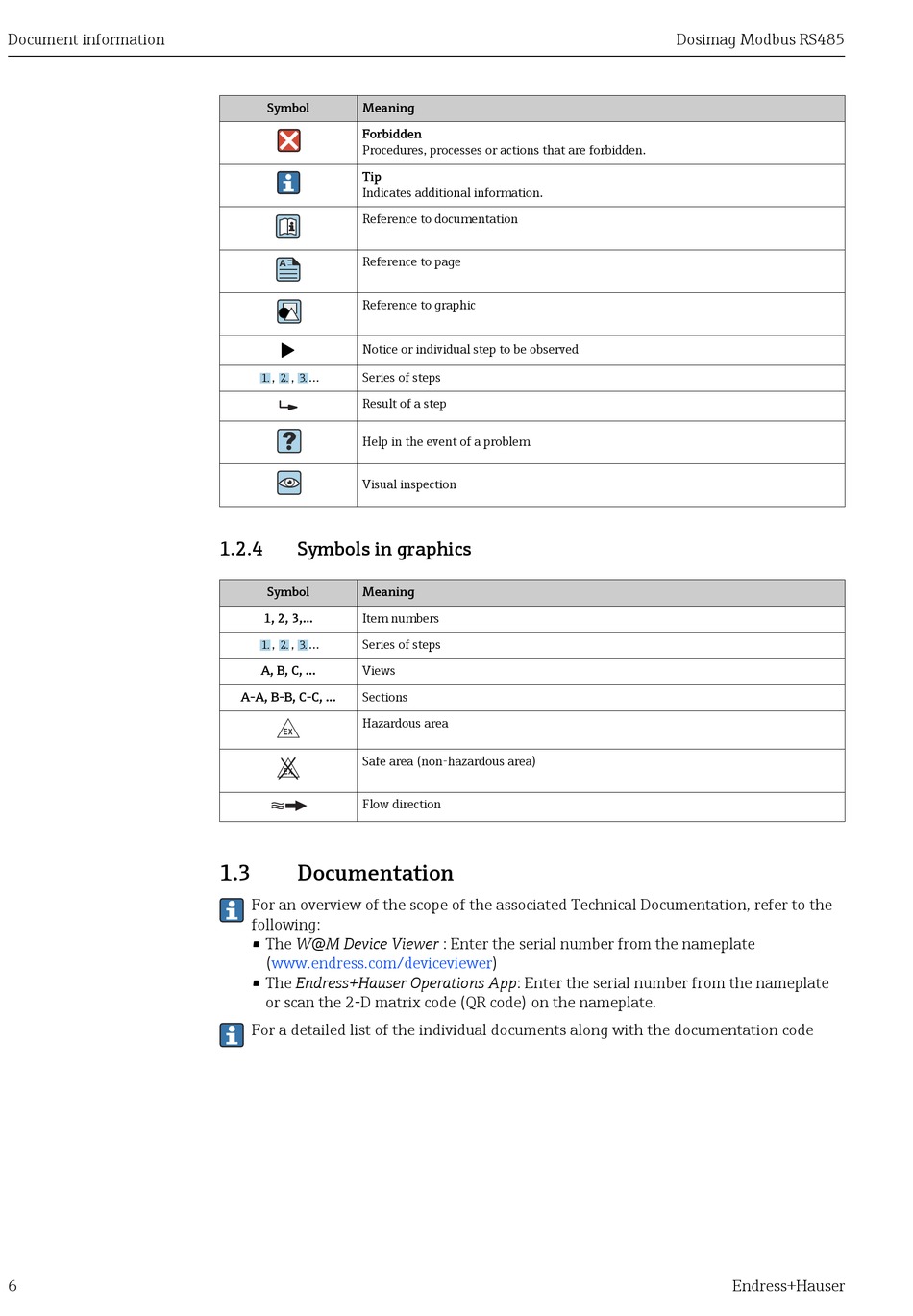

Symbols In Graphics; Documentation - Endress+Hauser Dosimag Modbus RS485 Operating Instructions Manual

Document information
6
Symbol Meaning
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation
Reference to page
A
Reference to graphic
Notice or individual step to be observed
, , ... Series of steps
1. 2. 3.
Result of a step
Help in the event of a problem
Visual inspection
1.2.4

Symbols in graphics

Symbol Meaning
1, 2, 3,... Item numbers
, , ... Series of steps
1. 2. 3.
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
Hazardous area
-
Safe area (non-hazardous area)
.
Flow direction
1.3

Documentation

For an overview of the scope of the associated Technical Documentation, refer to the
following:
• The W@M Device Viewer : Enter the serial number from the nameplate
(www.endress.com/deviceviewer)
• The Endress+Hauser Operations App: Enter the serial number from the nameplate
or scan the 2-D matrix code (QR code) on the nameplate.
For a detailed list of the individual documents along with the documentation code
Dosimag Modbus RS485
Endress+Hauser
