Models—BROOKLYN—PHANTOM—
AMATHUS—CASAL

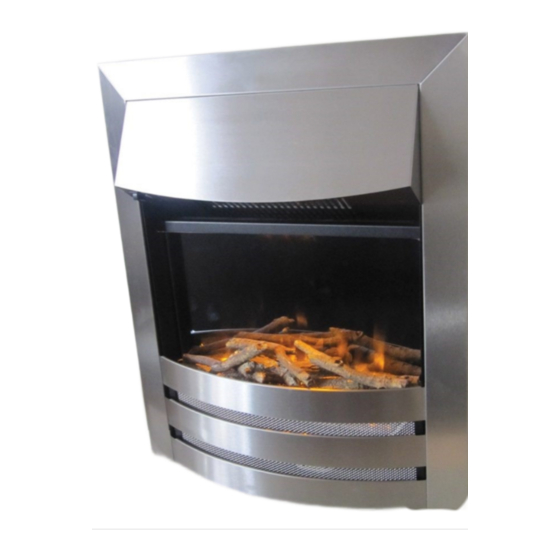

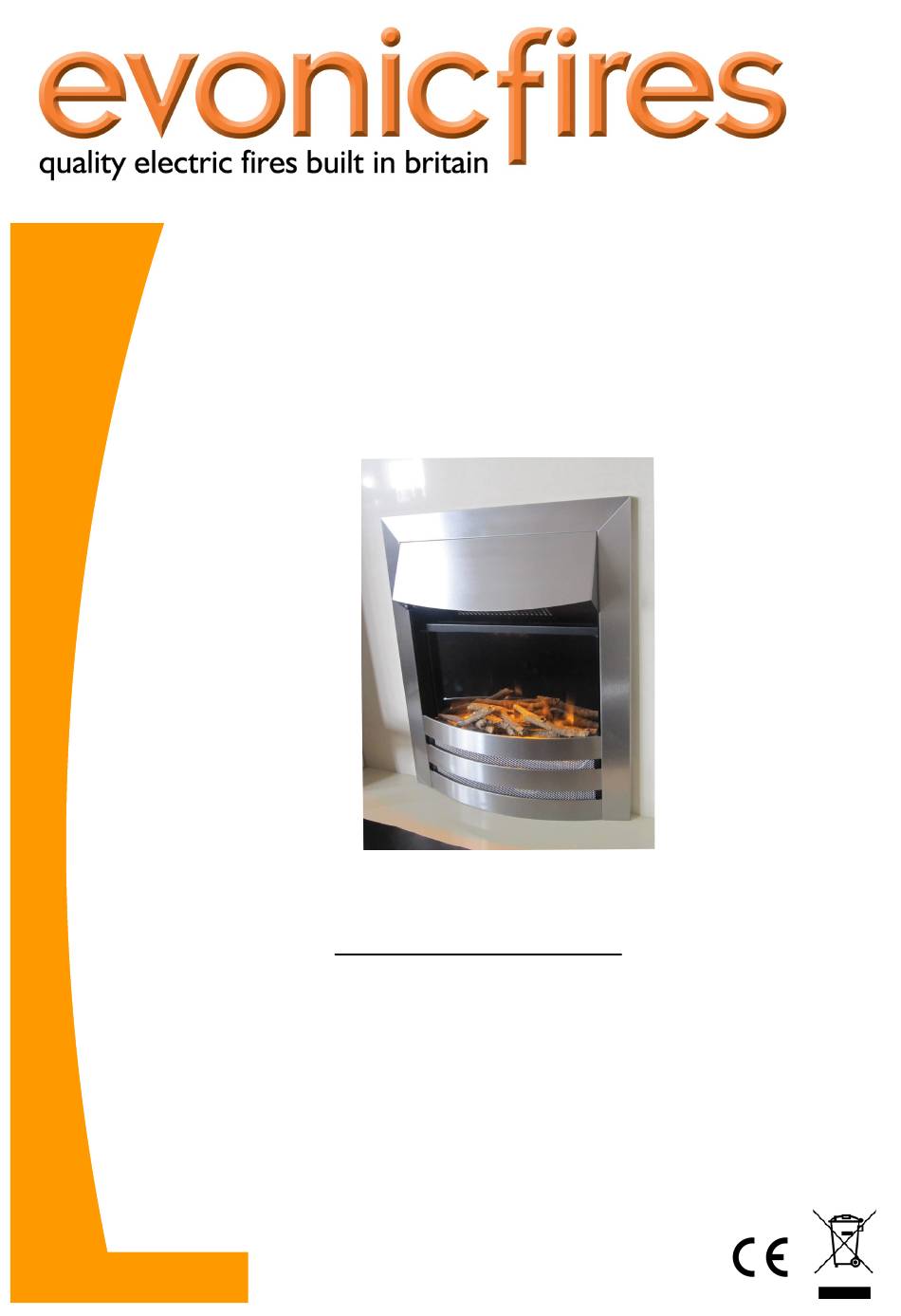

Instruction Guide
Important Safety Information
Always read this manual first before attempting to install or use this
fireplace. For your safety, always comply with all warnings and safety
Instructions contained in this manual to prevent personal injury or property
damage.
Please Note: This product is for well insulated spaces or
occasional use.
English
Advertisement
Table of Contents
Related Manuals for Evonic Fires Brooklyn
Summary of Contents for Evonic Fires Brooklyn
- Page 1 Models—BROOKLYN—PHANTOM— AMATHUS—CASAL Instruction Guide Important Safety Information Always read this manual first before attempting to install or use this fireplace. For your safety, always comply with all warnings and safety Instructions contained in this manual to prevent personal injury or property damage.
-
Page 2: Table Of Contents
Contents Introduction Electrical Safety Important Instructions Installation Requirements Setting the Thermostat Operating Instructions Hole In Wall Installation Technical Specification & Problem Solving Warranty welcome to evonicfires evonicfires is an award-winning brand of CK Fires Ltd, situated just outside Stratford- upon-Avon, we manufacture a range of British built electric fires and are considered as one of the most technically advanced manufacturers in the world, with optional controllers such as e-touch and a fully integrated APP available to download on both This guide is designed to aid in the installation and continued performance of this... -
Page 3: Electrical Safety
ELECTRICAL SAFETY: When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: ① Read all instructions before using this electric fireplace. ② This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. - Page 4 ⑬ Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage to the heater. ⑭ To prevent a possible fire, do not block air intakes or exhaust in any manner. ⑮...
-
Page 5: Important Instructions
IMPORTANT INSTRUCTIONS: Important electrical safety: This appliance must never be installed above or in front of a fixed electric socket. The electrical socket must be easily accessible to isolate the supply during maintenance and cleaning. This appliance is supplied with a two meter power lead, which has a 13Amp moulded three pin plug to connect to a standard 230/240V plug socket. - Page 6 This appliance is supplied with a two meter power lead, which has a 13Amp moulded three pin plug to connect to a standard 230/240V plug socket. This appliance must always be earthed. If in any doubt consult a suitably competent person. All Evonic fires products meet the requirements of the EC Directives 2004/108/EC and 2006/95/EC.
-
Page 7: Installation Requirements
INSTALLATION REQUIREMENTS: INSTALLATION REQUIREMENTS: INSET MODELS: This product has been designed to be installed into a standard 420mm(W) x 570mm(H) x 80m(D) If the products is to be installed into a open chimney or flue, it is important that the chimney/flue is blocked off to prevent any up/down draughts and falling de- bris which could restrict and alter the airflow to the product. -
Page 8: Setting The Thermostat
Setting the Thermostat Note: This only applies to MANUAL fires Ensure the fire is plugged in. Start by pressing the ‘light’ button on the left. This will activate your LED’s and bottom blower. For heat setting, ensure the thermostat knob is turned fully to the right (max temperature). -
Page 9: Operating Instructions
Operating Instructions Note: This only applies to REMOTE fires... -
Page 10: Hole In Wall Installation
Hole-in-wall Installation To Install the appliance inside an existing wall cavity, please follow the subsequent instructions. Please refer to technical specification page for exact measurements, ensuring the space you wish to install the appliance fits correctly. This product has been designed to be installed into a plaster board, drywalled, or existing masonry chimney breast. -
Page 11: Solving
Technical Specification MODEL TOTAL TOTAL TOTAL INSET INSET WIDTH INSET DEPTH HEIGHT WIDTH DEPTH HEIGHT BROOKLYN 605MM 490MM 130MM 550MM 382MM 60MM PHANTOM 602MM 506MM 105MM 550MM 382MM 75MM AMATHUS 602MM 506MM 105MM 550MM 382MM 75MM CASAL 612MM 495MM 90MM... -
Page 12: Warranty
Register a Prod- uct Section. By registering your appliance, an extra 12 months of cover will be added to your warranty. CK Fires Ltd / Evonic Fires 1 Evonic house, Clifford park, Clifford lane, Stratford-Upon- Avon, CV37 8HW...
