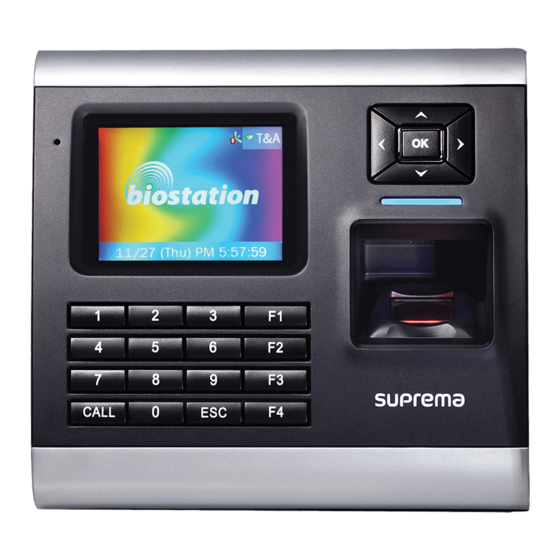

Innovative fingerprint terminal
Hide thumbs Also See for Biostation:
Table of Contents

Advertisement

Quick Links

See also: User Manual
www.supremainc.com
Innovative Fingerprint Terminal

Installation Guide

EN 101.00.BST V1.31
(ver 1.1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Biostation and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for suprema Biostation

Summary of Contents for suprema Biostation

  • Page 1: Installation Guide

    www.supremainc.com Innovative Fingerprint Terminal Installation Guide EN 101.00.BST V1.31 (ver 1.1)

  • Page 2: Table Of Contents

    Relay Connection - Automatic Door TTL Input Port Connection – RTE Switches TTL Output Port Connection Wiegand Input Connection – External reader Wiegand Output Connection – Control Panel Ferrite Core Installation System Specification Electrical Specification FCC Rules ⒸCopyright 2007 Suprema Inc.

  • Page 3: Product Contents

     Wall mounting Star-shape screw for fixing Product Contents screws and holders - 3 ea main body BioStation fingerprint terminal Wall mounting metal bracket USB cable Star-shape small wrench 5pin, 3pin, 6pin, 4pin, 7pin cable – 1 ea Software CD Diodes –...

  • Page 4: Optional Accessories

    Product Contents Optional accessories  12V power adaptor Plastic stand type A USB fingerprint scanner Wireless LAN Access Point for enrollment on PC USB Mifare Interphone Secure I/O reader/writer ⒸCopyright 2007 Suprema Inc.

  • Page 5: Connectors For External Interfaces

    Ethernet cable connector : RJ45 3pin cable connector - Door 6pin cable connector – Input/Output or Wiegand 4pin cable connector - RS485 7pin cable connector - RS232 or BEACon 5pin cable connector – Power and doorphone 12V power adaptor ⒸCopyright 2007 Suprema Inc.

  • Page 6: Cable And Connector Pinout

    PIN DESCRIPTION WIRE RS485 485 TRXN YELLOW 485 TRXP BLUE 485 GND BLACK SH GND GRAY RS232 PIN DESCRIPTION WIRE 232 GND BLACK 232 TX BLUE 232 RX YELLOW TTL OUT1 WHITE SH GND GRAY ⒸCopyright 2007 Suprema Inc. Before Start...

  • Page 7: Installation Example

    Installation Example 6pin cable Network hub Ethernet 3pin cable RS232 7pin cable Door Lock Exit Button ⒸCopyright 2007 Suprema Inc.

  • Page 8: Product Dimension

    Product Dimension Front Side Bracket (unit : mm) ⒸCopyright 2007 Suprema Inc.

  • Page 9: Installation Of Wall-Mount Bracket

    Fix wall mount bracket on a wall using wall Hook BioStation on the wall mount bracket.   mounting screws Wall Mounting Screws Fix BioStation and wall mounting bracket using a  star shape screw. Star-shape Screw Star-shape Small Wrench ⒸCopyright 2007 Suprema Inc.

  • Page 10: Power Connection

     Comply with standard IEC/EN 60950-1  Use a separate power supply for Secure I/O, electric lock and BioStation respectively. If  connecting and using the power supply to these devices together, the devices may malfunction. ⒸCopyright 2007 Suprema Inc.

  • Page 11: Usb Cable Connection

    USB Cable Connection PC USB Port USB Mini Type USB A Type ⒸCopyright 2007 Suprema Inc. Before Start...

  • Page 12: Lan Connection

    LAN Connection ⒸCopyright 2007 Suprema Inc.

  • Page 13: Wireless Lan Connection

    Performance of wireless LAN is affected a lot  by surrounding environments and the type of AP(Access Point). The list of APs with compatibility tested with  BioStation is as follows. Buffalo WHR-HP-G54  Cisco-Linksys WRTH54GS  3COM OfficeConnect 3CRWE554G72T ...

  • Page 14: Rs485 Network Connection

    (4) SH GND (Gray), optional (3) 485 GND (Black) (2) 485 TRXP (Blue) (1) 485 TRXN (Yellow) (4) SH GND (Gray), optional (3) 485 GND (Black) (2) 485 TRXP (Blue) (1) 485 TRXN (Yellow) ⒸCopyright 2007 Suprema Inc. Before Start...

  • Page 15: Usb Memory Connection

    SanDisk cruzer micro 512MB  Transcend JF110 512MB  Transcend JF150 512MB  Samsung PLEOMAX SPUB-S50 1GB  Sony Microvault USM512J  Imation iFLASH Slim 512MB  Imation Swivel Pro 512MB  PQI Intelligent Stick 1GB  ⒸCopyright 2007 Suprema Inc.

  • Page 16: Intercom Connection

    Intercom Connection (1) PWR +VDC (Red) (2) PWR GND (Black) (3) INPH AUD (Orange) (4) INPH DTA (Blue) (5) SH GND (Gray) ⒸCopyright 2007 Suprema Inc. Before Start...

  • Page 17: Relay Connection - Fail Safe Lock

    Relay Connection – Fail Safe Lock (3) RLY NC (Orange) (2) RLY COM (Blue) (1) RLY NO (White) Deadbolt / Door strike Power supply ⒸCopyright 2007 Suprema Inc.

  • Page 18: Relay Connection - Fail Secure Lock

    Relay Connection – Fail Secure Lock (3) RLY NC (Orange) (2) RLY COM (Blue) (1) RLY NO (White) Deadbolt / Door strike Power supply ⒸCopyright 2007 Suprema Inc.

  • Page 19: Relay Connection - Automatic Door

    Relay Connection - Automatic Door (3) RLY NC (Orange) (2) RLY COM (Blue) (1) RLY NO (White) ⒸCopyright 2007 Suprema Inc.

  • Page 20: Ttl Input Port Connection - Rte Switches

    TTL Input Port Connection – RTE Switches (6) SH GND (Orange) (5) TTL / WG GND (Black) (2) TTL / WG IN1 (Yellow) (1) TTL / WG IN0 (Blue) ⒸCopyright 2007 Suprema Inc.

  • Page 21: Ttl Output Port Connection

    TTL Output Port Connection (6) SH GND (Gray) (5) TTL / WG GND (Black) (4) TTL / WG OUT1 (White) (3) TTL / WG OUT0 (Green) ⒸCopyright 2007 Suprema Inc.

  • Page 22: Wiegand Input Connection - External Reader

    Wiegand Input Connection – External reader (6) SH GND (Orange) (5) TTL / WG GND (Black) (2) TTL / WG IN1 (Yellow) (1) TTL / WG IN0 (Blue) ⒸCopyright 2007 Suprema Inc.

  • Page 23: Wiegand Output Connection - Control Panel

    Wiegand Output Connection – Control Panel (6) SH GND (Gray) (5) TTL / WG GND (Black) (4) TTL / WG OUT1 (White) (3) TTL / WG OUT0 (Green) ⒸCopyright 2007 Suprema Inc.

  • Page 24: Ferrite Core Installation

    Ferrite Core Installation Core winding 2 turns The following cables must be wound around the core (2 turns) 1. RS232 cable 2. RS485 cable 3. Intercom/Power cable 4. TTL/Wiegand IO cable ⒸCopyright 2007 Suprema Inc.

  • Page 25: System Specification

    Product size : 135 x 128 x 50 mm (width x length x depth)  ** CAUTION : RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERY ACCORDING TO THE INSTRUCTIONS ⒸCopyright 2007 Suprema Inc. Appendix...

  • Page 26: Electrical Specification

    Voltage (V) 10.8 13.2 Current Consumption (mA) Current Consumption with USB Wireless LAN (mA) TTL/Wiegand Input Pull-up resistance (Ω) TTL/Wiegand Output = -5mA = 5mA Output resistance (Ω) Relay Voltage 24 VDC Current 0.5 A 1.0 A ⒸCopyright 2007 Suprema Inc.

  • Page 27: Fcc Rules

    Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help ⒸCopyright 2007 Suprema Inc.
  • Page 28 16F Parkview Office Tower, Jeongja-dong, Bundang-gu, Seongnam, Gyeonggi, 463-863 Korea E-mail : support@supremainc.com Website : www.supremainc.com Functions and specifications of the product are subject to changes without notice due to quality enhancement or function update. For any inquiry on the product, please contact Suprema Inc.
