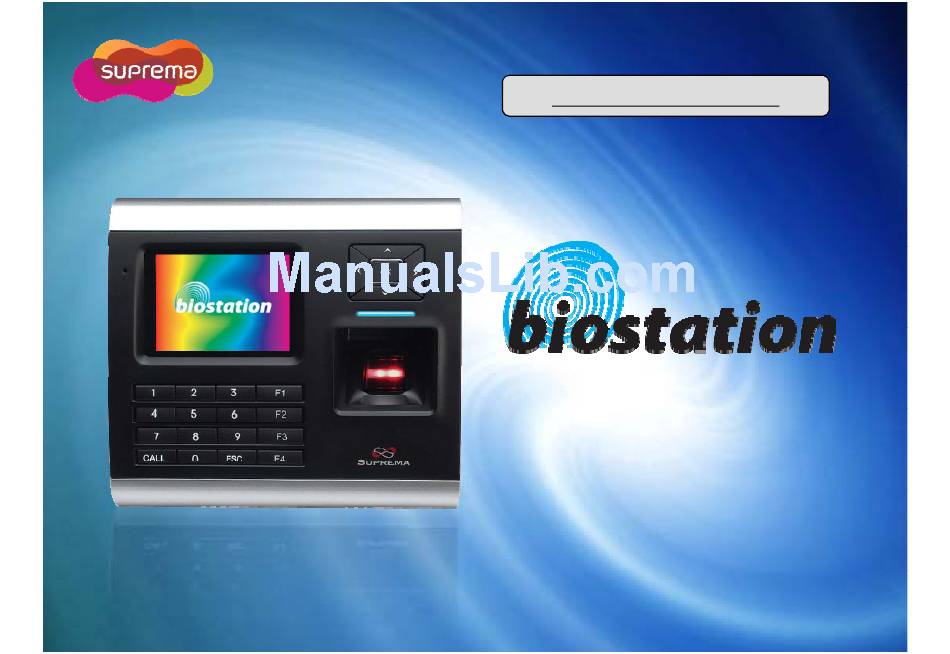

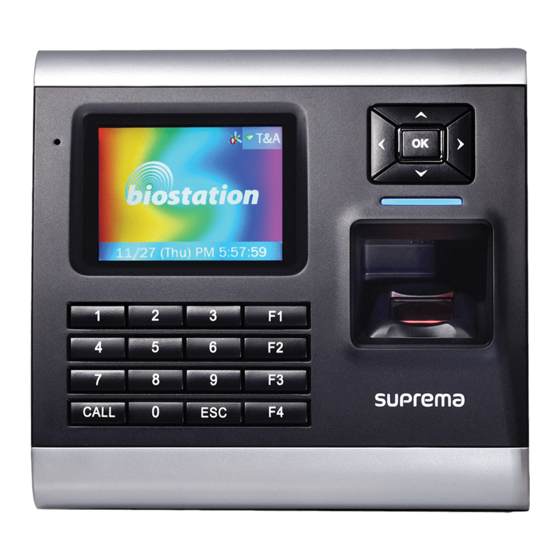

  • Page 1 www.supremainc.com Innovative Fingerprint Terminal User Guide (Ver 1.7)
  • Page 2 RF module is built in a Terminal itself. Fingerprint, card, and password can be selected as the authentication method for each user. Real Time Network operation through Server! Connected to the BioAdmin Server, terminals can be managed in real time. ⒸCopyright 2008 Suprema Inc.

  • Page 3: Table Of Contents

    – Wireless LAN – Server – Serial Serial – USB User management – Enroll New User – Check User Info – Edit User Info – Delete User – Delete All Users – Check User DB – Format Card ⒸCopyright 2008 Suprema Inc.
  • Page 4 – T&A event using 1:1 mode – Using extended T&A events View user’s Access/T&A event records A th Authentication procedure as per operation mode ti ti Authentication procedure for T&A event Appendix Specifications Troubleshooting Device cleaning Device cleaning ⒸCopyright 2008 Suprema Inc.

  • Page 5: Before Start

    Clean the device often to remove In cleaning, do not splash water dust on it. on the device but wipe it out with water, drinks or chemicals leak smooth cloth or towel. inside the device. ⒸCopyright 2008 Suprema Inc. Before Start...
  • Page 6 Do not let children touch the Do not use the device for any Contact your nearest dealer in other purpose than specified. device without supervision. case of a trouble or problem. ⒸCopyright 2008 Suprema Inc. Before Start...

  • Page 7: Glossary

    Fingerprint Enrollment A process of extracting features of a fingerprint image obtained from a fingerprint sensor and saving them into the internal memory of a device. The fingerprint data is called a fingerprint template. ⒸCopyright 2008 Suprema Inc. Before Start...

  • Page 8: Basics Of Fingerprint Recognition G P G

    Secure way to protect personal information Secure way to protect personal information To avoid privacy concern, Suprema’s fingerprint products do not save fingerprint images itself. It is impossible to reconstruct a fingerprint image from a fingerprint template which is just numeric data of the features of a fingerprint.

  • Page 9: How To Place A Finger

    How to place a finger Suprema’s fingerprint products show an outstanding recognition performance regardless of the user’s fingerprint skin condition or the way of fingerprint positioning. However, following tips are recommended to get more optimal fingerprint recognition performance. Select a finger to enroll It is recommended to use an index finger or a middle finger.
  • Page 10 How to place a finger Tips for different fingerprint conditions Suprema’s fingerprint products are designed to scan fingerprint smoothly regardless of the conditions of a finger skin. However, in case a fingerprint is not read well on the sensor, please refer to the followings tips.

  • Page 11: Product Contents

    Wall mounting Star-shape screw for fixing Product Contents Product Contents screws and holders - 3 ea main body BioStation fingerprint terminal Wall mounting metal bracket USB cable Star-shape small wrench 5pin, 3pin, 6pin, 4pin, 7pin cable – 1 ea Software CD ⒸCopyright 2008 Suprema Inc.

  • Page 12: Optional Accessories

    Product Contents Optional accessories Wireless LAN Access Point 12V power adaptor Plastic stand type A USB fingerprint scanner for enrollment on PC USB Mifare Interphone Secure I/O reader/writer reader/writer ⒸCopyright 2008 Suprema Inc.

  • Page 13: Name Of Each Part

    Used to enter Admin menu from initial display or return to the previous menu from Admin menu. CALL key When connected to interphone, press this button to ring the interphone. RF card reading part (RF model only) Place RF card here to read ⒸCopyright 2008 Suprema Inc. Before Start...
  • Page 14 6pin cable connector – Input/Output or Wiegand 4pin cable connector - RS485 7pin cable connector - RS232 or BEACon 7pin cable connector RS232 or BEACon 5pin cable connector – Power and door phone 12V power adaptor ⒸCopyright 2008 Suprema Inc. Before Start...

  • Page 15: Installation

    Installation Installation example 6pin cable Network hub Ethernet 3pin cable Door Lock RS232 7pin cable Exit Button Product dimension (mm) Front Side Bracket ⒸCopyright 2008 Suprema Inc. Before Start...

  • Page 16: Cable Spec

    PIN DESCRIPTION WIRE RS485 TRX - YELLOW TRX + BLUE BLACK SHIELD GND GRAY PIN DESCRIPTION WIRE RS232 BLACK RS-232 TX BLUE RS-232 RX YELLOW TTL OUT1 WHITE SHIELD GND SHIELD GND GRAY GRAY ⒸCopyright 2008 Suprema Inc. Before Start...

  • Page 17: For Administrators (Basic Functions)

    Basic information for the i i f device administrators. It For Administrators - Basic Functions includes key items such as basic menu usage, operation mode setting, network connection, and user management. ⒸCopyright 2008 Suprema Inc.

  • Page 18: Enter Admin Menu

    Admin menu by entering his/her PIN enter Admin menu by entering his/her PIN. User If the master password is entered successfully, initial Admin Mode Device menu appears on display. Display Display Network Network ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 19: Using Admin Menu

    [Note] For security reasons, the display will automatically return to the initial display after a certain time period without any key input in Admin menu. If you do not want this function or want to change the time period, refer to <Display and sound setting>. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 20: Operation Mode Setting

    1:1 mode in which users should enter their ID first. Set schedules to apply the above 1:N mode 1:N Time Select “All Time”, “No Time” or a specific schedule set by BioAdmin ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...
  • Page 21 Auto a fingerprint, it matches users whose ID start ‘11’, so matching speed 1:N Mode ◀ ▶ All Time is faster. (available in BioStation firmware V1.7 above) 1:N Time ◀ ▶ Not Use Private Auth It will be disable when Server Matching option is on.
  • Page 22 1:1 Mode OK Apply ◀ ▶ All Time 1:1 Time 1:1 Time (BioStation Mifare model) (BioStation Mifare model) Use Template : Select when use a Mifare card as a template on card. S l t h ◀ ▶ Auto 1:N Mode F2 T&A...
  • Page 23 Count : Set max number of entrance during the period • Default Group ◀ Full Access ▶ Default : Set default entrance mode for users who are not assigned a specific access group. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 24: Network Setup - Tcp/Ip

    Without using DHCP, IP address, gateway, and subnet need to be IP Address, gateway, entered manually. Inquire necessary settings to network subnet administrator. (Press right key (►) to input a dot (.) when entering IP address) ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 25: Wireless Lan

    Shows the authentication mode of wireless LAN AP. Authentication Encryption Shows the encryption method of the wireless LAN AP. Link Quality Shows the network condition of the currently used wireless LAN AP. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 26: Server

    After issuing certificate, SSL Mode and server mode will be set to “USE” and there is no need to set up configurations of server and BioStation. To access BioStation from BioAdmin Client directly without accessing to server SSL and To access BioStation from BioAdmin Client directly without accessing to server, SSL and server mode are set on “Not Use”...

  • Page 27: Serial Serial

    Network Setup - Serial To connect BioStation to the serial port of PC, you need to select the baudrate of the serial communication. Setting :Disable/9600/19200/38400/57600/115200 RS485 Used when connecting to the serial port of PC using 7pin connector on the rear of the device.

  • Page 28: Usb

    Network Setup - USB To connect the BioStation to the USB port of host PC, enable the USB communication. If you select USB on network submenu, USB setting menu appears on the display. Setting : Enable/Disable Setting : Enable/Disable USB Port ◁...

  • Page 29: User Management

    BioAdmin program on PC Default access group can be group, use BioAdmin program on PC. Default access group can be set as “Full Access” or “No Access” for whom without a specific access group assigned. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...
  • Page 30 To use duress finger, more than two fingerprints should be enrolled, ie., Finger No. should be more than 2. Duress finger should be different from normal finger enrolled in advance. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...
  • Page 31 – In case of issuing template card via BSM model, administrator card can be issued. – When enrolling a card, it can be divided as administrator and user authority. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...
  • Page 32 BioAdmin program on PC Default access group can be group, use BioAdmin program on PC. Default access group can be set as “Full Access” or “No Access” for whom without a specific access group assigned. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...
  • Page 33 Duress finger should be different from normal finger enrolled in advance. Setting : Use/Not Use Bypass Card It sets authentication with card only not with any additional It sets authentication with card only, not with any additional procedure. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...
  • Page 34 After enrolling fingerprints of one user, the display shows the 123456 next user ID to enroll the next user. If you do not want to enroll more users, press F4 to exit to initial display. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 35: Check User Info

    123456 F1 More displayed, OK, F2 and F3. Name Dept. OK Edit User Admin Level Admin Level Admin Admin Password Registered F2 Finger No of Finger Group 1 F3 Delete None ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 36: Edit User Info

    If you want to re-enroll fingerprints of the user, press F2 key at Edit User menu. You can select the number of fingerprints and duress and then You can select the number of fingerprints and duress and then re-enroll fingerprints. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 37: Delete User

    Do you want to delete this user? [Note] Deleted user info can’t be retrieved unless the info remains [Note] Deleted user info can t be retrieved unless the info remains in BioAdmin software on PC. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 38: Delete All Users

    [Note] The data of administrators who is operating the menu is also deleted by this operation. Therefore, in order to enter Admin menu again, you should remember the master password before deleting all users. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 39: Check User Db

    If there is an error on the user DB, it will be automatically corrected DB it ill b by this procedure. If it fails to correct, an error message appear on display. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 40: Format Card

    In order to enroll a user template to a card, this should be done. l t t d thi ld b d “Format failed” message will be displayed, if you don’t place card to the device within 3 second after card format setting. ⒸCopyright 2008 Suprema Inc. For Administrators - Basic Functions...

  • Page 41: For Administrators (Advanced Functions)

    D t il d i f Detailed information for device administrators. It For Administrators - Advanced Functions includes specific items such as display and sound setting, fingerprint authentication setting, and log check. ⒸCopyright 2008 Suprema Inc.

  • Page 42: Display & Sound Setting

    To use custom language, appropriate language config. file needs Infinite ◀ ▶ to be downloaded to the device using BioAdmin program on PC. Msg Time 2 sec Please contact Suprema for details. Private Disp ◀ Not Use ▶ Volume Setting : Logo/Slide Show/Notice Background Decide background of initial display.
  • Page 43 Time Sync : hhmmss Time ◀ ◀ ▶ ▶ MM/DD MM/DD Date Display Di l Time sync : Terminal time will be synchronized with server time. Date Display : MM/DD or DD/MM ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...

  • Page 44: Device Setup - Fingerprint Setting

    FRR. Setting: Weak/Normal/Strict Quality Quality level decides the strictness of quality check of the input images. With a strict quality level, the device may reject a low quality input fingerprint more. ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...
  • Page 45 1:N Delay It means the time of delay from 1:N authentication to next stand-by authentication Setting : Not Check / Check Duplicate In enrollment, checks whether the fingerprint is duplicated or not. ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...
  • Page 46 Shows current device setting whether to encrypt fingerprint templates or not Encryption for security purpose. This menu only shows current setting and the settings can be changed only by BioAdmin program on PC. ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...

  • Page 47: I/O Setting I/O Setting

    Setting : None/Lock System/Generic Input/Emergency Open/Alarm Tamper S/W Off/Reset Tamper switch is turned on when a housing (case) of BioStation is opened. If the setting is in “Lock System”, the device is automatically locked when a tamper switch is on for security.
  • Page 48 1 are set as Wiegand User/Card ID. Set the cycle of output signal. Default is 1sec (1000ms). Duration(ms) Width (us) : Set Pulse Width. WIEGAND OUTPUT Wiegand Output Width(us) Interval (us) :Set Pulse Interval. Interval(us) 10000 ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...

  • Page 49: Door Relay Setting

    In case of selected T&A, door opens only by the specific events for which door use is allowed. In case of disabled, BioStation will not drive an internal relay to open a door by any of events or authentication. Duration (sec)
  • Page 50 Specific schedule for lock time can be set by BioAdmin program on PC. Unlock time Decide time to open the door by force Specific schedule for unlock time can be set by BioAdmin program on PC. ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...
  • Page 51 Bi St ti interphone on this menu. CALL button and interphone communication of ◀ ▶ Disable Interphone BioStation will operate only when this menu is set as Enable. ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...

  • Page 52: Zone

    For deleting, select the device in “Device List” and then press F1 Device ID and F3 (Delete). Device List ◀ ▶ Device Count In case of using BioStar, “Zone” menu won’t be displayed. ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...
  • Page 53 F3 Delete Device Auth ◀ ▶ Setting: Standalone/Notify/Deferred Standalone, Notify : decision made by device itself. Deferred : Zone master decides the authentication result. For APB and Entrance Limit, select this option. ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...

  • Page 54: Apb Zone

    Time Index : Select 4 different time periods per day Time : Set time period S t ti • Time Index/Time/Count Count : Set max number of entrance during the period • ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...

  • Page 55: Change Master Password

    Default password is blank (no need to type). Default password is blank (no need to type). [Note] With this master password, one can enroll or delete users and change settings of BioStation. Please be careful not to disclose master password except Administrators. When you forget master password If there is a user enrolled as administrator : you can enter Admin menu using administrator’s fingerprint and return the password as...

  • Page 56: View Device Info View Device Info

    Kernel Ver. Overall available storage and currently used storage are displayed. Memory In the internal memory of BioStation, various information like user info, log, background and sounds are stored, so used memory changes by the size of these information. b th f th ⒸCopyright 2008 Suprema Inc.

  • Page 57: Device Reset

    Press OK key to reset device. Device reset takes normally 20 30 seconds and it may take a bit longer for network connection. If you change language of BioStation, you should reset BioStation to apply the new language BioStation to apply the new language.

  • Page 58: Factory Default

    User info and log data are not deleted. To delete user info, refer to <Delete All Users>. To delete log data, refer to <Delete Entire Log>. Log . ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...

  • Page 59: Check Log

    (8 l Press F1 key to display available additional function key. OK : Latest F2 : Filter F3 : Delete Press OK key to display the latest log. ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...

  • Page 60: Filter Log

    Select the T&A events to be shown on the log list. T&A Event T&A Event To check the log events of a specific user, enter the user’s ID. If User you press 0, log events of all users are displayed. ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...

  • Page 61: Delete Entire Log D L I L

    Press OK key to delete all logs. [N t ] B [Note] Be sure that a deleted log can not be retrieved unless it th t d l t d l remains in BioAdmin program on PC. ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...

  • Page 62: Usb Memory

    Refresh Transfer the user information and various settings from the virtual Synchronize terminal of USB memory to the connected BioStation. At the same time, transfer the log data from the connected BioStation to the virtual terminal of USB memory virtual terminal of USB memory.
  • Page 63 Initialize This menu is enabled only when a USB memory is connected to BioStation. Refresh the connection of the USB memory and the stored Refresh information on the connected USB memory. ⒸCopyright 2008 Suprema Inc. For Administrators - Advanced Functions...

  • Page 64: For General Users

    Describes directions for general users. It explains For General Users how to open a door in each operation mode and to enter T&A events. ⒸCopyright 2008 Suprema Inc.

  • Page 65: Access Using 1:N Mode

    Place a finger to open the door. Place your finger Use of personal info When personal info image and message are set, the set image and message by successful authentication will be shown. ⒸCopyright 2008 Suprema Inc. For General Users...

  • Page 66: Access Using 1:1 Mode Access Using 1:1 Mode

    In case 1:1 mode is set as RF Card If the 1:1 mode is set as Card Only, user can access just by placing the card to BioStation without any additional procedure. If the 1:1 mode is not set as Card Only, card is used to suggest the user’s ID.
  • Page 67 Enter user ID or Put finger put the card Password Only Password Only Enter user ID or Enter user ID or Enter password Enter password put the card Card Only Put the Card ⒸCopyright 2008 Suprema Inc. For General Users...

  • Page 68: T&A Event Using 1:N Mode

    BioAdmin program, a door opens upon the occurrence of the T&A events. You can check on ‘Activate Relay by this Event’ in T&A event with BioAdmin program on your PC. ⒸCopyright 2008 Suprema Inc. For General Users...

  • Page 69: T&A Event Using 1:1 Mode

    Enter your PW and press OK key to apply applicable T&A event. In case 1:1 mode is set as Fingerprint or PIN You can either enter fingerprint or enter password and press OK key. ⒸCopyright 2008 Suprema Inc. For General Users...

  • Page 70: Using Extended T&A Events

    Factory default T&A events are defined as below. F1 (In), F2 (Out), F3 (In duty), F4 (Out duty) You can edit the default T&A events and extended T&A events with BioAdmin program on your PC. ith Bi Ad i ⒸCopyright 2008 Suprema Inc. For General Users...

  • Page 71: View User's Access/T&A Event Records

    Press up/down navigation key to scroll a log one by one. Press left/right navigation key to scroll a log page by page (8 logs). (8 logs). Press OK key to display the latest log. ⒸCopyright 2008 Suprema Inc. For General Users...

  • Page 72: A Th Authentication Procedure As Per Operation Mode Ti Ti D Ti D

    (skip in case of Auto setting) (skip in case of Auto setting) fingerprint (finger scan) ID (Key) PW+OK (auth. PW) 1:1 Mode fingerprint (finger scan) Card Card PW+OK (auth. PW) (skip in case of card only) ⒸCopyright 2008 Suprema Inc. For General Users...

  • Page 73: Authentication Procedure For T&A Event

    F1~F4 (default T&A event) fingerprint 1:N Mode Down key+16key (extended T&A event) F1~F4 fingerprint (default T&A event) (finger scan) ID (Key) 1:1 Mode 1:1 Mode Down key+16key PW+OK (extended T&A event) (auth. PW) ⒸCopyright 2008 Suprema Inc. For General Users...

  • Page 74: Appendix

    Product size : 135 x 128 x 50 mm (width x length x depth) ** CAUTION : RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERY ACCORDING TO THE INSTRUCTIONS ⒸCopyright 2008 Suprema Inc. Appendix...

  • Page 75: Troubleshooting

    If LCD display and blue LED are off, it is possible that power is off. Check power condition such as blackout. If LCD display and blue LED are on, something is wrong with machine. In such a case, contact A/S center. ⒸCopyright 2008 Suprema Inc. Appendix...

  • Page 76: Device Cleaning

    Device cleaning Wipe out machine surface with dry towel or cloth. In case there is dust or impurities on the sensor of the BioStation, wipe off the surface with case t e e s dust o pu t es o t e se so o t e...
  • Page 77 Functions and specifications of the product are subject to changes without notice due to quality enhancement or function update For any inquiry on the product please contact Suprema Inc enhancement or function update. For any inquiry on the product, please contact Suprema Inc.
