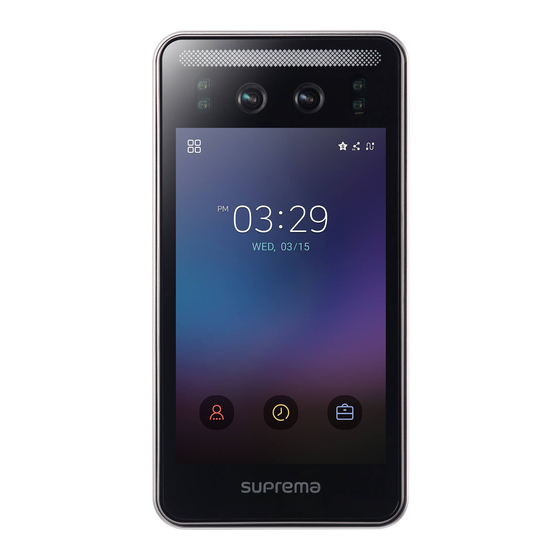

- Page 1 FaceStation F2 INSTALLATION GUIDE Version 1.00 English EN 101.00.FSF2-ODB V1.00A...
-
Page 2: Table Of Contents
Contents Safety instructions ................3 Introduction ..................5 Components ..............................5 Name and function of each part ....................... 6 Cables and connectors ..............................8 Correct face registration and authentication method................9 Cautions for registering a face ............................9 Cautions for authenticating a face ..........................9 How to enroll a fingerprint ........................ -
Page 3: Safety Instructions
Safety instructions Safety instructions Observe the following instructions to use the product safely and prevent any risk of injury or property damage. Warning Noncompliance of instructions could lead to serious injury or death. Installation Do not install the device under direct sunlight or UV light. Product damage, malfunction, discoloration, or deformation may occur. - Page 4 Safety instructions Operation Do not drop the product or apply an impact to the product. A product failure may occur. • Manage the password with care not to disclose it to others and change the password periodically. Otherwise, illegal intrusion may occur. •...
-
Page 5: Introduction
Introduction Introduction Components FaceStation F2 Drilling Template Wall Bracket 120Ω resistor PVC Anchor x6 Connection Cable Diode Fixing Screw x6 (1x2-pin, 1x3-pin, 3x4-pin) Bracket Fixing Screw Cable Cover Quick Guide Open Source Software (Star Shaped) Guide NOTE Components may vary according to the installation environment. •... -
Page 6: Name And Function Of Each Part
Introduction Name and function of each part LED lamp Visual Camera Infrared Camera LCD screen Fingerprint sensor RF card and mobile access card authentication unit Speaker Ethernet Relay (3 pins) TTL Input (4 pins) Wiegand Input/Output Power Supply (2 pins) (4 pins) SAM card slot RS-485 (4 pins) - Page 7 Introduction Speaker Delivers sound. Ethernet Connect the Ethernet cable. TTL input (4 pins) Connect the TTL input cable. Relay (3 pins) Connect the relay cable. Wiegand input/output Connect the Wiegand input/output cable. (4 pins) Power supply (2 pins) Connect the power supply cable. RS-485 (4 pins) Connect the RS-485 cable.
-
Page 8: Cables And Connectors
Introduction Cables and connectors Power supply Name Color PWR +VDC Red (white stripe) PWR GND Black (white stripe) Relay Name Color RLY NO White RLY COM Blue RLY NC Orange RS-485 Name Color 485 TRXP Blue 485 TRXN Yellow 485 GND Black SH GND Gray... -
Page 9: Correct Face Registration And Authentication Method
Introduction Correct face registration and authentication method Cautions for registering a face When registering a face, maintain a distance of 60 cm to 100 cm between the device and the face. • Be careful not to change the facial expression. •... -
Page 10: Fingerprint Enroll Method
Introduction Fingerprint enroll method When a message saying “ Place your finger on the sensor.” is displayed on the LCD screen for enrolling the fingerprint, place the finger with the fingerprint you wish to enroll on the fingerprint authentication unit and press the finger gently for better authentication. -
Page 11: Installation
Installation Installation Fixing the bracket and the product Determine the correct position to install the product using the provided drilling template. NOTE The optimal height for installing device is 124 cm. • Install the device where it does not reach the direct sunlight or UV light. •... - Page 12 Distance 100 mm 200 mm 120 mm 180 mm 150 mm 150 mm • When using Suprema Mobile Access, install a minimum distance of 1 m between devices to avoid BLE interference. Install FaceStation F2 onto the fixed bracket. Wall...
- Page 13 Installation Connect FaceStation F2 to the bracket by rotating the product fixing screw of FaceStation F2. Wall...
-
Page 14: Power Supply Connection
Installation Power supply connection (Optional) DC power 1 - PWR +VDC Red (White stripe) 2 - PWR GND Black (White stripe) FaceStation F2 NOTE Use a power supply adapter of DC 24 V or DC 12 V (± 10%) with a minimum of 2,500 mA which has obtained the approval of •... -
Page 15: Network Connection
Installation Network connection TCP/IP LAN connection (connecting to a hub) You can connect the product to a hub using a general type CAT-5e cable. FaceStation F2 LAN connection (connecting to a PC directly) FaceStation F2 has an automatic MDI/MDIX function so that it can be connected to a PC directly using a normal straight type CAT-5e cable or a cross cable. -
Page 16: Ttl Input Connection
Installation TTL input connection Cable shield (optional) Door sensor Door button 1 - TTL IN0 2 - TTL IN1 Yellow 3 - TTL GND Black 4 - SH GND Gray FaceStation F2... -
Page 17: Relay Connection
For such applications, it is highly recommended to use a separate relay unit for a lock control such as Suprema's Secure I/O 2, DM-20 or CoreStation installed at a secure side of a door. -
Page 18: Automatic Door Connection
For such applications, it is highly recommended to use a separate relay unit for a lock control such as Suprema's Secure I/O 2, DM-20 or CoreStation installed at a secure side of a door. -
Page 19: Connecting As A Standalone
For such applications, it is highly recommended to use a separate relay unit for a lock control such as Suprema's Secure I/O 2, DM-20 or CoreStation installed at a secure side of a door. -
Page 20: Connecting To Secure I/O 2
Also note that the number of slave devices affects the authentication speed. A master device can control 31 slave devices. The bandwidth of RS-485 allows for up to 7 fingerprint authentication devices to • be connected. For more information, contact the Suprema technical support team (support.supremainc.com). •... -
Page 21: Wiegand Connection
Installation Wiegand connection Use as a Wiegand input or output device Cable shield (optional) RFID reader Controller 1 - WG D0 Green 2 - WG D1 White 3 - WG GND Black 4 - SH GND Gray FaceStation F2... -
Page 22: Product Specifications
Live Face Detection Supported Image dimension 300 x 400 pixels Resolution 500 dpi Template SUPREMA / ISO19794-2, ANSI-378 Fingerprint Extractor / Matcher MINEX certified and compliant Sensor Certificates FBI PIV and FBI Mobile ID FAP20 Live Face Detection Supported (SW-based) Max. -
Page 23: Dimensions
Product specifications Dimensions (Unit: mm) 23.5 119.8 268.4 49.7 98.4 251.4... -
Page 24: Fcc Compliance Information
EU Declaration of Conformity (CE) This product is CE marked according to the provisions of the Radio Equipment Directive (RED) 2014/53/EU. Hereby, Suprema Inc. declares that this product is in compliance with the essential requirements and other relevant provisions of Radio Equipment Directive (RED) 2014/53/EU. -
Page 25: Appendices
• Do not use the product of Suprema under the situations related to medical, rescue of human lives, or maintenance of life, as a person may get injured or lose his/her life due to product malfunction. If an accident occurs while a consumer... - Page 26 Appendices the works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions of a program--to make sure it remains free software for all its users. We, the Free Software Foundation, use the GNU General Public License for most of our software;...
- Page 27 Appendices with a user through a computer network, with no transfer of a copy, is not conveying. An interactive user interface displays “ Appropriate Legal Notices” to the extent that it includes a convenient and prominently visible feature that (1) displays an appropriate copyright notice, and (2) tells the user that there is no warranty for the work (except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a copy of this License.
- Page 28 Appendices disclaim any intention to limit operation or modification of the work as a means of enforcing, against the work's users, your or third parties' legal rights to forbid circumvention of technological measures. 4. Conveying Verbatim Copies. You may convey verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice;...
- Page 29 Appendices Library, need not be included in conveying the object code work. A “ User Product” is either (1) a “ consumer product” , which means any tangible personal property which is normally used for personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling. In determining whether a product is a consumer product, doubtful cases shall be resolved in favor of coverage.
- Page 30 Appendices document, provided that the further restriction does not survive such relicensing or conveying. If you add terms to a covered work in accord with this section, you must place, in the relevant source files, a statement of the additional terms that apply to those files, or a notice indicating where to find the applicable terms. Additional terms, permissive or non-permissive, may be stated in the form of a separately written license, or stated as exceptions;...
- Page 31 Appendices claims, to make, use, sell, offer for sale, import and otherwise run, modify and propagate the contents of its contributor version. In the following three paragraphs, a “ patent license” is any express agreement or commitment, however denominated, not to enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement).
-
Page 32: Boringssl License
Appendices If the Program specifies that a proxy can decide which future versions of the GNU General Public License can be used, that proxy's public statement of acceptance of a version permanently authorizes you to choose that version for the Program. Later license versions may give you additional or different permissions. -
Page 33: Original Ssleay License
Appendices disclaimer. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. - Page 34 Appendices THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]...
- Page 35 Appendices ISC license used for completely new code in BoringSSL: Copyright (c) 2015, Google Inc. Permission to use, copy, modify, and/or distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies. THE SOFTWARE IS PROVIDED "AS IS"...
-
Page 36: Apache License
Appendices * Neither the name of Google Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. - Page 37 Appendices by Licensor and subsequently incorporated within the Work. 2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.
- Page 38 Appendices 9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.
- Page 39 Tel: +82 31 783 4502 I Fax: +82 31 783 4503 I Inquiry: sales_sys@supremainc.com ©2020 Suprema Inc. Suprema and identifying product names and numbers herein are registered trade marks of Suprema, Inc. All non-Suprema brands and product names are trademarks or registered trademarks of their respective companies. Product appearance, build status and/or specifications are subject to change without notice.
