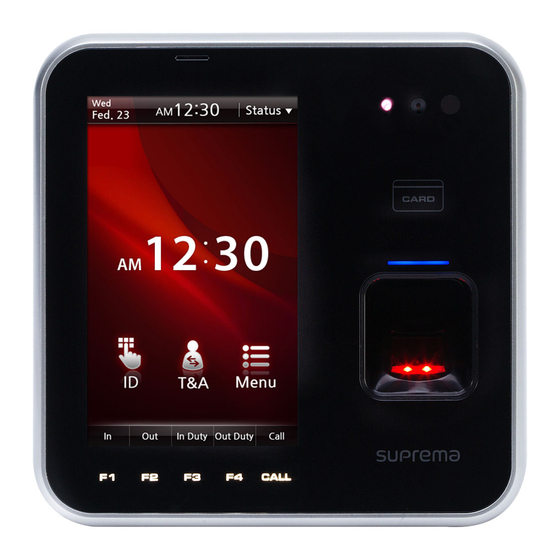

suprema BioStation T2 Installation Manual

suprema BioStation T2 Installation Manual

Innovative fingerprint terminal
Hide thumbs Also See for BioStation T2:

Advertisement

www.suprema.co.kr
BioStation T2
Innovative Fingerprint Terminal

Installation Guide

(ver 0.1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BioStation T2 and is the answer not in the manual?

Questions and answers

Summary of Contents for suprema BioStation T2

  • Page 1: Installation Guide

    BioStation T2 Innovative Fingerprint Terminal Installation Guide (ver 0.1)
  • Page 2: Product Contents

    Product Contents Basic Contents Product Contents Screw for fixing main body Wall mounting screws and holders - 4 ea Terminal Wall mounting metal bracket Ferrite Core Software CD 12V DC Adaptor Cables ⒸCopyright 2010 Suprema Inc.
  • Page 3: Optional Accessories

    Product Contents Optional accessories USB fingerprint scanner f or enrollment on PC Wireless LAN Access Point ⒸCopyright 2010 Suprema Inc.
  • Page 4: Cable And Connector Pinout

    Cable and Connector Pinout PIN DESCRIPTION NORMAL OPEN Relay COMMON NORMAL CLOSE PIN DESCRIPTION TRX - RS485 TRX + SHIELD GND ⒸCopyright 2010 Suprema Inc. Before Start...
  • Page 5 Cable and Connector Pinout PIN DESCRIPTION SWIN_IN0 SWIN_IN1 SHIELD_GND Switch Input SWIN_IN2 SWIN_IN3 SHIELD_GND PIN DESCRIPTION VDP_S VDP_VCC VDP_V VDP_OPEN SHIELD_GND PIN DESCRIPTION WIEGAND_D0 WIEGAND_D1 Wiegand SHIELD GND ⒸCopyright 2010 Suprema Inc. Before Start...
  • Page 6: Installation Example

    Installation Example 8P Cable Network HUB Ethernet 3P Cable Door Lock Exit Button Firmware Upgrade Only ⒸCopyright 2010 Suprema Inc.
  • Page 7: Product Dimension

    Product Dimension (unit : mm) 전면 ⒸCopyright 2010 Suprema Inc.
  • Page 8: Power Connection

    Power Connection Power connection Recommended 12V ± 10%, at least 1500mA for BioStation T2 alone installation. Comply with standard IEC/EN 60950-1 ⒸCopyright 2010 Suprema Inc.
  • Page 9: Lan Connection

    LAN Connection ⒸCopyright 2010 Suprema Inc.
  • Page 10: Rs485 Network Connection

    RS485 Network Connection ⒸCopyright 2010 Suprema Inc. Before Start...
  • Page 11: Relay Connection - Fail Safe Lock

    Relay Connection – Fail Safe Lock ⒸCopyright 2010 Suprema Inc.
  • Page 12: Relay Connection - Fail Secure Lock

    Relay Connection – Fail Secure Lock ⒸCopyright 2010 Suprema Inc.
  • Page 13: Relay Connection - Automatic Door

    Relay Connection - Automatic Door ⒸCopyright 2010 Suprema Inc.
  • Page 14: Ttl Input Port Connection - Rte Switches

    TTL Input Port Connection – RTE Switches ⒸCopyright 2010 Suprema Inc.
  • Page 15: Wiegand Input Connection - External Reader

    Wiegand Input Connection – External reader ⒸCopyright 2010 Suprema Inc.
  • Page 16: System Specifications

    Ethernet(10/100M) X 1ch ● Sound Out: System Sound용 Speaker X 2ea ● RF CARD : Mifare / EM ● Fingerprint Sensor : OC Sensor Model ● Power Input : 12Vdc Adaptor or POE Input 기 타 ⒸCopyright 2010 Suprema Inc.
  • Page 17: Fcc Rules

    2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help ⒸCopyright 2010 Suprema Inc.
  • Page 18: Electrical Specification

    Voltage (V) 10.8 13.2 Current (mA) 1000 TTL/Wiegand Input Pull-up resistance (Ω) TTL/Wiegand Output = -5mA = 5mA Output resistance (Ω) Relay 30V DC Switching capacity (A) 125V AC Switching power (resistive) 37.5VA Switching voltage (V) ⒸCopyright 2010 Suprema Inc.
  • Page 19 16F Parkview Office Tower, Jeongja-dong, Bundang-gu, Seongnam, Gyeonggi, 463-863 Korea E-mail : support@supremainc.com Website : www.supremainc.com Functions and specifications of the product are subject to changes without notice due to quality enhancement or function update. For any inquiry on the product, please contact Suprema Inc.
