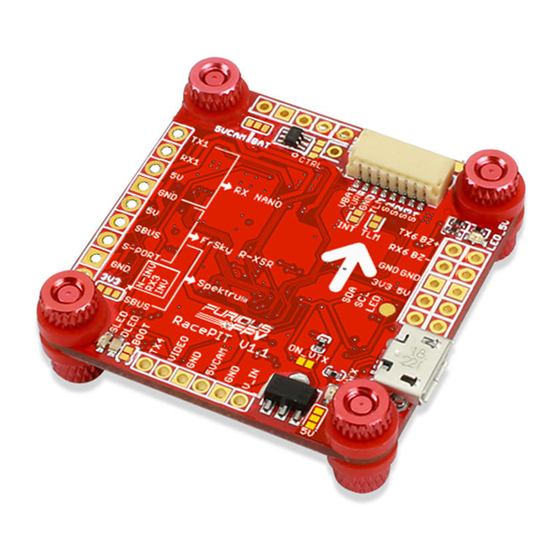

- Page 1 RACEPIT Flight Controller USER MANUAL Please contact us if you need further assistance: Tech support: tech@furiousfpv.com Sales support: sales@furiousfpv.com Website: http://furiousfpv.com/...
-
Page 2: Table Of Contents
CONTENTS Features ..............................2 Pinouts ..............................2 Dimensions ............................. 3 Connections Overview ........................... 3 Connections ............................4 Connect with Receivers ......................4 Spektrum Rx: ........................... 4 FrSky XSR Rx: ........................... 5 FrSky R-XSR Micro Rx: ......................6 ... -
Page 3: Features
Features STM32F405 main chip MPU6000 Gyroscope Built-in connector for 4-in-1 ESC as well as solder pads Built-in power switch for VTX, support 5V & Vbat Built-in Camera switcher Built-in 16MB Blackbox flash Full 6 UARTs for Simultaneous Connections of Runcam Device, GPS, CRSF Rx, Bluetooth and others ... -
Page 4: Dimensions
Dimensions Connections Overview... -
Page 5: Connections
Connections *WARNING: FC can support up to 6S, but make sure that other devices connected to VBAT also supports it. Connect with Receivers Spektrum Rx:... -
Page 6: Frsky Xsr Rx
FrSky XSR Rx: Note: If telemetry is not working with the FC, please update the firmware for the Rx SBUS protocol... -
Page 7: Frsky R-Xsr Micro Rx
FrSky R-XSR Micro Rx: Note: If telemetry is not working with the FC, please update the firmware for the Rx SBUS protocol... - Page 8 F.Port protocol *Note: Make sure your Rx is running F.Port protocol firmware, R-XSR Firmware: 190311 Link download Firmware: https://www.frsky-rc.com/wp-content/uploads/Downloads/Firmware/R- XSR/FW- RXSR-FPORT-190311.zip...
-
Page 9: Tbs Crossfire Nano Rx
TBS Crossfire Nano Rx:... -
Page 10: Connect With Video Transmitters
Connect with Video Transmitters Build-in power switch for VTX: Note: From factory, the VTX power jumper is set to always ON, desolder the jumper to use the power switch. Stealth Long Range 5.8GHz VTX:... -
Page 11: Using Tramp Hv Vtx
Using Tramp HV VTX: Using TBS Unify Pro 5G8 HV SE VTX:... -
Page 12: Using Tbs Unify Pro Nano 5G8 Vtx
Using TBS Unify Pro Nano 5G8 VTX: Using TBS Unify Pro 5G8 HV Race 2 VTX:... -
Page 13: Camera Connections
Camera Connections Built-in Camera switcher: Note: When USER2 is not enabled, the VTX will get the video signal from Camera 1, and when using dual cameras they need to be powered from VBat (not on 5 volt) Using with FOXEER (Arrow Mini, Arrow Micro, Monster) -
Page 14: Bluetooth Connection
Using with Caddx SDR2 Plus Race Bluetooth Connection... -
Page 15: Connect With Esc 4 In 1
How to use Speedy Bee App Step 1: Open Speedy Bee App. Step 2: Tap to start scanning. Step 3: Select the Bluetooth name. Step 4: Configure the Flight Controller. Connect with ESC 4 in 1 *WARNING: FC can support up to 6S, but make sure that other devices connected to VBAT also supports it. -
Page 16: Hobbywing Xrotor Micro 45A 3-6S
Hobbywing XRotor Micro 45A 3-6S:... -
Page 17: Aikon Ak32 55A 3-6S
AIKON AK32 55A 3-6S:... -
Page 18: Dalrc Engine 40A Pro 3-5S
DALRC ENGINE 40A Pro 3-5S:... -
Page 19: T-Motor F45A 32Bit 6S
T-Motor F45A 32bit 6S:... -
Page 20: Holybro Tekko32 35A 3-6S
Holybro Tekko32 35A 3-6S:... -
Page 21: Holybro Tekko32F3 Metal 65A 4-6S
Holybro Tekko32F3 Metal 65A 4-6S:... -
Page 22: Anniversary Special Edition Racerstar Rev35 35A 3-6S
Anniversary Special Edition Racerstar REV35 35A 3-6S:... -
Page 23: Succex 60A V2 Plus 4-5S
SucceX 60A V2 Plus 4-5S:... -
Page 24: Tips
Tips How to flash firmware for Racepit Step 1: Hold Boot button on FC and plug into PC via USB cable to go into DFU mode Step 2: Turn on Full chip erase Step 3: Select target FF_RACEPIT Step 4: Choose new FW version for Flight Controller... - Page 25 Step 3: Click Connect on Betaflight interface then go to OSD tab. Enable the elements that you wish to use and drag them to a desired position on the preview display. Step 4: After configuring OSD please click Save to save your configuration. How to access camera settings by Transmitter Stick command: ...
- Page 26 How to access Betaflight OSD by Transmitter Stick command: THROTTLE MIDDLE + YAW LEFT + PITCH FULL + ROLL MIDDLE To navigate through menu: PITCH/ROLL sticks are used to navigate YAW stick is used to adjust / change values VTx configuration by Transmitter From Betaflight OSD menu use stick go to: Main menu >...
- Page 27 Select SA if using TBS Unify Pro VTx Select TR if using Stealth Long Range VTx or Tramp HV VTx STEALTH LONG RANGE VTX TRAMP HV VTX PIDs tuning on Betaflight OSD From Betaflight OSD menu use stick go to: Main menu > Profile > PID...
- Page 28 Thanks for using our product...
