Summary of Contents for Furious FPV RACEWHOOP

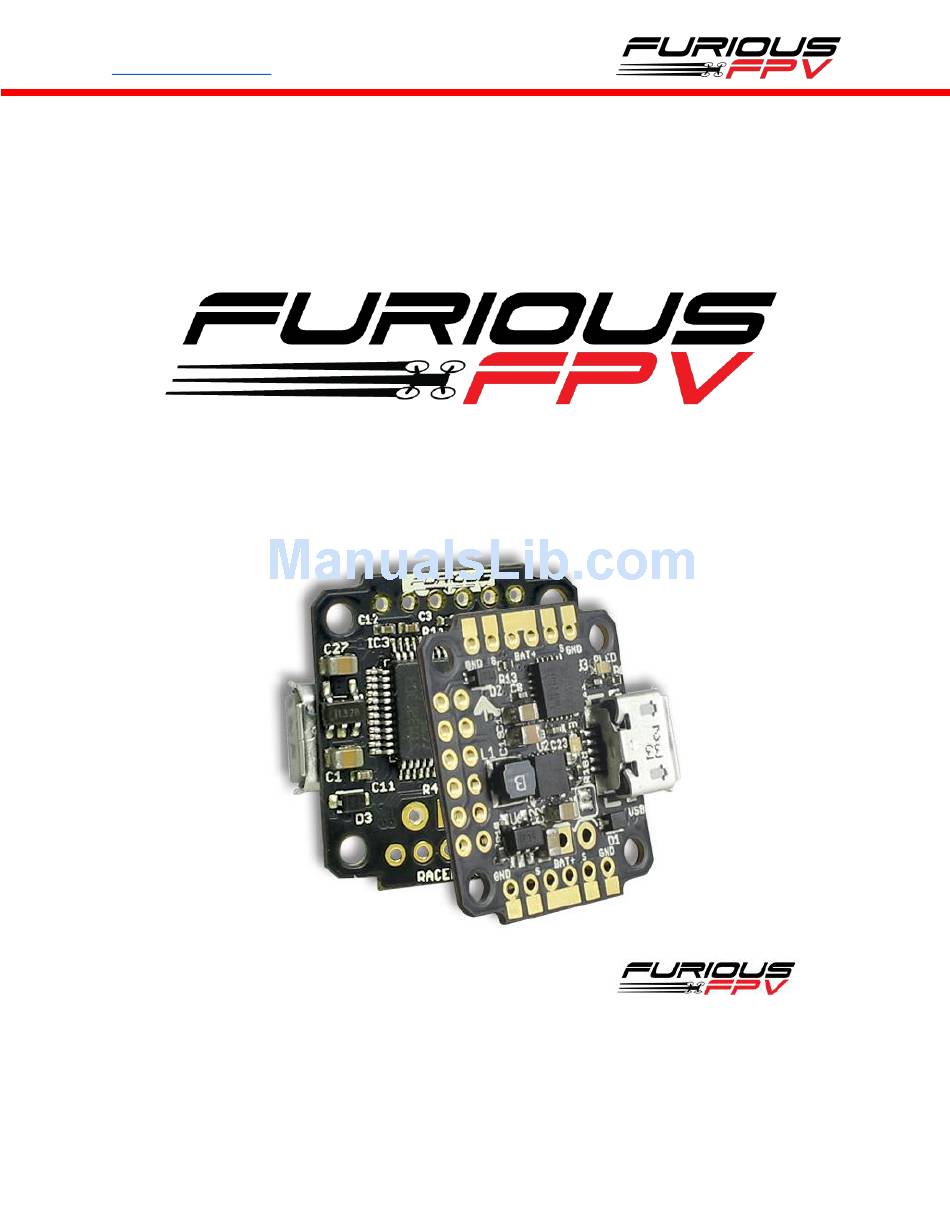

  • Page 1 RACEWHOOP Flight Controller – Manual User...

  • Page 2: Table Of Contents

    Diagram connection............................5 Connect with FrSky Receiver ........................5 FrSky XM+ receiver ..........................5 FrSky XM receiver ..........................5 Furious FPV FrSky LR1000 / LR1000D receiver ..................7 Satellite Spektrum ..........................8 Software ................................ 9 Firmware: ..............................9 Software: ..............................9...

  • Page 3: Features & Capabilities

    - Gold plated dads for the very best connectivity - Firmware perfection via CleanFlight & BetaFlight - Support telemetry - Full USB support - Ultra compact design for ease of installation - BLHeli ESC Pass through works fine on Racewhoop. - Receiver mode - serial based receiver...

  • Page 4: Serial Based Receiver Support

    http://furiousfpv.com/ Serial based receiver support If you are using SBus, iBus or a Spektrum Satellite, you will need to pick your Serial Receiver Provider. Follow this table: RX Type Serial Receiver Provider DSM2 Satellite SPEKTRUM1024 DSMX Satellite SPEKTRUM2048 FrSky RX SBUS Futaba RX SBUS...

  • Page 5: Diagram Connection

    http://furiousfpv.com/ Diagram connection. Connect with FrSky Receiver FrSky XM+ receiver FrSky XM receiver...
  • Page 6 http://furiousfpv.com/ Port configure: NOTE: When use FrSky XM / XM+ receiver you need TURN ON Sbus inversion in CLI tab. See guide set SBUS at here.

  • Page 7: Furious Fpv Frsky Lr1000 / Lr1000D Receiver

    Furious FPV FrSky LR1000 / LR1000D receiver Port configure: NOTE: When use FrSky XM / XM+ receiver you need TURN OFF Sbus inversion in CLI tab (Default is Turn Off). See guide set SBUS at here.

  • Page 8: Satellite Spektrum

    http://furiousfpv.com/ Satellite Spektrum Port configure: You can use Betaflight to bind receiver with transmitter with CLI. See clip guide Bind Satellite at here.

  • Page 9: Software

    Software Firmware: Acrowhoop FC use Betaflight hex you can download directly from FuriousFPV product page. Download at here Software: Download Betaflight Support: Sale: sales@furiousfpv.com Technical: tech@furiousfpv.com Facebook: Furious FPV Official Public Group...
