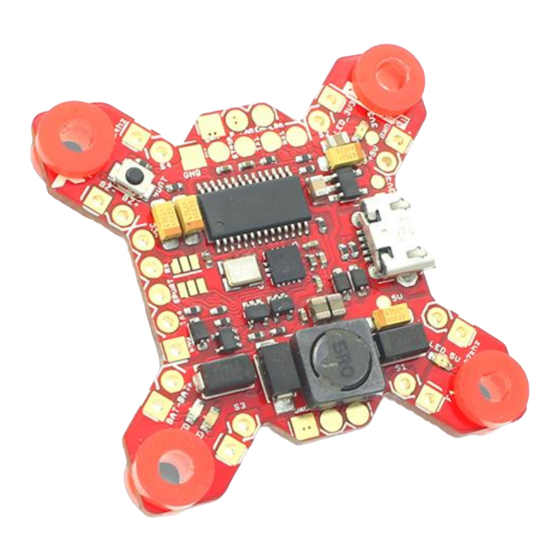

Furious FPV Fortini F4 OSD User Manual

Flight controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FORTINI F4 OSD
Flight Controller
USER MANUAL VERSION 1.1
Please contact us if you need further assistance:
Tech support:
Sales support:
Website:
http://furiousfpv.com/
tech@furiousfpv.com
sales@furiousfpv.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fortini F4 OSD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Furious FPV Fortini F4 OSD

Summary of Contents for Furious FPV Fortini F4 OSD

  • Page 1 FORTINI F4 OSD Flight Controller USER MANUAL VERSION 1.1 Please contact us if you need further assistance: Tech support: tech@furiousfpv.com Sales support: sales@furiousfpv.com Website: http://furiousfpv.com/...

  • Page 2: Table Of Contents

    Contents Contents ..............................1 Change Log .............................. 2 v1.1 ................................2 Introduction ............................3 Features ..............................3 Connections ............................5 Connect with Receiver: ........................5  Using SPD15 Receiver: ......................5  Using LR1000D Receiver: ......................6  Using XSR FrSky Receiver: ....................... 7 ...

  • Page 3: Change Log

    How to open Betaflight OSD by Transmitter ..................31 VTx configuration by Transmitter ..................... 32 PIDs tunning on Betaflight OSD ......................33 Change Log v1.1  Add External device: - Connect Runcam Split2 using Stealth Race VTx - Connect Runcam Split2 using Tramp HV VTx - Connect Runcam Split2 using TBS Unify Pro VTx - Connect with GPS...

  • Page 4: Introduction

    - simple and straightforward, just the way it should be. From PID's, camera settings, VTx power and beyond, the Fortini F4 OSD builds upon the previous F4 with powerful and easy to use operating capability without the need of a PC. Need more? We added a built in LC filter for even greater video image, allowing you to push the ragged edge with your next FPV ride.
  • Page 5 Pinout Dimensions...

  • Page 6: Connections

    Connections *WARNING: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it. Connect with Receiver:  Using SPD15 Receiver: You can buy SPD15 Receiver right here: https://goo.gl/FTnrpR...

  • Page 7: Using Lr1000D Receiver

     Using LR1000D Receiver: You can buy LR1000D Receiver right here: https://goo.gl/4Cr0Hl * NOTE: If you use LR1000D Receiver please go to CLI and type the following commands: set sbus_inversion = OFF save...

  • Page 8: Using Xsr Frsky Receiver

     Using XSR FrSky Receiver: *NOTE: If telemetry of XSR is not working with FORTINI F4 OSD, please update firmware for XSR receiver Download firmware here: https://goo.gl/t1LMT5  Using Spektrum Satellite Receiver:...

  • Page 9: Using Tbs Crossfire Receiver

     Using TBS Crossfire Receiver:...

  • Page 10: Connect With Video Transmitter

    Connect with Video Transmitter:  Using Stealth Race VTx:  Using 5V from VTx to power Camera *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.
  • Page 11  Using Battery from VTx to power Camera *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.

  • Page 12: Using Tramp Hv Vtx

     Using Tramp HV VTx:  Using 5V from VTx to power Camera *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.
  • Page 13  Using Battery from VTx to power Camera *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.

  • Page 14: Using Tbs Unify Pro Vtx

     Using TBS Unify Pro VTx:  Using 5V from VTx to power Camera *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.
  • Page 15  Using Battery from VTx to power Camera *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.

  • Page 16: Using Fx Fx799T

     Using FX FX799T:  Using 5V from VTx to power Camera *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.
  • Page 17  Using Battery from VTx to power Camera *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.

  • Page 18: External Device

    External Device:  Connect Runcam Split2 using Stealth Race VTx...

  • Page 19: Connect Runcam Split2 Using Tramp Hv Vtx

     Connect Runcam Split2 using Tramp HV VTx...

  • Page 20: Connect Runcam Split2 Using Tbs Unify Pro Vtx

     Connect Runcam Split2 using TBS Unify Pro VTx...

  • Page 21: Connect With Gps

     Connect with GPS...

  • Page 22: Connect With Lightning Pdb

    Connect with Lightning PDB: *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.

  • Page 23: Connect With Esc 4 In 1

    Connect with ESC 4 in 1  Using Aikon SEFM 30A: *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.

  • Page 24: Using Cicada 35X4 35A

     Using Cicada 35x4 35A: *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.

  • Page 25: Using T-Motor F 35A 4In1-4S

     Using T-Motor F 35A 4IN1-4S: *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.

  • Page 26: Using Hobbywing Xrotor Micro 40A 4In1

     Using Hobbywing XRotor Micro 40A 4in1: *NOTE: Fortini F4 OSD can support up to 6S Lipo battery but make sure other devices also support it.

  • Page 27: Basic Configuration

    Basic configuration Please follow carefully these next steps, and always remove your propellers when you’re configuring your quad STEP 1: Connect Fortini F4 OSD with computer via USB cable and then open BetaFlight STEP 2: Configure Ports. (1) Configure Receiver: ...
  • Page 28  Select TBS Smartaudio for TBS Unify Pro VTx * NOTE: Please make sure that all the connections are correct. STEP 3: Go to Configuration tab and choose ESC/Motor protocol in ESC/Motor Features STEP 4: Select Serial- based receiver in Receiver Mode...
  • Page 29 If you are using SBus, iBus or a Spektrum Satellite, you will need to pick your Serial Receiver Provider. Follow below table: RX Type Serial Receiver Provider DSM2 1024bit/22ms SPEKTRUM1024 DSM2 2048bit/11ms SPEKTRUM2048 DSMX 1024bit/22ms SPEKTRUM1024 DSMX 2048bit/11ms SPEKTRUM2048 FrSky RX SBUS Futaba RX SBUS...

  • Page 30: Tips

    Tips Guideline configuration OSD with BetaFlight STEP 1: Connect Fortini F4 OSD with PC via USB cable. STEP 2: Open Betaflight configurator on Google Chrome. STEP 3: Click Connect on Betaflight interface then go to OSD tab to configure. STEP 4: After configuring OSD please click Save to save your configuration.

  • Page 31: How To Open Camera Setting By Transmitter

    How to open camera setting by Transmitter Stick command:  THROTTLE MIDDLE  YAW RIGHT  PITCH MIDDLE  ROLL MIDDLE To navigate through menu:  PITCH/ROLL sticks are used to navigate  YAW stick is used to adjust / change values...
  • Page 32 How to open Betaflight OSD by Transmitter Stick command:  THROTTLE MIDDLE YAW LEFT + PITCH FULL + ROLL MIDDLE To navigate through menu:  PITCH/ROLL sticks are used to navigate  YAW stick is used to adjust / change values...
  • Page 33 VTx configuration by Transmitter From Betaflight OSD menu use stick go to: Main menu > Features  Select SA if using TBS Unify Pro VTx  Select TR if using Stealth Race VTx or Tramp HV VTx STEALTH RACE VTX TRAMP HV VTX...
  • Page 34 PIDs tunning on Betaflight OSD From Betaflight OSD menu use stick go to: Main menu > Profile > PID Thanks for using our product...
