Summary of Contents for Furious FPV RADIANCE DSHOT

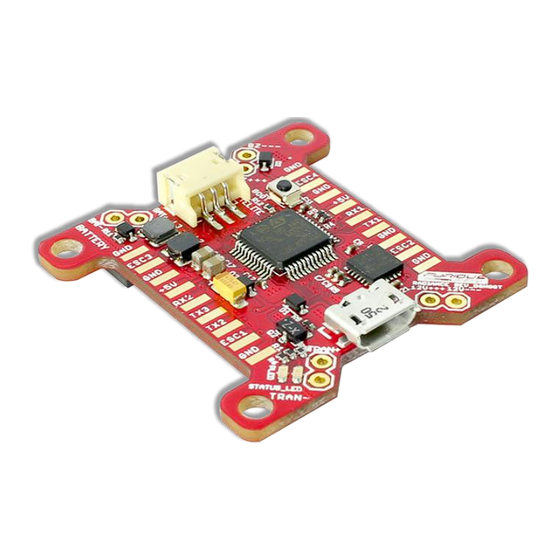

- Page 1 RADIANCE DSHOT VERSION Flight Controller USER MANUAL VERSION 1.1 Please contact us if you need further assistance: Tech support: tech@furiousfpv.com Sales support: sales@furiousfpv.com Website: http://furiousfpv.com/...
-
Page 2: Table Of Contents
Contents Change Log ......................2 Introduction ....................... 3 WHAT’S NEW RADIANCE DSHOT VERSION? ............3 Features ......................3 Connections ....................... 5 Connect with Receiver ..................5 Using SPD15 Receiver ................5 Using LR1000D Receiver ................ 6 Using XSR FrSky Receiver ............... 7 ... -
Page 3: Change Log
Change Log v1.1 Add guideline configuration OSD with TRUE VISION CONFIGURATOR V1.0 OSD Menu Index... -
Page 4: Introduction
Introduction The Furious FPV Radiance FC (Flight Controller) provides a blaze of feature packed brilliance that equates to the perfect fit for models utilizing their own PDB (power distribution board). Functionality is the key, but innovation is our specialty. The Radiance FC stacks with 4 in 1 ESC’s for perfect CG, allowing optimized acro flight. - Page 5 Board Layout Dimensions...
-
Page 6: Connections
Connections *WARNING: Radiance DShot Version can support up to 5s Lipo battery but make sure other devices also support it. Connect with Receiver: Using SPD15 Receiver: You can buy SPD15 Receiver right here: https://goo.gl/FTnrpR... -
Page 7: Using Lr1000D Receiver
Using LR1000D Receiver: You can buy LR1000D Receiver right here: https://goo.gl/4Cr0Hl * NOTE: If you use LR1000D Receiver please go to CLI and type the following commands: set sbus_inversion = OFF save... -
Page 8: Using Xsr Frsky Receiver
Using XSR FrSky Receiver: Using Spektrum Satellite Receiver:... -
Page 9: Connect With Video Transmitter
Connect with Video Transmitter: Using Tramp HV: With Piggy V2 OSD... - Page 10 With Only Camera...
-
Page 11: Using Tbs Unify Pro
Using TBS Unify Pro: With Piggy V2 OSD... - Page 12 With Only Camera...
-
Page 13: Using Fx Fx799T
Using FX FX799T: With Piggy V2 OSD... - Page 14 With Only Camera...
-
Page 15: Connect With Stack Mnova And Runcam
Connect with stack Mnova and Runcam: You can buy Mnova right here: https://goo.gl/JyQnds... -
Page 16: Connect With Other Devices
Connect with other devices: You can buy LED STRIP right here: https://goo.gl/TXwSwI... -
Page 17: Connect With Esc 4 In 1
Connect with ESC 4 in 1: Using Aikon SEFM 30A: You can buy ESC Aikon SEFM 30 4 in 1 right here: https://goo.gl/IOYBEr... -
Page 18: Using Cicada 35X4 35A
Using Cicada 35x4 35A: You can buy ESC Sunrise Cicada 35x4 35A right here: https://goo.gl/s08OaI... -
Page 19: Using T-Motor F 35A 4In1-4S
Using T-Motor F 35A 4IN1-4S: You can buy ESC F 35A 4in1-4S right hexre: https://goo.gl/QyM3eh... -
Page 20: Basic Setup
Basic setup Please, follow carefully these next steps, and always remove your propellers when you’re configuring your quad STEP 1: Connect Radiance DS with the computer via USB cable and then open BetaFlight STEP 2: Configure Ports. (1) Turn on MSP of UART 1 to use OSD. (2) Turn on Serial Rx of UART 2 to use Receiver Mode (3) Select SmartPort of UART 3 to use S.Port of Receiver. -
Page 21: Tips
If you are using SBus, iBus or a Spektrum Satellite, you will need to pick your Serial Receiver Provider. Follow this table: RX Type Serial Receiver Provider DSM2 1024bit/22ms SPEKTRUM1024 DSM2 2048bit/11ms SPEKTRUM2048 DSMX 1024bit/22ms SPEKTRUM1024 DSMX 2048bit/11ms SPEKTRUM2048 FrSky RX SBUS Futaba RX SBUS... - Page 22 Then go to the Configuration tab. Under the section labeled “Receiver”, pick Serial Receiver Provider compare with your RX Type. RX Type Serial Receiver Provider DSM2 1024bit/22ms SPEKTRUM1024 DSM2 2048bit/11ms SPEKTRUM2048 DSMX 1024bit/22ms SPEKTRUM1024 DSMX 2048bit/11ms SPEKTRUM2048 Click “Save”. Finally, go to the Receiver tab. Pull down the drop down that says “Channel Map” and select the “JR / Spektrum / Graupner”...
-
Page 23: How To Turn On Bind Mode
How to turn on bind mode NOTE: Plug battery to the quad during setup. Connect quadcopter to the computer and go to Command-line interface (CLI) tab. Remember to type “save” and hit enter after these commands have been executed. Type in the commands as pictured above, or copy and paste them from below: set spektrum_sat_bind=9 set spektrum_sat_bind_autorst=0 save... -
Page 24: Guideline Configuration Osd With True Vision Configurator V1.0
Guideline configuration OSD with TRUE VISION CONFIGURATOR V1.0 Serial Pass Through don’t need CLI in Betaflight DOWNLOAD: Guideline install and configuration TRUE VISION CONFIGURATOR STEP 1: Connect Radiance DS (connected with VTX/OSD) with PC via USB cable. Then plug battery for FC. STEP 2: Open True Vision Configurator on google chrome. -
Page 25: How To Open Piggy Osd Menu By Transmitter
How to open VTX/OSD menu by Transmitter To access the in-built OSD menu in MW-OSD, disarm your quadcopter first. THROTTLE MIDDLE YAW RIGHT PITCH FULL To navigate through menu in the OSD: PITCH/ROLL sticks are used to navigate ... - Page 26 Thanks for using our product...
