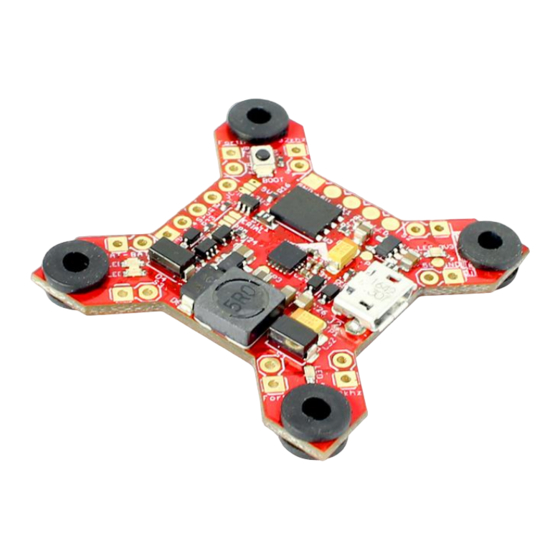

Furious FPV FORTINI F4 User Manual

Flight controller
Hide thumbs Also See for FORTINI F4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
FORTINI F4
Flight Controller
USER MANUAL VERSION 1.0
Please contact us if you need further assistance:
Tech support:
tech@furiousfpv.com
Sales support:
sales@furiousfpv.com
Website:
http://furiousfpv.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FORTINI F4 and is the answer not in the manual?

Questions and answers

Related Manuals for Furious FPV FORTINI F4

Summary of Contents for Furious FPV FORTINI F4

  • Page 1 FORTINI F4 Flight Controller USER MANUAL VERSION 1.0 Please contact us if you need further assistance: Tech support: tech@furiousfpv.com Sales support: sales@furiousfpv.com Website: http://furiousfpv.com/...

  • Page 2: Table Of Contents

    Contents Introduction ....................... 2 Features ......................2 Connections ....................... 4 Connect with Receiver ..................4  Using SPD15 Receiver ................4  Using LR1000D Receiver ................ 5  Using XSR FrSky Receiver ............... 6  Using Spektrum Satellite Receiver ............6 Connect with Video Transmitter ..............

  • Page 3: Introduction

    Flight Controller the FPV market has ever seen. Hold on - you don't want to miss this. Enter the all new Fortini F4 - the culmination of years of research and application as we push forward into the outer limits of FPV. With a new high performance, low noise 32kHz Invensense 20602 gyro that features ultra-high sensitivity, this FC is designed for outright performance, offering ultra- crisp flight characteristics that will be felt in every move you make.
  • Page 4  LED Driver for WS2812b programmable LED  Integrated buzzer driver  Built-in BEC 5V-2A supports direct 2-6S Lipo connection  Inrush Voltage Protection Input and Output by Transient Voltage SuppressorBoard Layout  Weight: 5.5gr Dimensions...

  • Page 5: Connections

    Connections Connect with Receiver: *WARNING: Fortini F4 can support up to 6s Lipo battery but make sure other devices also support it.  Using SPD15 Receiver: * NOTE: If you are using S.Port with firmware 3.1.7, please enter CLI mode and...

  • Page 6: Using Lr1000D Receiver

     Using LR1000D Receiver: * NOTE: If you are using S.Port with firmware 3.1.7, please enter CLI mode and type the following commands: set sport_halfduplex = OFF save You can buy LR1000D Receiver right here: https://goo.gl/4Cr0Hl * NOTE: If you use LR1000D Receiver please go to CLI and type the following commands: set sbus_inversion = OFF save...

  • Page 7: Using Xsr Frsky Receiver

     Using XSR FrSky Receiver: * NOTE: If you are using S.Port with firmware 3.1.7, please enter CLI mode and type the following commands: set sport_halfduplex = OFF save  Using Spektrum Satellite Receiver:...

  • Page 8: Connect With Video Transmitter

    Connect with Video Transmitter:  Using Tramp HV:  With Piggy V2 OSD...
  • Page 9  With Only Camera...

  • Page 10: Using Tbs Unify Pro

     Using TBS Unify Pro:  With Piggy V2 OSD...
  • Page 11  With Only Camera...

  • Page 12: Using Fx Fx799T

     Using FX FX799T:  With Piggy V2 OSD...
  • Page 13  With Only Camera...

  • Page 14: Connect With Stack Mnova And Runcam

    Connect with stack Mnova and Runcam : * WARNING: Mnova is only compatible with 5V. Please solder only to 5V pad if using Mnova You can buy Mnova right here: https://goo.gl/JyQnds...

  • Page 15: Connect With Other Devices

    Connect with other devices: You can buy LED STRIP right here: https://goo.gl/TXwSwI...

  • Page 16: Connect With Esc 4 In 1

    Connect with ESC 4 in 1  Using Aikon SEFM 30A: You can buy ESC Aikon SEFM 30 4 in 1 right here: https://goo.gl/IOYBEr...

  • Page 17: Using Cicada 35X4 35A

     Using Cicada 35x4 35A: You can buy ESC Sunrise Cicada 35x4 35A right here: https://goo.gl/s08OaI...

  • Page 18: Using T-Motor F 35A 4In1-4S

     Using T-Motor F 35A 4IN1-4S: You can buy ESC F 35A 4in1-4S right hexre: https://goo.gl/QyM3eh...

  • Page 19: Basic Setup

    Please, follow carefully these next steps, and always remove your propellers when you’re configuring your quad STEP 1: Connect Fortini F4 with computer via USB cable and then open BetaFlight STEP 2: Configure Ports. (1) Turn on MSP of UART 1 to use OSD.
  • Page 20 STEP 3: Go to Configuration tab and choose ESC/Motor protocol in ESC/Motor Features STEP 4: Select Serial- based receiver in Receiver Mode If you are using SBus, iBus or a Spektrum Satellite, you will need to pick your Serial Receiver Provider. Follow below table: RX Type Serial Receiver Provider...

  • Page 21: Tips

    Tips How to configure your Spektrum RX with your Flight Controller In Betaflight Configurator:  Go to the Ports tab  Enable “Serial RX” on the UART 3 Click “Save”. Then go to the Configuration tab. Under the section labeled “Receiver”, pick Serial Receiver Provider compare with your RX Type.

  • Page 22: How To Open Piggy Osd Menu By Transmitter

    Click “Save”. Finally, go to the Receiver tab. Pull down the drop down that says “Channel Map” and select the “JR / Spektrum / Graupner” option Once again, click “Save”. How to open Piggy OSD menu by Transmitter To access the in-built OSD menu in MW-OSD, disarm your quadcopter first. ...
  • Page 23 Thanks for using our product...
