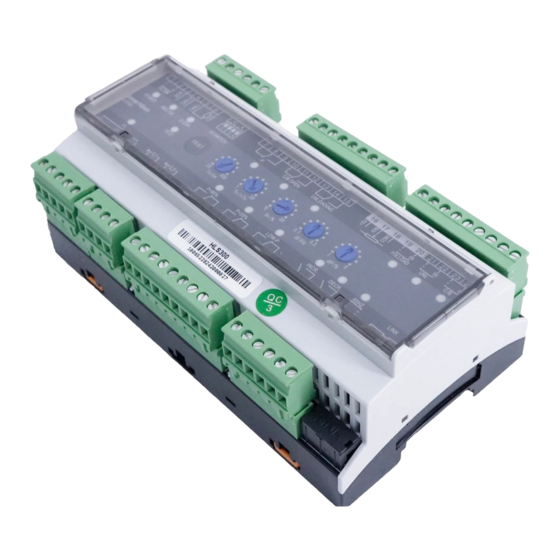

Smartgen HLS300 User Manual

Power share module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HLS300
POWER SHARE MODULE
USER MANUAL
SMARTGEN (ZHENGZHOU) TECHNOLOGY CO.,LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HLS300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smartgen HLS300

Summary of Contents for Smartgen HLS300

  • Page 1 HLS300 POWER SHARE MODULE USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO.,LTD.
  • Page 2 SmartGen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Table 1 - Software Version Date...
  • Page 3 Table 2 – Symbolic Description Sign Instruction Highlights an essential element of a procedure to ensure correctness. NOTE Indicates a procedure or practice, which, if not strictly observed, could result in CAUTION! damage or destruction of equipment.

  • Page 4: Table Of Contents

    HLS300 Power Share Module User Manual CONTENT 1 OVERVIEW ..............................5 2 PERFORMANCE AND CHARACTERISTICS ................... 5 3 SPECIFICATION ............................5 4 PANEL INDICATORS AND TERMINALS DESCRIPTION ................ 6 5 SCOPES AND DEFINITIONS OF PROGRAMMABLE PARAMETERS ..........10 6 FUNCTION DESCRIPTION ........................11 INSTRUCTION ..........................

  • Page 5: Overview

    HLS300 Power Share Module User Manual OVERVIEW HLS300 Power Share Module is a special design for genset power share. On the basis of the set parameters, the module conducts automatically power share in genset running process. The main function of HLS300 module is to share active load to each operating genset according to genset capacitance.

  • Page 6: Panel Indicators And Terminals Description

    HLS300 Power Share Module User Manual PANEL INDICATORS AND TERMINALS DESCRIPTION Fig.1 - Mask Drawing Table 4 - LEDs Definition Description Indicator Color Description Note Power Green Power indicator, the lamp illuminates when the power is normal. MSC communication normal indicator, and it shall flash once for...

  • Page 7: Hls300 Power Share Module

    HLS300 Power Share Module User Manual Table 5 - Potentiometer Description Potentiometer Range Description Note TN/ms control pulse (25-500)ms Control min. lasting time of pulse. length Tp/×TN (1-20)TN Adjustable speed pulse period=Tp×T In this area, pulse width and deviation value Xp/% proportion (0-±...

  • Page 8: Hls300 Power Share Module

    HLS300 Power Share Module User Manual Function Cable Note Main switch close input, active when it is short 1.0mm circuit. 1.0mm 1.0mm AC input. 1.0mm Externally connected to secondary coil of current CT A Phase Input 2.5mm transformer (rated 5A).
  • Page 9 HLS300 Power Share Module User Manual Fig.2 - PC Programming Connection Type NOTE: About PC program connection, please connect SG72 module Link port with LINK port of this module. Through the PC software of our company, parameters can be set. Please see Fig. 2.

  • Page 10: Scopes And Definitions Of Programmable Parameters

    HLS300 Power Share Module User Manual SCOPES AND DEFINITIONS OF PROGRAMMABLE PARAMETERS Table 7 – Module Configurable Parameters Items Parameters Defaults Description AC System (0-1) 0: 3P3W, 1: 1P2W Rated Voltage (30-30000) V Volt Trans. (0-1) 0: Disabled 1: Enabled Volt Trans.

  • Page 11: Function Description

    FUNCTION DESCRIPTION 6.1 INSTRUCTION The function of HLS300 Power Share Module is to proportionally share active load to each operating genset according to genset capacitance. When ―FIXLOAD‖ is active, the module works in fixed power mode; otherwise the module works in power share mode. Press button for 3s, and it will enter into test mode, which is used to test relay output and indicator status.

  • Page 12: Typical Diagram

    HLS300 Power Share Module User Manual TYPICAL DIAGRAM Fig.3 - HLS300 3Phase 3Wire Typical Application Fig.4 - HSM300-HLS300 3Phase 3Wire Typical Application HLS300 Power Share Module Version 1.4 2019-05-16 Page 12 of 14...

  • Page 13: Case Dimension

    HLS300 Power Share Module User Manual Fig.5 - HSM300-HLS300-HEP300 3Phase 3Wire Typical Application CASE DIMENSION Fig.6 – Overall Dimensions HLS300 Power Share Module Version 1.4 2019-05-16 Page 13 of 14...

  • Page 14: Installation Precautions

    HLS300 Power Share Module User Manual INSTALLATION PRECAUTIONS 9.1 OUTPUT AND EXPAND RELAYS All outputs are relay contact output type. If it needs to expand the relays, please add freewheel diode to both ends of expand relay’s coils (when coils of relay have DC current) or, add resistance-capacitance return circuit (when coils of relay have AC current), in order to prevent disturbance for controller or other equipments.
