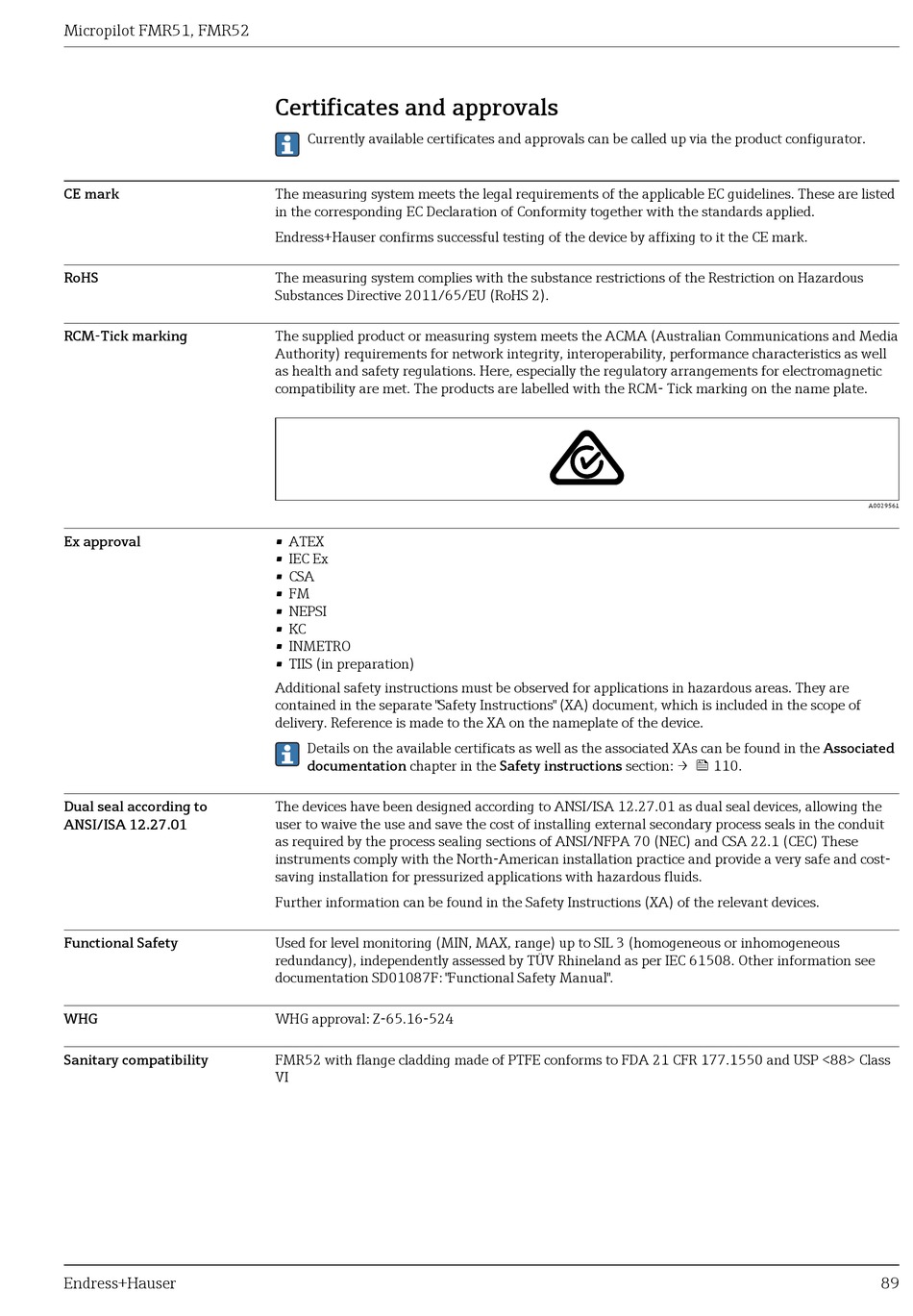

Certificates And Approvals; Ce Mark; Rohs; Rcm-Tick Marking - Endress+Hauser Micropilot FMR51 Technical Information

Micropilot FMR51, FMR52

CE mark

RoHS

RCM-Tick marking

Ex approval

Dual seal according to
ANSI/ISA 12.27.01

Functional Safety

WHG

Sanitary compatibility

Endress+Hauser

Certificates and approvals

Currently available certificates and approvals can be called up via the product configurator.
The measuring system meets the legal requirements of the applicable EC guidelines. These are listed
in the corresponding EC Declaration of Conformity together with the standards applied.
Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.
The measuring system complies with the substance restrictions of the Restriction on Hazardous
Substances Directive 2011/65/EU (RoHS 2).
The supplied product or measuring system meets the ACMA (Australian Communications and Media
Authority) requirements for network integrity, interoperability, performance characteristics as well
as health and safety regulations. Here, especially the regulatory arrangements for electromagnetic
compatibility are met. The products are labelled with the RCM- Tick marking on the name plate.
• ATEX
• IEC Ex
• CSA
• FM
• NEPSI
• KC
• INMETRO
• TIIS (in preparation)
Additional safety instructions must be observed for applications in hazardous areas. They are
contained in the separate "Safety Instructions" (XA) document, which is included in the scope of
delivery. Reference is made to the XA on the nameplate of the device.
Details on the available certificats as well as the associated XAs can be found in the Associated
documentation chapter in the Safety instructions section: →  110.
The devices have been designed according to ANSI/ISA 12.27.01 as dual seal devices, allowing the
user to waive the use and save the cost of installing external secondary process seals in the conduit
as required by the process sealing sections of ANSI/NFPA 70 (NEC) and CSA 22.1 (CEC) These
instruments comply with the North-American installation practice and provide a very safe and cost-
saving installation for pressurized applications with hazardous fluids.
Further information can be found in the Safety Instructions (XA) of the relevant devices.
Used for level monitoring (MIN, MAX, range) up to SIL 3 (homogeneous or inhomogeneous
redundancy), independently assessed by TÜV Rhineland as per IEC 61508. Other information see
documentation SD01087F: "Functional Safety Manual".
WHG approval: Z-65.16-524
FMR52 with flange cladding made of PTFE conforms to FDA 21 CFR 177.1550 and USP <88> Class
VI
A0029561
89
