Micropilot FMR51, FMR52
Endress+Hauser
PROFIBUS PA / FOUNDATION Fieldbus
5
4
3+
4-
1
3+
4-
1
7

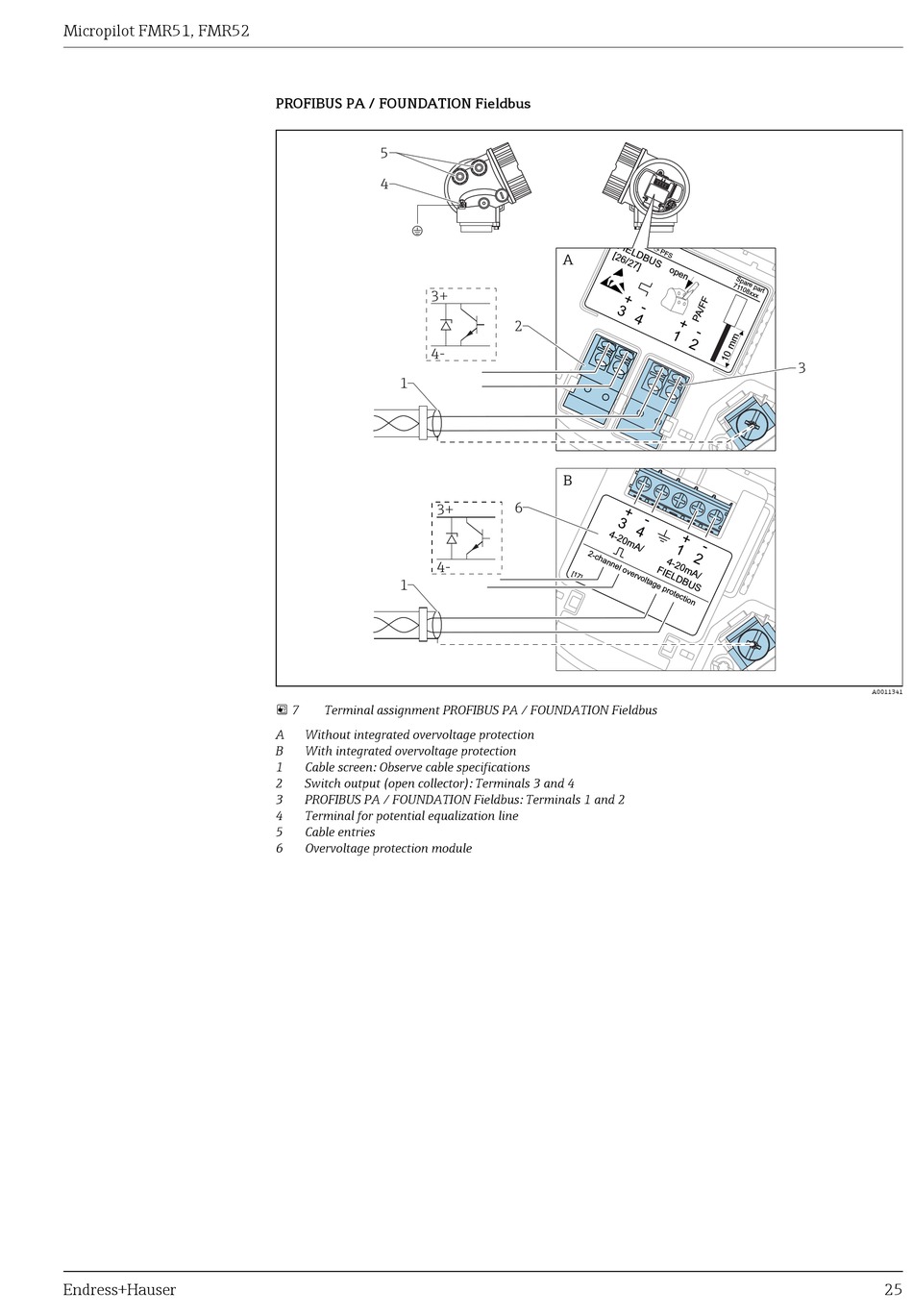

Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus
A
Without integrated overvoltage protection
B
With integrated overvoltage protection
1
Cable screen: Observe cable specifications
2
Switch output (open collector): Terminals 3 and 4
3
PROFIBUS PA / FOUNDATION Fieldbus: Terminals 1 and 2
4
Terminal for potential equalization line
5
Cable entries
6
Overvoltage protection module
A
2
B
6
3
A0011341
25
