Installation conditions

36

Installation

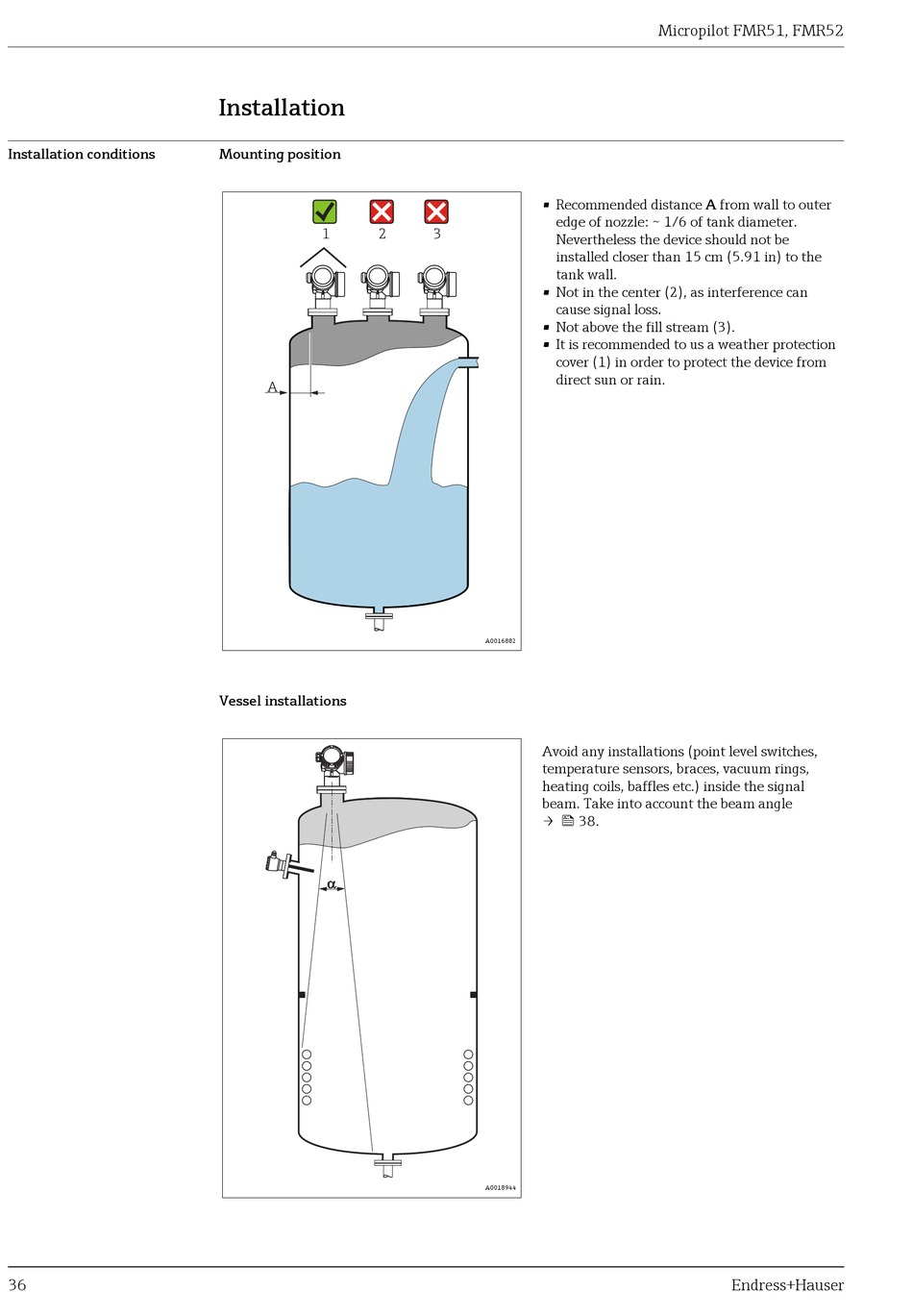

Mounting position
1 2
A
Vessel installations
• Recommended distance A from wall to outer
edge of nozzle: ~ 1/6 of tank diameter.
3
Nevertheless the device should not be
installed closer than 15 cm (5.91 in) to the
tank wall.
• Not in the center (2), as interference can
cause signal loss.
• Not above the fill stream (3).
• It is recommended to us a weather protection
cover (1) in order to protect the device from
direct sun or rain.
A0016882
Avoid any installations (point level switches,
temperature sensors, braces, vacuum rings,
heating coils, baffles etc.) inside the signal
beam. Take into account the beam angle
→  38.
A0018944
