Micropilot FMR51, FMR52
Endress+Hauser
Via FOUNDATION Fieldbus
FF-HSE
LD
4
3
BT
PS
1
2

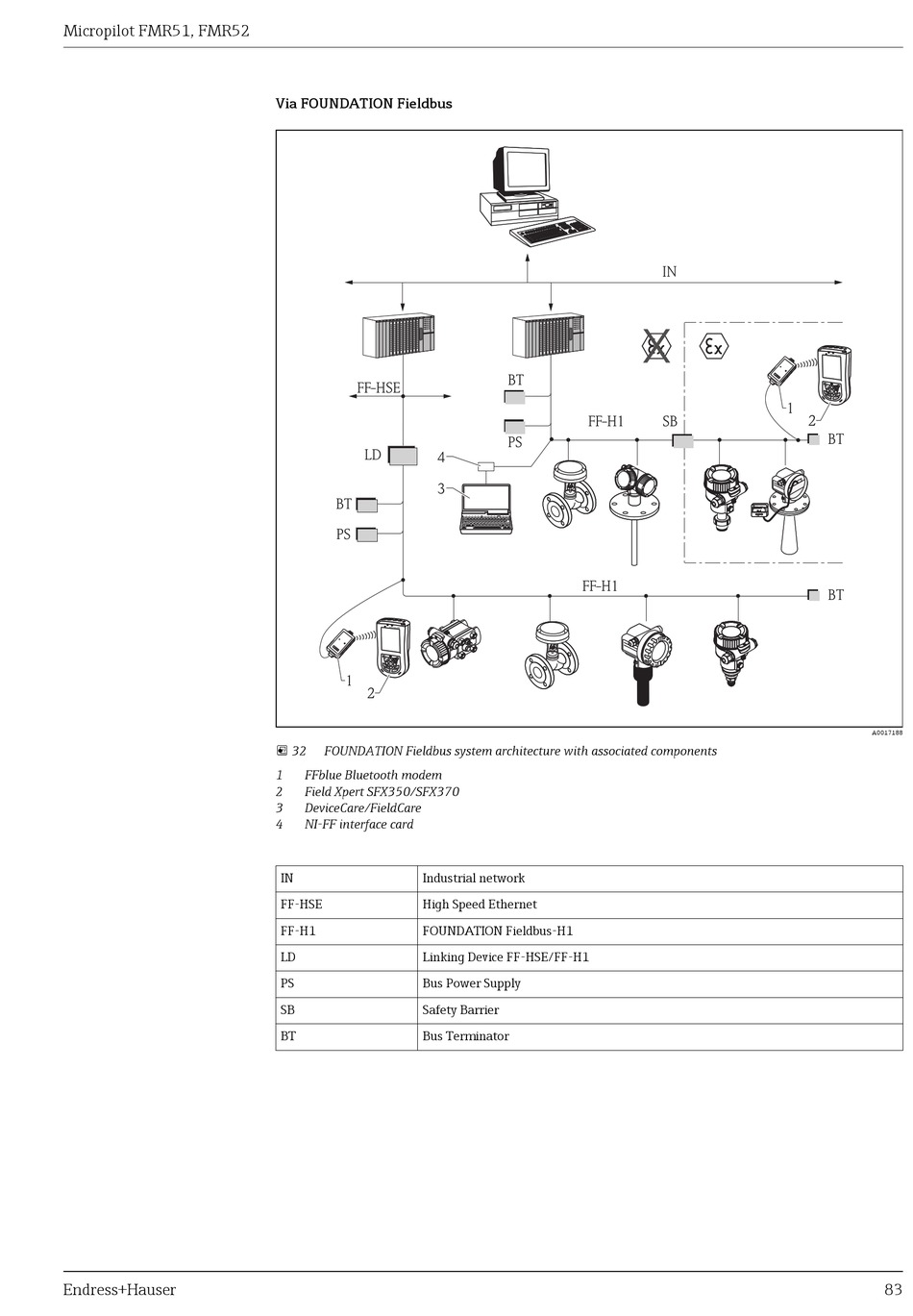

 32 FOUNDATION Fieldbus system architecture with associated components
1 FFblue Bluetooth modem
2 Field Xpert SFX350/SFX370
3 DeviceCare/FieldCare
4 NI-FF interface card
IN Industrial network
FF-HSE High Speed Ethernet
FF-H1 FOUNDATION Fieldbus-H1
LD Linking Device FF-HSE/FF-H1
PS Bus Power Supply
SB Safety Barrier
BT Bus Terminator
IN
BT
SB
FF-H1
PS
FF-H1
1
2
BT
ENDRESS + HAUSER
%
– + E
BT
A0017188
