PELLET STOvES USER MANUAL
UK

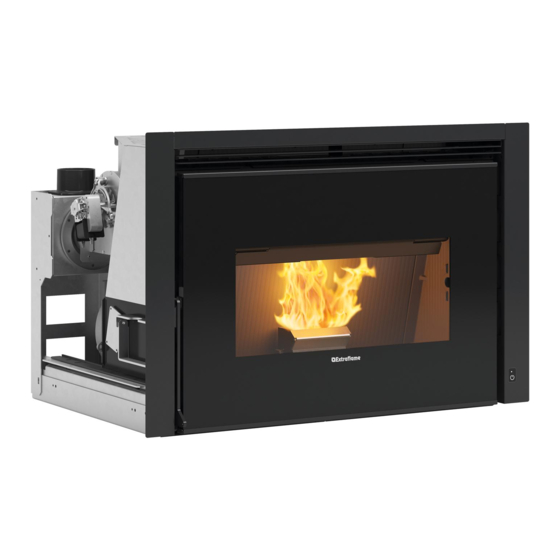

INSERTO COMFORT P85 - P85 PLUS
MADE
IN
ITALY
design & production
004277958 - Rev 000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMFORT P85 and is the answer not in the manual?

Questions and answers

Related Manuals for Extraflame COMFORT P85

Summary of Contents for Extraflame COMFORT P85

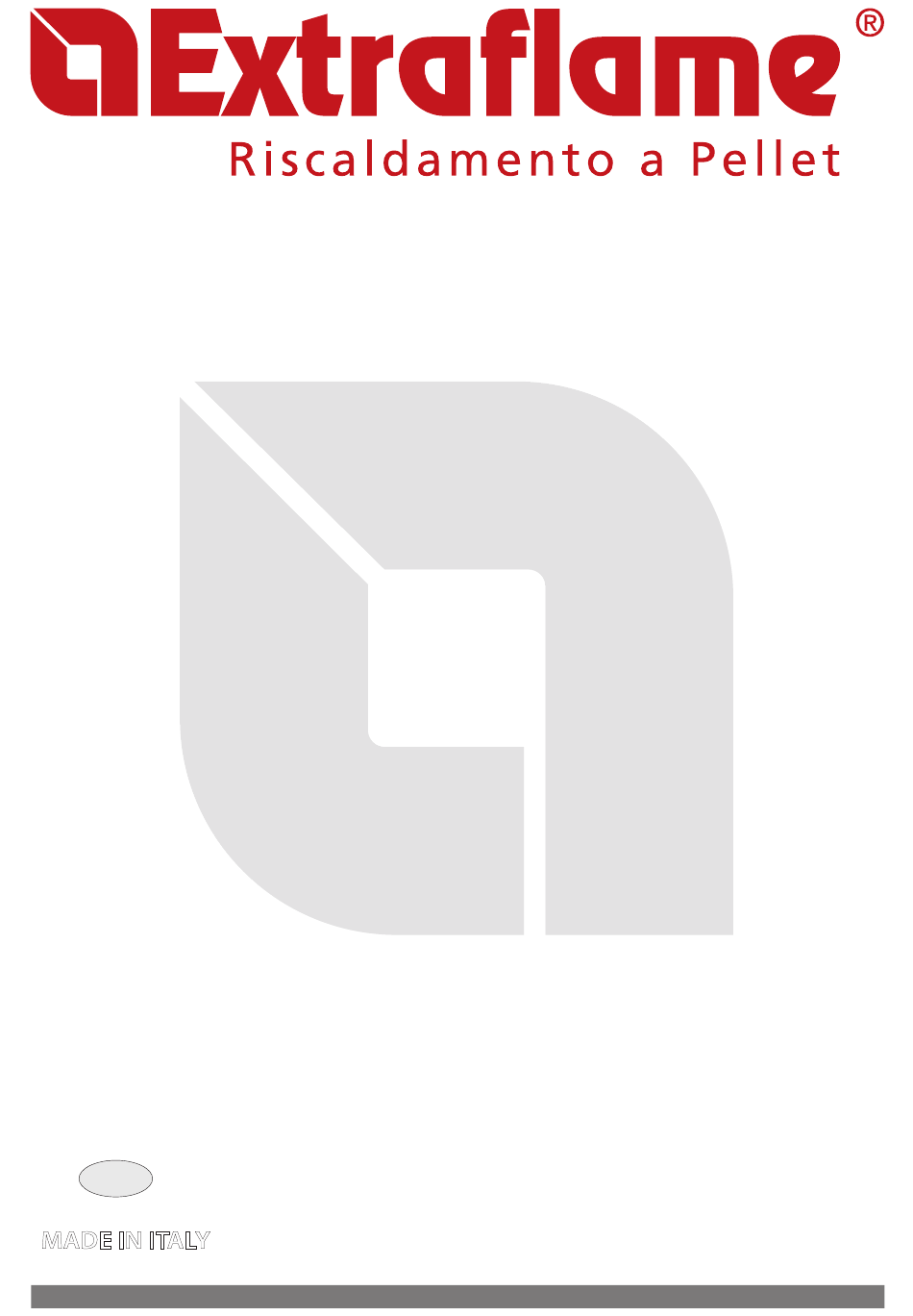

  • Page 1 PELLET STOvES USER MANUAL INSERTO COMFORT P85 - P85 PLUS MADE ITALY design & production 004277958 - Rev 000...
  • Page 2 ENGLISH...

  • Page 3: Table Of Contents

    MINIMUM DISTANCES .............................................. 7 PREPARATIONS FOR MAINTENANCE ........................................7 DEtaILS of coMfort P85 INSErt................................9 DEtaILS of coMfort P85 PLuS INSErt ..............................10 INStaLLatIoN of coMfort P85 - P85 PLuS INSErt ..........................11 GENERAl ..................................................11 MINIMUM ClEARANCE ............................................11 INSTAllATION ................................................12 frESH aIr DuctS ......................................

  • Page 4: English

    We thank you for having chosen our company; our product is a great heating solution developed from the most advanced technology with top quality machining and modern design, aimed at making you enjoy the fantastic sensation that the heat of a flame gives, in complete safety. Warnings This instructions manual is an integral part of the product: make sure that it always accompanies the appliance, even if transferred to another owner...
  • Page 5 Š THE GENERATOR MUST NOT BE USED BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY AND MENTAL CAPACITIES OR WHO ARE UNSKILLED PERSONS, UNLESS THEY ARE SUPERVISED AND TRAINED REGARDING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. Š...

  • Page 6: Routine Maintenance

    THAT SWITCH THE GENERATOR OFF. IF THIS OCCURS, CONTACT THE TECHNICAL AFTER-SALES SERVICE AND ALWAYS DISABLE THE SAFETY SYSTEMS. Š IN THE EVENT THE FLUE CATCHES FIRE, USE SUITABLE SYSTEMS FOR SUFFOCATING THE FLAMES OR REQUEST HELP FROM THE FIRE BRIGADE.

  • Page 7: Installation

    InstallatIOn general The flue gas exhaust and hydraulic connections must be carried out by qualified personnel who must issue installation conformity documentation compliant with national standards. The installer must provide the owner or person acting for him, according to the legislation in force, with the declaration of conformity, supplied with: 1) the use and maintenance manual of the appliance and of the system components (such as for example, the smoke ducts, chimney, etc.);...
  • Page 8 In the presence of type B gas appliances with intermittent operation not intended for heating, they must have their own aeration and/or ventilation opening. The air inlets must meet the following requirements: Š they must be protected with grids, metal mesh, etc., but without reducing the net useful section; Š...

  • Page 9: Details Of Comfort P85 Insert

    DEtAIls oF CoMFoRt P85 INsERt Ambient air outlet Pellet hopper TA inlet Access to combustion chamber fuse 230V power supply and ash drawer Emergency module Rail Combustion air inlet fumes outlet Bulb thermostat rearm ENGLISH...

  • Page 10: Details Of Comfort P85 Plus Insert

    DEtAIls oF CoMFoRt P85 PlUs INsERt TA inlet Ambient air outlet Pellet hopper Thermostat connection inlet Access to combustion chamber Air ducting Z2 outlet 230V power supply and ash drawer Emergency module fuse Combustion air inlet Air ducting Z1 outlet...

  • Page 11: Installation Of Comfort P85 - P85 Plus Insert

    INstAllAtIoN oF CoMFoRt P85 - P85 PlUs INsERt AssEMBly MUst BE CARRIED oUt By qUAlIFIED PERsoNNEl! GENERAl The insert is supplied with a sliding base in iron that allows it to be installed in a pre-existing chimney. This sliding base allows the insert to be removed easily to load the pellets inside the hopper and for any maintenance or cleaning at the end of the season.

  • Page 12: Installation

    INstAllAtIoN Open the door and release the latch using the poker supplied. Remove the 6 screws and remove the flue pipe from the base. Fix the base to the existing flue pipe. AttENtIoN! REsPECt tHE 50MM HEIGHt FoR oPENING AND ClosING tHE INsERt CoRRECtly! ENGLISH...
  • Page 13 Fix the base to the kit if it is a new installation (optional kit). Block the rails with two screwdrivers and secure the flue pipe to the base with 6 screws. Close the insert and block the latch. ENGLISH...

  • Page 14: Fresh Air Ducts

    FREsH AIR DUCts for correct operation, air must be allowed to recirculate inside the structure that covers the insert in order to prevent the appliance from overheating. To guarantee this, just realise one or more openings in the lower and upper part of the covering. The following measurements must be respected: Š...

  • Page 15: New Installation

    NEw INstAllAtIoN EXAMPLE 1 EXAMPLE 2 A: Air convection outlet. Minimum section 120cm C: Air convection outlet. Minimum section 240cm B: air inlet from room. Minimum section 120cm D: air inlet from room. Minimum section 240cm for the insert to operate correctly, a minimum side and rear space of 35 mm must be guaranteed; the coatings must be made of non- flammable material.

  • Page 16: Safety Latch

    sAFEty lAtCH Use the poker supplied to perform the release/block operation. (Turn clockwise to release and anti-clockwise to block). Holes present on two sides for the extraction of the insert via pokers. Extraction of the insert allows both the pellets to be loaded inside the hopper and routine maintenance (cleaning the ash pipe at year end) or unscheduled maintenance (replacement of mechanical parts if the product should break) to be performed.

  • Page 17: Extraction Of Insert And Pellet Loading

    EXtRACtIoN oF INsERt AND PEllEt loADING Extraction of the insert allows both the pellets to be loaded inside the hopper and routine maintenance (cleaning the ash pipe at year end) or unscheduled maintenance (replacement of mechanical parts if the product should break) to be performed. To extract the insert, follow the procedure below: Open the fire door and turn the latch clockwise (using the poker supplied).

  • Page 18: Optional Loading Accessories

    oPtIoNAl loADING ACCEssoRIEs FRoNt PEllEt loADING KIt UPPER/sIDE PEllEt loADING KIt The optional pellet loading kit allows to load the pellets into the The optional pellet loading kit allows to load the pellets into the hopper from the front without having to remove the insert (which hopper without removing the insert from the installation opening would require the machine to be switched off ).

  • Page 19: Air Ducting Features Insert P85 Plus

    AiR dUCTing FeATURes inseRT p85 plUs The model is fitted with two independent air ducting outlets. The pipe used for ducting the hot air must have an internal diameter of 80 mm and it must also be insulated or at least be protected against heat dispersion. air ducting 1 - 2 are enabled by factory default.

  • Page 20: Ta Additional Thermostat (Optional)

    with probe (ntC 10K) remove the jumper on 1 and connect the ntC probe in the room that needs to be temperature-controlled through air ducting 1. 2 control modes: operation in air DUCtinG with ntC probe 10KΩ (optional) Once the specific activation threshold has been reached and exceeded, at temperature to be satisfied the air ducting motor will follow the stove settings.

  • Page 21: Emergency Module

    emergency mODULe The stove is fitted with an emergency module located at the side, allowing the basic operation of the stove in the event the handheld remote is damaged or malfunctions. The functions that can be managed from the emergency module are: Key P1 Stove ignition/switch-off L1: Blue LED off:...

  • Page 22: Radio Control

    radIO cOntrOl cOnFIGUratIOn RAdIo conTRol codIng pRoceduRe: 1. disconnect the power supply to the stove. at the same time until the screen to choose RADIO ID appears. 2. press the keys 3. using keys select the new RADIO ID. 4. power the stove. confirm the selected unit within 10 seconds (the led will flash on the radio/emergency card) by pressing the oK key on the remote control.

  • Page 23: Radio Control Features

    radIO cOntrOl FeatUres The radio control is fitted with an lcd backlit display. The display remains lit for 5 seconds. After a certain period of time, in order to minimise battery consumption, the display turns off (sleep mode). It turns on again after pressing the on/oFF key (6). CAUTiON! do not place the radio control device in direct or indirect contact with water.

  • Page 24: Display

    dIsplay SCREEN iN OPERATiON STAND BY active chrono active Battery low power 1-5^ Hour Tangential fan active Temperature detected in room Set ambient temperature display text Tangential fan active in COMFORT mode SCREEN WiTH EXTERNAL THERMOSTAT CONNECTED TO THE TERMiNAL “TA” Time Indicates contact of the external additional...

  • Page 25: General Menu

    General menU FUNCTiON FUNCTiON Scroll parameters Back - exit key Modify settings Ignition - switch-off key Access menu key FRONT AiR *AiR DUCTiNg 1 TEMPERATURE** *AiR DUCTiNg 2 TEMPERATURE** EASY SETUP CHRONO ENABLiNg PRg1 SETTiNgS DATE/TiME PRg2 LANgUAgE PRg3 DiSPLAY PRg4 STAND BY FiRST LOAD...

  • Page 26: Basic Instructions

    BasIc InstrUctIOns The following recommendations must be followed the first few Before lighting the stove, the following points must be checked: times the stove is lit: The hopper must be loaded with pellets Š Š Slight odours may be produced due to the drying of the paints Š...

  • Page 27: Operation And Logic

    OperatIOn and lOGIc IGnItIOn once the previously listed points have been checked, press key for three seconds to ignite the stove. during ignition, the stove will check for a flame for a period of 15 minutes. once the control temperature has been reached, the stove interrupts the ignition phase and switches to pRepARATIon.

  • Page 28: Front Air

    FrOnt aIr This menu allows the front ventilation motor speed to be set. Range: (comfort, auto). If comfort mode is selected, the front air speed is reduced. To guarantee efficient combustion, front air is excluded when the appliance is running at minimum power. To set: oK >...

  • Page 29: Enabling

    enaBlInG Allows the chrono and the different stove time slots to be enabled/disabled. To set: oK > chrono > ABiLitAZione. prG 1-4 prg x allows you to set the on/off time, the days of use of the scheduled time slot and the temperature (loW-TA - 07 - 37 °c - HoT), plus the required power.
  • Page 30 EXAMPLE OF CHRONO OVERLAPPiNg TiMES/SLOTS Time slot 02:00 08:00 16:30 23:00 Set power 02:00 08:00 16:30 23:00 Set Temperature 22° 18° 02:00 08:00 16:30 23:00 start 02:00 Time slot 1 Set power 3 - Set Temp 22°c stop 23:00 start 08:00 Time slot 2 Set power 1 - Set Temp 18°c stop 16:30...

  • Page 31: Settings

    settInGs Š DATE/TiME Š LANgUAgE See cHApTeR: coMMISSIonIng SeTTIngS. Š DEgREES Update The "DiSPLAY" menu allows: Š Setting of the timer to turn off the display backlight. Š Adjustment of the dISplAY contrast Š Setting of the timer to turn off the display (sleep mode). Š...

  • Page 32: First Load

    FIrst lOad This function allows you to activate the gearmotor for loading pellets continuously. Before starting the function, make sure the stove is cold and “oFF”. To set: oK > SettingS > firSt LoAD To stop continuous loading, just press and hold key 6 for 2 seconds. Quick access: Before starting the function, make sure the stove is cold and “oFF”.

  • Page 33: Cleaning And Maintenance

    Cleaning and maintenanCe always follow the instruCtions in Complete safety! Š Make sure that the power cord is unplugged because the generator May have been prograMMed to switch on.
  • Page 34 THE FOLLOWING IMAGES ARE FOR ILLUSTRATION PURPOSES burn pot and Combustion Chamber: Remove the burn pot completely from the Š relevant compartment. Once the flame guard (A) has been removed, Š vacuum the residue in the burn pot. Š Unblock all the holes in the burn pot using the supplied poker.

  • Page 35: Routine Maintenance Performed By Qualified Technicians

    Qualified teChniCians routine maintenance must be performed at least once a year. Given the generator uses pellets as solid fuel, it requires annual routine maintenance, which must be performed by a Qualified technician, using only original spare parts.
  • Page 36 routine maintenanCe THE IMAGES ARE FOR ILLUSTRATIVE PURPOSES. Fumes motor (dismantling and cleaning, flue pipe and "T” fitting). Gaskets, inspections, door (replace if necessary), burn pot and heat exchanger Combustion chamber and heat exchanger (full cleaning) including ignition plug pipe Hopper (complete emptying and cleaning).

  • Page 37: Displays

    Displays upDate Reason Generator off START The START phase is in progress PELLET LOADING Continuous pellet feeding is in progress during the ignition state IGNITION The phase dedicated to ignition is in progress PREPARATION The flame stabilisation phase is in progress WORK The generator has reached operating capacity and is working on user settings MODULATION...

  • Page 38: Guarantee Terms

    Extraflame S.p.A. cannot be held liable for injury or damage which may - either directly or indirectly - be caused to persons, animals and property ensuing from failure to observe all the instructions provided in the relevant instruction manual and the warnings regarding installation, use and maintenance of the product, that can also be downloaded on the website.

  • Page 39: Disposal

    AddITIONAL wARNINGs Š Only use the fuel recommended by the manufacturer. The product must not be used as an incinerator. Š Do not use the product as a ladder or supporting structure. Š Do not place laundry on the product to dry it. Any clothes-horse or similar objects must be kept at due distance from the product. Danger of fire or damage to the coating.
  • Page 40 The manufacturer reserves the right to vary the characteristics and the data reported in this pamphlet at any moment and without notice, in order to improve its products. This manual, therefore, cannot be regarded as a contract towards other parties. 02/05/2019 004277958-000 MAN.UT.COMFORT P85-P85 PLUS [EXT]...
