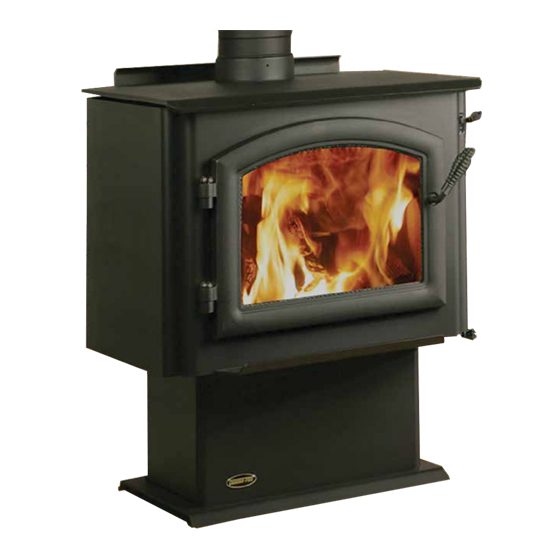

Quadra-Fire 43M-ACC-NZ Owner's Manual
  1. Manuals
  2. Brands
  3. Quadra-Fire Manuals
  4. Wood stove
  5. 43M-ACC-NZ
  6. Owner's manual

Quadra-Fire 43M-ACC-NZ Owner's Manual

4300 millennium new zealand wood appliance automatic combustion control (acc)
Hide thumbs Also See for 43M-ACC-NZ:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with question on installation, operation, or service.
NOTICE: DO NOT DISCARD THIS MANUAL
4300 MILLENNIUM
NEW ZEALAND
WOOD APPLIANCE
AUTOMATIC COMBUSTION CONTROL
MODEL NUMBER:
43M-ACC-NZ
1
Owner's Manual
Operation & Care
(ACC)
R
If the information in these instructions is
not followed exactly, a fire could result
causing property damage, personal injury,
or death.
•
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
•
Do not over fire - If appliance or chimney connector
glows, you are over firing. Over firing will void
your warranty.
•
Comply with all minimum clearances to combustibles
as specified.
Failure to comply may cause house fire.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass and appliance will cause burns.
•
Do not touch glass until it is cooled
•
Use leather gloves when reloading fuel
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room
as appliance.
•
Alert children and adults to hazards of
high temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other
flammable materials away.
Fire Risk.
For use with solid wood fuel only.
Other fuels may over fire and generate
poisonous gases (i.e. carbon monoxide).
7037-182C
WARNING
WARNING
WARNING
04/21

Advertisement

Table of Contents
loading

Related Manuals for Quadra-Fire 43M-ACC-NZ

Summary of Contents for Quadra-Fire 43M-ACC-NZ

  • Page 1 • Comply with all minimum clearances to combustibles as specified. Failure to comply may cause house fire. MODEL NUMBER: 43M-ACC-NZ WARNING HOT SURFACES! Glass and other surfaces are hot during operation AND cool down. Hot glass and appliance will cause burns.

  • Page 2: Sample Of Serial Number / Safety Label

    Welcome to the Quadra-Fire Family NOTE: Clearances may only be reduced by means approved by the regulatory ITEM PART NUMBER PART NAME authority having jurisdiction A. Sample of Serial Number / Safety Label LOCATION: Back of appliance MILLENNIUM ACC WOODFIRE COMPLIANCE LABEL This appliance has been TESTED TO AS/NZS 4013 for Softwood by Applied Research Services Ltd.

  • Page 3: Table Of Contents

    J. Negative Pressure ......14 K. Frequently Asked Questions ....14 Quadra-Fire is a registered trademark of Hearth & Home Technologies. 7037-182C...

  • Page 4: Warranty Policy

    B. Warranty Policy AUSTRALIAN WARRANTY INFORMATION Hearth & Home Technologies (HHT) 7571 215th Street West, Lakeville, MN 55044 0011-1-651-345-1777 www.hearthnhome.com HHT extends the following manufacturer’s warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance will be free from defects in materials and workmanship at the time of manufacture.
  • Page 5 Warranty Period HHT Manufactured Appliances and Venting Parts Labor Pellet Wood Electric Venting Components Covered 6 years 3 years Catalyst - Limitations Listed Manifold Tubes HHT 7 years 3 years Chimney and Termination 10 years 1 year Burners, Logs and Refractory Limited Firebox and Heat Exchanger, FlexBurn System...
  • Page 6 • Non HHT venting components, hearth components or other accessories used in conjunction with the appliance. • Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is installed. • Removal, installation, reinstallation, set up or any other costs associated with a claim including travel and shipping charges for parts •...

  • Page 7: Quick Start Guide

    C. Quick Start Guide NOTE: These are generic drawings and may not represent your specifi c model. 10 Pieces of Newspaper, 10-20 Pieces of Dry ITEMS NEEDED FOR FIRST FIRE: Kindling and Few Pieces of Dry Split Wood. OPEN AIR CONTROLS LOAD WOOD ADD NEWSPAPER...

  • Page 8: Listing And Code Approvals

    NOTE: Hearth & Home Technologies, manufacturer of this appliance, reserves the right to alter its products, their specifications and/or price without notice. The Quadra-Fire 43M-ACC-NZ Wood Appliance is Hardwood and Softwood Certified. Hardwood Particulate Emissions equaling 1.0 g/kg with a Space Heating Efficiency of 64%. Softwood Particulate Emissions equaling 0.4 g/kg with a Space Heating Efficiency of 71%.

  • Page 9: Operating Instructions

    In order to improve the situation, we at Quadra-Fire If you suspect a chimney fire, call the fire have developed cleaner-burning wood appliances that department and evacuate your house.

  • Page 10: Air Controls

    2. Second Stage E. Using Burn Rate Air Control & ACC System The next stage of burning, the secondary stage, is the 1. Start up and Reloading Fuel period when the wood gives off flammable gases which Open both Burn Rate Air Control and ACC systems burn above the fuel with bright flames.

  • Page 11: Burn Rates And Operating Efficiency

    F. Burn Rates and Operating Efficiency WARNING For maximum operating efficiency This wood appliance has a manufacturer-set minimum Risk of Fire. low burn rate that must not be altered. It is against federal When set on High Burn Rate and over-riding regulations to alter this setting or otherwise operate this the Automatic Combustion Control system an wood appliance in a manner inconsistent with operating...

  • Page 12: Building A Fire

    G. Building A Fire NOTE: Before lighting your first fire in the appliance: • Build fire on brick firebox floor. • Do NOT use grates, andirons or other methods to NOTE: The special high temperature paint that your support fuel. It will adversely affect emissions. appliance is finished with will cure as your appliance heats.

  • Page 13: Opacity (Smoke)

    H. Opacity (Smoke) I. Clear Space This is the measure of how cleanly your appliance is NOTE: Do NOT place combustible objects within 1.2m of burning. Opacity is measured in percent; 100% opacity is the front of appliance (Figure 13.1). when an object is totally obscured by the smoke column from a chimney, and 0% opacity means that no smoke Mantel:...

  • Page 14: Negative Pressure

    J. Negative Pressure WARNING Asphyxiation Risk. • Negative pressure can cause spillage of combustion fumes, soot and carbon monoxide. • Appliance needs to draft properly for safety. To minimize the effects of negative air pressure: Negative pressure results from the imbalance of air available for the appliance to operate properly.

  • Page 15: Maintenance And Service

    Maintenance and Service A. Quick Reference Maintenance Guide Start the first inspection after the first 2 months of use, CAUTION! or if performance changes, and adjust your schedule accordingly. Maintenance is required for safe operation and Allow the appliance to completely cool down before must be performed to maintain your warranty.

  • Page 16: General Maintenance

    B. General Maintenance WARNING 1. Creosote (Chimney) Cleaning Frequency: Every 2 months during heating season or as Fire Risk. recommended by a certified chimney sweep; more • Do not use chimney cleaners or flame frequently if chimney exceeds or is under 14-16 ft. colorants in your appliance.
  • Page 17 4. Glass Cleaning Frequency: As desired Homeowner Clean glass with a non-abrasive glass cleaner. Abrasive cleaners may scratch and cause glass to crack. If the deposits on the glass are not very heavy, normal glass cleaners work well. Heavier deposits may be removed by using a damp cloth dipped in wood ashes or by using a commercially available oven cleaner.

  • Page 18: Correct Baffle & Blanket Placement

    INCORRECT POSITIONS C. Correct Baffle & Blanket Placement WARNING Fire Risk Firebox damage due to improper baffle placement is not covered by warranty. Operate the wood burning appliance with the baffle in the correct position only. Not doing so could result in: •...

  • Page 19: Troubleshooting Guide

    Troubleshooting Guide With proper installation, operation, and maintenance your wood appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist you or a qualified service person in the diagnosis of a problem and the corrective action to be taken. Start Fire Problems Possible Cause Solution...

  • Page 20: Service Part Replacement

    9. Replace the door on the appliance. C. Door Handle Assembly Quadra-Fire appliances are equipped with ceramic super 1. Slide door handle through door. heat-resistant glass, which can only be broken by impact 2. Install additional washer(s) as shown in Figure 20.1 or misuse.

  • Page 21: Baffle Removal

    D. Baffle Removal Baffle Board even with front tube & resting 1. Remove all ash from the firebox, and extinguish all hot on all tubes embers before disposal into a metal container. 2. The baffle board has 2 pieces. With the ceramic blanket still in place, slide one baffle piece over the top of other one and pull out top piece through the door opening and then remove bottom baffle piece (Figure 21.1).

  • Page 22: Tube Channel Assembly Replacement

    E. Tube Channel Assembly Removing Tube Channel Assembly 1. Remove the right side shield by lifting up on side to remove. 2. Remove 4 screws from channel access cover and remove cover. NOTE: Service Space 3. Locate 2 channel nuts inside of chamber and In order to replace the tube channel assembly a remove using a 7/16 socket wrench.

  • Page 23: Reference Materials

    Reference Materials A. Service and Maintenance Log Date of Service Performed By Description of Service 7037-182C 04/21...
  • Page 24 Date of Service Performed By Description of Service 7037-182C 04/21...

  • Page 25: Exploded View

    B. Exploded View 43M-ACC-NZ Service Parts Wood Stove Beginning Manufacturing Date: July 2009 Ending Manufacturing Date: Active 43M-ACC-NZ Part number list on following page. 04/18 7037-182C 04/21...
  • Page 26 C. Service Parts 43M-ACC-NZ Service Parts Beginning Manufacturing Date: July 2009 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.

  • Page 27: Service Parts

    43M-ACC-NZ Service Parts Beginning Manufacturing Date: July 2009 Ending Manufacturing Date: Active #17 Pedestal Assembly #16 Brick Set Assembly 16.1 16.1 17.1 16.1 16.1 16.5 16.1 16.1 16.1 16.1 16.1 16.1 17.2 16.1 16.1 16.4 16.5 16.2 16.2 16.2 16.2 16.3...
  • Page 28 43M-ACC-NZ Service Parts Beginning Manufacturing Date: July 2009 Ending Manufacturing Date: Active #18 Door Assembly 18.1 18.2 18.6 18.5 18.3 18.4 IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.

  • Page 29: Accessories

    D. Accessories 43M-ACC-NZ Service Parts Beginning Manufacturing Date: July 2009 Ending Manufacturing Date: Active #19 Baf e Protection Channel Side view Front, looking into unit Ceramic blanket Baffle Fiber baffle protection Channel sits In between Front tube and Fiber baffle.
  • Page 30 Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL •...
