TTH300
Head-mount temperature transmitter
Introduction
TTH300

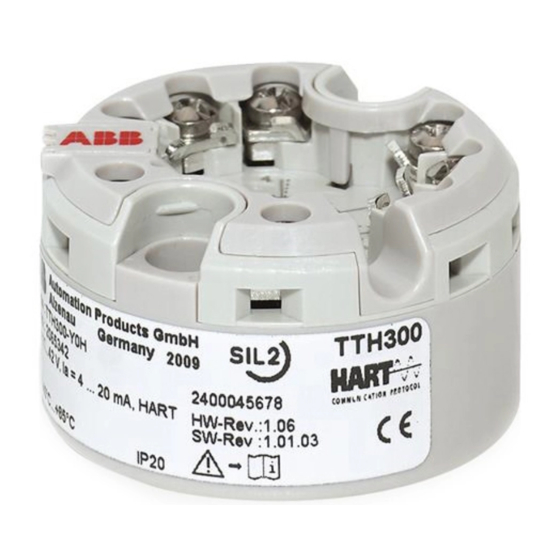

The TTH300 is available with the HART, PROFIBUS
PA and FOUNDATION Fieldbus communications
protocols.
The TTH300 has global approvals for explosion
protection up to Zone 0.
Safety-relevant applications up to SIL 3
(redundant) are supported in accordance with
IEC 61508.
The TTH300 is approved for custody transfer
measurements through the MID certificate in
accordance with measurement device guideline
2014/32/EU.
Temperature transmitter for all
communications protocols.
Redundancy thanks to two inputs.
Measurement made easy
Additional Information
Additional documentation on TTH300 is available for
download free of charge at
www.abb.com/temperature.
Alternatively simply scan this code:
