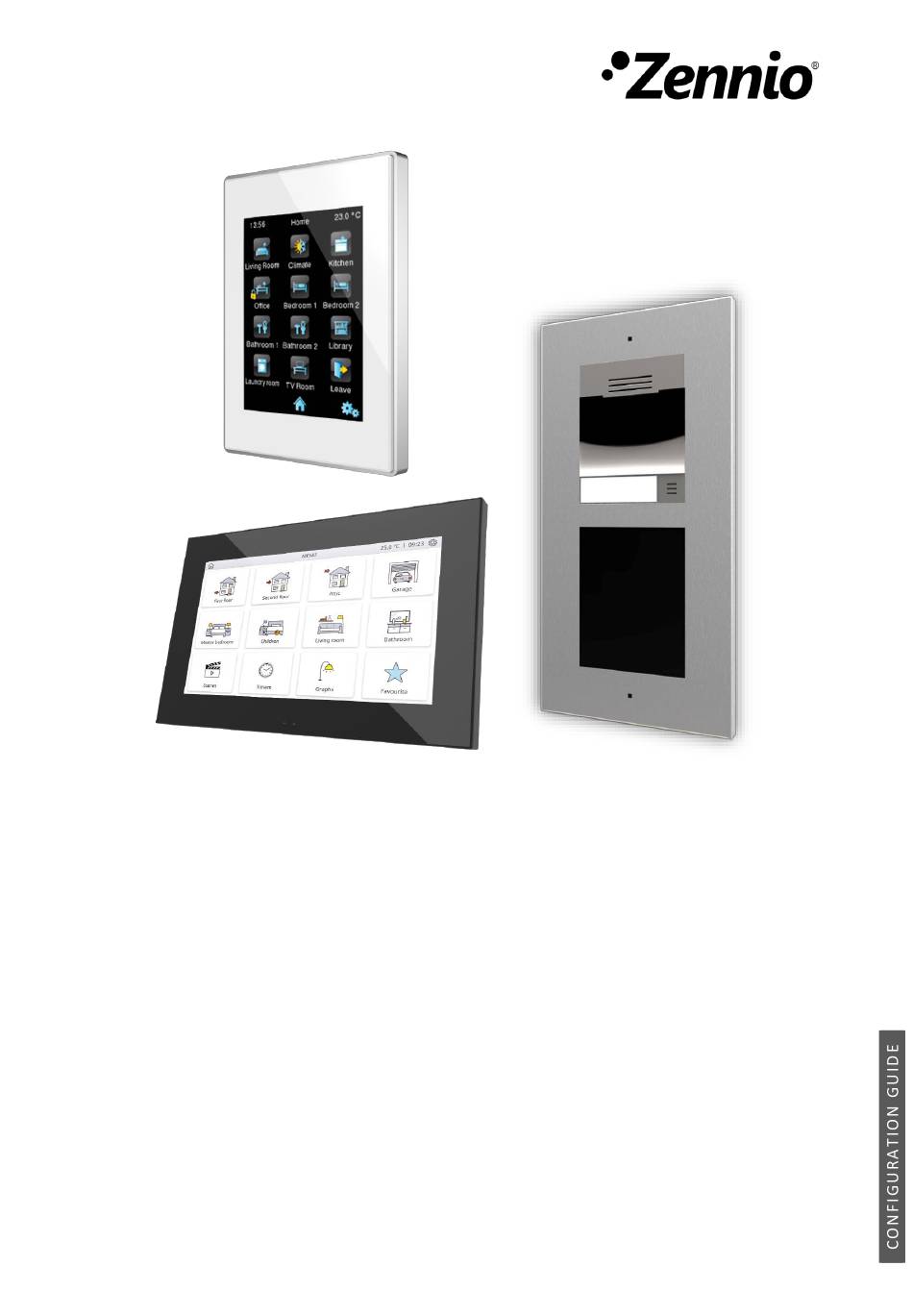

- Page 1 Z41 COM / Z70 + GetFace IP Configuration Guide Application Program Version Z41 COM: [1.3] Application Program Version Z70 v2: [2.0], [3.0] GetFace IP Firmware Version: [2.26] User manual version: a www.zennio.com...
-
Page 2: Table Of Contents
Z41 COM / Z70 + Zennio GetFace IP Configuration Guide CONTENTS Contents ............................2 Introduction .......................... 3 Basic Configuration ....................... 5 2.1 Z41 COM Configuration ....................5 2.2 Z70 Configuration ......................8 2.3 GetFace IP Configuration ....................11 Advanced Configuration ...................... 16 3.1 System with multiple Z41 COM / Z70 ................ -
Page 3: Introduction
This document presents an example of basic configuration of the GetFace IP video intercom together with the indoor unit Z41 COM / Z70 in a simple installation of a private home when both devices are in the same network. A compiter conected to the same network is also required to access to the GetFace IP web interface configuration. - Page 4 In this case only the IP for the video intercom communication needs to be set, taking into account that it must not be the same as the generic IP. Important: these IP addresses of Z41 COM / Z70 are managed independently, so it is not required that both belong to the same IP network.
-
Page 5: Basic Configuration
This section shows the basic configuration required in an installation with a single Z41 COM / Z70 unit and a single GetFace IP unit. Note: For further information about the parameters please refer to the Z41 COM, Z70 or GetFace IP user manuals available at the Zennio website (www.zennio.com). - Page 6 Z41 COM / Z70 + Zennio GetFace IP Configuration Guide IMPORTANT: If the IP for the remote control of Z41 COM is set statically in “MAIN CONFIGURATION”, tab “Ethernet” make sure not to set the same IP for the VoIP Calls.
- Page 7 Z41 COM / Z70 + Zennio GetFace IP Configuration Guide Figure 3 Z41 COM – Outdoor Unit Configuration. 4. In “MENU” enable a page and within it box whit Visualization “Other” and function “Video Intercom”. Figure 4 Z41 COM - Video Intercom box configuration.
-
Page 8: Z70 Configuration
Z41 COM / Z70 + Zennio GetFace IP Configuration Guide 2.2 Z70 CONFIGURATION The following aspects must be configured in the ETS configuration: 1. In “IP Configuration”, tab “General”: 1.1. IP Address: 192.168.1.101 (the default value can be left). 1.2. Subnet Mask: 255.255.255.0... - Page 9 Z41 COM / Z70 + Zennio GetFace IP Configuration Guide 4.1. Type: Private. 4.2. Unit with Camera: Enabled. The private with camera type enables access any time to the visualization of images from the camera of the outdoor unit, as long as it is not a generic outdoor unit.
- Page 10 Z41 COM / Z70 + Zennio GetFace IP Configuration Guide 5. In “Display” enable a page and within it box whit Visualization “Other” and function “Video Intercom”. Figure 7 Z70 - Video Intercom box configuration. https://www.zennio.com Tecnical Support: https://support.zennio.com...
-
Page 11: Getface Ip Configuration
Z41 COM / Z70 + Zennio GetFace IP Configuration Guide 2.3 GETFACE IP CONFIGURATION By default GetFace IP acquires its IP address by DHCP, but it can be set a static IP address as well. To change between one mode and another follow the steps below: 1. - Page 12 Z41 COM / Z70 + Zennio GetFace IP Configuration Guide • Username: admin • Password: zennio Changing the password is recommended after the first access to the device. The main window will look similar to Figure 9. The default language of the interface is English. It can be changed in the upper right.
- Page 13 The “id” will only be used to identify calls in the event log in the state section. Example: sip:1@192.168.1.101. IMPORTANT: The IP address must be the same configured by parameter in Z41 COM (item 1.1 in section 2.1) / Z70 (item 1.1 in section 2.2). https://www.zennio.com Tecnical Support: https://support.zennio.com...
- Page 14 Z41 COM / Z70 + Zennio GetFace IP Configuration Guide Services HTTP API Services 3.1. System API: Secure (TLS) / Basic. 3.2. Switch API: Secure (TLS) / Digest. 3.3. Camera API: Unsecure (TCP) / None. Figure 12 GetFace IP - API HTTP Configuration Hardware ...
- Page 15 Z41 COM / Z70 + Zennio GetFace IP Configuration Guide Figure 14. GetFace IP - Buttons https://www.zennio.com Tecnical Support: https://support.zennio.com...
-
Page 16: Advanced Configuration
3.1 SYSTEM WITH MULTIPLE Z41 COM / Z70 It is usual to have in an installation multiple Z41 COM / Z70. In order for all of them to receive calls form the same GetFace IP outdoor unit, certain settings will be necessary. -
Page 17: Getface Ip Configuration
Z41 COM / Z70 + Zennio GetFace IP Configuration Guide “[Video Intercom] Synchronization” (Only in Z41 COM), enables a notification to be received in all Z41 COM when a call has been accepted or rejected in one of them. Note: Synchronization will only occur between several Z41 COM or Z70 in the same network, never between Z70 and Z41 COM. - Page 18 IMPORTANT: The IP address must be the same configured by parameter in Z41 COM (item 1.1 in section 2.1) / Z70 (item 1.1 in section 2.2). 1.2. Parallel call to following number: check to add the IP address of the next Z41 COM / Z70 to call in parallel.
- Page 19 1.4. Parallel call to following number: check to add the IP address of the next Z41 COM / Z70 to call in parallel. If more than three Z41 COM / Z70 are required, they must be configured in another user, for example number 2. Moreover, in the user 1, in Number 3, the checkbox Parallel call to following number must be checked and in User Deputy enter the user configured, for example number 2.
-
Page 20: System With Multiple Getface Ip: Phone Number (Id)
GetFace IP, so the calls are restricted. If the “Id” of the incoming call does not match to any of the video intercoms configured in Z41 COM / Z70, the call will not be received. In addition, this is useful to identify the origin of the call when there is more than one external unit. -
Page 21: Z70 Configuration
Services Phone SIP 1 1.1. Phone Number (ID): enter the same ID as in Z41 COM / Z70, for example ID_1. IMPORTANT: the ID entered must be the same in Z41 COM (item 1.2, section 3.2.1) / Z70 (item 1.1, section 3.2.2) -
Page 22: Doors
HTTP command or both of them. 3.3.1 Z41 COM CONFIGURATION The configuration of Z41 COM is the same as indicated in section 2.1, but also, it is necessary to configure: 1. In “Outdoor Unit 1”, in the tab “Configuration”: 1.1. -
Page 23: Z70 Configuration
Z41 COM / Z70 + Zennio GetFace IP Configuration Guide Figure 20 Z41 COM - Doors Configuration 3.3.2 Z70 CONFIGURATION The configuration of Z70 is the same as indicated in section 2.2, but also, it is necessary to configure: 1. In “Outdoor Unit 1” / “Generic Outdoor Unit”, in the tab “Configuration”: 1.1. -
Page 24: Getface Ip Configuration
1.1.2. Password: the same as the password configured in Z41 COM / Z70. IMPORTANT: it must be the same User Name and Password as the ones entered in Z41 COM (1.2.1 in the section 3.3.1) / Z70 (1.1 in the section 3.3.2). 1.2. Switch Access – Control: Enabled. - Page 25 Z41 COM / Z70 + Zennio GetFace IP Configuration Guide Figure 22 GetFace IP – Account Configuration. Hardware Switches Switch x 2.1. Switch Enabled: Enabled. 2.1.1. Controlled Output: select Relay 1 or Output 1. Figure 23 GetFace IP – Switches Configuration.
- Page 26 Join and send us your inquiries about Zennio devices: http://support.zennio.com Zennio Avance y Tecnología S.L. C/ Río Jarama, 132. Nave P-8.11 45007 Toledo (Spain). Tel. +34 925 232 002. www.zennio.com info@zennio.com...
