Congratulations on your new Verona Range purchase. Below are a few quick start tips that will familiarize you with your new range.

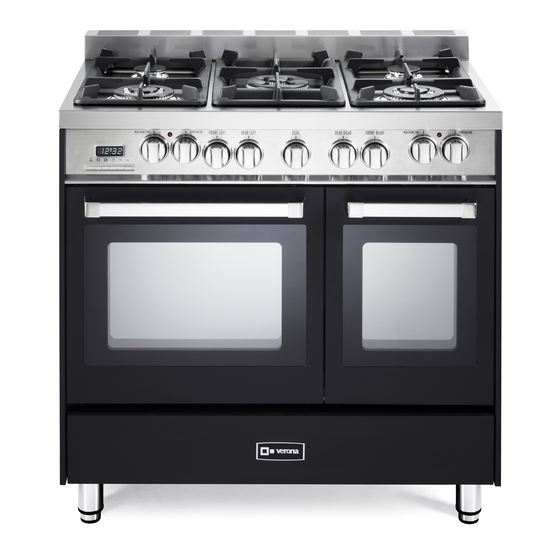

VEFSGE365ND
11
Dual Fuel Double Oven
1
2
3
4
5
6
7
8
9

CONTROLS DESCRIPTION

1. Electronic programmer
2. Left multifunction oven switch knob
3. Left multifunction oven thermostat knob
4. Front left burner control knob
5. Rear left burner control knob
6. Central dual burner control knob
7. Rear right burner control knob
8. Front right burner control knob
9. Right multifunction oven switch knob
10. Right multifunction oven thermostat knob
11. Left oven thermostat indicator light
12. Right oven thermostat indicator light

Using your Oven for the first time

Place oven rack supports, racks & broiler pan in place as described
in your manual under "Oven Accessories installation and removal".
Turn the oven on Maximum power for both bake and broil for
about 2 hours to remove any traces of grease and odors from the
components. Clean inside of oven with a cloth soaked in water and
neutral detergent and dry.

Igniting the Gas Oven

European ovens have extra safety features which may be new to you.
Lighting the oven is quite simple. With the oven knob in the off
position, open the oven door completely. Convection fan must be
turned off. Push the oven knob in and turn it counter-clockwise until it
stops (for bake) or clockwise to broil. After a few seconds, release the
knob. Verify the flame has lit by looking through the opening on the
oven floor for baking and the top of the oven for broiling. Close oven
door and set to desired temperature. There is approximately a 3
minute delay between lighting the small oven on double oven models
and the convection fan turning on.
Quick Start for your New Verona 36" Range
VEFSGG365ND
12
Gas Double Oven
2
3
10
1
4
5
6
CONTROLS DESCRIPTION
1. Left oven control knob
2. 60 minute timer control knob
3. Left oven light & fan control knob
4. Front left burner control knob
5. Rear left burner control knob
6. Central dual burner control knob
7. Rear right burner control knob
8. Front right burner control knob
9. Right oven light & fan control knob
10. Right oven control knob
11. Cooling fan failure warning light
VEFSGE365N
Dual Fuel Single Oven
8
9
10
11
1
4
7
2
3
5
CONTROLS DESCRIPTION
1. Oven thermostat indicator light
2. Multifunction oven switch knob
3. Multifunction oven thermostat knob
4. Front left burner control knob
5. Rear left burner control knob
6. Central dual burner control knob
7. Rear right burner control knob
8. Front right burner control knob
9. Electronic programmer

Igniting the Cooktop Burners

In order to properly ignite the burners, push & turn the burner
knob counter-clockwise to the position (maximum rate)
indicated by the  symbol.
Push in and hold the knob until the flame has been lit. You should hear the gas
flowing and the ticking sound from the burner igniter. Wait about 10 seconds
after the gas burner has been lit before letting go of the knob. This allows the
flame sensor to fully activate and protect you.
If the flame should go out for any reason, the safety valve will automatically
stop the gas flow. To re-ignite the burner, return the knob to the closed
position and wait at least 1 minute, and repeat lighting procedure.
7
1
6
8
9
2
CONTROLS DESCRIPTION
1. Oven control knob
2. Oven light & fan control knob
3. Front left burner control knob
4. Rear left burner control knob
5. Central dual burner control knob
6. Rear right burner control knob
7. Front right burner control knob
8. 60 minute timer control knob
9. Cooling fan failure warning light

Cooktop Burner BTU Output

1. - 6,000
2. - 12,000
3. - 1,000 - 16,000
2,800 (inner crown)
16,000 (inner & outer crown)
The electronic igniters are incorporated into the knob /valves.
VEFSGG365N
Gas Single Oven
4
5
6
7
8
3
9
HI
