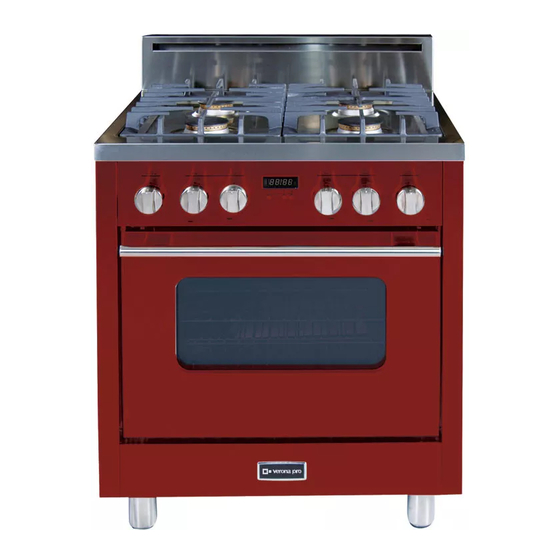

FREE STANDING RANGE
GAS AND ELECTRIC
APPLIANCES
EUROCHEF USA inc.
MOD.: VEFSGG30
MOD.: VEFSGG31
INSTRUCTION GUIDE
INSTALLATION
AND MAINTENANCE
IMPORTANT: SAVE THESE INSTRUCTIONS.
■ IMPORTANT SAFETY INSTRUCTIONS ■
Read and follow all instructions before using this appliance to prevent
the potential risk of fire, electrical shock, personal injury or damage to the
appliance as a result of improper usage of the appliance.
WARNING: If the information in this manual is not followed exactly, a
fire or explosion may result causing property damage, personal injury
or death.
Do not store or use gasoline or other flammable vapours and liquids in
the vicinity of this appliance.
WHAT TO DO IF YOU SMELL GAS:
- Do not to light any appliance.
- Do not touch any electrical switch.
- Do not use any phone in your building.
- Immediately call your gas supplier from a neighbour's phone. Follow
the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
1
9880021100-CU 30P VERONA PRO 040413040413

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEFSGG30 and is the answer not in the manual?

Questions and answers

Related Manuals for Verona VEFSGG30

Summary of Contents for Verona VEFSGG30

  • Page 1 - Immediately call your gas supplier from a neighbour’s phone. Follow the gas supplier’s instructions. - If you cannot reach your gas supplier, call the fire department. Installation and service must be performed by a qualified installer, service agency or the gas supplier. 9880021100-CU 30P VERONA PRO 040413040413...

  • Page 2: Important Safeguards

    Wear proper apparel. Loose fitting or hanging garments should never be worn while using the appliance. User servicing. Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician. 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 3 Use care when opening door. Let hot air or steam escape before removing or replacing food. Do not heat unopened food containers. Build-up of pressure may cause container to burst and result in injury. Keep oven vent ducts unobstructed. 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 4 ■ INSTRUCTION GUIDE FOR GAS RANGETOP AND GAS OVEN ■ ■ RANGETOP GAS BURNER IGNITION AND REGULATION MOD: VEFSGG30 - VEFSGG31 For models with no electronic ignition, hold a lighted match to the desired burner head. Push in and turn the knob counterclockwise to the LIGHT-HIGH setting.
  • Page 5 FORCED AIR CONVECTION FAN OR DEFROST ; Use this setting when forced air convection is necessary for a more even cooking finish. Also, use this setting to defrost frozen food by speeding up air circulation. 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 6 4 to 6 in Ø High (12500 BTU), on VEFSGG30SS from 6 to 8 in Ø Power (14000 BTU), on VEFSGG31SS from 6 to 8 in Ø U-Power (18000 BTU), on VEFSGG31SS from 8 to 10 in Ø 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 7 09. ATTENTION: After cleaning the burner cup, on model VEFSGG31SS, make sure to place the burner cup in the right position, figure 10A. SURFACE AND OVEN COOKING CAVITY CLEANING 9880021100-CU 30P VERONA PRO 040413040413...

  • Page 8: Abnormal Operation

    U-clip (B) is locked by the door frame. This will prevent the hinge from snapping closed when the door is removed. (there will be some spring resistance to overcome because of the hinge 9880021100-CU 30P VERONA PRO 040413040413...

  • Page 9: Replacing The Oven Light

    3) Remove, unscrewing, lens bulb cover and light bulb. 4) Replace bulb with a 25 W – 120 Vac appliance bulb only. 5) Replace lens bulb cover. 6) Reconnect power to range. Reset electronic clock. 9880021100-CU 30P VERONA PRO 040413040413...

  • Page 10: Installation Instructions

    The “C” dimension is the total of product’s width plus To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the surface units should be avoided. 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 11 ANTI-TIP bracket to the wall. STEP 1 – Locating The Bracket (see fig. 14) A. Mark the wall from either the right or left rear “EDGE” of the range is to be located. 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 12 Use a flashlight and look beneath lower frame plate and verify that the anti-tip device horizontal side is properly engaged in the rear cover slot and just above the lower frame plate. 9880021100-CU 30P VERONA PRO 040413040413...

  • Page 13: Connecting The Range

    To facilitate service, the flex cable must not be shortened and should be routed to permit temporary removal of the appliance. GROUNDING IMPORTANT: Local codes might vary, installation, electrical connections and grounding must comply with all applicable local codes. 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 14 A 18 AWG three-prong grounding plug flexible cord, type SJT 3x18 AWG. THE MANUFACTURES DECLINE ANY RESPONSIBILITY FOR IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE, MAINTENANCE OR USE OF RANGE WHICH CAN RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE. 9880021100-CU 30P VERONA PRO 040413040413...

  • Page 15: Gas Supply

    Turn off all pilots and main gas valve of other gas appliances. d) Turn off main gas valve at meter. e) Before connecting range apply pipe thread compound approved for LPG to all threads. 9880021100-CU 30P VERONA PRO 040413040413...

  • Page 16: Gas Conversion

    Natural gas or LP gas will require switching burner injectors, burner adjustment for low flame and adjustment of the appliance pressure regulator converter cap. Inlet pressure to the appliance pressure regulator should be as follows for both operation and checking of appliance pressure regulator setting: 9880021100-CU 30P VERONA PRO 040413040413...

  • Page 17: Service/Parts Information

    When your range requires service or replacement parts, contact your dealer or authorised service agency. Please give the complete model and serial number of the range which is located on the range model number plate. 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 18 PROPANE NATURAL PROPANE HIGH 12000 11000 1.60 1.00 open 220° open 60° SMALL 7500 7000 1.25 0.80 open 220° open 60° 12000 11000 OVEN 1.60 1.00 open 230° open 90° BROIL 12000 11000 1.60 1.00 9880021100-CU 30P VERONA PRO 040413040413...

  • Page 19: Dimensions Of The Appliances

    In our continuing effort to improve the quality and performance of our cooking products, it may be necessary to make changes to the appliance without revising this guide. The manufacturer does not take any responsibility on booklet printing mistakes. 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 20 FIGURES Fig. n° 01 Fig. n° 02 Fig. n° 03 Fig. n° 04 Fig. n° 05 Fig. n° 06 Fig. n° 07 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 21 Fig. n° 08 Fig. n° 08A Fig. n° 08B BURNER CUP BURNER CROWN ORIFICE ELECTRODE BURNER BASE Fig. n° 09A Fig. n° 10 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 22 Fig. n° 11 Fig. n° 12 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 23 Fig. n° 13 Fig. n° 14 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 24 Fig. n° 15 Fig. n° 16 9880021100-CU 30P VERONA PRO 040413040413...
  • Page 25 Fig. n° 17 Fig. n° 18 A Fig. n° 18 B Fig. n° 19 9880021100-CU 30P VERONA PRO 040413040413...
