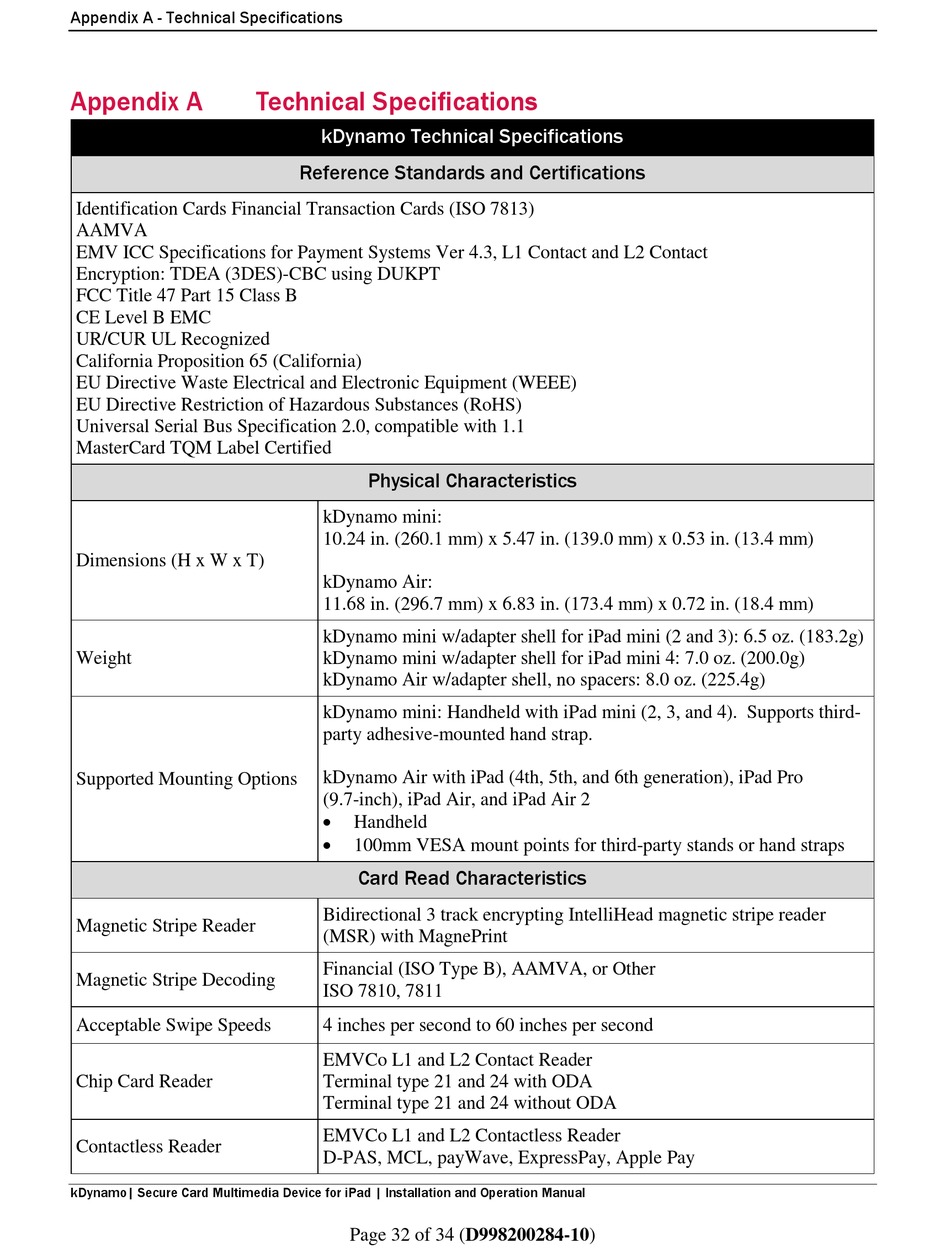

Appendix A - Technical Specifications
Appendix A
Identification Cards Financial Transaction Cards (ISO 7813)
AAMVA
EMV ICC Specifications for Payment Systems Ver 4.3, L1 Contact and L2 Contact
Encryption: TDEA (3DES)-CBC using DUKPT
FCC Title 47 Part 15 Class B
CE Level B EMC
UR/CUR UL Recognized
California Proposition 65 (California)
EU Directive Waste Electrical and Electronic Equipment (WEEE)
EU Directive Restriction of Hazardous Substances (RoHS)
Universal Serial Bus Specification 2.0, compatible with 1.1
MasterCard TQM Label Certified
Dimensions (H x W x T)
Weight
Supported Mounting Options
Magnetic Stripe Reader
Magnetic Stripe Decoding
Acceptable Swipe Speeds
Chip Card Reader
Contactless Reader
kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual
Technical Specifications
kDynamo Technical Specifications
Reference Standards and Certifications
Physical Characteristics
kDynamo mini:
10.24 in. (260.1 mm) x 5.47 in. (139.0 mm) x 0.53 in. (13.4 mm)
kDynamo Air:
11.68 in. (296.7 mm) x 6.83 in. (173.4 mm) x 0.72 in. (18.4 mm)
kDynamo mini w/adapter shell for iPad mini (2 and 3): 6.5 oz. (183.2g)
kDynamo mini w/adapter shell for iPad mini 4: 7.0 oz. (200.0g)
kDynamo Air w/adapter shell, no spacers: 8.0 oz. (225.4g)
kDynamo mini: Handheld with iPad mini (2, 3, and 4). Supports third-
party adhesive-mounted hand strap.
kDynamo Air with iPad (4th, 5th, and 6th generation), iPad Pro
(9.7-inch), iPad Air, and iPad Air 2

Handheld

100mm VESA mount points for third-party stands or hand straps
Card Read Characteristics
Bidirectional 3 track encrypting IntelliHead magnetic stripe reader
(MSR) with MagnePrint
Financial (ISO Type B), AAMVA, or Other
ISO 7810, 7811
4 inches per second to 60 inches per second
EMVCo L1 and L2 Contact Reader
Terminal type 21 and 24 with ODA
Terminal type 21 and 24 without ODA
EMVCo L1 and L2 Contactless Reader
D-PAS, MCL, payWave, ExpressPay, Apple Pay
Page 32 of 34 (D998200284-10)
