Magtek kDynamo Quick Installation Manual

kDynamo Overview

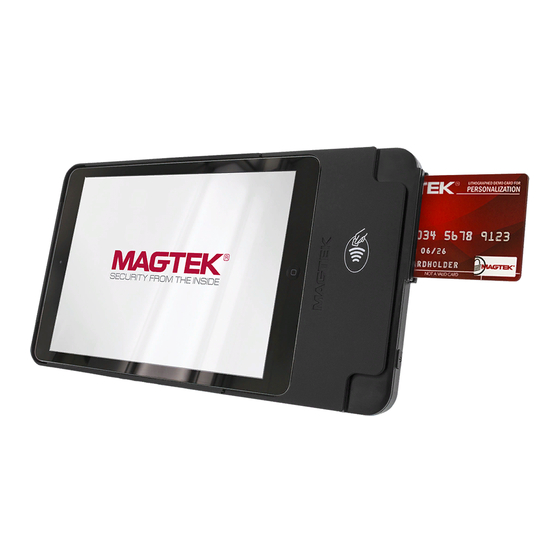

kDynamo makes mobile payments and card reading easier than ever with
magstripe, EMV/NFC contactless, and contact EMV chip card reading
capabilities. There are two models for kDynamo: kDynamo Air and kDynamo
mini. See the Installation and Operation Manual for complete details.
Installation
Installing kDynamo is a straightforward process since the kDynamo uses
user host controls. kDynamo mini keeps you on the go with its smaller size
and handheld ease-of-use. kDynamo Air features a 100mm VESA (Video
Electronics Standards Association) standard mounting pattern that provides
fixed mounting for greater security and convenience, allowing users to
deploy kDynamo Air in a variety of off the shelf semi-mobile or permanent
mounts, and eliminating the need for expensive customization.
•
kDynamo mini handheld: Made for iPad mini (2, 3, and 4). Supports
third-party adhesive-mounted hand straps.
•
kDynamo Air: Made for iPad (4th, 5th, and 6th generation), iPad Pro
(9.7 inch), iPad Air, and iPad Air 2. Supports 100mm VESA mount
points for third-party stands or hand straps
Connecting to a Host
To connect kDynamo to an iPad host, follow these steps:
1.
Match adapter shell to iPad you are connecting to.
2.
kDynamo Air to iPad Pro 9.7 inch or iPad Air 2: install the four included
spacers in the spacer mount points inside the adapter shell
3.
Plug the main body of kDynamo into the host's Lightning connector.
4.
Slide the iPad into the bottom of the adapter shell, then slide it all the
way in until the adapter shell mates and the locking tab engages.
5.
Pull gently on the two halves to make sure they are secured.
6.
On the host, install and configure the host software you intend to use
with kDynamo.
To disconnect kDynamo from the host, follow these steps:
1.
Close or dosconnect all installed apps that use kDynamo.
2.
Power off kDynamo
3.
Turn off the iPad host's display to avoid interacting with apps.
4.
Use your fingernail or gently use a slotted screwdriver to lift locking tab.
5.
Pull kDynamo's adapter shell and main body in opposite directions.
6.
Disconnect kDynamo from the Lightning connector and slide the iPad
host out of the adapter shell.
Quick Installation Guide
Setup and Installation
MagTek Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 651-415-6800 | f 562-546-6301 | www.magtek.com
®
Secure Card Reader Authenticator
Major Components Overview
kDynamo connects to an iPad host via the Lightning connector, and
includes an additional adapter shell, included with each device and varies
based on the iPad model, that snaps onto kDynamo to secure and surround
the host, and a MagTek USB-C cable (required for charging*).

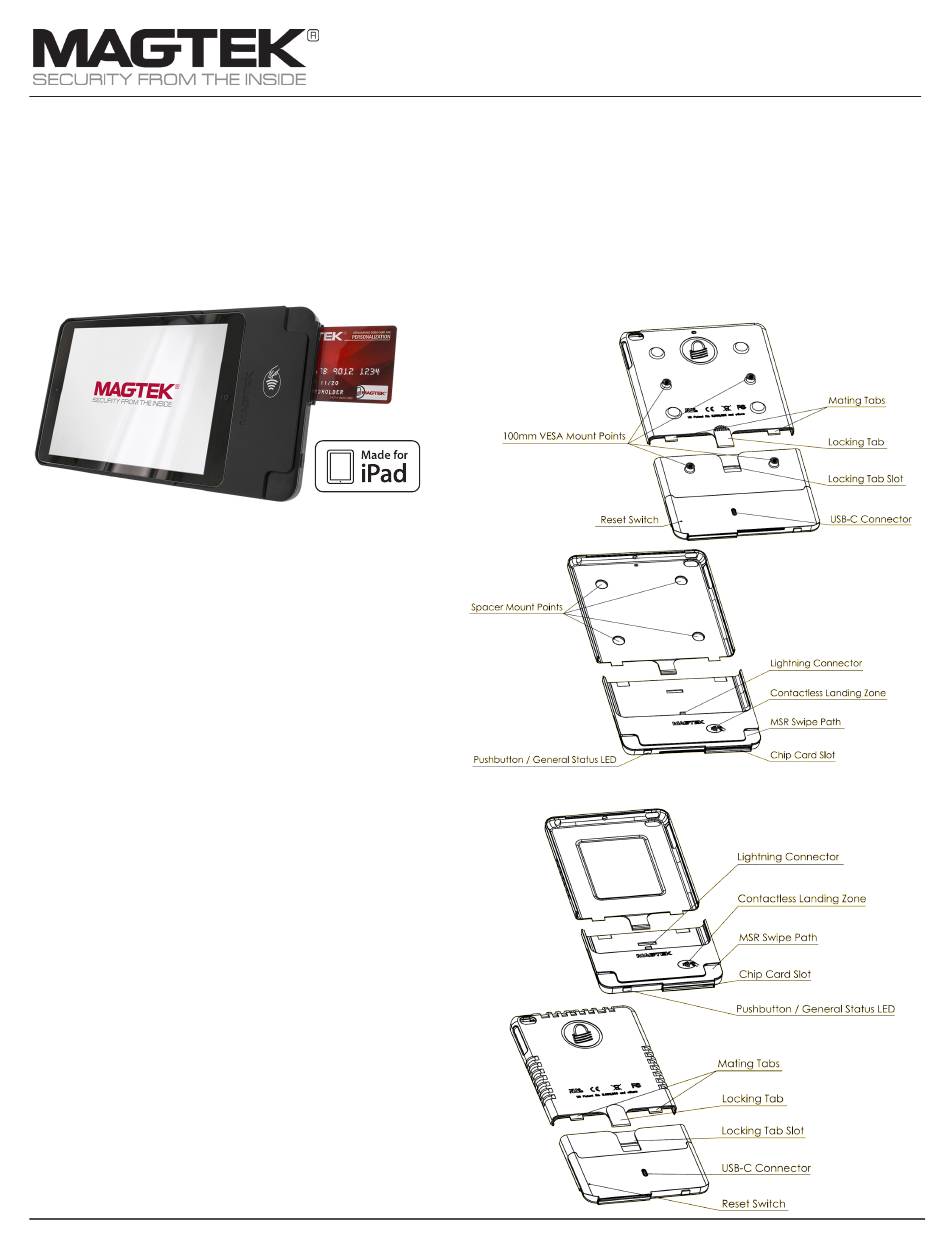

Figure 1 - kDynamo Air Major Components
Figure 2 - kDynamo mini Major Components
kDynamo
