- Page 1 BulleT MagneSafe Swipe Reader TECHNICAL REFERENCE MANUAL PART NUMBER 99875523 APRIL 2012 REGISTERED TO ISO 9001:2008 1710 Apollo Court Seal Beach, CA 90740 Phone: (562) 546-6400 FAX: (562) 546-6301 Technical Support: (651) 415-6800 www.magtek.com...
- Page 2 Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of MagTek, Inc. MagTek is a registered trademark of MagTek, Inc.
- Page 3 This warranty shall be provided only for a period of one year from the date of the shipment of the product from MagTek (the “Warranty Period”). This warranty shall apply only to the “Buyer” (the original purchaser, unless that entity resells the product as authorized by MagTek, in which event this warranty shall apply only to the first repurchaser).
- Page 4 FCC WARNING STATEMENT This equipment has been tested and was found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment.
-
Page 5: Table Of Contents

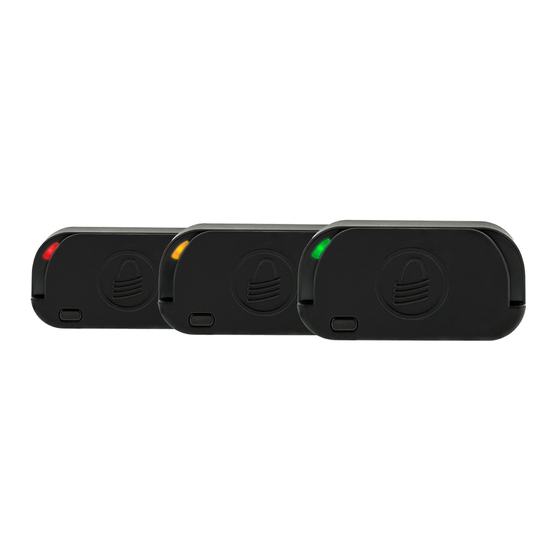

APPENDIX B: INSTALLING WITH KENSINGTON DRIVER ............ 15 APPENDIX C: DEMONSTRATING THE SPP VERSION BULLET READER ......25 Tables and Figures Figure 1-1. BulleT MagneSafe Reader ......................vi Table 1-1. Specifications ..........................4 Figure 1-2. Dimensions for BulleT ....................... 4... - Page 6 Figure 1-1. BulleT MagneSafe Reader...
-
Page 7: Section 1. Features And Specifications
SECTION 1. FEATURES AND SPECIFICATIONS The BulleT MagneSafe V5 Swipe Reader is a compact, handheld magnetic stripe card reader that conforms to ISO standards. In addition to reading multiple tracks of data from a card, this Reader also includes MagnePrint technology and data encryption. The MagnePrint data will be included with the track data on each transaction. -
Page 8: Features
BulleT MagneSafe Swipe Reader FEATURES Major features of the MagneSafe V5 BulleT Swipe Reader are as follows: • Powered by a rechargeable battery; recharging can be provided via a standard USB cable • The SPP version is compatible with any device that supports Bluetooth virtual serial port profile (SPP) •... -
Page 9: Reference Documents
Section 1. Features and Specifications REFERENCE DOCUMENTS MagTek Communication Reference Manual for USB MagneSafe V5 Readers (99875475) MagTek Technical Reference Manual for Dynamag MagneSafe Swipe Reader (99875482) ANS X9.24-2004 Retail Financial Services Symmetric Key Management Part 1: Using Symmetric Techniques USB Human Interface Device (HID) Class Specification Version 1.1. -
Page 10: Specifications
BulleT MagneSafe Swipe Reader SPECIFICATIONS Table 1-1 lists the specifications for the BulleT MagneSafe Reader. Figure 1-2 shows the dimensions of the Reader. Table 1-1. Specifications Reference Standards ISO 7810 and ISO 7811; AAMVA* Power Input USB port or 5 VDC for battery charging... -
Page 11: Section 2. Installation
SECTION 2. INSTALLATION This section describes the Windows setup. BULLET CONNECTION On hosts with the Windows operating system, the SPP version BulleT reader appears as a virtual COM port and the KB HID version BulleT appears as a Bluetooth keyboard. Use the Windows Bluetooth installation utility or, if using another Bluetooth adapter, follow the directions for that device. - Page 12 BulleT MagneSafe Swipe Reader...
-
Page 13: Section 3. Operation
For a more detailed description of the USB interface, refer to the MagTek Technical Reference Manual for Dynamag MagneSafe Swipe Reader (99875482). The full USB communication command set... -
Page 14: Card Read
BulleT MagneSafe Swipe Reader rapidly flash red until the battery voltage is high enough for normal operation (this may take a few minutes). If enabled to operate with authentication (Security Level 4) and when the host completes Authentication successfully, the LED will blink green; the reader is now armed to read a card. If the host fails an Authentication sequence, the LED will turn solid red and stay red until either the host completes Authentication successfully or the reader is powered down. -
Page 15: Charging The Bullet Reader Battery
Section 3. Operation CHARGING THE BULLET READER BATTERY As mentioned above (LED Indicator), the BulleT reader may indicate low battery at power up. The first time this happens there will probably be sufficient battery available for several more card swipes, but the battery should be charged soon. If the low battery warning is ignored and the battery gets too low, the reader will refuse to power up until it has been charged. - Page 16 BulleT MagneSafe Swipe Reader...
-
Page 17: Appendix A: Installing With Windows Driver
APPENDIX A: INSTALLING WITH WINDOWS DRIVER This section demonstrates how to install the SPP version. The keyboard version is installed similarly. If prompted for a passkey use 1234. Attach a Bluetooth adapter to the PC. (NOTE: If using a Kensington Adapter, see Appendix B.) Select Bluetooth icon in Control Panel. - Page 18 BulleT MagneSafe Swipe Reader Check My device is set up and ready to be found. Then click Next. Select the Magtek-xxxx device using the number as indicated on the reader, then click Next.
- Page 19 Appendix A: Installing with Windows Driver Select Let me choose my own passkey: then type “1234” in the associated box. Click Next when ready. Wait for the device to be installed:...
- Page 20 BulleT MagneSafe Swipe Reader After the device is installed, note the Outgoing COM port: for communication purposes. Click Finish. The Bluetooth reader is now ready to use. If you need to discover the COM port values later on, open the Bluetooth utility and select the...
-
Page 21: Appendix B: Installing With Kensington Driver
APPENDIX B: INSTALLING WITH KENSINGTON DRIVER (NOTE: Uninstall any existing Bluetooth software prior to beginning installation. DO NOT plug USB adapter in until instructed to do so.) Put the installation CD in your CD drive. Click Click! To Install to begin. (If the CD does not autoplay, select Start>Run…... - Page 22 BulleT MagneSafe Swipe Reader Select I accept the terms in the license agreement, and click Next Click Next to continue.
- Page 23 Appendix B: Installing with Kensington Driver Click Install to begin installing the software. A status window shows the progress of the installation.
- Page 24 BulleT MagneSafe Swipe Reader Click OK to continue. Insert USB adapter and click OK, if necessary, to continue. (Make note of the COM Port you use since the same port will be required for use of this device in the future.)
- Page 25 Appendix B: Installing with Kensington Driver Installation will continue with several windows opening and closing automatically. Click Finish and then click Quit on the main CD contents screen. (NOTE: You may need to minimize the main CD contents screen to see this window).
- Page 26 BulleT MagneSafe Swipe Reader Double-click My Bluetooth Places on the desktop to begin the setup. Click Next to continue. Click Next to continue.
- Page 27 Appendix B: Installing with Kensington Driver Click Next to continue. Click Next to continue.
- Page 28 BulleT MagneSafe Swipe Reader Power on the BulleT Reader and Click Next. The program will begin searching. Once the device has been found, select the device and click Next.
- Page 29 Appendix B: Installing with Kensington Driver Enter the security code, which is set to 1234 for initial use, and click Pair Now Check the box next to SPP, then click Next.
- Page 30 BulleT MagneSafe Swipe Reader Insure power to the BulleT Reader is still on (green LED flashing). If it is not, turn it back on. Click OK. Click Finish to complete the process.
-
Page 31: Appendix C: Demonstrating The Spp Version Bullet Reader
APPENDIX C: DEMONSTRATING THE SPP VERSION BULLET READER Use any serial port program (NOTE: HyperTerminal does not work well with Bluetooth). You can download the TeraTerm utility from http://www.rovingnetworks.com/support.html. Open TeraTerm and choose Setup Select Serial port… then select the COM port that matches the port you plugged the USB adapter into during the installation process. - Page 32 BulleT MagneSafe Swipe Reader Insure the BulleT Reader has a valid connection (LED is steady green) and swipe a card through the reader. Card data will appear in the TeraTerm screen.
