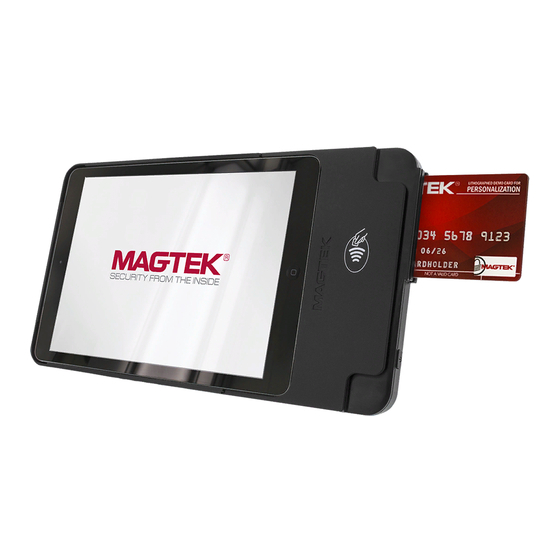

kDynamo
Secure Card Multimedia Device for iPad
Installation and Operation Manual
November 2018
Document Number:
D998200284-10
REGISTERED TO ISO 9001:2015
MagTek I 1710 Apollo Court I Seal Beach, CA 90740 I Phone: (562) 546-6400 I Technical Support: (888) 624-8350
www.magtek.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the kDynamo and is the answer not in the manual?

Questions and answers

Related Manuals for Magtek kDynamo

Summary of Contents for Magtek kDynamo

  • Page 1 Secure Card Multimedia Device for iPad Installation and Operation Manual November 2018 Document Number: D998200284-10 REGISTERED TO ISO 9001:2015 MagTek I 1710 Apollo Court I Seal Beach, CA 90740 I Phone: (562) 546-6400 I Technical Support: (888) 624-8350 www.magtek.com...
  • Page 2 No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of MagTek, Inc. MagTek® is a registered trademark of MagTek, Inc.
  • Page 3 Table 0-1 - Revisions Rev Number Date Notes Nov 5, 2018 Initial Release kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual Page 3 of 34 (D998200284-10)

  • Page 4: Limited Warranty

    MagTek’s published specifications. This warranty shall be provided only for a period of one year from the date of the shipment of the product from MagTek (the “Warranty Period”). This warranty shall apply only to the “Buyer” (the original purchaser, unless that entity resells the product as authorized by MagTek, in which event this warranty shall apply only to the first repurchaser).
  • Page 5 CONTRACT PRICE FOR THE GOODS. MAGTEK’S SOLE LIABILITY AND BUYER’S EXCLUSIVE REMEDIES ARE STATED IN THIS SECTION AND IN THE SECTION RELATING TO MAGTEK’S LIMITED WARRANTY. kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual Page 5 of 34 (D998200284-10)

  • Page 6: Fcc Information

    Reduction of Hazardous Substances (RoHS) European Directive 2002/95/EC. The marking is clearly recognizable, either as written words like “Pb-free,” “lead-free,” or as another clear symbol ( kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual Page 6 of 34 (D998200284-10)

  • Page 7: Table Of Contents

    How to Insert Contact Chip Cards ..................28 3.5.4 How to Tap Contactless Cards / Devices ................29 Maintenance ............................30 Developing Custom Software ....................... 31 kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual Page 7 of 34 (D998200284-10)
  • Page 8 0 - Table of Contents Lightning-Based Custom Software ....................31 For More Information ........................31 Appendix A Technical Specifications ....................... 32 kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual Page 8 of 34 (D998200284-10)

  • Page 9: Introduction

    Time bound session IDs Rugged and Reliable kDynamo is rugged, affordable, and designed to perform to the high standards set by MagTek, the world’s most prolific supplier of secure payment technology for over 40 years. The swipe path is optimized for a more reliable and stable one-swipe read; the chip card insertion card slot is easy to access;...

  • Page 10: Magnesafe Security Architecture

    MagnePrint card authentication. This layered approach to security far exceeds the protection of encryption by itself, decreases the scope of PCI compliance, and reduces fraud.

  • Page 11: About Kdynamo Components

    1 - Introduction About kDynamo Components The major components of kDynamo mini are shown in Figure 1-1 below. The major components of kDynamo Air are shown in Figure 1-2 below. Figure 1-1 - kDynamo mini Major Components kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual...
  • Page 12 1 - Introduction Figure 1-2 - kDynamo Air Major Components kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual Page 12 of 34 (D998200284-10)

  • Page 13: About Terminology

    1 - Introduction About Terminology In this document, kDynamo is referred to as the device. It is designed to be connected to a host, which is a piece of general-purpose electronic equipment which can send commands and data to, and receive data from, the device.

  • Page 14: About Solution Planning

     Determine what type of host kDynamo will connect to. kDynamo Air is Made for iPad (4th, 5th, and 6th generation), iPad Pro (9.7-inch), iPad Air, and iPad Air 2. kDynamo mini is Made for iPad mini (2, 3, and 4).
  • Page 15 Air, Made for iPad (4th, 5th, and 6th generation), iPad Pro 21097101 9.7-inch, iPad Air, and iPad Air 2 kDynamo Air adapter shell for iPad Air, iPad Air 2, iPad Pro 9.7-inch, 1000003039 iPad (5th and 6th generation) 90800008 kDynamo Air spacers for iPad Pro 9.7-inch, iPad Air 2...

  • Page 16: Installation

    About Host Software In any solution, kDynamo is connected to a host, which must have software installed that knows how to communicate with the device, and which is capable of performing actions intended to be carried out when a cardholder swipes, inserts, or taps a card or contactless payment device.

  • Page 17: Connecting To A Host

    5) Pull gently on the two halves to make sure they are secured. 6) On the host, install and configure the host software you intend to use with kDynamo. If you do not yet have host software, you can download a test tool from the App Store called...
  • Page 18 To disconnect kDynamo from the host, follow these steps: 1) Make sure all installed apps that use kDynamo are either closed or disconnected. 2) Power off kDynamo (see section 3.4.4 How to Power On / Wake Up from Sleep Mode / Power Off).

  • Page 19: Mounting

    Mounting 2.3.1 How to Mount kDynamo Air kDynamo Air’s design provides a 100mm VESA standard mounting pattern on the rear of the device (see section 1.5 About kDynamo Components), which the solution design can use in a variety of ways: ...

  • Page 20: How To Mount Kdynamo Mini

    2 - Installation 2.3.2 How to Mount kDynamo mini kDynamo mini is primarily designed to be handheld. Depending on solution design requirements, designers may choose to add a commercially available adhesive-mounted hand strap, or other adhesive- mounted custom components. Figure 2-2 provides overall dimensions of the device to assist with planning and integration.

  • Page 21: Operation

     Connected Mode occurs when the iOS host has established an iAP2 session with kDynamo. In this mode, the host and the device can both initiate communication. It is the host’s responsibility to terminate the iAP2 session and send the device into Sleep Mode to save power when an active data connection is no longer needed.

  • Page 22: About The General Status Led

    3 - Operation About the General Status LED kDynamo’s General Status LED, integrated into the pushbutton (see section 1.5 About kDynamo Components), provides feedback to the operator and cardholder about the internal state of the device . Table 3-1 shows how to interpret the flashing patterns of the General Status LED.

  • Page 23: About Sounds

    3 - Operation About Sounds kDynamo’s beeper provides feedback to operators and cardholders about the internal state of the device:  The device sounds one short beep on startup to test the beeper and indicate the device is powered on.

  • Page 24: Power Management

    (see Appendix A Technical Specifications; below 77°F / 25°C is optimal). Temperature is the most critical factor in extending battery life.  Store the device with the battery charged to less than 100% (40% is optimal). kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual Page 24 of 34 (D998200284-10)

  • Page 25: How To Check Battery Level

    Periodically recharge kDynamo’s battery and the connected iOS host by using the included USB-C cable to connect it to the Apple USB power adapter included with the iPad host.

  • Page 26: Card Reading

    A transaction generally follows this essential flow: 1) An advanced operator makes sure kDynamo is configured properly and is connected to the host (see section 2.2 Connecting to a Host). 2) When the device is powered by the USB-C connector, the host may always keep a connection open to the device.

  • Page 27: How To Swipe Magnetic Stripe Cards

    Figure 3-1. Cardholders may swipe in either direction along the path. Figure 3-1 - Swiping a Card Through kDynamo kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual Page 27 of 34 (D998200284-10)

  • Page 28: How To Insert Contact Chip Cards

    Cardholders should insert chip cards into the chip card slot with the chip facing the cardholder and toward the slot, as shown in Figure 3-2. Figure 3-2 - Inserting a Chip Card Into kDynamo kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual Page 28 of 34 (D998200284-10)

  • Page 29: How To Tap Contactless Cards / Devices

    5) Remove the card or electronic payment device from the contactless landing zone. Figure 3-3 - Tapping a Contactless Card or Smart Phone On kDynamo kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual...

  • Page 30: Maintenance

    4 - Maintenance Maintenance MagTek’s double-sided cleaning card 96700004 is designed to clean the magnetic read head in the MSR swipe path and the contact pins inside all chip card contact readers. Keeping both of these components clean is essential to the device’s functioning. MagTek recommends swiping and inserting a cleaning card once per week to avoid credit card misreads.

  • Page 31: Developing Custom Software

    Contactless Specifications for Payment Systems, Book A, Architecture and General Requirements for user interface requirements that may need to be met by the host software. For example, because kDynamo has a single General Status LED and does not have a display, the MagTek Demo demonstrates using the host’s display to emulate the standard four-LED contactless tap sequence.

  • Page 32: Appendix A Technical Specifications

    Air: 11.68 in. (296.7 mm) x 6.83 in. (173.4 mm) x 0.72 in. (18.4 mm) kDynamo mini w/adapter shell for iPad mini (2 and 3): 6.5 oz. (183.2g) Weight kDynamo mini w/adapter shell for iPad mini 4: 7.0 oz. (200.0g) kDynamo Air w/adapter shell, no spacers: 8.0 oz.
  • Page 33 Additional draw (~1A, depends on host) when charging host’s battery Average Current Draw From iPad host: 37mA when magnetic read head is on; 0mA otherwise Data Storage Not Applicable kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual Page 33 of 34 (D998200284-10)
  • Page 34 ICC Read Head Life 100,000 card insertions Battery Shelf Life Minimum 4 years for rechargeable battery Battery Cycle Life 500 full discharge / recharge cycles kDynamo| Secure Card Multimedia Device for iPad | Installation and Operation Manual Page 34 of 34 (D998200284-10)
