Yorkshire - CertainTeed Bufftech Installation Instructions Manual

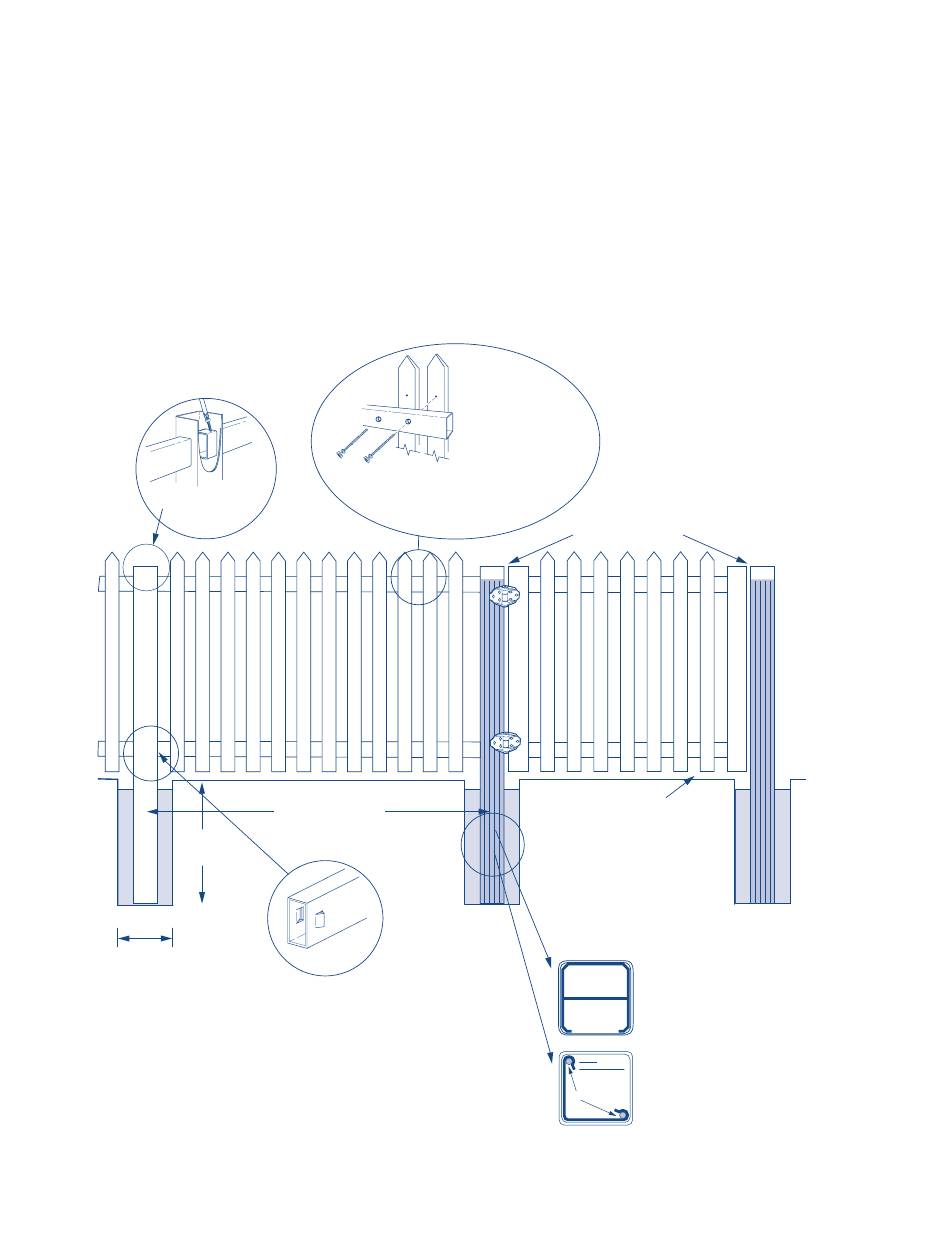

Traditional Picket Fence
Includes: Cape Cod, Charleston, Yorkshire
locK toP rail in Post
WITH #8 X 3/4" SCREW
dig holes 30"
deeP or to
Frost line
Post holes
4 x 4 POSTS = 10"
5 x 5 POSTS = 12"
attach traditional PicKets to rails
WITH 5/16" X 3/4" HEX Washer head
SCREWS. TIGHTEN WITH 1/2" NUT DRIVER.
insert Plug-in rail
4 x 4 POST CENTERS
3" PICkET = 72"
1-1/2" PICkET = 72-1/2"
5 x 5 POST CENTERS
3" PICkET = 73"
RAILS ARE CRIMPED
on ends to hold
in Post
ALLOW 1" FOR HINGE AND
3/4" For laTCH SYSTEM
ALLOW CLEARANCE
For gaTE SWING
Post suPPorT OPTIONS:
inserT ALUMINUM GAte Post stiFFener
inside Post For FASTER, CLEANER INSTallation
USE (2) PIECES OF 1/2" REBAR IN HINGE,
rebar
seParator cliP
laTCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
rebar seParator cliPs
1/2" REBAR
