Accent Fence
Lattice, Victorian
Once the main fence section is installed, proceed as follows:
Lattice
• Measure distance between inside faces of the posts
• Cut bottom channel to fit between posts
• Fasten bottom channel to top fence rail with #8 X 1-1/2"
screws evenly spaced along the length
• Fasten side channels to posts with #8 X 1-1/2" screws
• Insert lattice into channels
• Slide top channel over lattice
• Insert top 2 X 3-1/2 rail into routed post holes
• Secure top channel to 2 X 3-1/2 top rail with #8 X 1-1/2"
screws evenly spaced along the length
NOTE:
VICTORIAN ACCENT
30
Accents can be added to the following styles:
Chesterfield
Columbia
Galveston
Norfolk I

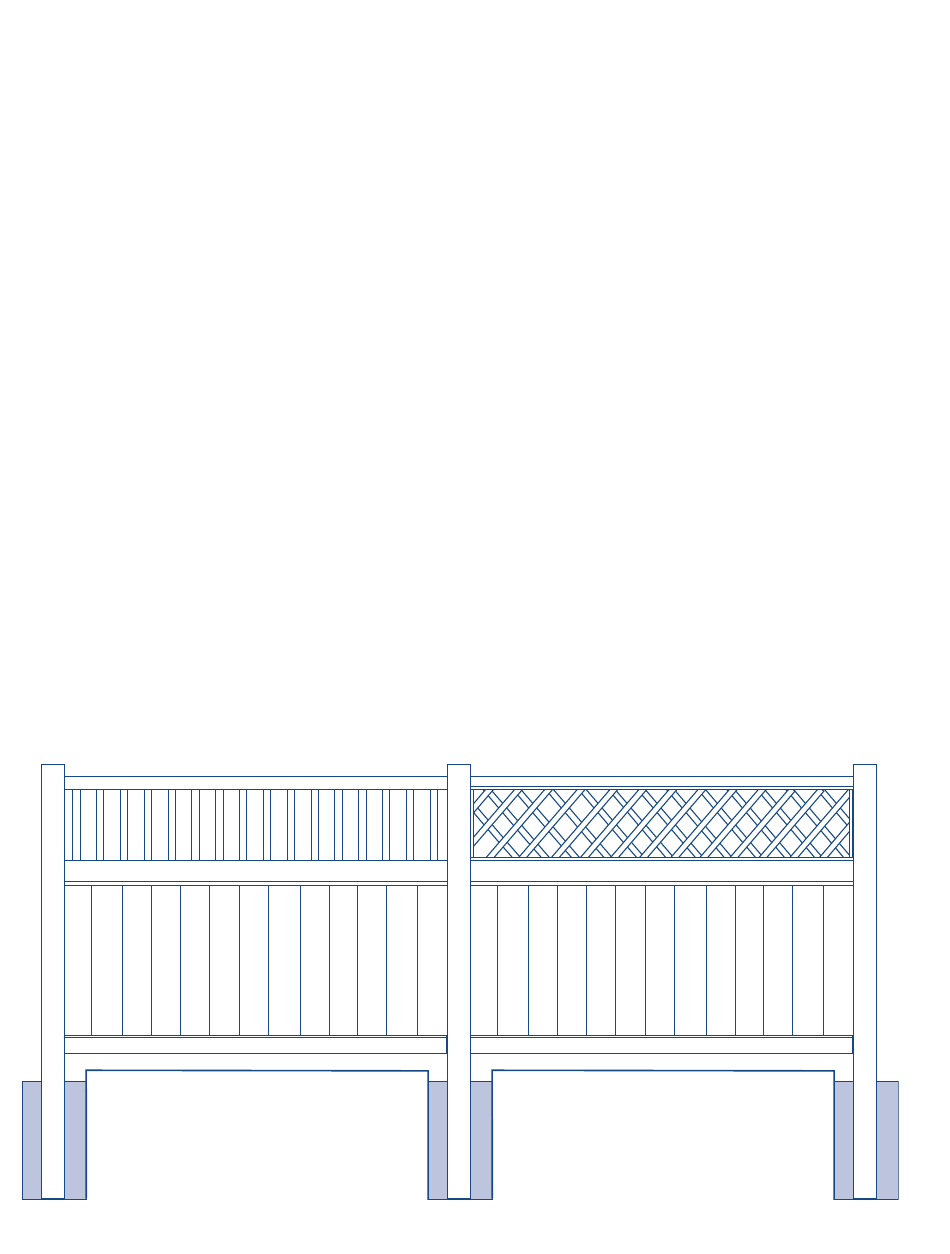

SHOWN WITH CHESTERFIELD FENCE
Victorian
• Insert accent pickets in routed section top rail
• Insert top accent rail over pickets
• Insert both ends of top rail into routed post holes
• Secure top rail in position with #8 x 3/4" screws from
inside the post
LATTICE ACCENT
