CertainTeed Bufftech Installation Instructions Manual page 23

Privacy Fence
Includes: Chesterfield
Chesterfield with CertaGrain
Chesterfield with CertaStucco
hold toP rails
IN POST WITH
locK ring
HOLD BOTTOM
rails in Post
WITH LOCk RING

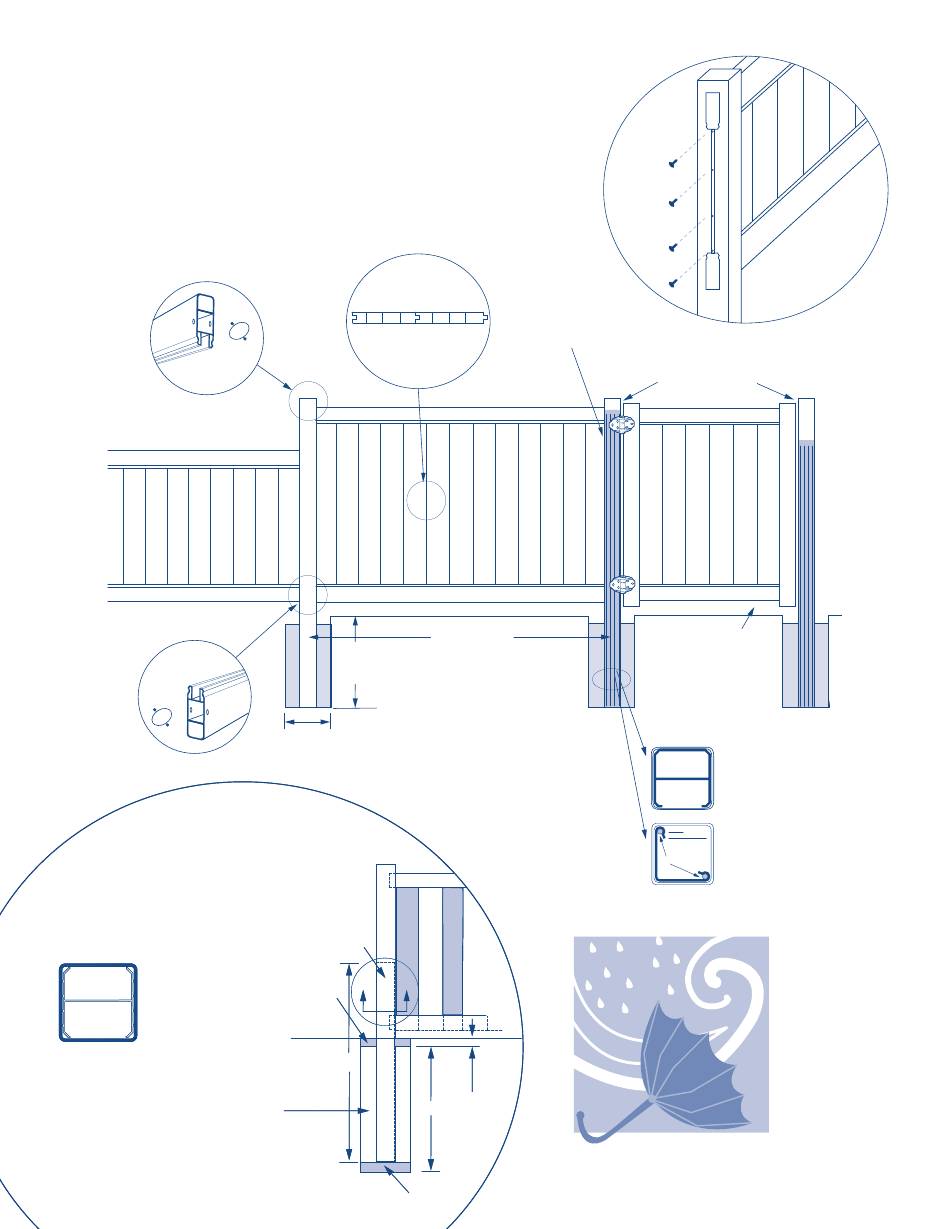

EMBEDMENT DETAIL FOR OPTIONAL EMBEDMENT DETAIL FOR OPTIONAL
LINE POST STIFFENER ALUMINUM INSERT LINE POST STIFFENER ALUMINUM INSERT
MINIMUM 48" INSERT REQUIRED TO MINIMUM 48" INSERT REQUIRED TO
COMPLY WITH THE HIGH VELOCITY COMPLY WITH THE HIGH VELOCITY
HURRICANE ZONES SECTION R44003.1.2.1 HURRICANE ZONES SECTION R44003.1.2.1
OF THE FLORIDA BUILDING CODE OF THE FLORIDA BUILDING CODE
SECTION A-A SECTION A-A
LINE POST STIFFENER LINE POST STIFFENER
ALUMINUM INSERT ALUMINUM INSERT
GROUND LEVEL GROUND LEVEL
CONCRETE 3000 CONCRETE 3000
P.S.I. MINIMUM P.S.I. MINIMUM
Texture
®
TM
PicKets For this stYle
ARE TONGUE AND GROOVE
Post centers
4 X 4 POSTS = 95-1/8"
5 X 5 POSTS = 96-1/8"
dig holes 30"
deeP or to
*Add 1/2" to post centers
Frost line
when using end channels
Post holes
4 X 4 POSTS = 10"
5 X 5 POSTS = 12"
ALUMINUM ALUMINUM
INSERT INSERT
A A A A
TOP SOIL TOP SOIL
48 48
30 30
GRAVEL FILL GRAVEL FILL
Texture
tongue riPPed oFF last PicKet
to sit Flush against Post.
2 2
attach end
channel to Post
WITH 4 SCREWS
ALLOW 1" FOR HINGE
and 3/4" For laTCH SYSTEM
ALLOW CLEARANCE
For gaTE SWING
Post suPPorT OPTIONS:
inserT ALUMINUM GAte Post stiFFener
inside Post For FASTER, CLEANER INSTallation
USE (2) PIECES OF 1/2" REBAR IN HINGE,
rebar
seParator cliP
laTCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
rebar seParator cliPs
1/2" REBAR
Featuring
WINDZONE™
PERFORMANCE
21
