Imperial - CertainTeed Bufftech Installation Instructions Manual

Semi-Private Fence
Includes: Imperial

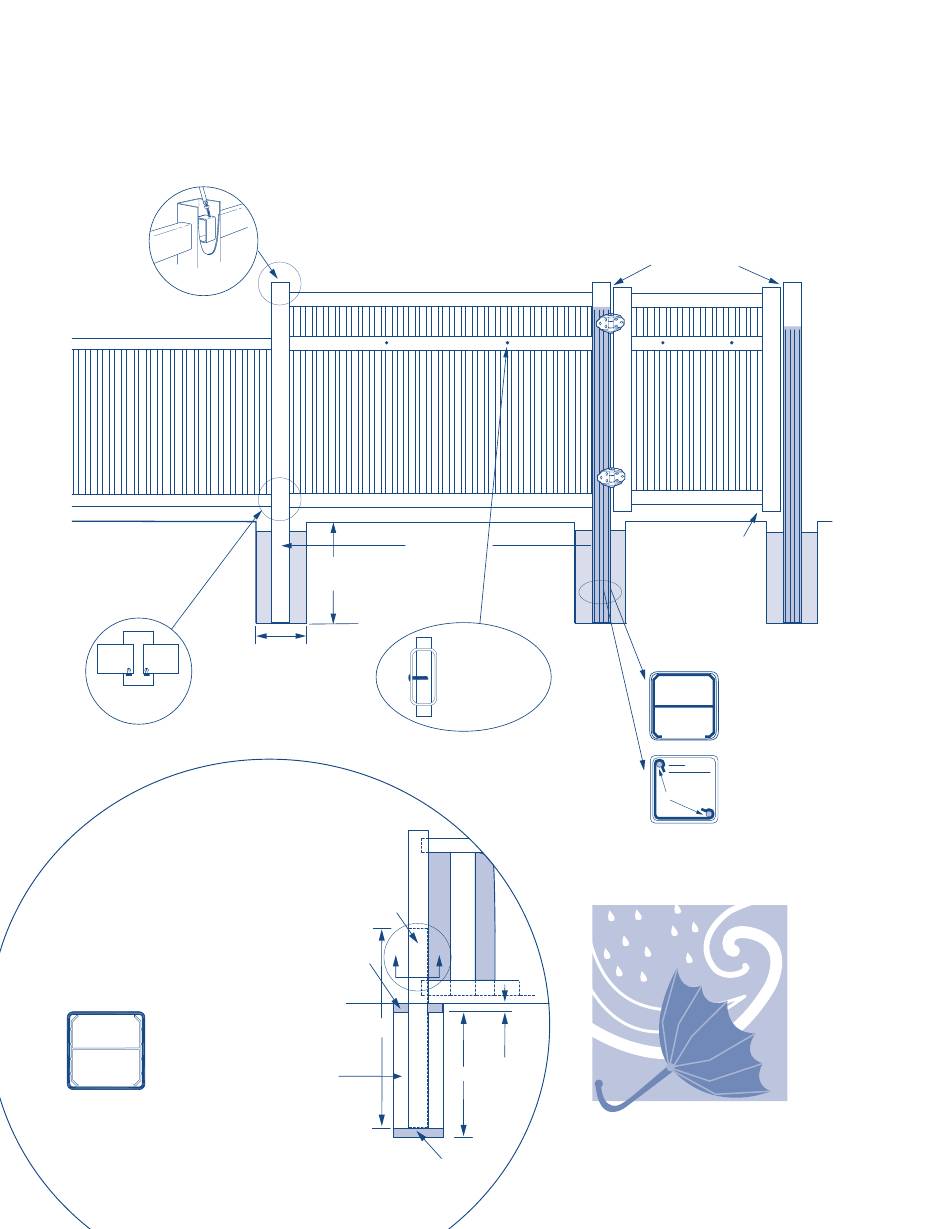

locK toP rail in Post
WITH #8 X 3/4" SCREW
HOLD BOTTOM RAIL
IN POSITION WITH
bullet cliPs
EMBEDMENT DETAIL FOR OPTIONAL
LINE POST STIFFENER ALUMINUM INSERT
TO COMPLY WITH THE HIGH VELOCITY
HURRICANE ZONES SECTION R44003.1.2.1
OF THE FLORIDA BUILDING CODE, A
STEEL INSERT MUST BE ADDED TO
THE TOP RAIL AND THE CENTER PICKET
MUST BE ATTACHED TO THE TOP AND
BOTTOM RAIL WITH (2) #8 X 1-1/2"
SCREWS, CAPS, AND WASHERS
SECTION A-A
LINE POST STIFFENER
ALUMINUM INSERT
Post centers
4 X 4 POSTS = 96"
5 X 5 POSTS = 97"
dig holes 30"
deeP or to
Frost line
4 X 4 POSTS = 10"
5 X 5 POSTS = 12"
ALUMINUM
INSERT
A
TOP SOIL
GROUND LEVEL
48
CONCRETE 3000
P.S.I. MINIMUM
SECURE MIDDLE
rail to PicKets
WITH (2) #8 X 1-1/2"
SCREWS, CAPS
AND Washers
A
2
30
GRAVEL FILL
ALLOW 1" FOR HINGE
and 3/4" For laTCH SYSTEM
ALLOW CLEARANCE
For gaTE SWING
Post suPPorT OPTIONS:
inserT ALUMINUM GAte Post stiFFener
inside Post For FASTER, CLEANER INSTallation
USE (2) PIECES OF 1/2" REBAR IN HINGE,
rebar
seParator cliP
laTCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
rebar seParator cliPs
1/2" REBAR
Featuring
WINDZONE™
PERFORMANCE
17
