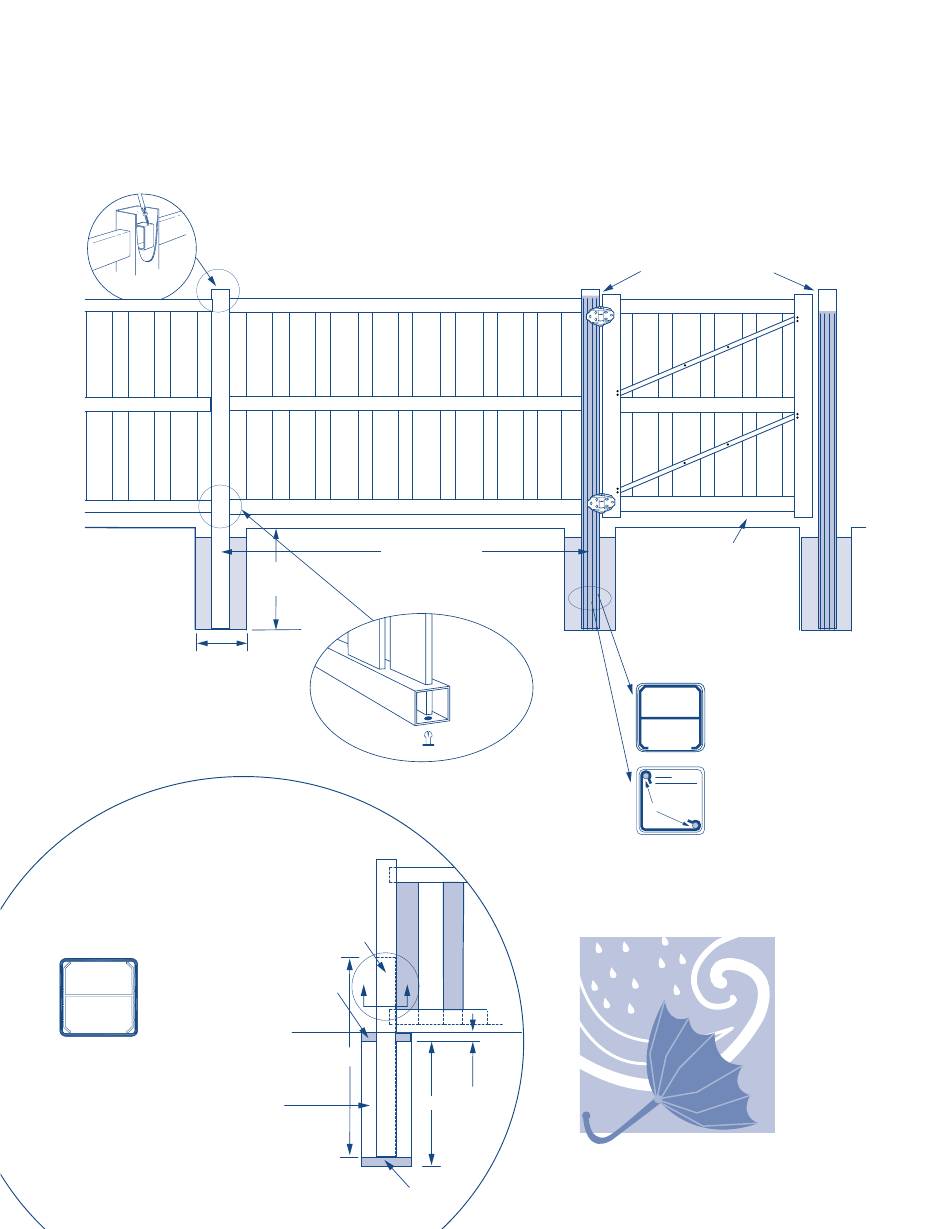

Semi-Private Fence
Includes: Columbia
locK toP rail in Post
WITH #8 X 3/4" SCREW
Post holes
5 X 5 posts =12"
EMBEDMENT DETAIL FOR OPTIONAL
LINE POST STIFFENER ALUMINUM INSERT
MINIMUM 48" INSERT REQUIRED TO
COMPLY WITH THE HIGH VELOCITY
HURRICANE ZONES SECTION R44003.1.2.1
OF THE FLORIDA BUILDING CODE
SECTION A-A
LINE POST STIFFENER
ALUMINUM INSERT
GROUND LEVEL
CONCRETE 3000
P.S.I. MINIMUM
Post centers
5 X 5 POSTS = 96-1/8"
dig holes 30"
deeP or to
Frost line
ALUMINUM
INSERT
HOLD BOTTOM RAIL
IN POSITION WITH
bullet cliPs
A A
TOP SOIL
48
30
GRAVEL FILL
NOTE: COLUMBIA GAtes haVE BRACES ON BOTH SIDES
oF gaTE. THERE IS NO DIFFERENCE BETWEEN REGULAR
and oPPosite gates
HOLD BOTTOM RAILS
IN POST WITH A
bullet cliP
2
ALLOW 1" FOR HINGE
and 3/4" For laTCH SYSTEM
ALLOW CLEARANCE
For gaTE SWING
Post suPPort OPTIONS:
inserT ALUMINUM GAte Post stiFFener
inside Post For FASTER, CLEANER INSTallation
USE (2) PIECES OF 1/2" REBAR IN HINGE,
rebar
seParator cliP
laTCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
rebar seParator cliPs
1/2" REBAR
Featuring
WINDZONE™
PERFORMANCE
