General Information

The Intellisys S3 Controller is designed as a
global controller to be used on all 90 - 160kW
(125 - 200Hp) units. This Controller has
replaced all wording with symbols eliminating
the need of multiple language programming. The

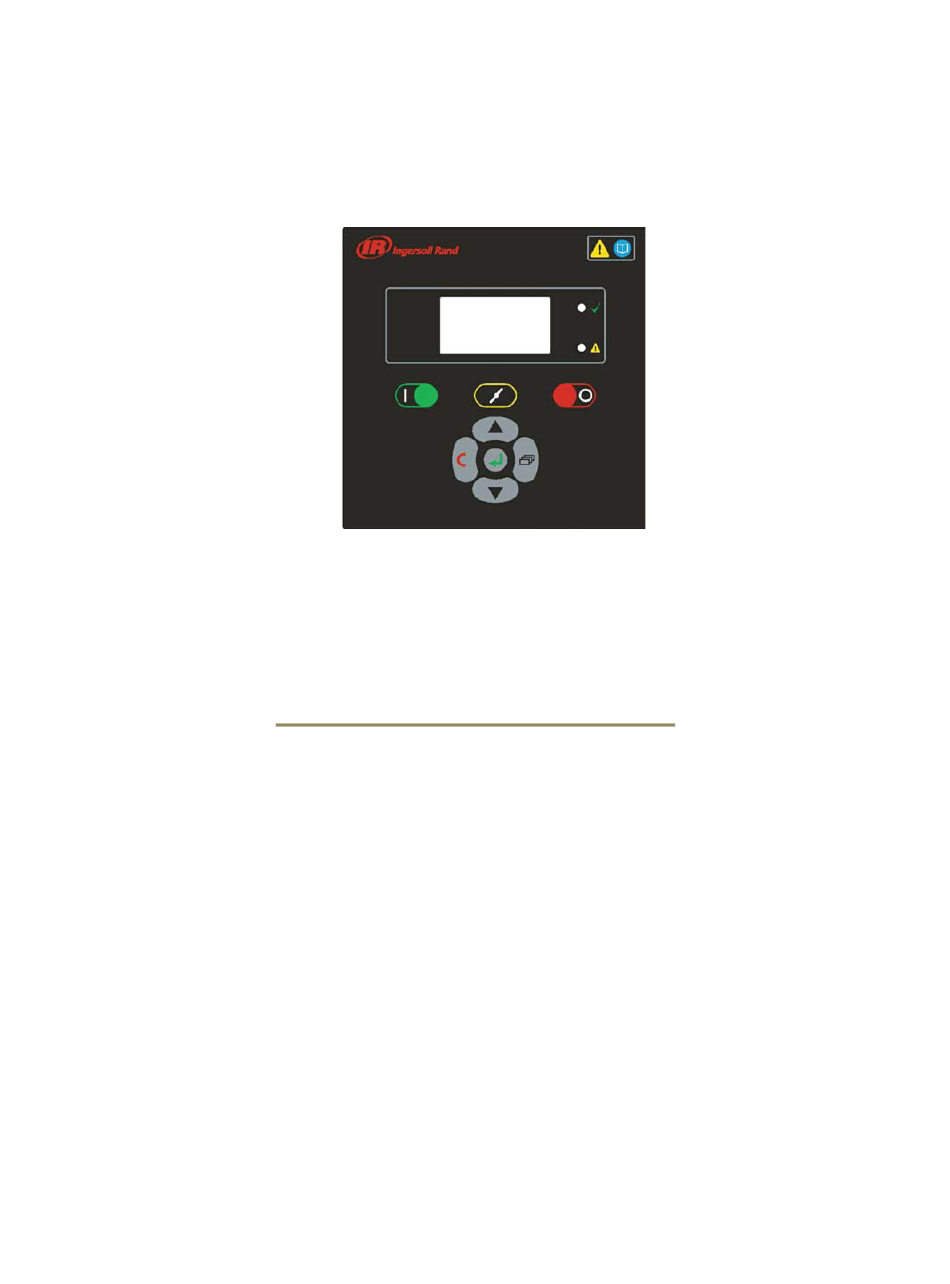

below picture shows the basic layout of the S3
controller, this controller is designed for easy
use by the end-user as well as the service
technician.
This controller was developed to be used in both
rapidly Developing Economies as well as
Developed Markets around the world making
this controller a common worldwide solution for
the Rotary Screw compressor line.
The S3 controller controls all aspects of machine
operation including; starting, stopping, loading
and unloading, safety shutdowns, user interface,
©2008 Ingersoll Rand Company Page 1
