Assembly Instructions
KI 700 Series Pedestal (shown)
E-Series Pedestal/Areus Pedestal/Systems Wall Pedestal

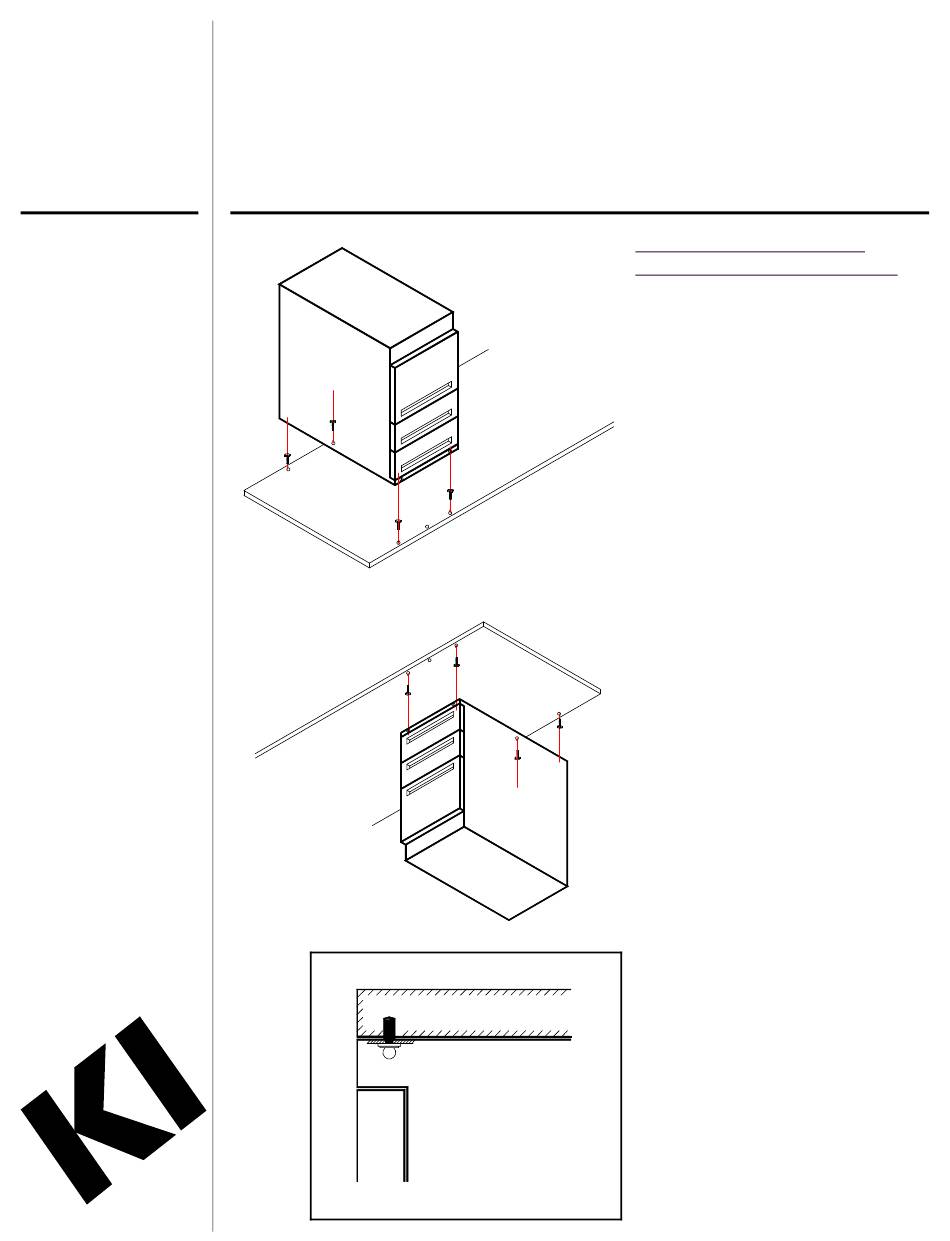

Method "A"
Pedestal
Hanger Bolt
Method "B"
Worksurface
Worksurface
Hanger Bolt
Pedestal
Predrilled Hole
Thumb Screw
Detail A
Mounting Hanging/Worksurface
Supporting Pedestal to Worksurface
Method "A"
1. To avoid scratching the worksurface, place face
down on a protective surface.
2. Determine on which side will be used.
3. Install (4) hanger bolts into the 13/64" dia.
holes. CAUTION: Do not over tighten.
4. Position back of pedestal to engage with back
hanger bolts and slide backward enough to
allow front key slots to engage.
5. Install thumb screw through pedestal top and
into predrilled hole in the worksurface. Thumb
screw must be installed to lock pedestal to the
worksurface (Detail A).
Method "B"
NOTE: For hole locations on unmarked tops, refer to
reverse side.
1. This method should be used only when
attaching a pedestal to worksurface that cannot
be placed face down on the floor.
2. Follow instructions in Method "A" excluding
step 1.
CAUTION: To avoid injury this operation requires
more than one person to install pedestal.
