KI 700 Series Assembly Instructions

August 1997
KI Pembroke
P.O. Box 580
1000 Olympic Drive
Pembroke, Ontario
K8A 6X7
TEL (613) 735-5566
FAX (613) 735-3333
Assembly Instructions

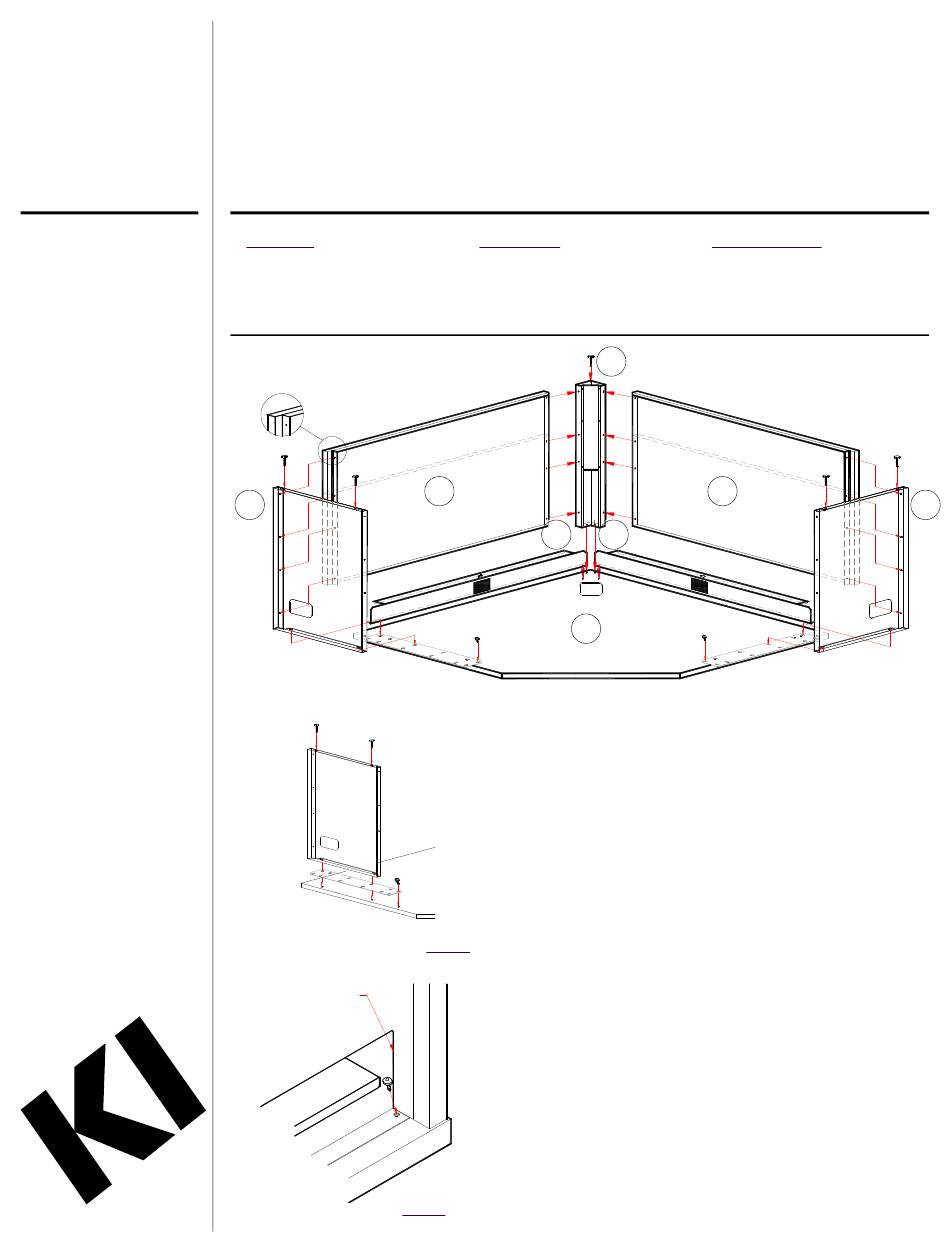

KI 700 Series Desk Corner Unit

Components

1 - Worksurface
2 - End Panel
3 - Modesty Panel
4 - Corner Column
5 - Wire Management Channel
2
End
Panel
Level Connector
Wire Management
Channel
Worksurface
Detail B

Tools Required

Ÿ Phillips Screwdriver
Ÿ 3/8" Socket/Wrench
3
5
1
#14 x 7/8"
Screw
Detail A

Hardware Parts List

(24)#20162 - #8 x 1/2" Screws
(6) #20192 - #14 x 7/8" Screws
(8) #20203 - 10-16 x 1/2" Self Drilling
Screws
(5) #20425 - Hex Glides
4
3
5
1. To avoid scratching worksurface,
place face down on a protective
surface.
2. If attaching bridge/return, align level
connector (shipped with bridge/
return) with holes in worksurface.
Place end panel on level connector
and secure in place with (3)
#14 x 7/8" screws (Detail A).
Repeat for opposite end.
3. Using (2) #14 x 7/8" screws attach
corner column to underside of top.
4. Position modesty panel between end
panel and corner panel. Note: Double
flanged end of modesty panel
attaches to end panel. Aligning
holes use (6-8)* #8 x 1/2" screws to
attach modesty panel to corner
column and end panel. Repeat for
next modesty panel.
5. Place wire management channel on
worksurface, product label facing
inward, align holes with predrilled
holes in worksurface. Secure in
place using (3) #8 x 1/2" screws
(Detail B). Repeat for next wire
management channel.
* (6) - #8 x 1/2" screws partial
modesty panel
(8) - #8 x 1/2" screws full modesty
panel
2
