VERTIV™ LIEBERT® PSA-PH
650VA/360W, 230V, Line Interactive UPS
User Manual
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions that should be
followed during installation and maintenance
• Intended for installation in a controlled environment.
• Maximum ambient temperature 104°F (40°C)
CAUTION! To prevent the risk of fire or electric shock, install in a
temperature and humidity controlled indoor area free of
conductive contaminants. (See the specifications for the
acceptable temperature and humidity range.)
CAUTION! To reduce the risk of overheating the UPS, do not
cover the UPS cooling vents and avoid exposing the unit to direct
sunlight or installing the unit near heat emitting appliances such
as space heaters or furnaces.
CAUTION! Do not attach non-computer related items, such as
medical equipment, life-support equipment, microwave ovens, or
vacuum cleaners to UPS.
CAUTION! Do not plug the UPS input into its own output.
CAUTION! Do not allow liquids or any foreign object to enter the
UPS. Do not place beverages or any other liquid-containing
vessels on or near the unit.
CAUTION! In the event of an emergency, press the OFF button
and disconnect the power cord from the AC power supply to
properly disable the UPS.
CAUTION! Do not attach a power strip or surge suppressor to the
UPS.
CAUTION! If the UPS is with metal chassis, for safety purpose,
grounding is a must during UPS installation in order to reduce
leakage current below 3.5mA.

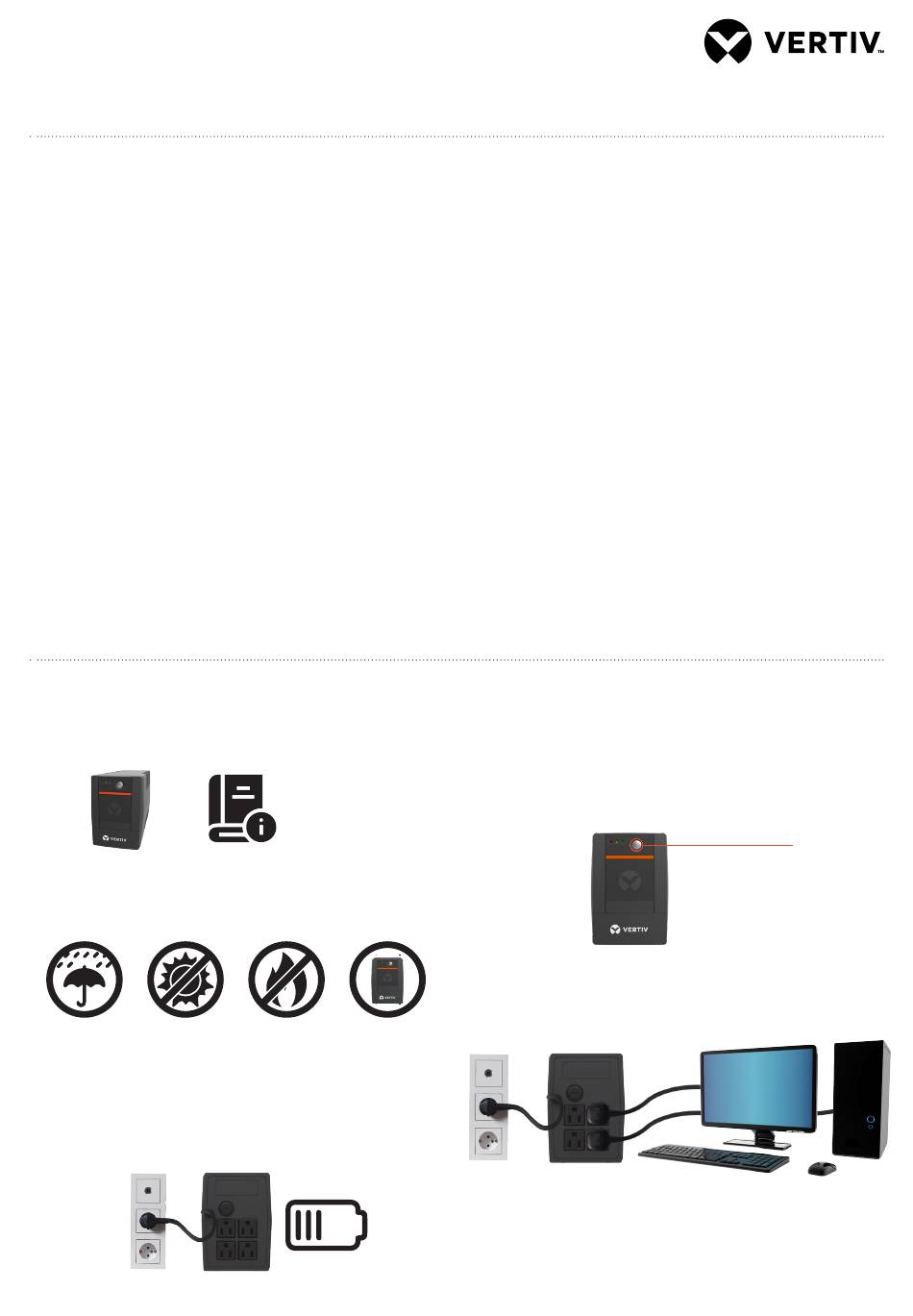

SETUP
Step 1 Inspect the Package
Inspect the package and the UPS upon receipt.
Notify the carrier and dealer of visible damage.
UPS Quick-Start Guide
Step 2 Decide Where to Place the UPS
The UPS must be placed indoors, protected from water, direct
sunlight and excessive heat. Provide at least 7.8" (20cm) of
clearance on all sides of the unit for proper ventilation.
Step 3 Charge the UPS Battery Before Use
The UPS battery is fully charged before shipping. However, some
charge may be lost during shipping and the battery should be
recharged prior to use.
• Plug-in the UPS AC input cord to the wall outlet. For the
best results, we recommend charging the battery at least
four (4) hours before initial use. The unit charges its battery
while connecting to the utility.
CAUTION! When replacing the batteries, use the same number
and type of batteries.
CAUTION! Internal battery voltage is 12VDC. Sealed, lead-acid,
6-cell battery.
CAUTION! Electric shock hazard. When UPS is disconnected from
the mains source, hazardous voltage may still be available through
the batteries. Disconnect all battery connectors from battery
terminals prior to doing any maintenance or service works.
CAUTION! Servicing of batteries should be performed or
supervised by personnel knowledgeable of batteries and the
required precautions. Keep unauthorized personnel away from
batteries.
CAUTION! Do not dispose of batteries in a fire. The battery may
explode. Do not open or mutilate the battery or batteries.
Released electrolyte is harmful to the skin and eyes.
CAUTION! Unplug the UPS prior to cleaning and do not use liquid
or spray detergent.
CAUTION! A battery can present a risk of electric shock and high
short circuit current . the following precaution should be observed
before replacing batteries:
Remove watches, rings, or other metal objects.
1)
Use tools with insulated handles.
2)
Wear rubber gloves and boots.
3)
Do not lay tools or metal parts on top of batteries.
4)
Disconnect charging source prior to connecting or
5)
disconnecting batteries terminal.
Step 4 Start the UPS
After the battery is fully charged:
• Turn on the UPS by pressing the ON/OFF button. (see below
figure) LED should be illuminated (green), indicating the UPS
is operating in Normal mode.
Step 5 Connect the Loads
The UPS has four (4) battery backup standard outlets that
provide power when the UPS operates on battery.
(see Figure 2 on next page)
• Plug the loads into the battery backup outlets on
the rear of the UPS.
CAUTION: NEVER connect a laser printer or scanner to the UPS
4
unit. This may cause the damage of the unit.
HRS
On/Off Button
