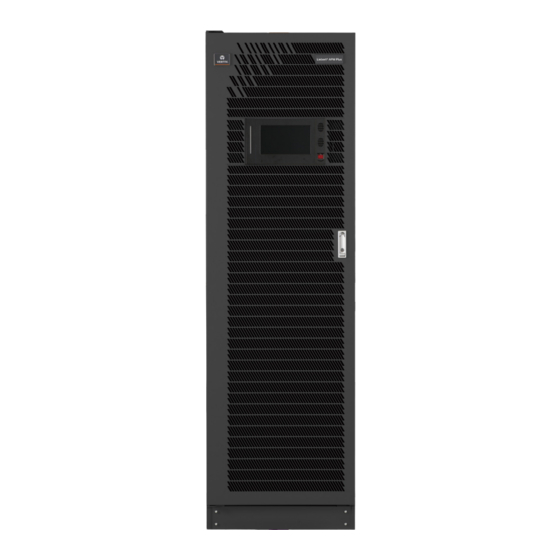

Vertiv™ Liebert® APM Plus
User Manual
50-250 kVA UPS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liebert APM Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Vertiv Liebert APM Plus

Summary of Contents for Vertiv Liebert APM Plus

  • Page 1 Vertiv™ Liebert® APM Plus User Manual 50-250 kVA UPS...
  • Page 2 The products covered by this instruction manual are manufactured and/or sold by Vertiv. This document is the property of Vertiv and contains confidential and proprietary information owned by Vertiv. Any copying, use or disclosure of it without the written permission of Vertiv is strictly prohibited.

  • Page 3: Table Of Contents

    Vertiv™ Liebert® APM Plus User Manual TABLE OF CONTENTS 1 Imp ortant Safety Instructions 2 O verview 2.1 Features 2.2 Design Concept 2.2.1 System Design 2.2.2 Bypass 2.2.3 System Control Principle 2.2.4 UPS Power Supply Switch Configuration 2.2.5 Battery Circuit Breaker (BCB) 2.3 Parallel System...
  • Page 4 5.2 Navigating through the Liebert APM Plus Touchscreen Control Panel 5.2.1 Access Level Log-In 5.2.2 Liebert APM Plus Touchscreen Control Panel Components 5.3 Operation 5.3.1 Log In to the Liebert APM Plus Touchscreen Control Panel 5.3.2 Customizing the Display 5.3.3 Operator Controls 5.4 Viewing UPS Status 5.4.1 Viewing UPS Data with the Status Gauge...
  • Page 5 Vertiv™ Liebert® APM Plus User Manual 6.2.2 Startup Procedures in ECO Mode 6.2.3 Startup Procedures in Battery Mode (Battery Cold Start) 6.3 Procedures for Transfer Between Operation Modes 6.3.1 Transfer from Normal Mode to Battery Mode 6.3.2 Transfer from Normal Mode to Bypass Mode 6.3.3 Transfer from Bypass Mode to Normal Mode...
  • Page 6 Vertiv™ Liebert® APM Plus User Manual 8.2.2 Cabinet Installation 8.2.3 External Protective Device 8.2.4 Power Cable 8.2.5 Parallel Cable 8.2.6 Remote EPO 8.3 Operation Procedures for Parallel System 8.3.1 Startup Procedures in Normal Mode 8.3.2 Maintenance Bypass Procedures 8.3.3 Procedures for Isolating One UPS module from Parallel System 8.3.4 Procedures for Inserting One Isolated UPS module in Parallel System...
  • Page 7 Vertiv™ Liebert® APM Plus User Manual 10.3.1 Communication through IS-Relay Card 10.3.2 Communication through Dry Contact Port of Bypass Module 11 Service and M aintenance 16 9 11.1 Safety 11.2 Service Procedures of Power Module and Bypass Power 11.2.1 Notes 11.2.2 Service Procedures of Power Module...
  • Page 8 Vertiv™ Liebert® APM Plus User Manual This page intentionally left blank...

  • Page 9: Important Safety Instructions

    Where conductive dust, corrosive gases, salts, or flammable gases are present • Near heat sources or strong electromagnetic interferences. Disclaimer Vertiv disclaims any and all responsibility or liability for the defects or malfunction caused by: • Application range or operating environment outside the specifications •...
  • Page 10 Vertiv™ Liebert® APM Plus User Manual Safety Precaution This manual contains information concerning the installation and operation of the Liebert APM Plus 250 kVA UPS single module and parallel system. Read this manual thoroughly before installing, using, and servicing the UPS.
  • Page 11 Vertiv™ Liebert® APM Plus User Manual 2011/65/EU Directive o f th e co u n cil fo r adaptin g th e legal regu latio n s o f m em ber states o n th e restrictio n o f th e u se o f certain h azardo u s su bstan ces th at can be u sed in th e m an u factu re o f electrical an d electro n ic equ ipm en t.
  • Page 12 Vertiv™ Liebert® APM Plus User Manual W A R N IN G ! User serviceable co m po n en ts (F o r service perso n n el) A ll equ ipm en t m ain ten an ce an d servicin g pro cedu res in vo lvin g in tern al access requ ires th e u se o f a to o l an d sh o u ld be carried o u t o n ly by train ed perso n n el.
  • Page 13 W A R N IN G ! T h e u ser m u st select an appro priate M CCB to pro tect again st sh o rt circu it an d o verlo ad fo r th e battery. W e reco m m en d u sin g Vertiv B CB bo x to pro vide a better so lu tio n .
  • Page 14 Vertiv™ Liebert® APM Plus User Manual The Manual Describes the Equipment Prod uct M od el 250 kVA APM 0250kMK16FN02000 1 Important Safety Instructions...
  • Page 15 Vertiv™ Liebert® APM Plus User Manual Revision Information V1.0 (December 22, 2021) Initial release. V1.1 (April 1, 2021) Update Safety precautions; Figure 5-6, 5-11, 5-13, 5-15, 5-21, 5-22, 5-25, 5-26, 5-27, 5-28, 5-29, 5-34, 6-3, 6-5, 6-8, 6-9, 6-11; Table 12-1, 12-2 and 12-6.
  • Page 16 Vertiv™ Liebert® APM Plus User Manual This page intentionally left blank 1 Important Safety Instructions...

  • Page 17: Verview

    2 Overview This chapter briefly introduces the features, design concept, parallel system, operation mode, battery management, and battery protection of the Liebert APM Plus 250 kVA UPS (UPS for short). 2.1 Features UPS is connected between a critical load (e.g. a computer) and mains power to provide high quality power for the loads.
  • Page 18 Vertiv™ Liebert® APM Plus User Manual F igu re 2.1 B lo ck diagram fo r wo rk in g prin ciple o f UP S sin gle m o du le N o. D es crip tion N o.

  • Page 19: Bypass

    Vertiv™ Liebert® APM Plus User Manual 2.2.2 Bypass Through the intelligent control of the ‘Static Switch’ module (as shown in Figure 2.1 on the previous page) containing the controllable electronic switch, the loads can be supplied by the inverter or the bypass. In normal situation, the loads are supplied by the inverter, in this case the automatic inverter switch at inverter side is closed.

  • Page 20: Ups Power Supply Switch Configuration

    In case of inverter failure, output fuse blowout, and bypass STS failure the load will automatically transfer to the bypass. In this situation, please contact the local customer service center of Vertiv Tech Co., Ltd for technical support. (Parallel System) In the event of a fault in a UPS module, it will automatically exit from the parallel system. If the system is still capable of providing the required load, the remaining modules will continue to supply the load with no interruption.

  • Page 21: Battery Circuit Breaker (Bcb)

    Vertiv™ Liebert® APM Plus User Manual F igu re 2.2 UP S po wer su pply switch co n figu ratio n N o. D es crip tion N o. D es crip tion Bypass input DC bus Maintenance bypass switch Q3...

  • Page 22: Parallel System

    Vertiv™ Liebert® APM Plus User Manual 2.3 Parallel System Up to four UPS modules can be parallel-connected to form a parallel system to increase the system capacity and reliability. The load is equally shared between the paralleled UPS modules. Moreover, two UPS modules or parallel system can comprise a dual bus system. Each parallel system has independent output.

  • Page 23: Operation Modes

    Vertiv™ Liebert® APM Plus User Manual 2.4 Operation Modes The UPS has the following operation modes: • Normal mode • Battery mode • Automatic restart mode • Bypass mode • Maintenance mode • ECO mode • Frequency converter mode •...
  • Page 24 EOD voltage, if the mains is recovered, the UPS will restart automatically after a certain time of delay. This function and the automatic restart type can be set by the service engineer authorized by Vertiv. During the process of automatic restart time of delay, the UPS will charge the battery to protect against the power-off risk of the load device caused by mains power failure.
  • Page 25 Vertiv™ Liebert® APM Plus User Manual Bypass mode As shown in Figure 2.5 below, in normal mode, in case of an inverter failure, an inverter overload or an inverter manual shutdown, the static switch will transfer the load from the inverter side to bypass side, with no interruption in power to the load.
  • Page 26 Vertiv™ Liebert® APM Plus User Manual ECO mode If ECO mode is selected, all power switches and the battery switches are closed except for the maintenance bypass switch, and the system prefers to put the load on the bypass, to achieve the aim of energy-saving. When the bypass supply is within the range of normal frequency and normal voltage (adjustable), the load is powered by the bypass, with the inverter on stand-by;...

  • Page 27: Battery Management

    For the operation principle diagram of the LBS mode, see Figure 8.5 on page 142 and Figure 8.6 on page 143. 2.5 Battery Management The following battery management functions are set by the service engineer through the Vertiv firmware software. 2.5.1 Normal Function Constant current boost charge Adopt the constant current (within battery charging limit) to charge the battery.

  • Page 28: Advanced Function

    9. Maximum boost charge protection time To protect against the battery overcharge damage caused by long time boost charge, a protect time setting is essential. The limit of time setting shall be configured by service engineer through the Vertiv setting software. 2.5.2 Advanced Function The UPS provides battery maintenance test function.

  • Page 29: Battery Temperature Compensation

    W A R N IN G ! T h e u ser m u st select an appro priate M CCB to pro tect again st sh o rt circu it an d o verlo ad fo r th e battery. W e reco m m en d u sin g Vertiv B CB bo x to pro vide a better so lu tio n .
  • Page 30 Vertiv™ Liebert® APM Plus User Manual This page intentionally left blank 2 Overview...

  • Page 31: Echanical Installation

    Vertiv™ Liebert® APM Plus User Manual 3 Mechanical Installation This chapter briefly introduces the mechanical installation of the UPS, including the precautions, initial inspection before installation, environmental requirement, mechanical requirement, and installation diagram. 3.1 Precautions This chapter describes the environmental and mechanical requirements and mechanical considerations that must be taken into account when planning the positioning and cabling of the UPS equipment.

  • Page 32: Transportation

    Vertiv™ Liebert® APM Plus User Manual 3.2 Transportation Railroad transportation and shipping are the recommended means of transportation. If truck transportation is unavoidable, choose roads that are less bumpy in order to protect the equipment. The UPS cabinet is heavy (see Table 12.3 on page 176 for the weight). We recommend useing mechanical equipment such as an electric forklift to unload and move the equipment to the place closest to the installation site.
  • Page 33 Vertiv™ Liebert® APM Plus User Manual T able 3.1 T o o ls N am e D rawing N am e D rawing Electric hand drill Adjustable wrench Slotted screwdriver Cross head screwdriver Stepladder Forklift Drill Wire cutting plier Claw hammer...

  • Page 34: Unpacking

    Vertiv™ Liebert® APM Plus User Manual 3.4 Unpacking Unpack the UPS and battery packages under the guidance of authorized service engineer. Follow the steps given below: F igu re 3.2 R em o vin g th e pack in g belts an d h o n eyco m b bo ards N o.
  • Page 35 Vertiv™ Liebert® APM Plus User Manual As shown in Figure 3.3 below, remove the packing belts and honeycomb boards. F igu re 3.3 R em o vin g th e pack in g belt, h o n eyco m b bo ards an d carto n bo x 2.
  • Page 36 Vertiv™ Liebert® APM Plus User Manual 3. Open the front door of the UPS, loosen the fixing screws and remove the bottom fixed part at front of the cabinet. Then loosen the fixing screws and remove the bottom fixed part at back of the cabinet. As shown in Figure 3.5 below.

  • Page 37: Initial Inspection

    Vertiv™ Liebert® APM Plus User Manual 3.5 Initial Inspection Before installing the UPS, carry out the following inspections: Ensure that the environment of the UPS equipment room meets the environmental requirement specified in the product technical specifications, especially the ambient temperature, ventilation conditions, and the dust situations.

  • Page 38: Battery Location Selection

    Vertiv™ Liebert® APM Plus User Manual 3.6.2 Battery Location Selection Batteries generate some amount of hydrogen and oxygen at the end of charge, so the fresh air volume of the battery installation environment must meet the EN50272-2001 requirements. The ambient temperature is the main factor that affects the battery capacity and life. The normal operating temperature of the battery is 20 °C.

  • Page 39: Mechanical Requirement

    Vertiv™ Liebert® APM Plus User Manual 3.7 Mechanical Requirement 3.7.1 Composition As a cabinet of 600 mm width, the system provides the options such as rectifier input switch, bypass input switch, and output switch. 3.7.2 Moving Cabinet W A R N IN G ! 1.

  • Page 40: Installation Drawings

    Vertiv™ Liebert® APM Plus User Manual 3.8 Installation Drawings F igu re 3.7 T o p/fro n t/side/bo tto m view o f th e UP S (u n it: m m ) 3 Mechanical Installation...

  • Page 41: Electrical Installation

    Vertiv™ Liebert® APM Plus User Manual 4 Electrical Installation This chapter mainly introduces the electrical installation of the UPS, including the power cable and signal cable connecting procedures and methods. After completing the mechanical installation of the UPS, it is necessary to connect the power cable and signal cable of the UPS.

  • Page 42: Maximum Steady State Ac And Dc Currents

    T able 4.1 abo 2. W e reco m m en d co n figu rin g Vertiv B CB bo x fo r th e UP S with extern al batteries. If B CB is n o t selected, please select battery switch acco rdin g to B CB param eters sh o wn in 9.5 B CB B o x.

  • Page 43: Distance Between The Ups Connection Point And Floor

    Vertiv™ Liebert® APM Plus User Manual 4.1.5 Distance between the UPS Connection Point and Floor T able 4.4 M in . distan ce between UP S co n n ectio n po in t an d flo o r M in. d is tance (m m )

  • Page 44: External Protective Device

    Vertiv™ Liebert® APM Plus User Manual 4.1.9 External Protective Device To ensure the safety, it is necessary to install external circuit breaker for the input and battery of the UPS. Because of the difference of the specific installations, this section only provides general practical information for the installation engineer.
  • Page 45 Vertiv™ Liebert® APM Plus User Manual F igu re 4.1 R CCB sym bo ls The UPS has an internal EMC filter, therefore the protective earth cable has leakage current which is less than 3000 mA. It is recommended to confirm the RCD sensitivity of the upstream input distribution and the downstream distribution (to the load).

  • Page 46: Power Cable Connection Steps

    Vertiv™ Liebert® APM Plus User Manual 4.1.10 Power Cable Connection Steps Connection terminal and cable routing method Figure 4.2 below shows the connection terminals of the UPS power cable. Figure 4.3 on page 40 shows the power cable entry and routing methods, please refer to the cabling method to route cables and then connect them to corresponding terminals shown in Figure 4.2 below.
  • Page 47 Vertiv™ Liebert® APM Plus User Manual Side view N o. D es crip tion Shorting copper bar of common input configuration 4 Electrical Installation...
  • Page 48 Vertiv™ Liebert® APM Plus User Manual Power cable routing method The standard cabinet supports bottom cable access only, see Figure 4.3 below. If the user needs top cable access, please choose the parallel cabinet cabling option, refer to Options for details.
  • Page 49 Vertiv™ Liebert® APM Plus User Manual W A R N IN G ! B efo re cables co n n ectio n , m ak e su re th at all extern al an d in tern al po wer switch es o f th e UP S are o ff, an d po st n ecessary warn in g sign s to preven t in adverten t o peratio n o f th e switch es.

  • Page 50: Wiring Of Signal Cable

    Vertiv™ Liebert® APM Plus User Manual 4.2 Wiring of Signal Cable 4.2.1 Overview For on-site specific needs, the UPS needs auxiliary connection to realize battery system (including the external battery switch) management, communicate with PC, provide alarm signal to external devices, realize remote EPO or provide bypass back feed circuit breaker signal and parallel communication.

  • Page 51: Dry Contact Port J6

    Vertiv™ Liebert® APM Plus User Manual 4.2.2 Dry Contact Port J6 The dry contact port J6 is shown in Figure 4.5 below and described in Table 4.5 below. F igu re 4.5 Dry co n tact po rt J 6 T able 4.5 Descriptio n o f dry co n tact po rt J 6...

  • Page 52: Dry Contact Port J7

    Vertiv™ Liebert® APM Plus User Manual 4.2.3 Dry Contact Port J7 The dry contact port J7 is shown in Figure 4.6 below and described in Table 4.6 below. F igu re 4.6 Dry co n tact po rt J 7 T able 4.6 Descriptio n o f dry co n tact po rt J 7...
  • Page 53 Vertiv™ Liebert® APM Plus User Manual T able 4.6 Descriptio n o f dry co n tact po rt J 7 (co n tin u ed) N am e N am e External maintenance isolation switch status (24 V/10 mA rated); Pin17 /Pin19 open for QOP closed.
  • Page 54 Vertiv™ Liebert® APM Plus User Manual T able 4.6 Descriptio n o f dry co n tact po rt J 7 (co n tin u ed) N am e N am e Configurable input dry contact 1: Configurable input dry contact 2:...

  • Page 55: Dry Contact Port J8

    Vertiv™ Liebert® APM Plus User Manual 4.2.4 Dry Contact Port J8 The dry contact port J8 is shown in Figure 4.7 below and described in Table 4.7 below. The dry contact voltages are 24 Vdc/250 Vac, and the current is 5 A.

  • Page 56: Repo Port

    Vertiv™ Liebert® APM Plus User Manual 4.2.5 REPO Port The UPS has an EPO function that operates by an EPO button on the touch screen of the UPS or by a remote contact provided by the user. The EPO button has a protective cover.

  • Page 57: Host Communication Port

    Vertiv™ Liebert® APM Plus User Manual 4.2.6 Host Communication Port This port monitors and sets parameters by connecting with computer. The communication port provides serial data and is intended for use by authorized commissioning and service personnel in UPS commissioning and service. Refer to Options for details.

  • Page 58: Signal Cable Connection Steps

    Vertiv™ Liebert® APM Plus User Manual 4.2.9 Signal Cable Connection Steps N O T E: R espectively ro u te th e po wer cables an d sign al cables. T h e sh ieldin g co at o f sign al cable m u st be reliably earth ed.
  • Page 59 Vertiv™ Liebert® APM Plus User Manual F igu re 4.10 Sign al cables wirin g ro u te o f 250 k VA (bo tto m cable access) N O T E: Step 1: Lead cables in to th e cabin et via th e cablin g h o le.
  • Page 60 Vertiv™ Liebert® APM Plus User Manual This page intentionally left blank 4 Electrical Installation...

  • Page 61: P Erator Control And Disp Lay Panel

    Many of the settings will depend on the UPS type and features. Many other settings will be made during the UPS setup by Vertiv Tech service personnel. The Liebert APM Plus Touchscreen Control Panel’s interface will display data either graphically or in text. The Status Scroll Bar at the top of the touchscreen display summarizes system conditions. The bar changes color to indicate status and includes an icon matched to the status.
  • Page 62 Vertiv™ Liebert® APM Plus User Manual F igu re 5.1 Liebert A P M P lu s T o u ch screen Co n tro l P an el co m po n en ts N o. D es crip tion...

  • Page 63: Navigating Through The Liebert Apm Plus Touchscreen Control Panel

    Service--All functions of Administrator plus permission to alter system configuration, choose serial communication protocol, enable equalize battery charging and change Service PIN; PIN required. Vertiv Tech Liebert Services sets PINs when setting up the UPS. These default PINs may be changed by those with Administrator or Service access (see above).

  • Page 64: Liebert Apm Plus Touchscreen Control Panel Components

    5.2.2 Liebert APM Plus Touchscreen Control Panel Components The main areas of the Liebert APM Plus Touchscreen Control Panel are shown in Figure 5.2 below. The display arrangement and the information displayed can be changed. At log-in for all access levels, the Liebert APM Plus Touchscreen Control Panel opens to the STATUS screen in graphic display.
  • Page 65 Vertiv™ Liebert® APM Plus User Manual F igu re 5.3 Co n tro l display by access level N o. D es crip tion Observe level (or no log-in) Service level Operator level Administrator level Information and control are different under each Function Menu. The Function Menus displayed are specific to the access level.
  • Page 66 The menus under Display Options on STATUS, for example, differ for each access level. Some information available through the Context Menu, such as alarms and run hours, are available through other areas of the Liebert APM Plus Touchscreen Control Panel.
  • Page 67 Vertiv™ Liebert® APM Plus User Manual • Display Properties: Language, backlight timer, alarm timeout, auto-log-out timer, display brightness, status indicator brightness and touchscreen calibration (see Customizing the Display); language and display brightness only are available to Observer • Date & Time: Drop-down lists for time zone, date, local time and UTC time (Coordinated Universal Time) (see Customizing the Display);...
  • Page 68 Vertiv™ Liebert® APM Plus User Manual UNIT STATUS Panel Components The UNIT STATUS pane is identical for all PIN access levels (see Figure 5.6 below) Observers will not have the pencil edit icon. In the default graphic view, the UNIT STATUS pane shows: •...
  • Page 69 Vertiv™ Liebert® APM Plus User Manual F igu re 5.7 UN IT ST A T US pan el— In pu t details; graph ic display F igu re 5.8 UN IT ST A T US pan el— B ypass details; graph ic display...
  • Page 70 Vertiv™ Liebert® APM Plus User Manual F igu re 5.9 UN IT ST A T US pan el— B attery an d cabin et details; graph ic display 5 Operator Control and Display Panel...

  • Page 71: Operation

    5.3.1 Log In to the Liebert APM Plus Touchscreen Control Panel The Liebert APM Plus Touchscreen Control Panel is On whenever the UPS has control power. It may be inactive and appear dark, depending on its settings. If it is inactive, touch the TOUCHSCREEN to wake it up.

  • Page 72: Customizing The Display

    (see Usin g th e Edit Ico n to Cu sto m ize Layo u t). To customize the display’s appearance: Log in to the Liebert APM Plus Touchscreen Control Panel as Administrator or Service detailed in Log In to the Liebert APM Plus Touchscreen Control Panel.
  • Page 73 Vertiv™ Liebert® APM Plus User Manual F igu re 5.11 Cu sto m ize th e display 5 Operator Control and Display Panel...
  • Page 74 Vertiv™ Liebert® APM Plus User Manual 6. Either accept the generated name (New View) or touch the view’s name to rename it using the on-screen keyboard (maximum length is 14 characters). Touch the Enter key on the on-screen keyboard after entering the new name.
  • Page 75 Vertiv™ Liebert® APM Plus User Manual 10. Touch the Save button. 11. When the window returns to two screens—PANEL CONTENT and PANEL OPTIONS—touch the radio button beside the new view to activate it (this puts a dot inside the circle).
  • Page 76 Using the Edit Icon to Customize Layout The Liebert APM Plus Touchscreen Control Panel layout can also be changed with the Edit icons on the screen for a user logged-in as Operator, Administrator or Service. The Edit icon can be used to add or remove panels, resize panels, rearrange panels and change monitored parameters.
  • Page 77 Vertiv™ Liebert® APM Plus User Manual F igu re 5.13 Ch an ge pan el co n ten t o r resize/rem o ve a pan el F igu re 5.14 R esize o r rem o ve a pan el...
  • Page 78 Vertiv™ Liebert® APM Plus User Manual Edit UNIT STATUS Panel with the Edit Icon The UNIT STATUS panel may be changed to add or remove data. The panel has four default parameters. Any or all can be deleted or replaced with the Editing icon.

  • Page 79: Operator Controls

    Vertiv™ Liebert® APM Plus User Manual 5.3.3 Operator Controls The Operator login confers control of UPS functions: • Silence (Alarm) • Inverter On • Inverter Off • Reset Fault • Energy Saving Mode Activation • Battery Operations Each command is available under the OPERATE menu. The OPERATE menu may be used by logging in with Operator, Administrator and Service access.
  • Page 80 UPS is prepared for the inverter to start. Operator access shown; commands are the same for all access levels Operation 15 Liebert® APM Plus Touchscreen Control Panel The Liebert APM Plus Touchscreen Control Panel will display a message asking for confirmation and noting that it may take a moment to start (see Figure 5.17 below). The control will display a progress window while the inverter starts.
  • Page 81 Vertiv™ Liebert® APM Plus User Manual Inverter Off The Inverter Off menu item is available whenever the UPS has input power and the inverter is Off. Before executing the command, verify that the UPS and connected load are prepared for the inverter to be shut down.
  • Page 82 Vertiv™ Liebert® APM Plus User Manual Reset Fault Faults may be reset with the Reset radio button. F igu re 5.19 R eset fau lt co m m an d Suspended Time Remaining The Suspended Time Remaining box is not configurable. It is the time remaining when energy savings mode is suspended.
  • Page 83 Vertiv™ Liebert® APM Plus User Manual F igu re 5.20 En able m o du le redu n dan cy 5 Operator Control and Display Panel...
  • Page 84 Vertiv™ Liebert® APM Plus User Manual Energy Saving Mode Activation N O T E: R efer to th e UP S m an u al befo re activatin g En ergy Savin g M o de. A n O perato r can o n ly en able o r disable En ergy Savin g M o de.
  • Page 85 Vertiv™ Liebert® APM Plus User Manual F igu re 5.21 A ctivatin g En ergy Savin g M o de 5 Operator Control and Display Panel...

  • Page 86: Viewing Ups Status

    Vertiv™ Liebert® APM Plus User Manual 5.4 Viewing UPS Status The Liebert APM Plus Touchscreen Control Panel interface reports UPS status in multiple ways. The graphic views and text views will show the same readings. Alarms and certain events will trigger audible alarms and the LED on the bezel, the light bar and the status header will change color.
  • Page 87 Vertiv™ Liebert® APM Plus User Manual To change the values shown on the Status Gauge: Log in with either Administrator or Service access. 2. Touch the SETUP menu icon. 3. Touch the Context menu icon. 4. Touch Configure Status Gauge. This opens the DIAL CONTROL SETUP pane, which holds settings for the readings in the center of the gauge and for the upper and lower metering.
  • Page 88 Vertiv™ Liebert® APM Plus User Manual F igu re 5.23 A ccess Statu s G au ge settin gs 5 Operator Control and Display Panel...
  • Page 89 Vertiv™ Liebert® APM Plus User Manual F igu re 5.24 Statu s G au ge settin g o ptio n s 5 Operator Control and Display Panel...

  • Page 90: Viewing Ups Data With The Status Panel

    Vertiv™ Liebert® APM Plus User Manual 5.4.2 Viewing UPS Data with the Status Panel More detailed information about the UPS’s status is readily available through the Status panel. Touching a component in the animated mimic display brings up data about the component on another pane. Touching a parameter icon on the UNIT STATUS pane brings up further details about that parameter.
  • Page 91 Vertiv™ Liebert® APM Plus User Manual F igu re 5.25 Un it statu s— In pu t details 5 Operator Control and Display Panel...
  • Page 92 Vertiv™ Liebert® APM Plus User Manual F igu re 5.26 Un it statu s— B ypass details 5 Operator Control and Display Panel...
  • Page 93 Vertiv™ Liebert® APM Plus User Manual F igu re 5.27 Un it statu s— B attery details 5 Operator Control and Display Panel...
  • Page 94 Vertiv™ Liebert® APM Plus User Manual F igu re 5.28 Un it statu s— Lo ad details 5 Operator Control and Display Panel...
  • Page 95 Vertiv™ Liebert® APM Plus User Manual F igu re 5.29 Un it statu s— En viro n m en tal details 5 Operator Control and Display Panel...

  • Page 96: Logs-Alarms And Events

    Vertiv™ Liebert® APM Plus User Manual 5.4.3 Logs—Alarms and Events The Context Menu, when opened from the STATUS pane, permits viewing logs of alarms and events that have occurred on the UPS. Both logs include the date and time of occurrence, type, an ID, component affected and a description of the alarm or event.
  • Page 97 Vertiv™ Liebert® APM Plus User Manual 5 Operator Control and Display Panel...

  • Page 98: Viewing Ups Component Status

    Vertiv™ Liebert® APM Plus User Manual 5.5 Viewing UPS Component Status The animated mimic screen permits viewing details about the main components installed and configured in the UPS. The data list opens on the opposite side of the screen and, for most parameters, expands to show all details for the component touched.
  • Page 99 Vertiv™ Liebert® APM Plus User Manual F igu re 5.32 Un it statu s— O u tpu t details F igu re 5.33 Un it statu s— B ypass details 5 Operator Control and Display Panel...
  • Page 100 Vertiv™ Liebert® APM Plus User Manual F igu re 5.34 Un it statu s— P o wer m o du le details F igu re 5.35 Un it statu s— B attery details 5 Operator Control and Display Panel...

  • Page 101: Status Bar Component

    Vertiv™ Liebert® APM Plus User Manual 5.6 Status Bar Component The status bar indicates UPS status by: • Scrolling messages to inform viewers; see Table 5.1 below through Table 5.3 on page 95. • Changing color; green for normal, yellow for warning and red for alarm.
  • Page 102 Vertiv™ Liebert® APM Plus User Manual T able 5.2 W arn in g statu s m essages M es s ag e 1 M es s ag e 2 M es s ag e 3 D efinition This system is in warning operating mode, supplied by...
  • Page 103 Vertiv™ Liebert® APM Plus User Manual T able 5.2 W arn in g statu s m essages (co n tin u ed) M es s ag e 1 M es s ag e 2 M es s ag e 3...
  • Page 104 Vertiv™ Liebert® APM Plus User Manual T able 5.3 Critical statu s m essages (co n tin u ed) M es s ag e 1 M es s ag e 2 M es s ag e 3 D efinition This system is in critical operating mode, supplied by the VIEW ALARM LOG FOR battery.

  • Page 105: Alarm List

    Vertiv™ Liebert® APM Plus User Manual 5.7 Alarm List Table 5.4 below provides the complete list of UPS alarm messages for display either on the 'Event' menu or on the 'Records' menu. T able 5.4 A larm list A larm...
  • Page 106 Vertiv™ Liebert® APM Plus User Manual T able 5.4 A larm list (co n tin u ed) A larm E xp lanation Bypass overcurrent The bypass current is outside the rated current Bypass backfeed The bypass backfeed is faulty Bypass Overtemperature The bypass has overtemperature The bypass detects an inverter signal when the system runs normally.
  • Page 107 Vertiv™ Liebert® APM Plus User Manual T able 5.4 A larm list (co n tin u ed) A larm E xp lanation Maint. Switch Open Maintenance bypass switch is open Maint. Switch Closed Maintenance bypass switch is closed Bypass Switch Open...
  • Page 108 2. If th e alarm is cau sed th ro u gh settin g th e so ftware valu e by Vertiv au th o rized en gin eer, an d yo u wish to ch an ge th e settin g valu es, please co n tact th e Vertiv lo cal cu sto m er service cen ter.

  • Page 109: Single Ups Operation Introduction

    Vertiv™ Liebert® APM Plus User Manual 6 Single UPS Operation Introduction This chapter introduces the operating precautions and daily operating methods of UPS in detail. 6.1 Brief Introduction 6.1.1 Precautions IM P O R T A N T ! T h e u ser can co n du ct relative o peratio n o n ly after th e au th o rized en gin eer carries o u t th e first po wer o n an d test.

  • Page 110: Power Switch

    Vertiv™ Liebert® APM Plus User Manual 6.1.2 Power Switch Opening the front door of the UPS cabinet reveals the power switches, as shown in Figure 6.1 below, including: Q1: Rectifier input switch, which connects UPS to the main circuit power.

  • Page 111: Ups Startup Procedures

    Vertiv™ Liebert® APM Plus User Manual 6.2 UPS Startup Procedures The UPS must be completely installed and tested by authorized engineer, and external power supply switch is closed, then you can start the UPS. 6.2.1 Startup Procedures in Normal Mode W A R N IN G ! 1.
  • Page 112 Vertiv™ Liebert® APM Plus User Manual F igu re 6.2 In pu ttin g passwo rd 4. When the rectifier start process is finished, the system will run in Bypass mode (Power flow shown in Figure 6.3 on the facing page). Click the On key (Refer toOperator Controls).
  • Page 113 Vertiv™ Liebert® APM Plus User Manual F igu re 6.3 Click in g IN VER T ER O N k ey 5. The inverter starts self-test and sync. F igu re 6.4 In verter self-test an d syn c 6 Single UPS Operation Introduction...
  • Page 114 Vertiv™ Liebert® APM Plus User Manual 6. Start-up is finished. F igu re 6.5 Start-u p fin ish ed 6 Single UPS Operation Introduction...

  • Page 115: Startup Procedures In Eco Mode

    At the moment, the system is powered on, and the startup screen pops up. 3. If ECO mode is required, contact Vertiv service engineer to set it through the setting software. If you wish to set it by yourself, you can enable it through the sub-menu under 'SETUP' on the TOUCHSCREEN screen. For details, refer to Operator Controls.

  • Page 116: Startup Procedures In Battery Mode (Battery Cold Start)

    Vertiv™ Liebert® APM Plus User Manual 6.2.3 Startup Procedures in Battery Mode (Battery Cold Start) Verify that the battery has been connected, close the battery loop switch, and then the battery voltage is transferred to the input terminal of the battery.

  • Page 117: Transfer From Normal Mode To Bypass Mode

    Vertiv™ Liebert® APM Plus User Manual 6.3.2 Transfer from Normal Mode to Bypass Mode Click the Off key as shown in Figure 6.8 below, and the UPS will transfer to bypass mode. F igu re 6.8 T ran sfer UP S to B ypass m o de N O T E: In bypass m o de, th e lo ad is directly fed by th e m ain s po wer in stead o f th e pu re A C po wer fro m th e in verter.

  • Page 118: Transfer From Bypass Mode To Normal Mode

    Vertiv™ Liebert® APM Plus User Manual 6.3.3 Transfer from Bypass Mode to Normal Mode When the UPS is in bypass mode, click the On key as shown in Figure 6.9 below, and the inverter starts up. Then the UPS is transferred from bypass mode to normal mode.

  • Page 119: Transfer From Maintenance Mode To Normal Mode

    Vertiv™ Liebert® APM Plus User Manual CA UT IO N : W h en th e UP S is in m ain ten an ce m o de, th e lo ad is n o t pro tected again st abn o rm al m ain s su pply.

  • Page 120: Battery Test Procedures

    Periodical self-test is to test the battery activity. The periodical self-test is regular, and the self-test period can be configured via the Vertiv setting software. During the periodical self-test, if the battery maintenance requirement is met, the system will generate audible/visual alarm and corresponding records. The periodical self-test does not update the battery curve table.
  • Page 121 Vertiv™ Liebert® APM Plus User Manual Procedures for battery self-test Enter the level of OPERATE. 2. Click the icon 3. Click the menu icon on the upper left corner. 4. Click the 'Battery Operations' to display the interface shown in Figure 6.10 below.

  • Page 122: Ups Shutdown Procedures

    Vertiv™ Liebert® APM Plus User Manual 6.5 UPS Shutdown Procedures 6.5.1 Procedures for Completely Powering Down UPS Complete UPS shutdown and load power-off should follow this procedure. All power switches, isolating switches and breakers are disconnected, and then UPS no longer supplies power to load.

  • Page 123: Ups Reset Procedures After Epo

    N O T E: Du rin g th e au to m atic restart pro cess, m an u al startu p is disabled. A u to m atic restart m u st be set by Vertiv's au th o rized service en gin eer th ro u gh Vertiv settin g so ftware.

  • Page 124: Selecting Language

    Vertiv™ Liebert® APM Plus User Manual 6.9 Selecting Language Use the following procedures to select the language: Click on the icon. 2. Click on the icon . 3. Click the item of Display. 4. Click 'Display Properties'. 5. As shown in Figure 6.11 below, click 'Language' to set the language you need.

  • Page 125: Changing Current Date And Time

    Vertiv™ Liebert® APM Plus User Manual 6.10 Changing Current Date and Time Use the following procedures to change the system date and time: Click on the icon. 2. Click on the icon. 3. Click the item of Display. 4. Click 'Date&Time'.

  • Page 126: Control Password

    Vertiv™ Liebert® APM Plus User Manual 6.11 Control Password To change password, carry out the following procedures: Enter SETUP level. 2. Click on the icon. 3. Refer to Figure 6.13 below, set password changing. F igu re 6.13 Settin g passwo rd...

  • Page 127: Battery

    Vertiv™ Liebert® APM Plus User Manual 7 Battery This chapter introduces the battery, including the battery safety, installation and maintenance information, battery protection function, as well as the connection of BCB cabinet (option), battery temperature sensor (option), and battery ground fault detector.

  • Page 128: Safety

    Vertiv™ Liebert® APM Plus User Manual 7.2 Safety Take special care when working with the batteries associated with the UPS. When all the blocks are connected, the battery string voltage can be up to 540 Vdc. This is potentially lethal. Please follow the precautions for high voltage operation. Only qualified personnel are allowed to install and maintain the battery.
  • Page 129 Vertiv™ Liebert® APM Plus User Manual Hazard ous b attery voltag e p res ent b ehind covers 3. Observe the following safety precautions when working on the batteries: a) The battery shall be firmly and reliably connected. After the connection is completed, the screw connections between all the terminals and the batteries shall be calibrated.

  • Page 130: Ups Battery

    Vertiv™ Liebert® APM Plus User Manual 7.3 UPS Battery The UPS adopts valve-regulated battery. At present, 'valve-regulated' means the 'sealed type' or 'maintenance free' mentioned in the past. The valve-regulated battery is not completely sealed, especially when it is over-charged, there will be gas escape. The volume of the gas escape in the valve-regulated battery is less than flooded battery (water injection battery).

  • Page 131: Battery Installation Environment And Number Of Batteries

    Vertiv™ Liebert® APM Plus User Manual 7.5 Battery Installation Environment and Number of Batteries 7.5.1 Installation Environment Fresh air volume (EN50272-2001) The operating environment of the battery must be ventilated. During the operation of the battery, the following requirement for the fresh air ventilation shall be satisfied: –3...

  • Page 132: Number Of Batteries

    IM P O R T A N T ! Users m u st ch o o se appro priate switch in g devices to pro tect th e battery fro m sh o rt circu it an d o verlo ad, etc. W e reco m m en d u sin g th e Vertiv B CB to pro vide a m o re perfect so lu tio n .

  • Page 133: Battery Installation And Connection

    Vertiv™ Liebert® APM Plus User Manual 7.7 Battery Installation and Connection W A R N IN G ! O n ly qu alified en gin eer sh all in stall an d co n n ect th e batteries. T h e battery h as h azardo u s h igh vo ltage, an d requ ires reliable in su lated to o ls fo r safety pro tectio n .
  • Page 134 Vertiv™ Liebert® APM Plus User Manual F igu re 7.1 Co n n ectio n o f batteries N o. D es crip tion BCB- Top layer Middle layer BCB N Bottom layer BCB+ 7 Battery...

  • Page 135: Design Of Battery Room

    Vertiv™ Liebert® APM Plus User Manual 7.8 Design of Battery Room No matter which type of installation system is adopted, the following items shall be paid special attention to (refer to Figure 7.2 below). F igu re 7.2 Design o f battery ro o m N o.
  • Page 136 Vertiv™ Liebert® APM Plus User Manual Table 7.3 below provides the mechanical specifications of the BCB cabinet. T able 7.3 P aram eters o f B CB cabin et BC B cap acity D im ens ions (H × W × D ) (m m )
  • Page 137 Vertiv™ Liebert® APM Plus User Manual F igu re 7.4 In tern al stru ctu re o f B CB bo x N o. D es crip tion Top cable entry hole Battery terminal (+) Battery terminal (N) UPS terminal (+)

  • Page 138: Battery Temperature Sensor (Optional)

    7.11 Battery Ground Fault Detector (Optional) Vertiv provides an optional battery ground fault detector. It includes a mutual inductor and a PCB, which should be installed in the BCB cabinet. If the BCB cabinet uses top cable entry, the mutual inductor should be installed on the inside of the top plate of the BCB cabinet (see Figure 7.4 on the previous page);...

  • Page 139: Bcb Reference Current And Connection

    Vertiv™ Liebert® APM Plus User Manual 7.12 BCB Reference Current and Connection Table 7.4 below provides recommended BCB rated current and battery maximum discharge current at full load. Refer to Table 3B in IEC60950-1, and select appropriate cable CSA according to local electrical regulations.

  • Page 140: Battery Maintenance

    Vertiv™ Liebert® APM Plus User Manual 7.13 Battery Maintenance For the battery maintenance and maintenance precautions, refer to IEEE-Std-1188-2005 and the relevant manuals provided by the battery manufacturer. N O T E: 1. P erio dically ch eck th e screws o f th e battery co n n ectio n parts an d co n firm th at th ey are firm ly tigh ten ed.

  • Page 141: Parallel System And Lbs System

    W A R N IN G ! T o ach ieve co o rdin ated o peratio n o f th e m o du les in th e parallel system , it is requ ired to co n figu re each m o du le separately u sin g Vertiv so ftware settin g. T h is m u st be do n e by Vertiv service perso n n el.
  • Page 142 Vertiv™ Liebert® APM Plus User Manual F igu re 8 .1 Sch em atic o f typical parallel system (with co m m o n in pu t, separate batteries an d o u tpu t) N o. D es crip tion...

  • Page 143: External Protective Device

    Vertiv™ Liebert® APM Plus User Manual 8.2.3 External Protective Device W A R N IN G ! 1. High earth leak age cu rren t: Earth co n n ectio n is critical befo re co n n ectin g th e in pu t su pply (in clu din g bo th m ain s su pply an d battery).

  • Page 144: Remote Epo

    Vertiv™ Liebert® APM Plus User Manual F igu re 8 .3 Lo catio n o f parallel po rt J 3 o n bypass co n tro l m o du le 8.2.6 Remote EPO In addition to the EPO switch provided on the touch screen of each UPS module for controlling the EPO of each module respectively, the parallel system also provides remote EPO function for controlling all UPS modules to shut down simultaneously from a remote terminal, as shown in Figure 8.4 on the facing page.

  • Page 145: Operation Procedures For Parallel System

    Vertiv™ Liebert® APM Plus User Manual F igu re 8 .4 EP O circu it diagram N O T E: In F igu re 8 .4 abo ve, th e u pper o n e is N o rm ally O pen type, an d th e lo wer o n e is N o rm ally Clo sed type.

  • Page 146: Maintenance Bypass Procedures

    Vertiv™ Liebert® APM Plus User Manual Use the following procedures to turn on the UPS from a fully powered down condition. Confirm that the total external maintenance bypass switches are disconnected. Open the front door of each UPS in turn, ensure that the internal maintenance bypass switch Q3 is disconnected, while the input cables and copper bars are reliably connected, and the parallel cables are firmly connected.
  • Page 147 Vertiv™ Liebert® APM Plus User Manual Manually turn off the inverter of each UPS in turn. The power flow diagram shows INVERTER OFF, and the buzzer alarms. The load transfers to the static bypass, and the inverter shuts down. At last, all UPSs are transferred to Bypass mode.

  • Page 148: Procedures For Isolating One Ups Module From Parallel System

    IM P O R T A N T ! T h ese pro cedu res sh all o n ly be carried o u t by service perso n n el o f Vertiv o r u n der th...

  • Page 149: Procedures For Completely Powering Down Ups

    Vertiv™ Liebert® APM Plus User Manual 8.3.5 Procedures for Completely Powering Down UPS Complete UPS shutdown and load power-off should follow this procedure. All power switches, isolating switches and breakers are disconnected, and then UPS no longer supplies power to the load.
  • Page 150 Vertiv™ Liebert® APM Plus User Manual F igu re 8 .5 LB S system (UP S m o du le) N o. D es crip tion Rectifier Bypass To load 8 Parallel System and LBS System...
  • Page 151 Vertiv™ Liebert® APM Plus User Manual F igu re 8 .6 LB S system (parallel system ) N o. D es crip tion Bypass Rectifier UPS1 UPS4 Parallel cable To load N O T E: In a du al-bu s system , th e two UP S system s m u st h ave th e sam e vo ltage an d frequ en cy, an d th e lo ad sh o u ld n o t exceed th e po wer ratin g o f a UP S m o du le system .

  • Page 152: External Protective Device

    Vertiv™ Liebert® APM Plus User Manual 8.4.2 External Protective Device Refer to External Protective Device. 8.4.3 Power Cable The power cable of dual-bus power system is similar to that of single system. Refer to Wiring of Power Cable. The bypass and rectifier input supplies must use the same neutral line input terminal. If the input has a current leakage protective device, the current leakage protective device must be fitted upstream of the neutral line input terminal.
  • Page 153 Vertiv™ Liebert® APM Plus User Manual F igu re 8 .7 Co n n ectio n o f typical LB S system (sin gle UP S, parallel system ) N o. D es crip tion PARA 1 PARA 2 LBS1 Cable...
  • Page 154 Vertiv™ Liebert® APM Plus User Manual F igu re 8 .8 LB S po rt (J 4) o n bypass co n tro l m o du le 8 Parallel System and LBS System...

  • Page 155: P Tions

    Vertiv™ Liebert® APM Plus User Manual 9 Options This chapter provides the UPS option list, and introduces the functions, installation and configuration of each option. 9.1 Option List T able 9.1 O ptio n list N o. O p tion nam e...

  • Page 156: Option Introduction

    Vertiv™ Liebert® APM Plus User Manual 9.2 Option Introduction 9.2.1 Optional Side Cabinet Parallel cabinet mechanical dimensions F igu re 9.1 T o p/fro n t/side/bo tto m view o f th e UP S (with o ptio n al side cabin et) (u n it: m m )
  • Page 157 Vertiv™ Liebert® APM Plus User Manual Parallel cabinet mechanical connection The power cabinet and optional side cabinet need to be connected at installation site, see Figure 9.2 below F igu re 9.2 M ech an ical cabin et co n n ectio n...
  • Page 158 Vertiv™ Liebert® APM Plus User Manual F igu re 9.3 P arallel cabin et electrical co n n ectio n N o. D es crip tion Remove the top plate, lead cables into the cabinet. Route cables along the cabinet inside, and use cable ties to bind them...

  • Page 159: Bypass Short-Circuit Withstand Option

    Vertiv™ Liebert® APM Plus User Manual 9.2.2 Bypass Short-circuit Withstand Option As shown in Figure 9.4 below, the bypass short-circuit withstand option contains three bypass fuses. Before installation, it is necessary to remove three bypass shorting copper bars and then install three bypass fuses at the corresponding shorting copper bars.

  • Page 160: Battery Temperature Sensor Kit

    Vertiv™ Liebert® APM Plus User Manual 9.2.3 Battery Temperature Sensor Kit The battery temperature sensor is used to detect the battery temperature. With this function, we can adjust the float charging voltage of the battery to make it inversely proportional to the ambient temperature of the battery, so as to prevent the over-charge of the battery at high ambient temperature.

  • Page 161: Battery Ground Fault Kit

    W A R N IN G ! 1. O n ly Vertiv au th o rized en gin eers sh all carry o u t th e in stallatio n . 2. Carry o u t th e in stallatio n strictly fo llo win g th e in stru ctio n s. F ailu re to o bserve th is co u ld cau se perso n n el in ju ry o r dam age to th e UP S an d seism ic an ch o r k its.
  • Page 162 Vertiv™ Liebert® APM Plus User Manual F igu re 9.5 In stallin g seism ic an ch o r (rear in stallatio n ) N o. D es crip tion 4-M8x25 tapping screw Installing M12 expansion bolt (3 PCS) 2. Use M8 × 25 tapping screws (4 pcs) to install seismic anchor on the front bottom of the UPS cabinet, and use M12 expansion bolts (3 pcs) to fix seismic anchor on the ground, as shown in Figure 9.6 on the facing page.
  • Page 163 Vertiv™ Liebert® APM Plus User Manual F igu re 9.6 In stallin g seism ic an ch o r (fro n t in stallatio n ) N o. D es crip tion 4-M8x25 tapping screw Installing M12 expansion bolt (3PCS)

  • Page 164: Is-Unity-Dp Card

    Vertiv™ Liebert® APM Plus User Manual 9.2.6 IS-UNITY-DP Card IM P O R T A N T ! It is reco m m en ded to u se th e sh ielded cables to en h an ce th e EM C.

  • Page 165: Sic Card

    Vertiv™ Liebert® APM Plus User Manual 9.2.8 SIC Card The SIC card is a network management card. It brings the network communication capability for the Liebert UPS. It can also support IRM series sensor to monitor environment. When the intelligent equipment generates an alarm, the SIC card can notify the user by recording the log, sending trap information, and sending a mail.

  • Page 166: Is-Relay Card

    Vertiv™ Liebert® APM Plus User Manual The SIC card (see Figure 9.9 on the previous page) should be installed in the Intellislot port (see Figure 4.4 on page 42) in the UPS. See Table 4.9 on page 49 for installation positions of optional cards.
  • Page 167 Vertiv™ Liebert® APM Plus User Manual T able 9.3 F u n ctio n o f UP S IS-R elay card Function O p eration Common-Low Battery Low Battery Closed if low battery point occurs Low Battery Closed if battery is OK...

  • Page 168: Uf-Rs485 Card

    Vertiv™ Liebert® APM Plus User Manual 9.2.10 UF-RS485 Card The UF-RS485 card converts RS232 signal to RS485 signal to realize UPS networking and communication. It should be installed in an Intellislot port (see Figure 4.4 on page 42) of the UPS. It is hot pluggable for easy installation.

  • Page 169: Bcb Cabinet

    Vertiv™ Liebert® APM Plus User Manual W A R N IN G ! 1. T h e R J 45 po rts o f th e UF -R S48 5 card m u st co n n ect to SELV circu it. F ailu re to o bserve th is co u ld cau se dam age to th e card an d even resu lt in safety acciden ts.

  • Page 170: Back-Feed Contactor Option

    Vertiv™ Liebert® APM Plus User Manual 9.2.14 Back-feed Contactor Option The main back-feed contactor and the bypass back-feed contactor are provided respectively. The contactor is installed inside the cabinet and is directly supplied by the input power. The contactor is disconnected when the input power is lost.

  • Page 171: Top Fan Assembly

    Vertiv™ Liebert® APM Plus User Manual 9.2.15 Top Fan Assembly As shown in Figure 9.13 below, the top fan kit consists of two fans which are installed on top of the cabinet. F igu re 9.13 T o p fan assem bly N o.

  • Page 172: I/O Switch Assembly

    Vertiv™ Liebert® APM Plus User Manual 9.2.16 I/O Switch Assembly As shown in Figure 9.14 below, the I/O switch kit includes input switch, output switch and bypass switch. Please dismantle the shorting busbar before installation, then install the switches to corresponding shorting busbars.

  • Page 173: Ip21 Option

    Vertiv™ Liebert® APM Plus User Manual 9.2.17 IP21 Option As shown in Figure 9.15 below, the IP21 option includes cabinet top cover, which makes the UPS protection level IEC (60529) be IP21. F igu re 9.15 IP 21 o ptio n N o.

  • Page 174: Ip31 Option

    Vertiv™ Liebert® APM Plus User Manual 9.2.18 IP31 Option As shown in Figure 9.16 below, the IP31 option includes cabinet top cover and air filter, which makes the UPS protection level IEC (60529) be IP31. F igu re 9.16 IP 31 o ptio n N o.

  • Page 175: Communication

    10.1 SNMP Protocol Communication If you need to monitor the UPS through network, you may select the UNITY card or SIC card provided by Vertiv. These two cards support SNMP protocol. Both the UNITY card and SIC card are network management cards which make the UPS an IOT device.

  • Page 176: Dry Contact Communication

    Vertiv™ Liebert® APM Plus User Manual 10.3 Dry Contact Communication The UPS provides the following two dry contact communication approaches: • IS-Relay card • Dry contact port of bypass module 10.3.1 Communication through IS-Relay Card The UPS provides an IS-Relay card for the user to use dry contact signals to monitor the UPS. For the installation and use of the IS-Relay card, refer to Liebert IntelliSlot IS-Relay Card User Manual.

  • Page 177: Service And Maintenance

    Vertiv™ Liebert® APM Plus User Manual 11 Service and Maintenance The UPS system (including battery) needs regular service and maintenance in long-term operation. This chapter elaborates on the advice on the service life, regular inspection, maintenance and replacement of the UPS key components. Effective maintenance of the UPS system can reduce the risk of UPS failure and prolong the UPS service life.

  • Page 178: Service Procedures Of Power Module

    Vertiv™ Liebert® APM Plus User Manual 11.2.2 Service Procedures of Power Module Place the ready switch on the front panel of the power module to unready state, at this time, the green indicator beside the ready switch is off and the red indicator is on.

  • Page 179: Key Components And Service Life Of Ups

    Vertiv™ Liebert® APM Plus User Manual Service procedures of parallel system in normal mode Confirm that there is power redundancy after disconnecting the UPS to be maintained, to avoid output overload. 2. Press the EPO button for the UPS to be serviced, and open the mains input switch, bypass input switch, and output switch.

  • Page 180: Replacement Of Air Filter

    Vertiv™ Liebert® APM Plus User Manual 11.3.2 Replacement of Air Filter The air filters need regular inspection and replacement. The inspection and replacement intervals are related to the environmental conditions of the UPS. Under normal environmental conditions, the air filters should be cleaned or replaced once every two months and need more frequent cleaning and replacement in dusty or other harsh environments.

  • Page 181: Maintenance Of Ups And Options

    Vertiv™ Liebert® APM Plus User Manual 11.4 Maintenance of UPS and Options UPS and the options need common maintenance: Keep good maintenance record. Keeping good maintenance record facilitates failure treatment. 2. Keep clean, so as to prevent UPS from the invasion of dust and moisture.
  • Page 182 Vertiv™ Liebert® APM Plus User Manual This page intentionally left blank 11 Service and Maintenance...

  • Page 183: Specifications

    Vertiv™ Liebert® APM Plus User Manual 12 Specifications This chapter lists the UPS specifications. 12.1 Conformance and Standards The UPS has been designed to comply with the European and international standards listed in Table 12.1 below. T able 12.1 Eu ro pean an d in tern atio n al stan dards...

  • Page 184: Mechanical Characteristics

    Vertiv™ Liebert® APM Plus User Manual 12.3 Mechanical Characteristics T able 12.3 M ech an ical ch aracteristics Rated p ower (kV A ) Item U nit Packing excluded 600 × 850 × 2000 Dimensions (W × D × H) Packing included 800 ×...

  • Page 185: Electrical Characteristics (Intermediate Dc Circuit)

    Vertiv™ Liebert® APM Plus User Manual 12.5 Electrical Characteristics (Intermediate DC Circuit) T able 12.5 B attery Rated p ower (kV A ) Item U nit Max. charging current Rated nominal battery bus voltage 336 to 528 Quantity of lead-acid cells (nominal)

  • Page 186: Electrical Characteristics (Inverter Output)

    Vertiv™ Liebert® APM Plus User Manual 12.6 Electrical Characteristics (Inverter Output) T able 12.6 In verter o u tpu t (to critical lo ad) Rated p ower (kV A ) Item U nit Rated AC voltage 380/400/415 (3-phase 4-wire, with neutral reference to the bypass neutral)

  • Page 187: Electrical Characteristics (Bypass Input)

    Vertiv™ Liebert® APM Plus User Manual 12.7 Electrical Characteristics (Bypass Input) T able 12.7 B ypass in pu t  Rated p ower (kV A ) Item U nit 380/400/415, 3-phase 4-wire, sharing neutral with the rectifier input and providing neutral reference...
  • Page 188 Vertiv™ Liebert® APM Plus User Manual This page intentionally left blank 12 Specifications...

  • Page 189: Appendices

    Vertiv™ Liebert® APM Plus User Manual Appendices Appendix A: Glossary Alternating current Battery circuit breaker Cross sectional area Direct current External interface board Electromagnetic compatibility Electromagnetic interference End-of-discharge Emergency power off Input/output IGBT Integrated gate bipolar transistor Load bus synchronizer...

  • Page 190: Appendix B: Hazardous Substances And Content

    ×: Means the content of the hazardous sustances in at least one of the average quality materials of the parts is outsides the limits specified in GB/T 26572 About battery: Generally follow the environmental protection use period of the battery, otherwise five years. Applicable scope: Liebert APM Plus 250 kVA UPS Appendices...
  • Page 191 Vertiv™ Liebert® APM Plus User Manual...
  • Page 192 Vertiv.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA © 2022 Vertiv Group Corp. All rights reserved. Vertiv™ and the Vertiv logo are trademarks or registered trademarks of Vertiv Group Corp. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness here, Vertiv Group Corp.

This manual is also suitable for:

Apm 0250kmk16fn02000

Table of Contents
