Operating instructions
Unimatic TSL WP

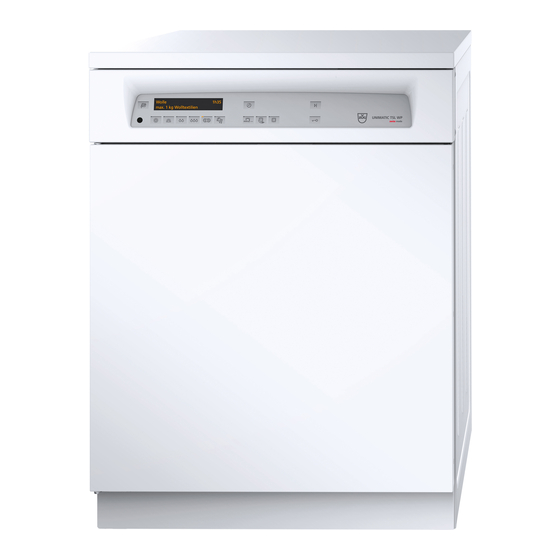

Tumble dryer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Unimatic TSL WP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG Unimatic TSL WP

Summary of Contents for V-ZUG Unimatic TSL WP

  • Page 1 Operating instructions Unimatic TSL WP Tumble dryer...
  • Page 2 The product family (model number) corresponds to the first alphanumerics on the identi- fication plate. These operating instructions apply to: Model Type Product family Unimatic TSL WP WT-UTSL-WP Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2018...

  • Page 3: Table Of Contents

    Contents Selecting ultra care or easy care.......   20 Safety precautions  4 Selecting a delayed start........  21 Symbols used............ 4 Interrupting a programme ........  21 General safety precautions........ 4 Aborting a programme before time ....  21 Appliance-specific safety precautions .... 4 6.10 Programme selection with childproof lock activ- Instructions for use..........

  • Page 4: Safety Precautions

    Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...
  • Page 5 1 Safety precautions ▪ This appliance is only suitable or pillows fitted with foam rub- for drying textiles which have ber pads should not be dried been washed in water. in the tumble dryer. ▪ The appliance is only to be ▪...

  • Page 6: Instructions For Use

    1 Safety precautions ▪ Do not operate the appliance without a Instructions for use door filter or with a damaged door filter. Fluff can destroy the appliance! Before using for the first time Caution: Burns hazard! ▪ The appliance must be installed and connected to the electricity supply in ▪...

  • Page 7: Using For The First Time

    Using for the first time Note The appliance can only be operated after standing in the normal operating posi- tion for about 2 hours. The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work.

  • Page 8: Where Is The Identification Plate

    3 Appliance description Interrupting or aborting the function test The function test can be interrupted in 2 ways: 1. Open the appliance door. Pause function test Close appliance door – In the display appears: – After closing the appliance door, in the display ap- Function test complete pears: Pause function test...

  • Page 9: Appliance Construction

    3 Appliance description ▪ Dry load capacity: 7 kg ▪ 5 automatic programmes ▪ 1 automatic programme for various fabrics – Airing – Shirts – Baby garments – Silks – Leisurewear – Thin down filling – Fluffing – Denim – Thick down filling –...

  • Page 10: Operating And Display Elements

    3 Appliance description Operating and display elements Wolle 1h35 max. 1 kg Wolltextilien Automatic programmes Extra dry Damp Normal dry Woollens Iron dry Fabric type Additional programme Timed drying Additional functions Ultra care Delayed start End of programme Easy care Language selec- Door opener tion...

  • Page 11: Programme Overview

    4 Programme overview Programme overview Programme sequence for the automatic programmes The drying programme has 3 phases: Drying The washing is tumble dried until it reaches the set level of dryness. The drying pro- gramme is monitored by a moisture sensor. As soon as the required level of dryness is reached, the «Cooling down/Airing»...

  • Page 12: Fabric Types

    4 Programme overview Woollens 1 kg For woollen fabrics labelled as washable. Gentle drying through a gentle drum action and a low temperature (approx. 45° C). Fabric types Use the button to select one of the following fabric types. 1–1.5 kg Airing For refreshing or airing little-worn garments.

  • Page 13: Additional Programme

    4 Programme overview Baby garments 1–7 kg Baby garments are gently dried to «cupboard dry». The washing is dried hy- gienically through an extended drying phase. Thin down filling 1–2 kg For light-weight down textiles (e.g. thin duvets and jackets). Optimum wash load: 1 item 1–2 kg Thick down filling...

  • Page 14: Additional Functions

    5 User settings Additional functions Ultra care Very gentle programme with reduced temperature. Particularly suitable for fine textiles. Optimum wash load: 1–2.5 kg Easy care Gentle drying for mixed fabrics (e.g. shirts, pullovers and T-shirts). The level of dryness is reduced. Optimum wash load: 1–2.5 kg Delayed start Take advantage of cheap-rate electricity (setting range of up to 24 hours).

  • Page 15: Language

    5 User settings Possible user settings The following diagram gives an overview of the possible user settings. Hold the button depressed for 5 seconds. User settings FNXXX XXXXXX Childproof lock OFF * 1 Very low drying 2 Low drying Level of dryness 3 Normal drying * 4 Strong drying 5 Very strong drying...

  • Page 16: Level Of Dryness

    5 User settings Switching the childproof lock on/off ▸ Hold the button depressed for 5 seconds. User settings FN XXXXX XXXXXX ▸ Press the button repeatedly until the current Childproof lock setting appears in the display, e.g.: Childproof lock ▸ Press the button.

  • Page 17: Brightness

    5 User settings Switching the automatic door opener on/off ▸ Hold the button depressed for 5 User settings FN XXXXX XXXXXX seconds. ▸ Press the button repeatedly until the Automatic current setting appears in the display, door opener e.g.: ▸ Press the button.

  • Page 18: Drying

    6 Drying Factory settings ▸ Press the button. YES: Restoring factory settings: «YES»: ▸ Press the button. Factory settings restored! «NO»: ▸ Press the button. Drying Preparing the appliance After the appliance is transported or re-sited, it must be left to stand in the normal operating position for around 2 hours.

  • Page 19: General Note On Programme Selection

    6 Drying General note on programme selection Use the 'Programme overview' to determine which programme is the most suitable for your washing. Selecting a programme An automatic programme can be selected with the press of a single button. All the ne- cessary settings for the programme are provided automatically.

  • Page 20: Selecting An Automatic Programme

    6 Drying Selecting an automatic programme ▸ Close the appliance door. – The indicator lights for the programme buttons and the additional programme flash. Wolle 1h35 max. 1 kg Wolltextilien – The indicator lights for the additional functions that may be selected flash for 15 seconds.

  • Page 21: Selecting A Delayed Start

    6 Drying Selecting a delayed start Wolle 1h35 max. 1 kg Wolltextilien ▸ Immediately after programme selection, hold the button depressed or press re- peatedly until the required delayed start duration (max. 24 hours) appears in the dis- play. – The display goes dark. –...

  • Page 22: Programme Selection With Childproof Lock Activated

    6 Drying 6.10 Programme selection with childproof lock activated ▸ Close the appliance door. ▸ Press the required programme button. In this example: Childproof lock – In the display appears: – The indicator lights for the programme buttons flash. ▸ Hold the desired programme button, e.g. , depressed and at the same time press button.

  • Page 23: Care And Maintenance

    7 Care and maintenance Unloading the washing ▸ Open the appliance door or press the but- ton. – All displays go out. ▸ Unload the washing. ▸ Clean the door filter. ▸ Close the appliance door. At the end of the wash day ▸...

  • Page 24: A9 Error Message

    7 Care and maintenance 2 Filter mat in Wash before change Remove any build-up of fluff while dry, then door filter of user rinse under running water and wring out well. Use 40°C wash programme for cleaning stub- born soiling. 3 Base filter As required * Remove any fluff.

  • Page 25: Build-Up Of Fluff

    7 Care and maintenance Build-up of fluff Fluff is made up of fine textile fibres that largely come from the manufacturing process, from wear and tear during use and from items being washed. Fluff is not caused by ex- cessive strain on the washing in the appliance. Even when washing is hung out to dry on a washing line, fluff is shed when the washing is shaken out or ironed.
  • Page 26 7 Care and maintenance Removing the filter mat Do not operate the appliance without the filter mat. Cleaning the door filter ▸ Hold the filter up to the light to detect de- posits. Wash the filter to clean off heavy deposits.

  • Page 27: Cleaning The Base Filter

    7 Care and maintenance Inserting the door filter / filter mat Do not operate the appliance without the filter mat. ▸ Insert the filter mat in the door filter. En- sure the lug is positioned correctly. The filter mat does not have to be dry before being inserted in the door filter. ▸...

  • Page 28: Cleaning The Temperature Sensor

    7 Care and maintenance Cleaning the temperature sensor As required The appliance will not start without the base filter 1 in place. ▸ Remove the base filter 1. ▸ Clean the temperature sensor 2 with a damp cloth. ▸ Insert the base filter 1. Cleaning the additional filter mat and heat pump mat As required or with «A11»...

  • Page 29: Cleaning The Cooler Filter

    7 Care and maintenance 7.10 Cleaning the cooler filter As required or with «A11» ▸ Push the handle back, open the filter case and remove the cooler filter. ▸ Remove the fluff while dry, next rinse un- der running water and then wring out. ▸...

  • Page 30: Trouble-Shooting

    8 Trouble-shooting Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If another fault is displayed or the fault cannot be remedied, please call Customer Ser- vices. Before calling Customer Services, please note down the error message in full. FXX / EXX See instructions FN XXXXX XXXXXX What to do if …...
  • Page 31 8 Trouble-shooting … A9 flashes in the display A9 Clean filters and mat Possible cause Solution ▪ The following parts in the ap- ▸ Check and, if necessary, clean the parts. pliance could be blocked: ▸ Cancel the error message by pressing the but- –...
  • Page 32 8 Trouble-shooting ... in the display appears FXX / EXX See instructions FN XXXXX XXXXXX Possible cause Solution ▪ Various situations can lead to a ▸ Cancel the error message by pressing the «F message». button. ▸ Turn the power supply off for about 1 minute and then turn it back on again.
  • Page 33 8 Trouble-shooting ... «Final Airing» appears in the display Possible cause Solution ▪ The laundry is being cooled ▸ No action is necessary. The laundry can be un- down. loaded at any time as long as it is then spread out ▪...

  • Page 34: Drying Tips

    9 Drying tips ... the programme takes significantly longer than indicated Possible cause Solution ▪ The following parts in the appli- ▸ Check and, if necessary, clean the parts. ance could be blocked: – door filter – filter mat in door filter –...

  • Page 35: Energy-Saving Tips

    10 Spare parts ▪ Knitted and woven items (e.g. T-shirts) tend to shrink. Select the additional easy care function. ▪ Items of clothing with metal fasteners (e.g. overalls) should be tumble dried using the additional timed drying programme. The metal fasteners could cause the washing to be overdried in an automatic programme.

  • Page 36: Technical Data

    11 Technical data Technical data Dimensions Height: 90 cm Width: 66 cm Depth: 81 cm Weight: 94 kg Pumping height of pump: 1.2 m Dry load capacity: 7 kg Ambient conditions Permissible room temperature when appliance in operation: 5 °C to 35 °C Electrical connection ▸...

  • Page 37: Product Fiche

    11 Technical data 11.1 Product fiche In accordance with EU Regulation No. 392/2012 Brand V-ZUG Ltd The model identifier corresponds to the first alpha- numerics on the identification plate. Rated capacity for cotton laundry at full load Type of appliance...

  • Page 38: Note For Testing Institutes

    11 Technical data 11.2 Note for testing institutes ▸ The declaration data can be determined correctly only after a run-in phase of 5 com- plete drying programmes with washing (automatic programme: normal dry ▸ Wash the door filter each time after completing a drying programme. ▸...

  • Page 39: Ecostandby

    11 Technical data Fabric types Programme Load capa- Residual moisture Programme duration Energy city hrs./mins. Airing – 0h10 0.02 Silks 0 to 2 0h40 0.60 Fluffing – 0h05 0.10 Crease guard – 0h20 0.03 Shirts 1–7 items 0 to 2 0h40 0.70 Leisurewear 0 to 2...

  • Page 40: Disposal

    12 Disposal Disposal 12.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 12.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...

  • Page 41: Index

    Index Shirts ..............  12 Silks.............. 12 Additional filter mat Thick down filling .........  13 Cleaning ............ 28 Thin down filling ...........  13 Ambient conditions.......... 36 Towelling ............ 13 Appliance Factory settings Preparing............ 18 Restoring ............ 17 Appliance description ........8 Final Airing ............
  • Page 42 Safety precautions Appliance-specific .......... 5 General ............. 4 Serial number (FN) ..........8 Service & Support........43 Service agreement........... 43 Symbols ..............4 Technical data ..........36 Temperature sensor Cleaning ............ 28 Testing institutes: Note........38 Timed drying ............. 13 Selecting............ 20 Tips ..............

  • Page 43: Service & Support

    Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
  • Page 44 At the end of the wash day: ▸ Clean the door filter ▸ Close the appliance door 1030228-R02 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
