Operating instructions
CombiAdoraDry V4000 DualDry
Tumble dryer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CombiAdoraDry V4000 DualDry and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG CombiAdoraDry V4000 DualDry

Summary of Contents for V-ZUG CombiAdoraDry V4000 DualDry

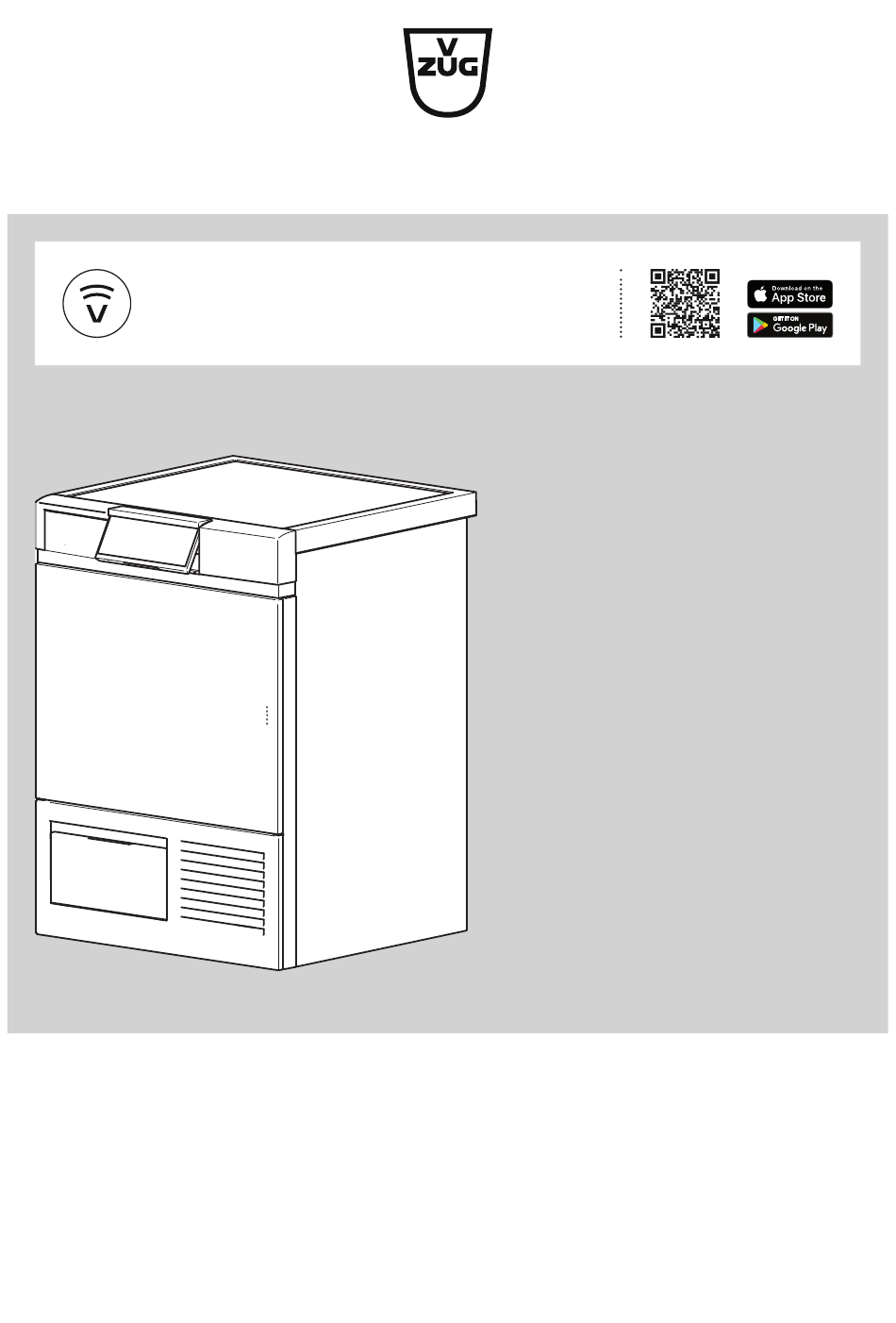

  • Page 1 V-ZUG-Home Install the app, network your appliances and benefit from a wide range of useful functions. Operating instructions CombiAdoraDry V4000 DualDry Tumble dryer...
  • Page 2 Validity These operating instructions apply to: Model designation Model number Type 12014 CAT4TWHWL, CAT4TWHWR CombiAdoraDry V4000 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2021...

  • Page 3: Table Of Contents

    9.10 Childproof lock............  29 Operating the appliance  17 9.11 Drum illumination..........  29 Preparations............ 17 9.12 V-ZUG-Home............  29 Changing the operating mode ...... 19 9.13 Factory settings.............   30 Selecting a programme........ 19 Demo mode  30 Selecting additional functions ...... 21 10.1 Switching on ............
  • Page 4 11.6 Cleaning the temperature sensor..... 33 11.7 Cleaning the appliance........ 34 Trouble-shooting  34 12.1 Error messages............ 34 12.2 Other possible problems........ 36 Spare parts  40 Technical data  40 14.1 Note for testing institutes ........ 40 14.2 Product fiche ............ 41 Drying tips  43 15.1 Saving energy............ 43 15.2 Avoiding damage .......... 43 Disposal...

  • Page 5: Safety Warnings

    Safety warnings Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...
  • Page 6 1 Safety warnings ▪ WARNING: This appliance is ▪ Items such as foam rubber only designed for drying tex- (latex foam), shower caps, tiles which have been washed waterproof textiles, rubber or in water. plastic backed articles and ▪ The appliance is only to be clothes or pillows fitted with used with the recommended foam rubber pads should not...

  • Page 7: Instructions For Use

    «Service & Sup- CoinSystem 1 or CoinSystem port» section. Please contact our Cus- tomer Services if necessary. 2 cashier system from V-ZUG ▪ Any repairs, modifications or manipula- Ltd into which you have inser- tions to the appliance, especially any...
  • Page 8 1 Safety warnings ▪ If the appliance is in the tumble drying Caution: Risk of burns! operating mode, the room in which the ▪ Do not dry fabrics that contain traces of heat pump dryer stands should be kept hair spray, hair gel, nail varnish remover ventilated as it produces a small or other similar substances.
  • Page 9 1 Safety warnings Transport and installation Front Tilt max. 90° to the left! ▪ Transport the appliance in an upright position only! Transporting it in any other position will result in damage to the appliance! When carried carefully without being shaken, the appliance may be tilted a maximum of 90°...

  • Page 10: Initial Set-Up

    Initial set-up The appliance must be installed and connected to the electricity supply in accord- ance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work. If the location of the appliance is changed, because of the heat pump it must stand in its final position for around 2 hours before it can be operated again.

  • Page 11: Operating And Display Elements

    3 Appliance description Operating and display elements Operating panel Buttons Operating panel Door opener V-ZUG-Home display EcoManagement TouchDisplay Without function Indicator lights Standard and extra programmes Start/Pause/Drum illumination End of programme Favourites TouchDisplay Buttons Tumble drying Operating modes Select programme...

  • Page 12: Indicator Lights

    4 Operating modes Indicator lights Indicator light Activity State Indicator light is il- Function is active. luminated. Indicator light is Function is selectable. flashing. Indicator light is Function is not selectable. not illuminated. Button state Background colour Symbol colour State Blue White Function is active.

  • Page 13: Programme Overview

    5 Programme overview Programme overview All the programmes are described below. The stated load size refers to the tumble drying operating mode. Automatic programmes Consumption values The stated values for the programme duration and energy apply for the maximum stated load capacity with a wash spun at around 1000 rpm (corresponds to a moisture level of approx.

  • Page 14: Textile Programmes

    5 Programme overview Dries textiles for a set duration, irrespective of their level of dryness. Textile programmes Coloureds Suitable for most fabrics. Descriptions and consump- ▪ Load: 1–7 kg tion values are given in the «Automatic pro- grammes» section. Shirts Fabrics are gently dried to «Standard dry». ▪...

  • Page 15: Moisture Control Programme

    5 Programme overview Thick down filling For bulky down textiles (e.g. pillows, jackets and ▪ Load: 1–2 kg thick duvets). If recommended, tennis balls can be ▪ Remaining moisture content: used for fluffing up the down during drying. Optimum -1 to 1 % load: 1 item ▪...

  • Page 16: Standard And Extra Programmes

    5 Programme overview Standard and extra programmes Standard programme The stated values for the programme duration and energy apply for the maximum stated load capacity with a wash spun at around 1000 rpm (corresponds to a moisture level of approx. 60%). A higher spin speed or a smaller load reduce them by approx. 20–30%. The most energy efficient programme for dry- ▪...

  • Page 17: Ecomanagement

    6 Operating the appliance EcoManagement The «EcoManagement» user setting must be turned on to use «EcoManage- ment» (see page 29). EcoManagement provides information on the energy and water consumption of the appliance. The following statistical data can only be re- trieved when there is no programme running: ▪...
  • Page 18 6 Operating the appliance ▸ Touch the button. Tumble drying Select programme – The appliance door 2 opens. – The drum illumination switches on. ▸ Loosely load wet laundry items one by one into the appliance. ▸ Close the appliance door 2. ▸...

  • Page 19: Changing The Operating Mode

    6 Operating the appliance If no programme selection is made within 5 minutes, all the displays go out. Touch button at any time to display the start screen again. For all running programmes relating to the room air drying operating mode, the TouchDisplay is dimmed.
  • Page 20 6 Operating the appliance For the room air drying operating mode ▸ Touch the button. Timed drying – A selection of drying times appears in the Duration in minutes TouchDisplay. ▸ Select the desired drying time, e.g. 30. – The programme selected and all selectable ad- ditional functions appear in the TouchDisplay.

  • Page 21: Selecting Additional Functions

    6 Operating the appliance Selecting additional functions ▸ Touch the button for the desired programme, e.g. Extra dry 2 h 25 – The programme selected and all selectable ad- ditional functions appear in the TouchDisplay. ▸ Touch the button for the desired additional func- tion, e.g.

  • Page 22: Phases

    6 Operating the appliance Duration remaining indicator No duration remaining indicator appears for the automatic programmes in the room air drying operating mode. When the programme starts, the programme dura- Extra dry tion at maximum load is displayed. The actual load 0 h 59 is determined and the expected duration remaining Calculating time remaining...

  • Page 23: Adding Washing

    6 Operating the appliance 6.10 Adding washing Laundry can be added at any time with the tumble drying operating mode. ▸ Touch the button. Extra dry – The appliance door opens. – The drum illumination switches on. Continue with button –...

  • Page 24: Drum Illumination

    6 Operating the appliance 6.14 Drum illumination The drum illumination automatically switches on whenever the appliance door is opened and switches off when it is closed. If the appliance door is left open, the drum illumina- tion switches off automatically within 2 minutes. ▸...

  • Page 25: Ecomanagement

    6 Operating the appliance 6.17 EcoManagement The «EcoManagement» user setting must be activated to use «EcoManagement» (see page 29). Displaying estimate during programme selection Applies only to the programmes for the tumble drying operating mode. The expected energy consumption can be displayed during additional function selection. ▸...

  • Page 26: Favourites

    7 Favourites Favourites The appliance door has to be open to define, change or delete a favourite. The air inlet and outlet flaps may be open or closed for this. Defining and saving favourites ▸ Touch the button. Define favourite –...

  • Page 27: Starting Favourites

    – A 6-digit PIN appears in the display of the household appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password.

  • Page 28: User Settings

    9 User settings Further information about V-ZUG-Home and availability can be found at home.vzug.com or in the Operating instructions for V-ZUG-Home. User settings Providing no programme is running and no error messages are displayed, the user settings can be changed.

  • Page 29: Background Image

    V-ZUG App to, for instance ▪ Display ▪ Off (factory setting) ▪ switch off a running appliance ▪ call up the status of your household appliances. Further information about V-ZUG-Home and availability can be found at home.vzug.com or in the Operating instructions for V-ZUG-Home.

  • Page 30: Factory Settings

    10 Demo mode 9.13 Factory settings The factory settings can be restored. The language if ▪ : Restore changed is not reset to the factory setting. ▪ : Do not restore Any favourites that have been saved will also be deleted. Demo mode In the demo mode, almost all the appliance functions are available but it is not possible to dry with the appliance.

  • Page 31: Care And Maintenance

    11 Care and maintenance Care and maintenance A thick coating of fluff can trigger the «A9 Clean mats» (see page 34) error message. 11.1 Cleaning intervals Appliance part Cleaning interval Door filter ▪ After each use ▪ When prompted «A9 Clean filter» Door filter mat ▪...

  • Page 32: Cleaning The Front Filter

    11 Care and maintenance ▸ Wash the door filter mat 2 under running water or in a washing machine at 40 °C. Vacuum cleaning can cause damage to the appliance! Never clean the door filter mat with a vacuum cleaner! ▸ Put the dry door filter mat 2 back into the door fil- ter 1.

  • Page 33: Cleaning The Front Insert

    11 Care and maintenance ▸ Close the air inlet flap 4 again. ▸ Put back the front filter 3 and engage. Ensure it is positioned correctly. ▸ Put back the front insert 1. An incorrectly inserted front filter can cause damage to the appliance! The appliance will not start without the front filter being correctly in place.
  • Page 34 12 Trouble-shooting ▸ Clean the temperature sensor 2 with a damp cloth. ▸ Close the air inlet flap 1 again. – The magnetic holder engages on its own. 11.7 Cleaning the appliance ▸ Wipe the outside of the appliance from time to time with a damp cloth and wipe dry. Trouble-shooting You may be able to trouble-shoot the following malfunctions yourself.
  • Page 35 12 Trouble-shooting Display Possible cause Solution A11 Reached ▪ Windows and doors ▸ Keep windows and doors to the room maximum pro- to the room were closed during the drying process. gramme dura- open during the dry- tion ing process. ▪...
  • Page 36 12 Trouble-shooting Display Possible cause Solution Ambient temper- ▪ It is not possible to ▸ Dry the washing using the tumble dry- ature too low use the room air ing operating mode. drying operating mode for drying be- cause the ambient temperature is below 8 °C.
  • Page 37 12 Trouble-shooting Problem Possible cause Solution The programme ▪ Front filter is clogged. ▸ Clean the front filter (see page 32). takes signific- ▪ Very wet washing. ▸ Spin washing at a higher speed. antly longer ▪ Window or door to ▸...
  • Page 38 12 Trouble-shooting Problem Possible cause Solution The duration re- ▪ Not yet reached level ▸ No action is necessary. The indicator will maining indic- of dryness required. run automatically once the level of dry- ator remains ness is reached. frozen for a ▪...
  • Page 39 12 Trouble-shooting Problem Possible cause Solution The laundry is ▪ Too large a load. ▸ Reduce the size of the load. badly creased. ▪ The washing was ▸ Switch the additional «ReversePlus» spun too fast in the function on. washing machine. ▸...
  • Page 40 13 Spare parts Spare parts Please state the serial number (SN) when ordering parts. Further spare parts can be purchased from the spare parts shop at www.vzug.com. Door filter with Door filter mat Front insert Front filter door filter mat Technical data General notes Height...
  • Page 41 14.2 Product fiche In accordance with EU Regulation No. 392/2012 Brand V-ZUG Ltd The model identifier corresponds to the first 5 al- 12014 phanumerics on the identification plate. Rated capacity for cotton laundry at full load Type of appliance...
  • Page 42 14 Technical data In accordance with EU Regulation No. 392/2012 Power consumption of the left-on mode 2.60 Duration of the left-on mode Standard cotton programme Standard programme Weighted programme time Programme time for the standard cotton pro- gramme at full load Programme time for the standard cotton pro- gramme at partial load Condensation efficiency class...
  • Page 43 15 Drying tips Drying tips 15.1 Saving energy ▪ Spin the washing in the washing machine at a high spin speed before tumble drying. Mechanical draining in the washing machine is much more efficient than water evapor- ation in the tumble dryer. ▪...
  • Page 44 16 Disposal 16.3 Disposal The «crossed‐out wheeled bin» symbol requires the separate collection of waste ▪ electrical and electronic equipment (WEEE). Such equipment can contain hazardous, environmentally harmful materials. ▪ These appliances are to be handed over to a designated collection point for the recyc- ling of electrical and electronic equipment and must not be disposed of with unsorted household waste.
  • Page 45 Index Actual moisture ..........21 EcoManagement ........11, 17 Additional functions ......... 16 Display ............ 25 Starting............ 21 Switching on .......... 29 Airing Efficient drying Extra programmes........ 16 Standard programme........ 16 Appliance Ending Disposal............ 44 Programme ...........  23 Automatic programmes ........11 Energy-efficient drying Consumption values ........
  • Page 46 Measuring............22 Service agreement........... 51 Model designation ..........2 Shirts Moisture control programme ....11, 15 Textile programmes ........ 14 Starting............ 20 Silks Moisture value Textile programmes ........ 14 Setting............ 20 Smartphone Moisture values ..........15 System requirements ........ 27 Actual moisture ..........
  • Page 47 17 Index Validity..............2 Viewing angle ........... 28 V-ZUG App ............27 V-ZUG-Home..........11, 27 Switching on mode........ 29 WLAN connection ..........27 Woollen textiles Woollens............ 15...
  • Page 48 Notes...
  • Page 51 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
  • Page 52 ▸ Select programme and any additional functions (if required). ▸ Press the button. – The programme starts. 1057856-04 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
