Section 2 General Information

Component Locations

O
N
M
Owner's Manual for Generator
A

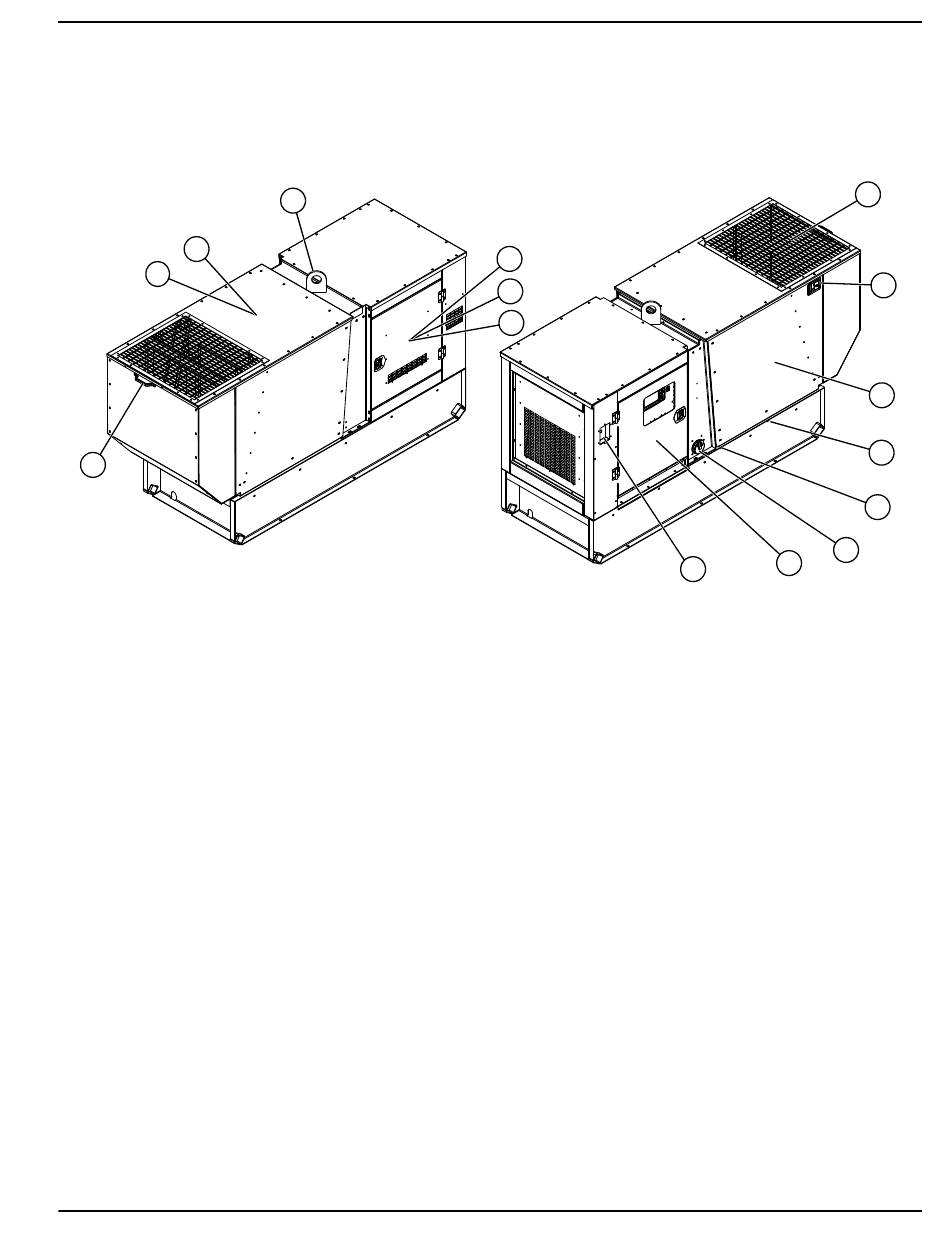

Figure 2-1. Features and Controls
Table 2-1. Generator Components
A Central Lift Point
B Voltage Selector Switch Access
C Generator Access
D Manual Holder Access
E Engine Exhaust
F Front Hood Latch
G Engine/Battery Access
H Radiator Drain Port
B
C
D
I Oil Drain Port
J Fuel Fill
K Control Panel Access
L Emergency Stop Switch
M Handle
N Radiator Access
O Engine Access

General Information

E
J
K
L
F
G
H
I
