Control Panel

O
N
M
L
A
B
C
D
E
F
G
H
Owner's Manual for Generator
J
K

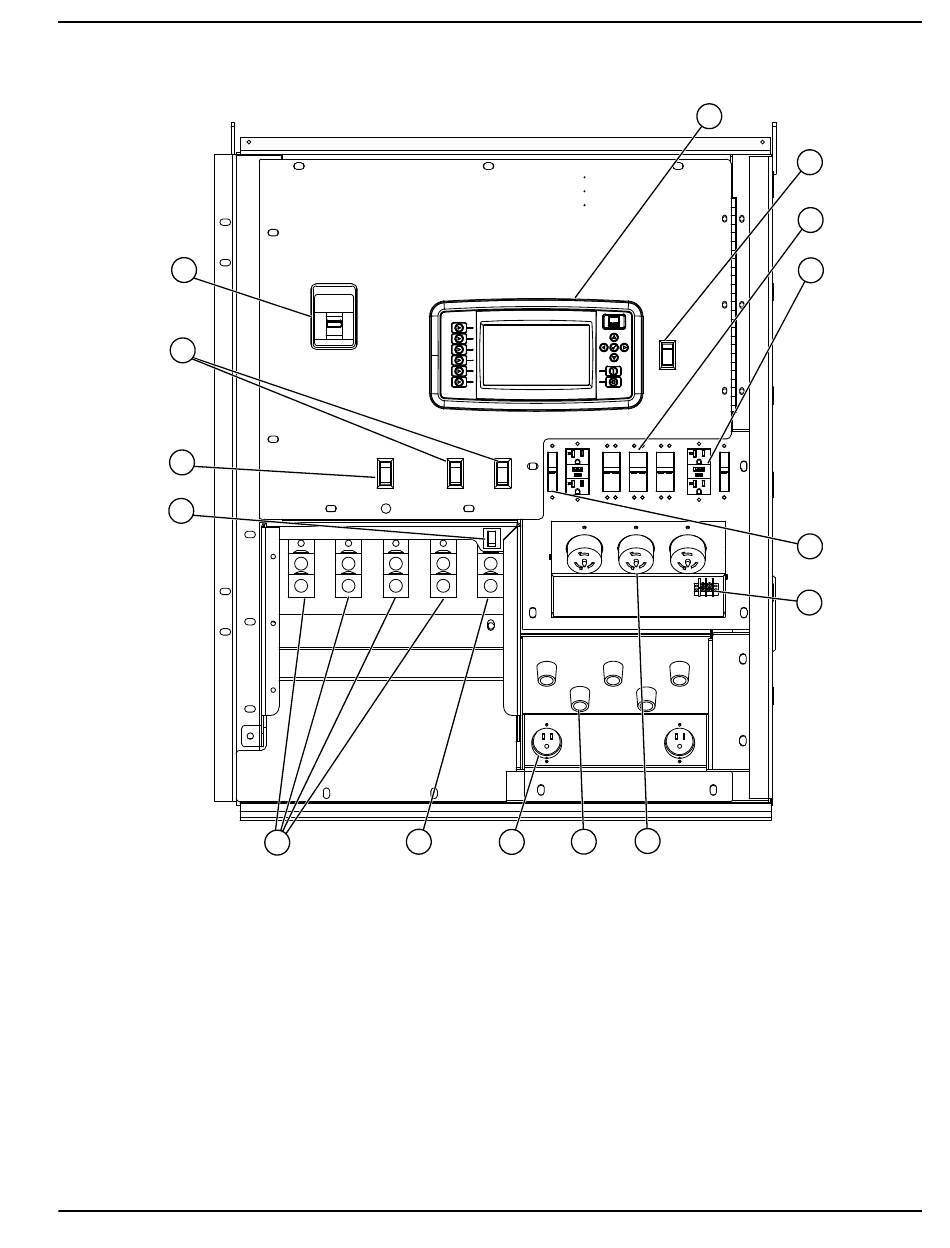

Figure 2-3. Control Panel Component Locations
Table 2-2. Control Panel Components
Power Zone™ Controller
Control Power Switch
50A Circuit Breakers (3)
120V GFCI Receptacles (2)
20A Circuit Breakers (2)
Remote Start Terminal Block
120/240V Twist-Lock Receptacles (3)
Cam Lock Connections (5)
H G
I
I 120V Inlet Receptacle
J Generator Ground Connection Lug
K Generator Output Connection Lugs (4)
L Door Safety Switches (2)
M Diesel Exhaust Filter Cleaning Switch
N Auxiliary Light Switches (optional)
O Main Circuit Breaker
General Information
A
B
C
D
E
F
002785
