Low Oil Level Wiring Option; Battery Charger Wiring Option; Engine Heater Wiring Option - Generac Power Systems Magnum MMG75D Owner's Manual

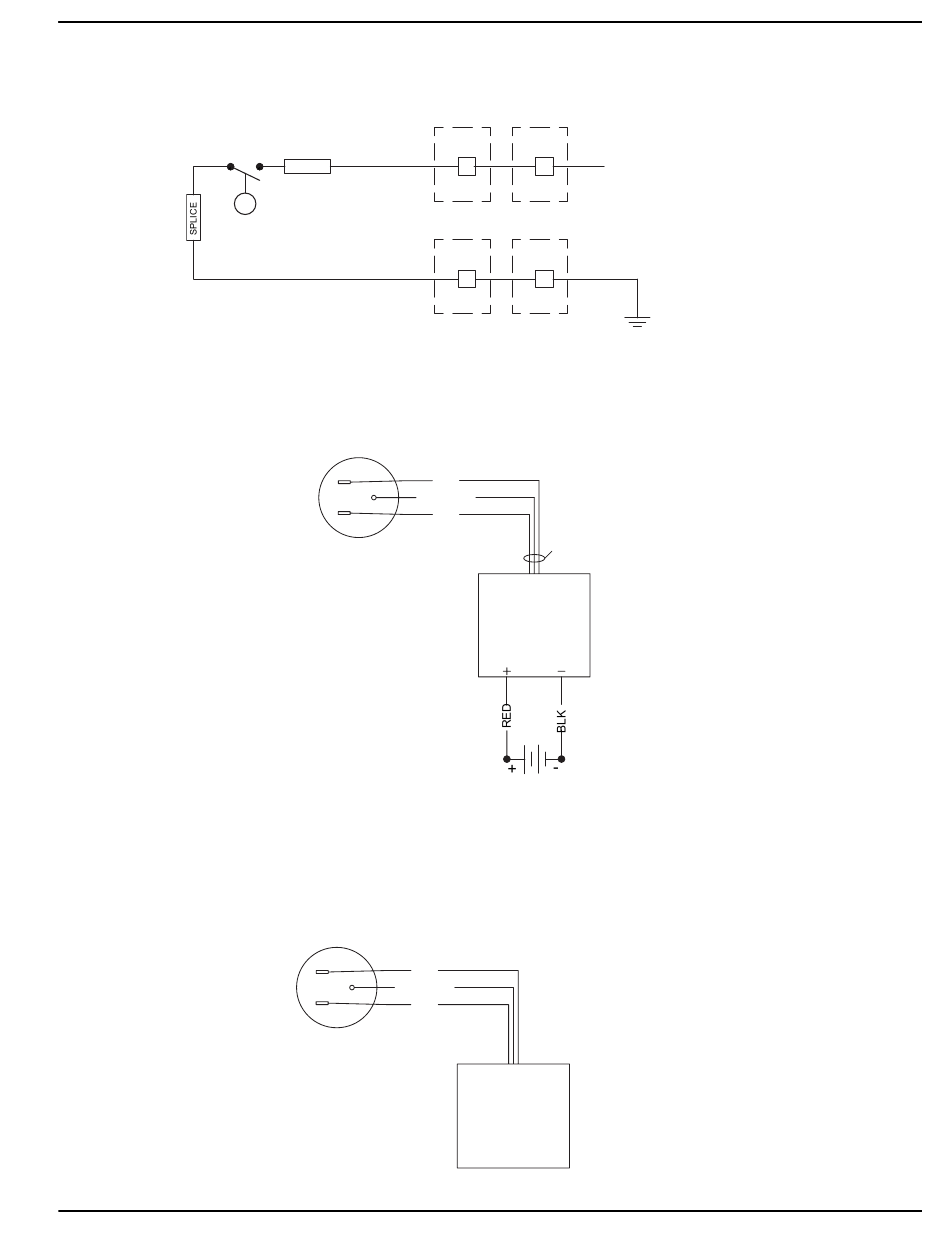

Low Oil Level Wiring Option

SWITCH
WT

Battery Charger Wiring Option

Engine Heater Wiring Option

Owner's Manual for Generator
CONN-2
DEUTSCH
21 PIN
RD
WT/BL
SPLICE
CONN-2
DEUTSCH
21 PIN
BK/WT
EDISON PLUG
BLU
YEL/GRN
BRN
EDISON PLUG
WT
GN
BK
CONN-2
DEUTSCH
31 PIN
CONTROLLER PIN 66 (7310)
WT/BL
U 26
CONTROLLER PIN 68 (PZ)
CONN-2
DEUTSCH
31 PIN
BK/WT
F 27
16/3
BATTERY
CHARGER
12 V
BATTERY
90593_ORG_10.29.14
ENGINE
HEATER
90594_ORG_10.29.14
Wiring Diagrams and Service Log
90611_ORG_12.03.14
