Section 2: General Information

Generator Features and Components

A A
G
A Enclosure lid
B Controller lid
C Control panel
D Main line circuit breaker
E Customer connection box
F Generator emergency shutdown
switch
Owner's Manual for 7.5 kW PowerPact™
B
H
C
D
E
F

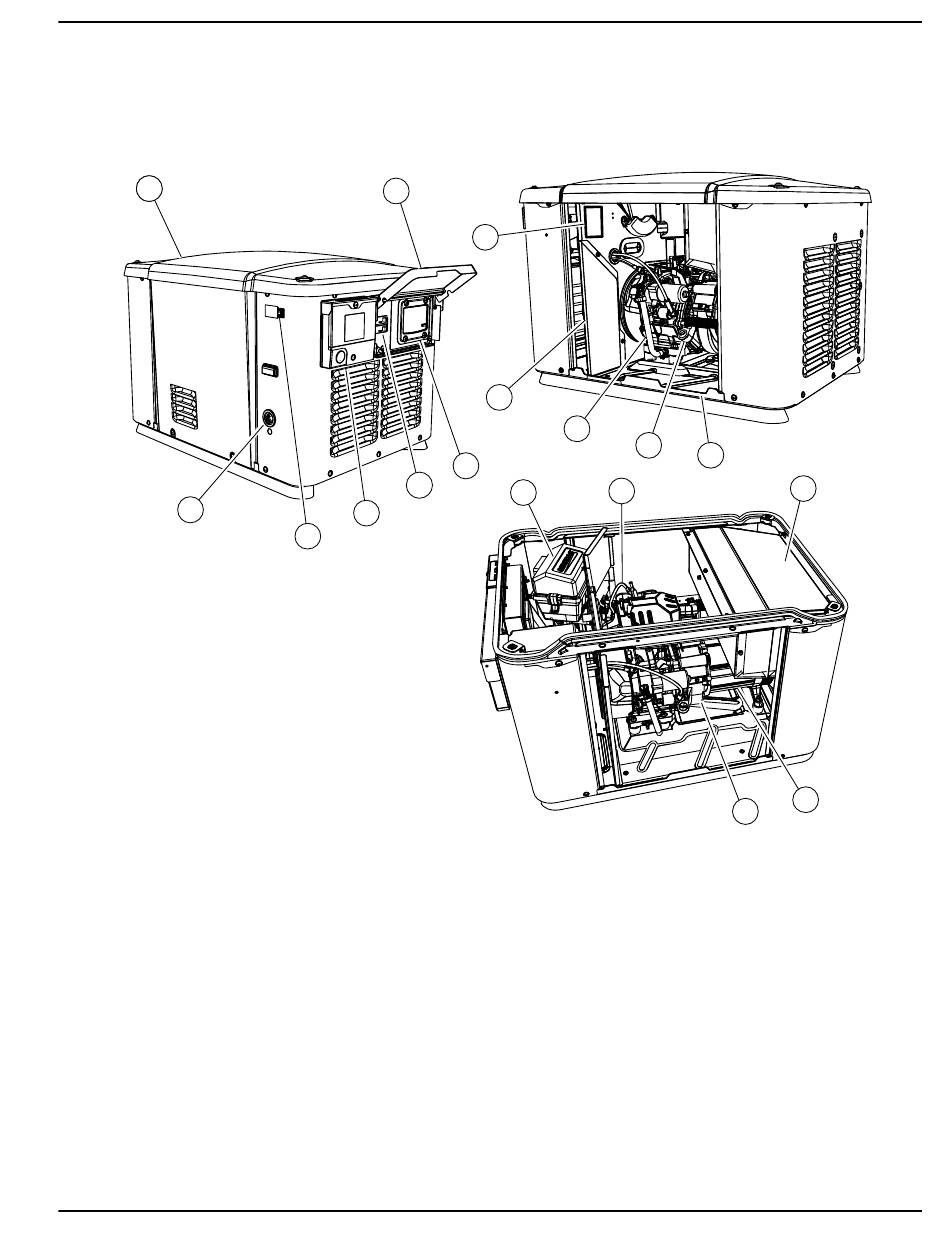

Figure 2-1. Features and Components
G Fuel connection hole
H Data label
J Battery access panel
K Oil drain hose
L Oil fill / dipstick
M Front panel (not shown)
J
K
L
O
N
N
O
P
Q
R
General Information
M
P
Q
R
005568
Air box
Spark plug
Exhaust enclosure
Alternator
Starter motor
7
