Premier Mounts UMB-DBTS Installation Manual

UMB-DBT / UMB-DBTS
Installation Guide

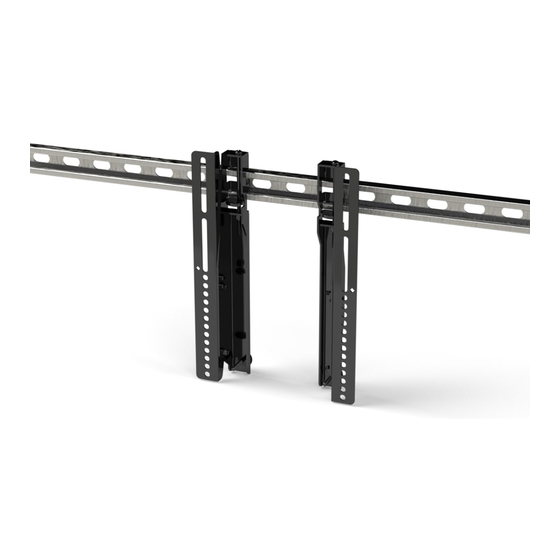

Display Bracket
(1 Pair)
1
If necessary use a Phillips screw driver
to adjust the clamp brackets down.
Universal Spacer Thread Depth Indicator
(Qty 8)
M6 x 25 mm screw
M8 x 12 mm screw
(Qty 4)

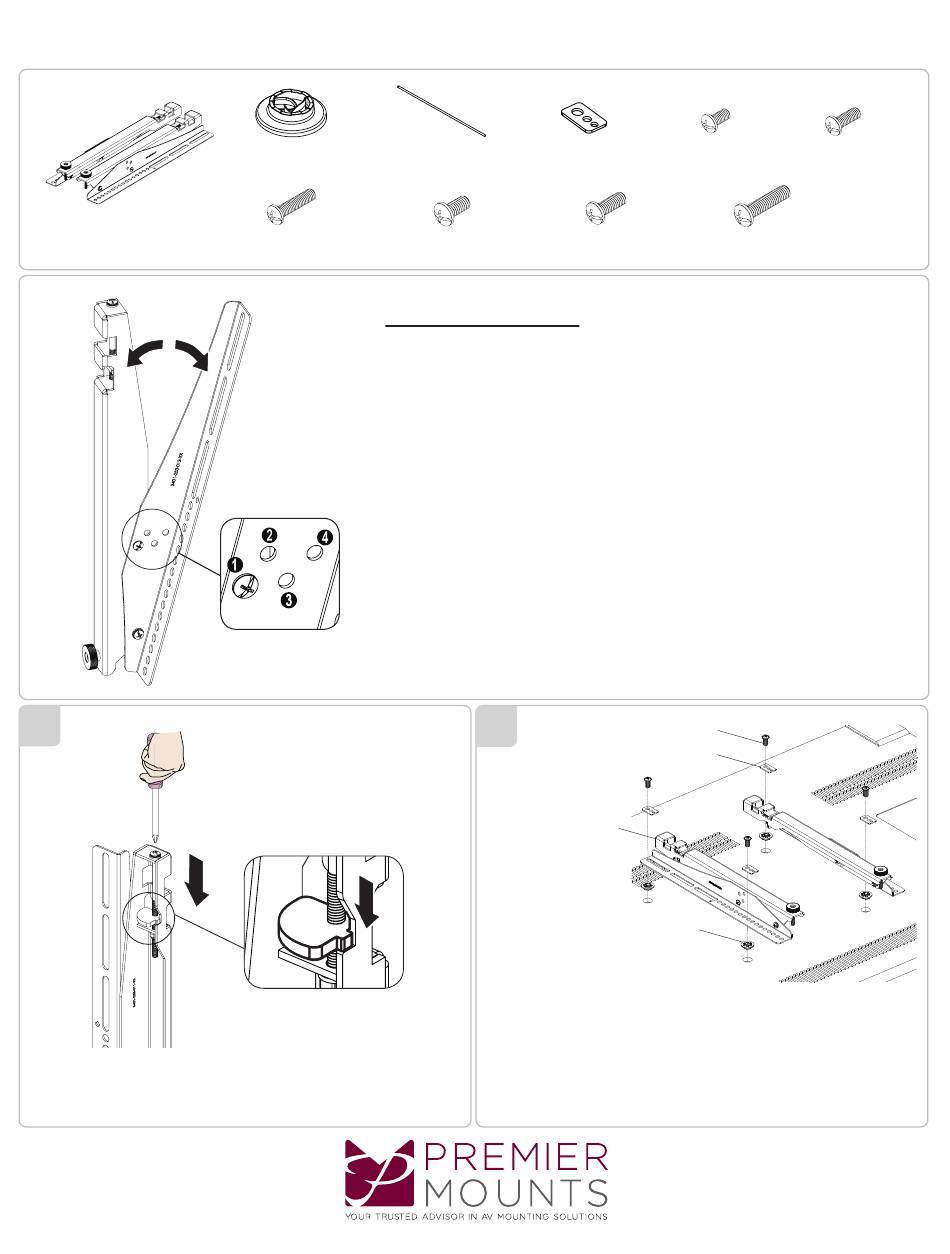

Tilt Adjustments

Tilt adjustments can be made shown in figure 1 by removing the Phillips
screw on the display brackets and installing it to another hole.
( 0º - 5º - 10º - 20º) Degrees
Figure 1
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
Universal Washer
(Qty 1)
(Qty 4)
M8 x 16 mm screw
(Qty 4) (Qty 4)
2
(4) M6 or M8 Screws
(4) Universal Washer
(4) Display Brackets
(4) Universal Spacer
Use a thread depth indicator to find the appropriate hardware.
Install the display brackets using four (4) M6 or M8 screws and
four (4) universal washers. Use universal spacers if necessary.
M6 x 12 mm screw M6 x 16 mm screw
(Qty 4) (Qty 4)
M6 x 25 mm screw
(Qty 4)
