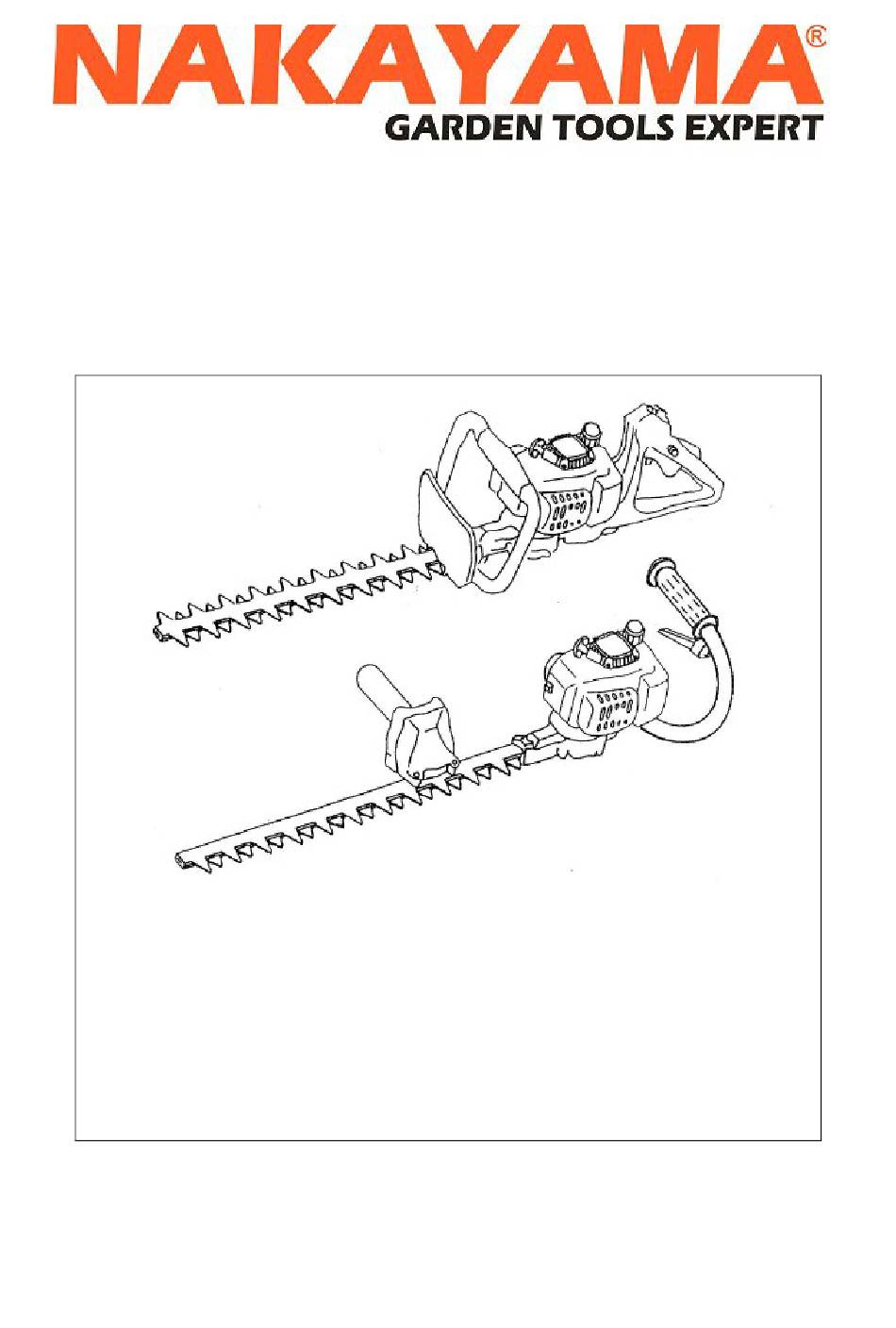

INSTRUCTION MANUAL PH2300
WARNING:
To reduce the RISK of injury, user must read and understand
The instruction manual before using the Hedge Trimmer.
Manufacturer reserves the right to change specifications
Without notice.
Specifications may differ from country to country.
Do only hand over the Hedge Trimmer together with this manual.
1
Advertisement
Table of Contents
Related Manuals for Nakayama PH2300
Summary of Contents for Nakayama PH2300
- Page 1 INSTRUCTION MANUAL PH2300 WARNING: To reduce the RISK of injury, user must read and understand The instruction manual before using the Hedge Trimmer. Manufacturer reserves the right to change specifications Without notice. Specifications may differ from country to country. Do only hand over the Hedge Trimmer together with this manual.
-
Page 2: Table Of Contents
Thank you very much for selecting the MOWERLAND Hedge Trimmer. We are pleased to be able to offer you the Table of Contents Page MOWERLAND Hedge Trimmer which is the result of a long Symbols……………………………………..2 development program and many ears of knowledge and Safety instructions………………..……..3-6 experience. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS liability for others. -Never use the Hedge Trimmer after consumption of General Instructions alcohol or drugs, or if feeling tired or ill. (2) -This machine can cause serious injuries if used incorrectly. Intended use of the machine To ensure correct operation, users have it read this instruction manual to make themselves familiar with the handing of the Hedge Trimmer. - Page 4 Hedge Trimmer. -Always wear safety goggles for eye protection that meets ANSI Z87.1. -Wear adequate noise protection equipment to avoid hearing impairment, ear muffs, ear plugs, etc. (3) -Wear proper clothing to protect legs and other exposed parts of your body. -Gloves made of thick leather are part of the prescribed equipment and must always be worn during operation of the Hedge Trimmer.
- Page 5 Starting up the Hedge Trimmer -Please make sure that there are children or other people within a working range of 50 feet or 15 meters (5). Also pay attention to any animals the working vicinity. -Before operating, always check that the Hedge Trimmer is safe for operation: Check the security of the throttle lever The throttle lever should be checked for smooth and easy action...
- Page 6 clearing jammed material -Do not attempt to refuel a hot running engine. -Be aware of any and all electric lines and electric fences. -Avoid .skin contact with petroleum products. Do not inhale fuel vapor. Always Check all areas wear protection gloves dunning refueling. Change and clean protection clothing at regular intervals.
- Page 7 for electrical lines before cutting. -To reduce the risk of stumbling and loss of control, do not walk backward while operating the machine. Maintenance instructions -Always stop the engine before cleaning or servicing the unit or replacing parts. -MAINTAIN TOOL WITH CARE. Keep cutting edges sharp and clean for best and safest performance.
-
Page 8: Specification
First aid In case of an accident make sure that a well-stocked first-aid kill according to DIN 13164, is available in the vicinity of the cutting operations. Immediately replace any item taken from the first aid kit. Packaging The MOWERLAND Hedge Trimmer is delivered in a protective cardboard box to prevent shipping damage. -
Page 9: Name Of Major Parts
1) The data takes equally into account idling and racing speed operating modes. NAME OF MAJOR PARTS NAME OF MAJOR PARTS NAME OF MAJOR PARTS Blade Throttle lever Front handle Rear handle Recoil starter Muffler Furl tank cap Gearbox... - Page 10 Carburetor Blade cover STOP Switch（ON-OFF） FUELS/REFULLING Fuel and oil mirture Inspect the fuel tank and with clean, fresh fuel of the proper mixture to assure the longer life of the tool. Use the following mixed gas Gasoline: applicable genuine two-stroke engine oil = 25:1 Gasoline: other manufacturer’s two-stroke engine oil = 25:1 recommended FOR CALFORNIA REGULATION: THIS EQUIPMENT IS CERTIFIED TO OPERATE ON GASOLINE+ TWO- STROKE ENGINE OIL...
-
Page 11: Precautions Before Stating
PRECAUTIONS BEFORE STARTING Refueling -Please make sure that there are no children or other people within a working range of 15 Always stop the engine and meters or 50 feet; also pay attention to any allow cool before animals in the working vicinity. refueling. -
Page 12: Starting The Machine
ground or any other object. Cold starting ( when the engine is cold or it has been stopped for more than 5 minutes or when fuel is added to the engine. Push the STOP switch (1) to “1” position. Squeeze first the lock lever A and then the throttle lever B(fig.1) Keeping the throttle lever B depressed, then press the throttle lock C inward. -
Page 13: Stopping The Machine
retracted without control, ensure that it is retracted slowly. STOPPING THE MACHINE Release the throttle lever completely. Push the I-O switch (on/off) to “O” position, the engine rotation will become low and the engine will stop. OPERATION OF THE MACHINE -Be sure to carefully read and follow safety instructions. -
Page 14: Maintenance Instructions
Always ensure a safe footing. -Never climb up the trees with the Hedge Trimmer to perform cutting operation. -Never work on unstable surfaces. -Remove sand, stone, nails, wire, etc, found within the working area foreign objects may damage the cutting blades. -Before commencing cutting, the cutting blades must have reached full working speed. - Page 15 -Turn off the engine and remove the spark plug connector when replacing or sharpening cutting tools also when cleaning the cutter or cutting device or carrying out any maintenance. -Never straighten pr weld a damaged cutting blade. -Inspect the cutting blades with the engine switched off art short , regular intervals for damage. (Detection of hairline cracks by means of tapping-noise test.) Beware the teeth are sharp.
- Page 16 Checking the adjusting the idling speed The cutting blades should not when the control lever is fully released. -Idle speed should be set to 2.600rpm. If necessary, correct it by means of the idle screw (the cutting blade must not run when the engine is on idle). Clockwise: for faster rate of revolution.
- Page 17 Suction head in the fuel – Every 50 hours (Monthly) -The felt fitter (1) of the suction head is used to fitter the fuel required by the carburetor. -A periodical visual inspection of the felt fitter is to be conducted. For that purpose, open the tank cap, use a wire hook and pull out the suction head through the tank opening.
-
Page 18: Storage
STORAGE -When keeping the machine in storage for a long time. Drain fuel form the fuel tank and carburetor, as follows Drain all fuel from the fuel tank. -Remove the spark plug and as a few drops of oil into the spark plug hole. -
Page 19: Fault Location
FAULT LOCATION Fault System O bservation C ause Ignition spark is present Faulty fuel supply or com pression system , m echanical Ignition STOP-switch operated, wiring fault or short circult, spark system No ignition spark plug or connector defective, ignition m odule faulty Engine not Incorrect choke postion,carburetor defective, suction head Fuel supply...
