Summary of Contents for OAKWORKS Marina

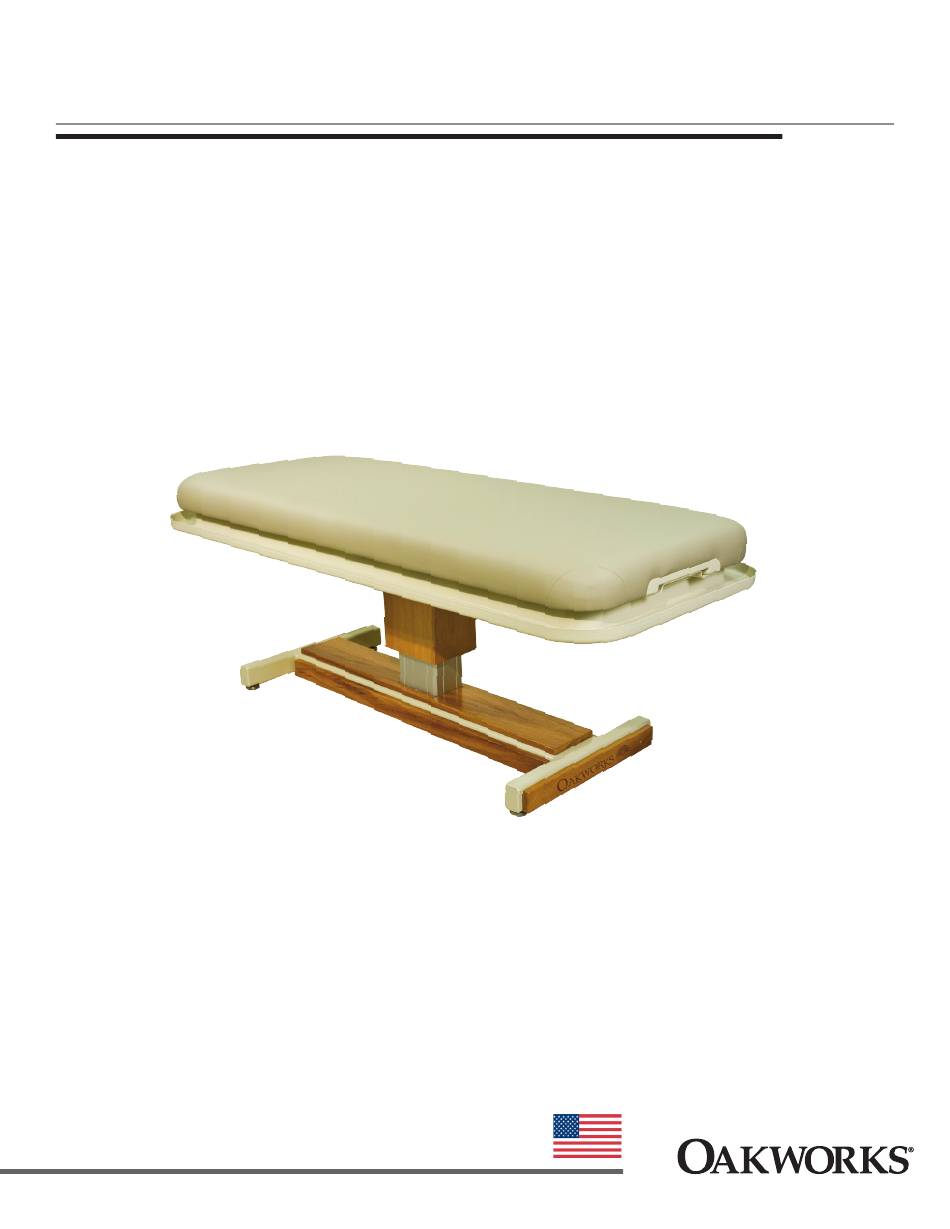

- Page 1 USER MANUAL OAKWORKS ® Marina Table made in the USA with US & imported parts www.oakworks.com · 717.235.6807...
- Page 2 ® damages in connection with or arising out of the furnishing, performance, or OAKWORKS is a registered use of this document and the program ® trademark of OAKWORKS , Inc. material which it describes. ®...
-
Page 3: Table Of Contents
Product Use Description ............................Important Safety Instructions Symbol Identification ............................. Safety Instructions ............................Product Description & Photo Marina ™ ..................................Directions for Use Installation ............................. 4 Foot Control Operation ........................4 Moving the Table ..........................5 Levelling the Table ..........................5 Control Box / Battery Use ...................... -
Page 4: Product Use Description
PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS PRODUCT USE DESCRIPTION The Oakworks Marina table offers a variety of features for massage therapists and skin care profes- ® sionals of all specialities when treatments require wet conditions. The table is especially effective for those professional protocols that require placement in a wet environment where special treatments are offered. -
Page 5: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS CAUTION READ AND SAVE THESE INSTRUCTIONS Risk of Injury — Keep children from moving upholstered top. Never drop or insert any object into any opening. Close supervision is necessary when this furnishing is used by, or near, children, invalids or disabled persons. Do not leave children alone or allow them to operate the controls. -

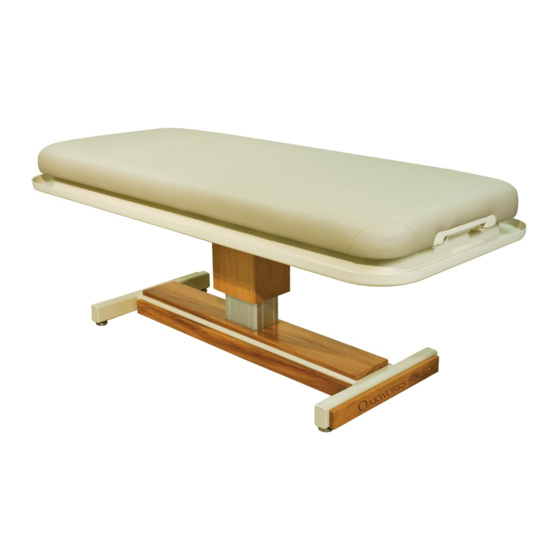

Page 6: Product Description & Photo
PRODUCT DESCRIPTION Marina Upholstered Top Hot Water Bag Fitted Table Drape (1) Powder-coated Stainless Steel base Accessory Outlets (4) Low-voltage Vertical Battery Controlled Lift Column (1) Aqueduct Drain System Leveling Feet (4) and draining tube STANDARD SPECIFICATIONS OPTIONS / ACCESSORIES Height Motion Powered 25”-34”... -
Page 7: Directions For Use
The table come complete with one foot control to control height function of the table. The Foot Control on the Marina operates all the height positioning at the touch of a pedal. Press and hold the appropriate pedal until the position desired is achieved and then release. -
Page 8: Moving The Table
DIRECTIONS FOR USE MOVING THE TABLE Before moving the table, disconnect the power cord from the power outlet. The table CAUTION weighs as much as 242 lbs. (110 kg) Never lift the table by grasping the table top. You could damage the table and the electronics that run the tabletop. Four people are required to move the table safely. -
Page 9: Control Box / Battery Use
DIRECTIONS FOR USE TABLE CONTROL / BATTERY USE The movement of the table is powered by a battery. This allows a low voltage operation of the table that is safe in all environments and is very suitable for wet treatment conditions. The battery is easily charged in a separate charging unit outside of the wet environment. - Page 10 Battery Care section below. Normal Battery Level Battery Recharge needed Battery Care: In order to maintain the quality and ensure the life of the Marina , here are some preventative steps ™ that can be taken to protect the battery.
-
Page 11: Drape & Hot Water Bag Use
DIRECTIONS FOR USE DRAPE & HOT WATER BAG USE CAUTION Not using the drape may void the warranty. The fitted table drape secures snuggly over the table. The hot water bag is filled with warm water from a kitchen sink or lavatory faucet and will provide thermal therapy for up to 2 hours. Place the hot water bag under the table drape where desired, then secure the fitted edges around the table top. -
Page 12: Quicklock Face Rest
DIRECTIONS FOR USE QUICKLOCK FACE REST * U.S. Patent #5,177,823 Do not put excessive weight or pressure on the Quicklock Face Rest. Do not extend the CAUTION dowels of the Quicklock Face Rest 3” (7.6 cm.) from the table top. Double articulating action provides nearly limitless positioning options with the QuickLock Face ™... -
Page 13: Cleaning & Disinfection
To reduce the risk of electric shock: DANGER - Always unplug this furnishing from the electrical outlet before cleaning. The following cleaners were tested by OAKWORKS ® and found to be acceptably compatible with all materials used in construction of our tables: Formula 409 ®... -
Page 14: Cleaning Process
- Always unplug this furnishing form the electrical outlet before cleaning. ® Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disinfecting an OAKWORKS table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. The table should be cleaned as soon as possible after use. -
Page 15: Model Number & Serial Number
MODEL NUMBER & SERIAL NUMBER MODEL & SERIAL NUMBERS Model Number Serial Number 16796025 MAMHWD312572PLTTZZ Ser#: MAR561910 Marina 31 x 25-34 x 72 MG/TT TTCoal 04/03/2013 Order#:654321 Notes: Sample Product Label The model number and serial number are located under the table top. -
Page 16: Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Table Length 72” (182 cm.) Table Width 31” (79 cm.) Height Range 25”-34” (64-87 cm.) Weight 242 lbs. (102 kg.) Shipping Weight 330 lbs. (150 kg.) Lifting Capacity 400 lbs. (182 kg.) ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50°... - Page 17 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 18 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 19 THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 20: Contact Information
USER MANUAL OAKWORKS ® Marina Table CONTACT INFORMATION: Inc. ® AKWORKS 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com Part No.: MMMNST0107-EN Revision level: 2 Revision Date: 03/06/2019 made in the USA with US & imported parts...
