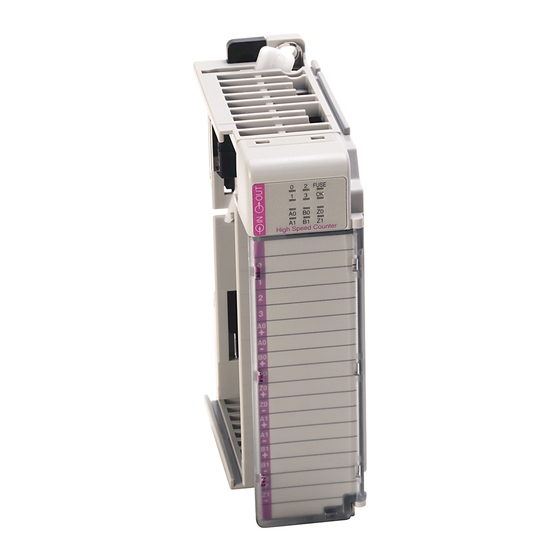

Rockwell Automation 1769-IF4 User Manual

Compact i/o analog modules
Hide thumbs Also See for 1769-IF4:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
Compact I/O Analog
Modules
1769-IF4, -IF8, -OF2, -OF8C, and
-OF8V
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Rockwell Automation 1769-IF4

Summary of Contents for Rockwell Automation 1769-IF4

  • Page 1 Compact I/O Analog Modules 1769-IF4, -IF8, -OF2, -OF8C, and -OF8V User Manual...
  • Page 2 In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. The examples and diagrams in this manual are included solely for illustrative purposes.
  • Page 3 Summary of Changes The 1769-IF8, -OF8C, and -OF8V modules have been added to this manual since the last printing. To help you find new and updated information in this release of the manual, we have included change bars as shown next to this paragraph. Publication 1769-UM002B-EN-P - July 2005...
  • Page 4 Summary of Changes Notes: Publication 1769-UM002B-EN-P - July 2005...

  • Page 5: Table Of Contents

    Conventions Used in This Manual ..... . Preface-2 Rockwell Automation Support ......Preface-3 Local Product Support .
  • Page 6 Modules 1769-IF4 Input Data File........3-2 1769-IF4 Input Data Values .
  • Page 7 Table of Contents Chapter 4 1769-OF2 Output Module Memory Map ..... . 4-1 Module Data, Status, and Channel 1769-OF2 Output Data File ....... . 4-2 Configuration for the Output 1769-OF2 Input Data File .
  • Page 8 -OF8V Modules ........A-1 1769-IF4 Input Specifications ......A-3 1769-IF8 Input Specifications .
  • Page 9 1769-ADN DeviceNet Adapter 1769-IF4 Example of External Power ....D-6 Configure the 1769-OF8C Output Module Example ... D-7 1769-OF8C Example of External Power .
  • Page 10 Table of Contents Publication 1769-UM002B-EN-P - July 2005...

  • Page 11: Preface

    • how to use this manual • related publications • conventions used in this manual • Rockwell Automation support Use this manual if you are responsible for designing, installing, programming, Who Should Use This or troubleshooting control systems that use Allen-Bradley Compact™ I/O.

  • Page 12: Related Documentation

    If you would like a manual, you can: • download a free electronic version from the internet at www.ab.com/literature • purchase a printed manual by: – contacting your local distributor or Rockwell Automation representative – calling 1.800.963.9548 (USA/Canada) or 001.330.725.1574 (Outside USA/Canada)

  • Page 13: Rockwell Automation Support

    • warranty support • support service agreement Technical Product Assistance If you need to contact Rockwell Automation for technical assistance, please review the information in Chapter 5, Module Diagnostics and Troubleshooting first. Then call your local Rockwell Automation representative. Your Questions or Comments on the Manual If you find a problem with this manual, please notify us.
  • Page 14 Notes: Publication 1769-UM002B-EN-P - July 2005...

  • Page 15: Overview

    Chapter Overview This chapter explains how analog data is used, and describes the 1769-IF4 and -IF8 analog input modules and the 1769-OF2, -OF8C, and -OF8V analog output modules. Included is information about: • the use of analog I/O • the modules’ hardware and diagnostic features •...

  • Page 16: General Description

    CompactLogix™ or MicroLogix™ 1500. The module supports connections from any combination of up to four voltage or current analog sensors for the 1769-IF4 and up to eight for the 1769-IF8. The high-impedance input channels can be wired as either single-ended or differential inputs.

  • Page 17: Hardware Features

    Overview Hardware Features The modules contain removable terminal blocks. The 1769-IF4 and -IF8 channels can be wired as either single-ended or differential inputs. The 1769-OF2, -OF8C, and -OF8V channels are single-ended only. Module configuration is normally done via the controller’s programming software. In addition, some controllers support configuration via the user program.
  • Page 18 Overview Figure 1.3 1769-IF8 Analog Module’s Hardware Features WARNING -Do Not Remove RTB Unless Area is Non-Hazardous IN 16 IN 0 IN 1 IN 17 IN 2 IN 18 IN 3 IN 19 IN 4 IN 20 IN 5 IN 21 IN 6 IN 22 IN 7...

  • Page 19: General Diagnostic Features

    System Overview modules also receive 5 and 24V dc power through the bus interface. The 1769-IF4, -OF2, -OF8C, and -OF8V modules feature an external 24V dc power switch, providing you with the option of using an external power supply. See External Power Switch on page 2-10 for details.

  • Page 20: System Operation

    If such a condition is detected, a unique bit is set in the channel status word. The channel status word is described in 1769-IF4 Input Data File on page 3-2 and 1769-IF8 Input Data File on page 3-18.

  • Page 21: Module Operation

    A/D converter reads the selected input signal and converts it to a digital value which is presented to the controller. The multiplexer sequentially switches each input channel to the module’s A/D converter. Figure 1.5 1769-IF4 Block Diagram Galvanic Input Isolation...
  • Page 22 Overview Figure 1.6 1769-IF8 Block Diagram High Vin + Gain Impedance Iin + V/I- Opto (Out) (In) Converter Coupler Vin + Iin + Opto V/I- Coupler Select Opto ASIC Vin + Coupler Iin + V/I- Vref Vin + Iin + V/I- Vin + High...
  • Page 23 Overview Output Module Block Diagram The output module uses a digital-to-analog (D/A) converter to read the digital output data from the controller and convert it to an analog output signal. Figure 1.7 1769-OF2 Block Diagram Galvanic Output Isolation Analog Switch Iout Iout Iout+...

  • Page 24: Module Field Calibration

    1-10 Overview Module Field Calibration The 1769-IF4 and -IF8 input modules performs autocalibration when a channel is initially enabled. In addition, if a channel is configured differently than the previously scanned channel, an autocalibration cycle is run as part of the reconfiguration process.

  • Page 25: Installation And Wiring

    Chapter Installation and Wiring This chapter tells you how to: • determine the power requirements for the modules • avoid electrostatic damage • install the module • wire the module’s terminal block • wire input devices • wire output devices This product is approved for installation within the European Union and EEA Compliance to European regions.

  • Page 26: Power Requirements

    Some modules can also be supplied 24V dc power by an external power supply connected to the module’s terminal block. Table 2.1 Maximum Current Draw Module 5V dc 24V dc 1769-IF4 (Series A) Not applicable 1769-IF4 (Series B) 120 mA 60 mA 1769-IF8 (Series A)

  • Page 27: Hazardous Location Considerations

    Installation and Wiring Hazardous Location Considerations This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D or non-hazardous locations only. The following WARNING statement applies to use in hazardous locations. EXPLOSION HAZARD ATTENTION • Substitution of components may impair suitability for Class I, Division 2.

  • Page 28: Remove Power

    Installation and Wiring Remove Power Remove power before removing or inserting this module. ATTENTION When you remove or insert a module with power applied, an electrical arc may occur. An electrical arc can cause personal injury or property damage by: •...
  • Page 29 Installation and Wiring work with a system that is already mounted, see Replacing a Single Module within a System on page 2-9. Figure 2.1 Assemble the Compact I/O System 1. Disconnect power. 2. Check that the bus lever of the module to be installed is in the unlocked (fully right) position.

  • Page 30: Mounting

    Installation and Wiring 6. To allow communication between the controller and module, move the bus lever fully to the left (4) until it clicks. Ensure it is locked firmly in place. When attaching I/O modules, it is very important ATTENTION that the bus connectors are securely locked together to ensure proper electrical connection.

  • Page 31: Panel Mounting

    Installation and Wiring Panel Mounting Mount the module to a panel using two screws per module. Use M4 or #8 panhead screws. Mounting screws are required on every module. Figure 2.3 Panel Mounting Using the Dimensional Template For more than 2 modules: (number of modules-1) X 35 mm (1,38 in.). 28.5 Refer to host controller documentation for this dimension.

  • Page 32: Din Rail Mounting

    Installation and Wiring Panel Mounting Procedure Using Modules as a Template The following procedure allows you to use the assembled modules as a template for drilling holes in the panel. If you have sophisticated panel mounting equipment, you can use the dimensional template provided on page 2-7.

  • Page 33: Replacing A Single Module Within A System

    Installation and Wiring The module can be replaced while the system is mounted to a panel (or DIN Replacing a Single Module rail). Follow these steps in order: within a System 1. Remove power. See important note on 2-4. 2. On the module to be removed, remove the upper and lower mounting screws from the module (or open the DIN latches using a flat-blade or phillips-style screwdriver).

  • Page 34: External Power Switch

    26.4V dc and a minimum current rating that meets the needs of the modules used in your application. Refer to Maximum Current Draw on page 2-2. Only 1769-IF4 and -OF2 Series B modules have the 24V IMPORTANT dc power switch.

  • Page 35: System Wiring Guidelines

    • If multiple power supplies are used with analog inputs, the power supply commons must be connected together. • The 1769-IF4 and -IF8 modules do not provide loop power for analog inputs. Use a power supply that matches the input transmitter specifications.
  • Page 36 Effect of Transducer/Sensor and Cable Length Impedance on Voltage Input Accuracy For voltage inputs, the length of the cable used between the transducer/sensor and the 1769-IF4 or -IF8 module can affect the accuracy of the data provided by the module. Figure 2.6 Voltage Input Accuracy...
  • Page 37 Rs = Source impedance (15 Ω for 1769-OF2 and 1 Ω for 1769-OF8V) Ri = Impedance of the voltage input (220 KΩ for 1769-IF4) Vs = Voltage at the output of 1769-OF2 Vin = Measured potential at the module input %Ai = Percent added inaccuracy in a voltage-based system due to source and cable impedance.
  • Page 38 2-14 Installation and Wiring For example, for Belden 8761 two conductor, shielded cable and a 1769-IF4 input module: Rc = 16 Ω/1000 ft ⎛ ⎞ ∠ × Rs = 15 Ω -------- - ⎝ ⎠ Ri = 220 KΩ Table 2.3 Effect of Output Impedance and Cable Length on Accuracy...

  • Page 39: Labeling The Terminals

    Installation and Wiring 2-15 Labeling the Terminals A removable, write-on label is provided with the module. Remove the label from the door, mark the identification of each terminal with permanent ink, and slide the label back into the door. Your markings (ID tag) will be visible when the module door is closed.

  • Page 40: Wiring The Finger-Safe Terminal Block

    2-16 Installation and Wiring Wiring the Finger-Safe Terminal Block When wiring the terminal block, keep the finger-safe cover in place. 1. Loosen the terminal screws to be wired. 2. Begin wiring at the bottom of the terminal block and move up. 3.

  • Page 41: Wiring The Modules

    Installation and Wiring 2-17 Wiring the Modules To prevent shock hazard, care should be taken when wiring ATTENTION the module to analog signal sources. Before wiring any analog module, disconnect power from the system power supply and from any other source to the analog module. After the analog module is properly installed, follow the wiring procedure below.

  • Page 42: Terminal Door Label

    2-18 Installation and Wiring To wire your module follow these steps. 1. At each end of the cable, strip some casing to expose the individual wires. 2. Trim the signal wires to 2-inch lengths. Strip about 3/16 inch (5 mm) of insulation away to expose the end of the wire.

  • Page 43: Analog Input Modules Wiring

    NEUT +24V dc dc NEUT Ensure Adjacent Bus Lever is Unlatched/Latched Before/After Removing/Inserting Module 1769-IF4 Figure 2.12 1769-IF4 Wiring Diagram Showing Differential Inputs Belden 8761 cable (or equivalent) – 1769-IF4 Analog Source V in 0 + V/I in 0 -...
  • Page 44 2-20 Installation and Wiring Figure 2.13 1769-IF4 Wiring Single-ended Sensor/Transmitter Types 1769-IF4 Terminal Block Sensor/ Current Transmitter V in 0 + Transmitter Supply V/I in 0 - Signal I in 0 + ANLG Com V in 1 + Voltage V/I in 1 -...
  • Page 45 Installation and Wiring 2-21 Figure 2.14 1769-IF4 Wiring Mixed Transmitter Types 1769-IF4 Terminal Block Signal Single-ended Voltage V in 0 + Transmitter V/I in 0 - – I in 0 + ANLG Com Differential V in 1 + Signal Voltage V/I in 1 - –...
  • Page 46 2-22 Installation and Wiring Figure 2.15 1769-IF8 Terminal Layout WARNING -Do Not Remove RTB Unless Area is Non-Hazardous V in 0+ V in 4+ V/I in 0- V/I in 4- V in 4+ V in 0+ I in 0 I in 4 V/I in 0- V/I in 4- ANLG Com...
  • Page 47 Installation and Wiring 2-23 Figure 2.17 1769-IF8 Wiring Single-Ended Sensor/Transmitter Types 1769-IF8 Terminal Block Sensor/Tran smitter V in 0 + Current Supply Transmitter V/I in 0 - Signal I in 0 + ANLG C om V in 1 + V/I in 1 - Voltage I in 1 + Transmitter...

  • Page 48: Analog Output Modules Wiring

    2-24 Installation and Wiring Analog Output Modules Wiring Figure 2.19 1769-OF2 Terminal Layout D A N G E R Do Not Remove RTB Under Power Unless Area is Non-Hazardous. V in 0 + V in 0 - I in 0 ANLG Com 0 V out 0 +...
  • Page 49 Installation and Wiring 2-25 Figure 2.21 1769-OF8C Terminal Layout D A N G E R Do Not Remove RTB Under Power Unless Area is Non-Hazardous. ANLG ANLG Com C om I out 0+ I out 0+ ANLG I out 1+ C om ANLG Com I out 1+...
  • Page 50 2-26 Installation and Wiring Figure 2.23 1769-OF8V Terminal Layout D A N G E R Do Not Remove RTB Under Power Unless Area is Non-Hazardous. ANLG ANLG Com C om V out 0+ V out 0+ ANLG V out 1+ C om ANLG Com V out 1+...

  • Page 51: 1769-If4 Input Module Addressing

    For 1769-IF8 module information, see page 3-16. The 1769-IF4 memory map shows the input and configuration image tables 1769-IF4 Input Module for the 1769-IF4. Detailed information on the input image table can be found Addressing in 1769-IF4 Input Data File on page 3-2.

  • Page 52: 1769-If4 Input Image

    Module Data, Status, and Channel Configuration for the Input Modules 1769-IF4 Input Image The 1769-IF4 input image file represents data words and status bits. Input words 0 through 3 hold the input data that represents the value of the analog inputs for channels 0 through 3.

  • Page 53: 1769-If4 Input Data Values

    Module Data, Status, and Channel Configuration for the Input Modules 1769-IF4 Input Data Values Words 0 through 3 contain the converted analog input data from the field device. The most significant bit (MSB) is the sign bit. General Status Bits (S0 through S3) Word 4, bits 0 through 3 contain the general operational status bits for input channels 0 through 3.

  • Page 54: 1769-If4 Configuration Data File

    This data file is writable and readable. The default value of the configuration data table is all zeros. The structure of the channel configuration file is shown below. Table 3.2 1769-IF4 Configuration Data Table Word/Bit Word 0 Input Data Format...

  • Page 55: Channel Configuration

    Module Data, Status, and Channel Configuration for the Input Modules Channel Configuration Each channel configuration word consists of bit fields, the settings of which determine how the channel operates. See the table below and the descriptions that follow for valid configuration settings and their meanings. The default bit status of the configuration file is all zeros.

  • Page 56: Enable/Disable Channel

    Noise Rejection The 1769-IF4 uses a digital filter that provides noise rejection for the input signals. The filter is programmable, allowing you to select from four filter frequencies for each channel. The digital filter provides the highest noise rejection at the selected filter frequency.
  • Page 57 Module Data, Status, and Channel Configuration for the Input Modules Channel Cut-Off Frequency The -3 dB frequency is the filter cut-off frequency. The cut-off frequency is defined as the point on the frequency response curve where frequency components of the input signal are passed with 3 dB of attenuation. All input frequency components at or below the cut-off frequency are passed by the digital filter with less than 3 dB of attenuation.
  • Page 58 Module Data, Status, and Channel Configuration for the Input Modules Module Update Time and Scanning Process The module update time is defined as the time required for the module to sample and convert the input signals of all enabled input channels and provide the resulting data values to the processor.

  • Page 59: Input Type/Range Selection

    1. Two Channels Enabled with Identical Configurations EXAMPLE The following example calculates the 1769-IF4 module update time for two channels enabled with the same configuration and a 500 Hz filter. Module Update Time = [Ch 0 Update Time + Ch 0 Switching Time] + [Ch 1 Update Time + Ch 1 Switching Time] 28 = [4 ms + 10 ms] + [4 ms + 10 ms] 2.

  • Page 60: Input Data Selection Formats

    3-10 Module Data, Status, and Channel Configuration for the Input Modules Input Data Selection Formats This selection configures channels 0 through 3 to present analog data in any of the following formats: • Raw/Proportional Data • Engineering Units • Scaled-for-PID •...
  • Page 61 Module Data, Status, and Channel Configuration for the Input Modules 3-11 Valid Input Data Word Formats/Ranges The following table shows the valid formats and min./max. data ranges provided by the module. Table 3.7 Valid Input Data 1769-IF4 Input Input Value Example Input Raw/Propor Engineering...
  • Page 62 3-12 Module Data, Status, and Channel Configuration for the Input Modules Table 3.7 Valid Input Data 1769-IF4 Input Input Value Example Input Raw/Propor Engineering Scaled-for- Percent Range Data Range tional Data Unit Full Range Condition Decimal Decimal Decimal Decimal Range...

  • Page 63: Effective Resolution

    The effective resolution for an input channel depends upon the filter frequency selected for that channel. The following tables provide the effective resolution for the four frequencies for each of the range selections. Table 3.8 50Hz / 60Hz Effective Resolution 1769-IF4 Raw/Proportional Data Engineering Units Over Scaled-For-PID Over...
  • Page 64 3-14 Module Data, Status, and Channel Configuration for the Input Modules Table 3.9 250Hz Effective Resolution 1769-IF4 Raw/Proportional Data Engineering Units Over Scaled-For-PID Over the Percent Input Over the Full Input Range the Full Input Range Full Input Range Over the Full Input...
  • Page 65 Module Data, Status, and Channel Configuration for the Input Modules 3-15 Table 3.10 500 Hz Effective Resolution 1769-IF4 Raw/Proportional Data Engineering Units Over Scaled-For-PID Over the Percent Input Over the Full Input Range the Full Input Range Full Input Range...

  • Page 66: 1769-If8 Input Module Addressing

    3-16 Module Data, Status, and Channel Configuration for the Input Modules The1769-IF8 memory map shows the output, input, and configuration tables 1769-IF8 Input Module for the 1769-IF8. Addressing Figure 3.4 1769-IF8 Memory Map Memory Map Channel 0 Data Word Word 0 Channel 1 Data Word Word 1 Channel 2 Data Word...

  • Page 67: 1769-If8 Input Image

    Module Data, Status, and Channel Configuration for the Input Modules 3-17 1769-IF8 Input Image The 1769-IF8 input image file represents data words and status bits. Input words 0 through 7 hold the input data that represents the value of the analog inputs for channels 0 through 7.

  • Page 68: 1769-If8 Input Data File

    3-18 Module Data, Status, and Channel Configuration for the Input Modules The input data table lets you access analog input module read data for use in 1769-IF8 Input Data File the control program, via word and bit access. The data table structure is shown in the table below.
  • Page 69 Module Data, Status, and Channel Configuration for the Input Modules 3-19 High Alarm Flag Bits (H0 through H7) Word 10, bits 2, 6, 10, 14 and Word 11, bits 2, 6, 10, 14 contain the high alarm flag bits for input channels 0 through 7 and applies to all input types. If set (1), the input signal is output the user-defined range.

  • Page 70: 1769-If8 Output Data File

    3-20 Module Data, Status, and Channel Configuration for the Input Modules The output data table lets you access analog output module write data for use 1769-IF8 Output Data File in the control program, via word and bit access. The data table structure is shown in the table below.
  • Page 71 Module Data, Status, and Channel Configuration for the Input Modules 3-21 Table 3.13 1769-IF8 Configuration Data Table Alarm Dead Band Value Channel 1 Reserved Reserved Reserved Input Filter Sel Chl2 Reserved Inpt Dta Fm Chl2 Reserved Inpt Tp/RngeSel Chl2 Process Alarm High Data Value Channel 2 Process Alarm Low Data Value Channel 2 Alarm Dead Band Value Channel 2 Reserved...

  • Page 72: Channel Configuration

    3-22 Module Data, Status, and Channel Configuration for the Input Modules The configuration file can also be modified through the control program, if supported by the controller. The structure and bit settings are shown in Channel Configuration on page 3-22. Channel Configuration Each channel’s configuration words consist of bit fields, the settings of which determine how the channel operates.

  • Page 73: Enable/Disable Channel

    Module Data, Status, and Channel Configuration for the Input Modules 3-23 Enable/Disable Channel This configuration selection lets each channel to be individually enabled. When a channel is not enabled (0), no voltage or current input is provided to the controller by the A/D converter. Input Filter Selection The input filter selection field lets you select the filter frequency for each channel and provides system status of the input filter setting for analog input...
  • Page 74 3-24 Module Data, Status, and Channel Configuration for the Input Modules Channel Cut-Off Frequency The -3 dB frequency is the filter cut-off frequency. The cut-off frequency is defined as the point on the frequency response curve where frequency components of the input signal are passed with 3 dB of attenuation. All input frequency components at or below the cut-off frequency are passed by the digital filter with less than 3 dB of attenuation.
  • Page 75 Module Data, Status, and Channel Configuration for the Input Modules 3-25 Figure 3.5 Sequential Sampling Disable Disable Disable Disable Sample Sample Sample Sample Enable Enable Channel 0 Channel 1 Channel 2 Channel 3 Disable Disable Disable Disable Sample Sample Sample Sample Channel 4 Channel 5...
  • Page 76 3-26 Module Data, Status, and Channel Configuration for the Input Modules If you use real-time sampling, the user-configured sample rate is used as the module update time. Table 3.16 Filter Frequency and Update Times Filter Frequency Update Time per Update Time per Channel Module 10 Hz...

  • Page 77: Input Type/Range Selection

    Module Data, Status, and Channel Configuration for the Input Modules 3-27 2. Two Channels Enabled with Different Filter Settings, But are a Channel Pair EXAMPLE The following example calculates the 1769-IF8 module update time for two channels enabled with any configuration, with different filter settings, but are a channel pair. •...
  • Page 78 3-28 Module Data, Status, and Channel Configuration for the Input Modules Engineering Units The module scales the analog input data to the actual current or voltage values for the selected input range. The resolution of the engineering units is dependent on the range selected and the filter selected. See Table 3.17 Valid Input Data on page 3-28.

  • Page 79: 1769-If8 Real Time Sampling

    Module Data, Status, and Channel Configuration for the Input Modules 3-29 1769-IF8 Real Time Sampling This parameter instructs the module how often to scan its input channels and obtain all available data. After the channels are scanned, the module places the data into the Input Data file.

  • Page 80: 1769-If8 Process Alarms

    3-30 Module Data, Status, and Channel Configuration for the Input Modules 1769-IF8 Process Alarms Process alarms alert you when the module has exceeded configured high or low limits for each channel. You can latch process alarms. These are set at two user configurable alarm trigger points: •...
  • Page 81 Module Data, Status, and Channel Configuration for the Input Modules 3-31 Alarm Deadband You may configure an Alarm Deadband to work with the process alarms. The deadband lets the process alarm status bit to remain set, despite the alarm condition disappearing, as long as the input data remains within the deadband of the process alarm.
  • Page 82 3-32 Module Data, Status, and Channel Configuration for the Input Modules Notes: Publication 1769-UM002B-EN-P - July 2005...

  • Page 83: Module Data, Status, And Channel Configuration For The Output Modules

    Chapter Module Data, Status, and Channel Configuration for the Output Modules This chapter examines the analog output module’s output data file, input data file, channel status, and channel configuration words. The 1769-OF2 memory map shows the output, input, and configuration tables 1769-OF2 Output Module for the 1769-OF2.

  • Page 84: 1769-Of2 Output Data File

    Module Data, Status, and Channel Configuration for the Output Modules The structure of the output data file is shown in the table below. Words 0 and 1769-OF2 Output Data File 1 contain the converted analog output data for channels 0 and 1, respectively. The most significant bit is the sign bit.

  • Page 85: 1769-Of2 Over-Range Flag Bits (O0 And O1)

    Module Data, Status, and Channel Configuration for the Output Modules 1769-OF2 Over-Range Flag Bits (O0 and O1) Over-range bits for channels 0 and 1 are contained in word 1, bits 14 and 12. When set, the over-range bit indicates that the controller is attempting to drive the analog output above its normal operating range.

  • Page 86: 1769-Of2 Output Data Loopback/Echo

    Module Data, Status, and Channel Configuration for the Output Modules 1769-OF2 Output Data Loopback/Echo Words 2 and 3 provide output loopback/data echo through the input array for channels 0 and 1, respectively. The value of the data echo is the analog value currently being converted on-board the module by the D/A converter.

  • Page 87: 1769-Of2 Configuration Data File

    Module Data, Status, and Channel Configuration for the Output Modules The configuration file lets you determine how each individual output channel 1769-OF2 Configuration will operate. Parameters such as the output type/range and data format are set Data File up using this file. The configuration data file is writable and readable. The default value for the configuration data file is all zeros.

  • Page 88: 1769-Of2 Channel Configuration

    Module Data, Status, and Channel Configuration for the Output Modules 1769-OF2 Channel Configuration Both channel configuration words (0 and 1) consist of bit fields, the settings of which determine how the corresponding channel operates. See the table below and the descriptions that follow for valid configuration settings and their meanings.

  • Page 89: 1769-Of2 Enable/Disable Channel

    Module Data, Status, and Channel Configuration for the Output Modules 1769-OF2 Enable/Disable Channel This configuration selection (bit 15) lets each channel to be individually enabled. A channel that is not enabled has zero voltage or current at its terminal. 1769-OF2 Output Data Format Selection This selection configures each channel to interpret data presented to it by the controller in any of the following formats: •...

  • Page 90: 1769-Of2 Output Type/Range Selection

    Module Data, Status, and Channel Configuration for the Output Modules 1769-OF2 Percent Full Range The control program presents the analog output data to the module as a percent of the full analog output range (for example, valve 50% open). The module scales this data to the appropriate analog output value for the selected user range.

  • Page 91: 1769-Of2 Program/Idle Mode (Pm0 And Pm1)

    Module Data, Status, and Channel Configuration for the Output Modules If this selection is enabled [the bit is set (1)] and the system enters the fault mode, it commands the module to convert the user-specified integer value from the channel’s fault value word (2 or 4) to the appropriate analog output for the range selected.

  • Page 92: 1769-Of2 Program/Idle To Fault Enable (Pfe0 And Pfe1)

    4-10 Module Data, Status, and Channel Configuration for the Output Modules If this selection is enabled [the bit is set (1)] and the system enters the program mode, it commands the module to convert the user-specified value from the channel’s program/idle value word (3 or 5) to the appropriate analog output for the range selected.

  • Page 93: 1769-Of2 Fault Value (Channel 0 And 1)

    Module Data, Status, and Channel Configuration for the Output Modules 4-11 1769-OF2 Fault Value (Channel 0 and 1) Using words 2 and 4 for channels 0 and 1, you can specify the values the outputs will assume when the system enters the fault mode. The default value is 0.
  • Page 94 4-12 Module Data, Status, and Channel Configuration for the Output Modules 1769-OF2 Valid Output Data Word Formats/Ranges The following table shows the valid formats and data ranges accepted by the module. Table 4.5 1769-OF2 Valid Output Data Table Input Example Data Output Raw/Proportio Engineering...
  • Page 95 Module Data, Status, and Channel Configuration for the Output Modules 4-13 Table 4.5 1769-OF2 Valid Output Data Table Input Example Data Output Raw/Proportio Engineering Scaled-for-PID Percent Full Output Value Range nal Data Unit Range Range State Decimal Range Decimal Range Decimal Decimal Range...
  • Page 96 4-14 Module Data, Status, and Channel Configuration for the Output Modules Table 4.5 1769-OF2 Valid Output Data Table Input Example Data Output Raw/Proportio Engineering Scaled-for-PID Percent Full Output Value Range nal Data Unit Range Range State Decimal Range Decimal Range Decimal Decimal Range...

  • Page 97: 1769-Of2 Module Resolution

    Module Data, Status, and Channel Configuration for the Output Modules 4-15 The resolution of an analog output channel depends on the output type/range 1769-OF2 Module and data format selected. Table 4.6 provides detailed resolution information Resolution for the 1769-OF2. Table 4.6 1769-OF2 Output Resolution 1769-OF Raw/Proportional Data Engineering Units Over...

  • Page 98: 1769-Of8C Output Module Memory Map

    4-16 Module Data, Status, and Channel Configuration for the Output Modules The 1769-OF8C memory map shows the output, input, and configuration 1769-OF8C Output Module tables for the 1769-OF8C. Memory Map Figure 4.2 1769-OF8C Memory Map Memory Map General Status Bits Word 0, bits 0-8 Open-circuit, Output-held, Over-/Under-range Word 1...

  • Page 99: 1769-Of8V Output Module Memory Map

    Module Data, Status, and Channel Configuration for the Output Modules 4-17 The 1769-OF8V memory map shows the output, input, and configuration 1769-OF8V Output Module tables for the 1769-OF8V. Memory Map Figure 4.3 1769-OF8V Memory Map Memory Map General Status Bits Word 0, bits 0-8 Open-circuit, Output-held, Over-/Under-range Word 1...

  • Page 100: 1769-Of8C And -Of8V Output Data File

    4-18 Module Data, Status, and Channel Configuration for the Output Modules The structure of the output data file is shown in the table below. Words 0 1769-OF8C and -OF8V through 7 contain the commanded analog output data for channels 0 through Output Data File 7, respectively.

  • Page 101: 1769-Of8C And -Of8V Input Data File

    Module Data, Status, and Channel Configuration for the Output Modules 4-19 This data table file provides immediate access to channel diagnostic 1769-OF8C and -OF8V information and analog output data at the module for use in the control Input Data File program.
  • Page 102 4-20 Module Data, Status, and Channel Configuration for the Output Modules 1769-OF8C and -OF8V Over-Range Flag Bits (O0 through O7) Word 1, bits 0, 4, 8, and 12, and Word 2, bits 0, 4, 8, and 12 contain the over-range bits for channels 0 through 7. When set, the over-range bit indicates that the controller is attempting to drive the analog output above its normal operating range or above the channel’s High Clamp level (if clamp limits are set for the channel).

  • Page 103: 1769-Of8C And -Of8V Output Data Loopback/Echo

    Module Data, Status, and Channel Configuration for the Output Modules 4-21 1769-OF8C and -OF8V Output Held Bits (H0 through H7) Word 1, bits 2, 6, 10, and 14, and Word 2, bits 2, 6, 10, and 14 contain the output held bits for input channels 0 through 7. When one of these bits is set (1), the corresponding channel is in the hold state.

  • Page 104: 1769-Of8C And -Of8V Configuration Data File

    4-22 Module Data, Status, and Channel Configuration for the Output Modules The configuration file lets you determine how each individual output channel 1769-OF8C and -OF8V will operate. Parameters such as the output type/range and data format are set Configuration Data File up using this file.
  • Page 105 Module Data, Status, and Channel Configuration for the Output Modules 4-23 Word Description Word Description Channel 6 Configuration Word 0 Channel 7 Configuration Word 0 Channel 6 Configuration Word 1 Channel 7 Configuration Word 1 Channel 6 Fault Value Word Channel 7 Fault Value Word Channel 6 Program Idle Mode Word Channel 7 Program Idle Mode Word...

  • Page 106: 1769-Of8C And -Of8V Channel Configuration

    4-24 Module Data, Status, and Channel Configuration for the Output Modules 1769-OF8C and -OF8V Channel Configuration The first two words of each eight word group in the configuration file allow you to change the parameters of each channel independently. For example, words 8 and 9 correspond to channel 1 while words 56 and 57 correspond to channel 7.

  • Page 107: 1769-Of8C And -Of8V Enable/Disable Channel

    Module Data, Status, and Channel Configuration for the Output Modules 4-25 Table 4.13 1769-OF8C and -OF8V Output Channel Configuration Define Indicate this These bit settings 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 Output 0 to 20 mA dc 0 0 0...

  • Page 108: Clamp/Limit Alarms

    4-26 Module Data, Status, and Channel Configuration for the Output Modules For example, an application may set the high clamp on a 1769-OF8C module for 15 mA and the low clamp for 5 mA. If a controller sends a value corresponding to 16 mA to the module, the module will only apply 15 mA to its screw terminals.
  • Page 109 Module Data, Status, and Channel Configuration for the Output Modules 4-27 Table 4.15 1769-OF8C Output Range/Types and Output Data Formats Output Data Total Counts in Number of Counts Real Units/Second Format Output Full Scale for Every 1% of for Every 1% of Range/Type Ramp Rate Ramp Rate...

  • Page 110: Hold For Initialization

    4-28 Module Data, Status, and Channel Configuration for the Output Modules Table 4.16 1769-OF8V Output Range/Types and Output Data Formats Output Data Total Counts in Number of Counts Real Units/Second Format Output Full Scale for Every 1% of for Every 1% of Range/Type Ramp Rate Ramp Rate...

  • Page 111: Open Wire Detection (1769-Of8C Only)

    Module Data, Status, and Channel Configuration for the Output Modules 4-29 Open Wire Detection (1769-OF8C Only) This feature detects when current flow is not present on an output channel that is enabled and has a non-zero output value commanded. When an open wire condition occurs channel, the diagnostic bit (D bit in Input Data file status words) is set for that channel.

  • Page 112: 1769-Of8C And -Of8V Program/Idle Mode (Pm)

    4-30 Module Data, Status, and Channel Configuration for the Output Modules 1769-OF8C and -OF8V Program/Idle Mode (PM) This configuration selection provides individual program/idle mode selection for the analog channels 0. When this selection is disabled [the bit is reset (0)], the module holds the last state, meaning that the analog output remains at the last converted value prior to the condition that caused the control system to enter the program mode.

  • Page 113: 1769-Of8C And -Of8V Program/Idle To Fault Enable (Pfe)

    Module Data, Status, and Channel Configuration for the Output Modules 4-31 1769-OF8C and -OF8V Program/Idle to Fault Enable (PFE) If a system currently in program/idle mode faults, this setting determines whether the program/idle or fault value is applied to the output. If the selection is enabled [the bit is set (1)], the module applies the fault value.

  • Page 114: 1769-Of8C And -Of8V Program/Idle Value

    4-32 Module Data, Status, and Channel Configuration for the Output Modules 1769-OF8C and -OF8V Program/Idle Value Use each channel’s Program/Idle Mode word to set the integer values for the outputs to assume when the system enters the program mode. The values are dependent upon the range selected in the range selection field.
  • Page 115 Module Data, Status, and Channel Configuration for the Output Modules 4-33 1769-OF8C Valid Output Data Word Formats/Ranges The following table shows the valid formats and data ranges accepted by the module. Table 4.17 1769-OF8C Valid Output Data Table OF8C Input Example Data Output Raw/Proportio...
  • Page 116 4-34 Module Data, Status, and Channel Configuration for the Output Modules 1769-OF8V Valid Output Data Word Formats/Ranges The following table shows the valid formats and data ranges accepted by the module. Table 4.18 1769-OF8V Valid Output Data Table OF8V Input Example Data Output Raw/Proportio...
  • Page 117 Module Data, Status, and Channel Configuration for the Output Modules 4-35 Table 4.18 1769-OF8V Valid Output Data Table OF8V Input Example Data Output Raw/Proportio Engineering Scaled-for-PID Percent Full Normal Value Range nal Data Unit Range Operating State Decimal Range Decimal Range Decimal Decimal Range Output...
  • Page 118 4-36 Module Data, Status, and Channel Configuration for the Output Modules Notes: Publication 1769-UM002B-EN-P - July 2005...

  • Page 119: Safety Considerations

    Chapter Module Diagnostics and Troubleshooting This chapter describes troubleshooting the analog input and output modules. This chapter contains information on: • safety considerations when troubleshooting • module vs. channel operation • the module’s diagnostic features • critical vs. non-critical errors •...

  • Page 120: Stand Clear Of The Machine

    Module Diagnostics and Troubleshooting Stand Clear of the Machine When troubleshooting any system problem, have all personnel remain clear of the machine. The problem could be intermittent, and sudden unexpected machine motion could occur. Have someone ready to operate an emergency stop switch in case it becomes necessary to shut off power to the machine.

  • Page 121: Power-Up Diagnostics

    Module Diagnostics and Troubleshooting At module power-up, a series of internal diagnostic tests are performed. These Power-up Diagnostics diagnostic tests must be successfully completed or the module status LED remains off and a module error results and is reported to the controller. Table 5.1 Diagnostics If module status Indicated...

  • Page 122: Output Wire Broken/High Load Resistance

    When these types of errors occur, the system typically leaves the run or program mode of operation until the error can be dealt with. Critical module errors are indicated in Table 5.4 1769-IF4 and -OF2 Extended Error Codes on page 5-6.

  • Page 123: Module Error Field

    Hardware Errors General or module-specific hardware errors are indicated by module error code 2. See Table 5.4 1769-IF4 and -OF2 Extended Error Codes on page 5-6, Table 5.5 1769-IF8 Extended Error Codes on page 5-7, and Table 5.6 1769-OF8C and -OF8V Extended Error Codes on page 5-10.

  • Page 124: Error Codes

    Each type of analog module has different features and different error codes. See Table 5.4 1769-IF4 and -OF2 Extended Error Codes on page 5-6, Table 5.5 1769-IF8 Extended Error Codes on page 5-7, and Table 5.6 1769-OF8C and -OF8V Extended Error Codes on page 5-10.
  • Page 125 Module Diagnostics and Troubleshooting Table 5.4 1769-IF4 and -OF2 Extended Error Codes Error Type Module Extended Error Error Description Error Information Equivalent Code Code Binary Binary 1769-OF2 Specific X400 0 0000 0000 General configuration error; no additional information Configuration X401...
  • Page 126 Module Diagnostics and Troubleshooting Table 5.5 1769-IF8 Extended Error Codes Error Type Module Extended Error Error Description Error Information Equivalent Code Code Binary Binary 1769-IF8 Specific X400 0 0000 0000 General configuration error; no additional information Configuration X401 0 0000 0001 invalid input range selected (channel 0) Error X402...
  • Page 127 Module Diagnostics and Troubleshooting Table 5.5 1769-IF8 Extended Error Codes Error Type Module Extended Error Error Description Error Information Equivalent Code Code Binary Binary 1769-IF8 Specific X41B 0 0001 1011 alarm not enabled (channel 2) Configuration X41C 0 0001 1100 alarm not enabled (channel 3) Error X41D...
  • Page 128 5-10 Module Diagnostics and Troubleshooting Table 5.6 1769-OF8C and -OF8V Extended Error Codes Error Type Module Extended Error Error Description Error Information Equivalent Code Code Binary Binary No Error X000 0 0000 0000 No Error General Common X200 0 0000 0000 General hardware error;...
  • Page 129 Module Diagnostics and Troubleshooting 5-11 Table 5.6 1769-OF8C and -OF8V Extended Error Codes Error Type Module Extended Error Error Description Error Information Equivalent Code Code Binary Binary 1769-OF8C and X41A 0 0001 1010 invalid idle value (channel 1) -OF8V Specific X41B 0 0001 1011 invalid idle value (channel 2)

  • Page 130: Module Inhibit Function

    1769 Compact Bus Master (for example, a CompactLogix controller). If you need to contact Rockwell Automation for assistance, please have the Contacting Rockwell following information available when you call: Automation •...

  • Page 131: General Specifications For 1769-If4, -If8, -Of2, -Of8C, And -Of8V Modules

    Supply Voltage Range Recommended Cable Belden™ 8761 (shielded) Maximum Cable Length 1769-IF4 and -IF8: See “Effect of Transducer/Sensor and Cable Length Impedance on Voltage Input Accuracy” on page 2-12 1769-OF2, -OF8C, and -OF8V: See “Effect of Device and Cable Output Impedance on Output Module Accuracy”...
  • Page 132 Specifications Specification Value Electrical /EMC: The module has passed testing at the following levels: • ESD Immunity • 4 kV contact, 8 kV air, 4 kV indirect (IEC1000-4-2) • Radiated Immunity • 10 V/m , 80 to 1000 MHz, 80% amplitude (IEC1000-4-3) modulation, +900 MHz keyed carrier •...

  • Page 133: 1769-If4 Input Specifications

    1769-IF4 Input Table A.2 1769-IF4 Specifications Specifications Specification 1769-IF4 (Series B and later) Analog Normal Operating Voltage: ± 10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc Ranges Current: 0 to 20 mA, 4 to 20 mA Voltage: ±...
  • Page 134 Specifications Specification 1769-IF4 (Series B and later) Input Channel Configuration via configuration software screen or the user program (by writing a unique bit pattern into the module’s configuration file). Refer to your controller manual to determine if user program configuration is supported.

  • Page 135: 1769-If8 Input Specifications

    Specifications 1769-IF8 Input Table A.3 1769-IF8 Specifications Specification 1769-IF8 Specifications Analog Normal Operating Voltage: ± 10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc Current: 0 to 20 mA, 4 to 20 mA Ranges Full Scale Analog Voltage: ±...
  • Page 136 Specifications Specification 1769-IF8 Accuracy Drift with Voltage Terminal: ±0.003% per °C Temperature Current Terminal: ±0.0045% per °C Calibration The module performs autocalibration on channel enable and on a configuration change between channels. Non-linearity (in percent ±0.03% full scale) ±0.03% Repeatability Module Error over Full Voltage: ±0.3% Temperature Range...

  • Page 137: 1769-Of2 Output Specifications

    Specifications 1769-OF2 Output Table A.4 1769-OF2 Specifications Specifications Specification 1769-OF2 (Series B and later) Voltage: ±10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc Analog Ranges Current: 0 to 20 mA, 4 to 20 mA Full Scale Analog Ranges Voltage: ±10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc...
  • Page 138 Specifications Specification 1769-OF2 (Series B and later) Output Error Over Full Voltage: ±0.8% Temperature Range (0 to 60°C [32 to +140°F]) Current: ±0.55% Output Offset Error ±0.05% (0 to 60°C [32 to +140°F]) 15 Ω (typical) Output Impedance Open and Short-Circuit Protection Maximum Short-Circuit Current 21 mA...

  • Page 139: 1769-Of8C Output Specifications

    Specifications 1769-OF8C Output Table A.5 1769-OF8C Specifications Specification 1769-OF8C Specifications Analog Normal Operating 0 to 20 mA, 4 to 20 mA Ranges 0 to 21 mA, 3.2 to 21 mA Full Scale Analog Ranges Number of Outputs 8 single-ended Bus Current Draw (max.) 145 mA at 5V dc 160 mA at 24V dc Heat Dissipation...
  • Page 140 A-10 Specifications Specification 1769-OF8C Accuracy Drift with ±0.0058% FS per °C Temperature ±0.05% Output Ripple range 0 to 50 kHz (referred to output range) Non-linearity (in percent full ±0.05% scale) ±0.05% Repeatability (in percent full scale) Output Error Over Full Current: ±0.55% Temperature Range (0 to 60°C [+32 to +140°F])

  • Page 141: 1769-Of8V Output Specifications

    Specifications A-11 1769-OF8V Output Table A.6 1769-OF8V Specifications Specification 1769-OF8V Specifications Analog Normal Operating ± 10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc Ranges ± 10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, Full Scale Analog Ranges 0.5 to 5.25V dc Number of Outputs...
  • Page 142 A-12 Specifications Specification 1769-OF8V Accuracy Drift with ±0.0086% FS per °C Temperature ±0.05% Output Ripple range 0 to 50 kHz (referred to output range) Non-linearity (in percent full ±0.05% scale) ±0.05% Repeatability (in percent full scale) Output Error Over Full ±0.8% Temperature Range (0 to 60°C [+32 to +140°F])

  • Page 143: Input Module Addressing

    RSLogix 500 and MicroLogix 1500. In the following example, the 1769-IF4 is used. Detailed information on the Input Module Addressing input image table can be found in 1769-IF4 Input Data File on page 3-2. Figure B.1 1769-IF4 Memory Map Including Configuration Memory Map...

  • Page 144: Input Modules Input Image

    Module Addressing and Configuration with MicroLogix 1500 Input Modules Input Image The input modules’ input image file represents data words and status bits. Input words 0 through 3 hold the input data that represents the value of the analog inputs for channels 0 through 3. These data words are valid only when the channel is enabled and there are no errors.

  • Page 145: Input Modules' Configuration File

    60 Hz Output Range Selection ±10V dc Input Range ±10V dc Data Format Raw/Proportional Data Format Raw/Proportional The 1769-IF4, -IF8, -OF2, -OF8C, and -OF8V modules are disabled by default. You will need to enable the channels. Publication 1769-UM002B-EN-P - July 2005...

  • Page 146: Configuring Analog I/O Modules In A Micrologix 1500 System

    Module Addressing and Configuration with MicroLogix 1500 This example takes you through configuring your 1769 analog input and Configuring Analog I/O output modules with RSLogix 500 programming software. This application Modules in a MicroLogix example assumes your input and output modules are installed as expansion 1500 System I/O in a MicroLogix 1500 system, and that RSLinx™...
  • Page 147 Module Addressing and Configuration with MicroLogix 1500 A communications dialog appears, identifying the current communications configuration so that you can verify the target controller. If the communication settings are correct, click on Read IO Config. The actual I/O configuration is displayed. In this example, a second tier of I/O is attached to the MicroLogix 1500 processor.

  • Page 148: Configuring The Input Modules

    Module Addressing and Configuration with MicroLogix 1500 Configuring the Input Modules For this example, the 1769-IF4 analog input module is installed in slot 1. To configure the module, double-click on the module/slot. Analog Input Configuration Each of the four analog input words (channels) are enabled by default. To enable a channel, click its Enable box so that a check mark appears in it.

  • Page 149: Configuring The Output Modules

    Module Addressing and Configuration with MicroLogix 1500 Configuring the Output Modules For this example, the 1769-OF2 analog output module is installed in slot 2. To configure the 1769-OF2, double-click on the module/slot. The following general configuration screen appears for the 1769-OF2, -OF8C, and -OF8V output modules.
  • Page 150 Module Addressing and Configuration with MicroLogix 1500 Analog Output Configuration Both of the output words (channels) are enabled by default. To enable a channel, click its Enable box so that a check mark appears in it. For optimum module performance, disable any channel that is not hardwired to a real input. Then, choose your Filter Frequency, Input Range, and Data Format for each channel.
  • Page 151 Module Addressing and Configuration with MicroLogix 1500 Publication 1769-UM002B-EN-P - July 2005...
  • Page 152 B-10 Module Addressing and Configuration with MicroLogix 1500 Notes: Publication 1769-UM002B-EN-P - July 2005...
  • Page 153 Appendix Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers To configure a 1769 analog I/O module for a CompactLogix Controller in RSLogix 5000 using the Generic Profile, you must first begin a new project in RSLogix 5000. Click on the new project icon or on the FILE pull down menu and select NEW.
  • Page 154 Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers Choose your controller type and enter a name for your project, then click OK. The following main RSLogix 5000 screen appears: The last entry in the controller organizer on the left of the screen shown above is a line labeled “[0] CompactBus Local”.
  • Page 155 Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers This screen narrows your search for I/O modules to configure into your system. Click the OK button and the following default Generic Profile screen appears: This is the default Generic Profile screen. The first area to fill in for the Generic Profile screen is the name.
  • Page 156 Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers Use the following table for the “Comm Format”, “Assembly Instance” and “Size” values for the 1769-IF8, -OF8C, and -OF8V modules if you have an earlier version of RSLogix5000, version 15. 1769 I/O Comm Format Parameter...
  • Page 157 Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers At this point, you may click “Finish” to complete the configuration of your I/O module. If you click “Next”, the following screen appears: You may choose to inhibit the module or have the controller fault if the connection to this I/O module fails.

  • Page 158: Appendix C Configuring I/O Modules

    Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers Once you have created Generic Profiles for each analog I/O module in your Configuring I/O Modules system, you must then enter configuration information into the Tag database that has been automatically created from the Generic Profile information you entered for each of these modules.

  • Page 159: Configuring Analog Output Modules

    Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers Tag addresses are automatically created for configured I/O modules. All local I/O addresses are preceded by the word Local. These addresses have the following format: • Input Data: Local:s.I • Output Data: Local:s.O •...
  • Page 160 Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers Notes: Publication 1769-UM002B-EN-P - July 2005...

  • Page 161: Appendix D Overview

    Appendix Configuring Modules in a Remote DeviceNet System with a 1769-ADN DeviceNet Adapter In this example, the 1769-IF4 and 1769-OF8C modules are in a remote Overview DeviceNet system controlled by a 1769-ADN DeviceNet adapter. RSNetWorx for DeviceNet software, version 2.23 or later, is used to configure the network and the I/O modules.

  • Page 162: Add The Devicenet Adapter To The Scanlist

    Configuring Modules in a Remote DeviceNet System with a 1769-ADN DeviceNet Adapter In this part of the example, the 1769-ADN adapter is added to the DeviceNet Add the DeviceNet Adapter scanner’s scanlist. to the Scanlist 1. Start the RSNetWorx for DeviceNet software. 2.
  • Page 163 Configuring Modules in a Remote DeviceNet System with a 1769-ADN DeviceNet Adapter 4. To configure I/O for the adapter, double-click the adapter icon that appears on the network. 5. Click the Module Configuration tab. The I/O Summary tab provides the configured sized and format of the I/O data.

  • Page 164: Configure The 1769-If4 Input Module Example

    1769 I/O rules contained in the DeviceNet Adapter User Manual, publication 1769-UM001A. To simplify this example, we placed the 1769-IF4 in slot 1 to show how it is configured. 1. To place the input module into slot 1, click Module Configuration.
  • Page 165 Set for I/O only button The input size changes to four words. The revision number for the series B 1769-IF4 module is two. With this setting, you may leave the electronic keying to Exact Match. It is not recommended to disable...

  • Page 166: 1769-If4 Example Of External Power

    Configuring Modules in a Remote DeviceNet System with a 1769-ADN DeviceNet Adapter If you are using external 24V dc power for your 1769-IF4 module, you must click the white box to the left of “Using External +24v Power Source”, so that a check mark appears in the box. Do not click on the box if you are not using external 24V dc power.

  • Page 167: Configure The 1769-Of8C Output Module Example

    1769-ADN adapter should look like the following: Output Module Example 1. Just as you did for the 1769-IF4 module, click on the drop-down arrow next to the empty slot and this time choose the 1769-OF8C. 2. Click on the Slot 2 button that appears to the right of the 1769-OF8C module.

  • Page 168: 1769-Of8C Example Of External Power

    Configuring Modules in a Remote DeviceNet System with a 1769-ADN DeviceNet Adapter 3. Click on the Configuration Settings button to see what the eleven input and nine output words represent. The eleven input words contain channel diagnostic data for the eight channels.

  • Page 169: 1769-Of8C Example Of Output Channels

    Configuring Modules in a Remote DeviceNet System with a 1769-ADN DeviceNet Adapter 1769-OF8C Example of Output Channels Each of the two analog output channels are disabled by default. To enabled a channel, click its Enable box so that a check mark appears in it. Then, choose your Output Range, Data Format, and the state or your outputs should the controlling processor be placed into the program mode, fault, or lose communications.
  • Page 170 D-10 Configuring Modules in a Remote DeviceNet System with a 1769-ADN DeviceNet Adapter Therefore, a value of 6241 (decimal) must be used in the event the controlling processor is placed into program mode, faults, or loses communications. The decimal number 6241 represents 4 mA, when using the Raw/Proportional Data Format.

  • Page 171: Positive Decimal Values

    Appendix Two’s Complement Binary Numbers The processor memory stores 16-bit binary numbers. Two’s complement binary is used when performing mathematical calculations internal to the processor. Analog input values from the analog modules are returned to the processor in 16-bit two’s complement binary format. For positive numbers, the binary notation and two’s complement binary notation are identical.

  • Page 172: Negative Decimal Values

    Two’s Complement Binary Numbers In two’s complement notation, the far left position is always 1 for negative Negative Decimal Values values. The equivalent decimal value of the binary number is obtained by subtracting the value of the far left position, 32768, from the sum of the values of the other positions.

  • Page 173: Glossary

    Glossary The following terms and abbreviations are used throughout this manual. For definitions of terms not listed here refer to Allen-Bradley’s Industrial Automation Glossary, Publication AG-7.1. A/D Converter– Refers to the analog to digital converter inherent to the module. The converter produces a digital value whose magnitude is proportional to the magnitude of an analog input signal.
  • Page 174 configuration word – Contains the channel configuration information needed by the module to configure and operate each channel. D/A Converter– Refers to the digital to analog converter inherent to the output module. The converter produces an analog dc voltage or current signal whose instantaneous magnitude is proportional to the magnitude of a digital value.
  • Page 175 LSB – (Least Significant Bit) The bit that represents the smallest value within a string of bits. For analog modules, 16-bit, two’s complement binary codes are used in the I/O image in the card. For analog inputs, the LSB is defined as the rightmost bit, bit 0, of the 16-bit field.
  • Page 176 overall accuracy – The worst-case deviation of the output voltage or current from the ideal over the full output range is the overall accuracy. For inputs, the worst-case deviation of the digital representation of the input signal from the ideal over the full input range is the overall accuracy. this is expressed in percent of full scale.
  • Page 177 -3 dB frequency 3-6, 3-23 common mode voltage rating configuration errors configuration word 3-5, 3-22 1769-IF4 1769-OF2 converter definition definition 5-12 contacting Rockwell Automation abbreviations 3-31 current draw alarm deadband 2-2, A-3 1769-IF4 alarms 2-2, A-3 3-30 1769-OF2 process alarm...
  • Page 178 3-6, 3-23 full scale error enable channel definition input module status 3-3, 3-18 full scale range general status bits 3-3, 3-19 1769-IF4 specifications over-range flag bits 3-3, 3-19 1769-OF2 specifications under-range flag bits 3-9, 3-27 definition input type/range selection 2-1–2-9...
  • Page 179 Index output range selection overall accuracy module error field definition 5-12 module inhibit function 3-3, 3-19, 4-3, 4-20 over-range flag bits module scan time definition 3-8, 3-24 module update time definition 2-7–2-8 panel mounting 3-9, 3-26 examples positive decimal values 2-6–2-8 mounting power-up diagnostics...
  • Page 180 Index 2-16 terminal block wire size 2-15 removing wiring 2-16 2-19 wiring differential inputs 2-18 2-19–2-21 terminal door label input module 2-16 2-19 terminal screw torque input terminal layout 2-21 mixed transmitter type troubleshooting 2-16 module safety considerations 2-17 modules two’s complement binary numbers 2-24 ouput terminal layout...
  • Page 181 ___No, there is no need to contact me ___Yes, please call me ___Yes, please email me at _______________________ ___Yes, please contact me via _____________________ Return this form to: Rockwell Automation Technical Communications, 1 Allen-Bradley Dr., Mayfield Hts., OH 44124-9705 Fax: 440-646-3525 Email: RADocumentComments@ra.rockwell.com Publication CIG-CO521C-EN-P- May 2003...
  • Page 182 PLEASE FASTEN HERE (DO NOT STAPLE) Other Comments PLEASE FOLD HERE NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO. 18235 CLEVELAND OH POSTAGE WILL BE PAID BY THE ADDRESSEE 1 ALLEN-BRADLEY DR MAYFIELD HEIGHTS OH 44124-9705...
  • Page 184 Publication 1769-UM002B-EN-P - July 2005 Supersedes Publication 1769-UM002A-EN-P - October 2000 Copyright © 2005 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
