1.2

Communication Unit

Select the following place to install the communication unit.
• The temperature and humidity should be moderate and stable.
• For maintenance and checking purposes, leave sufficient space at the sides and
rear of the unit and leave slack in cables.

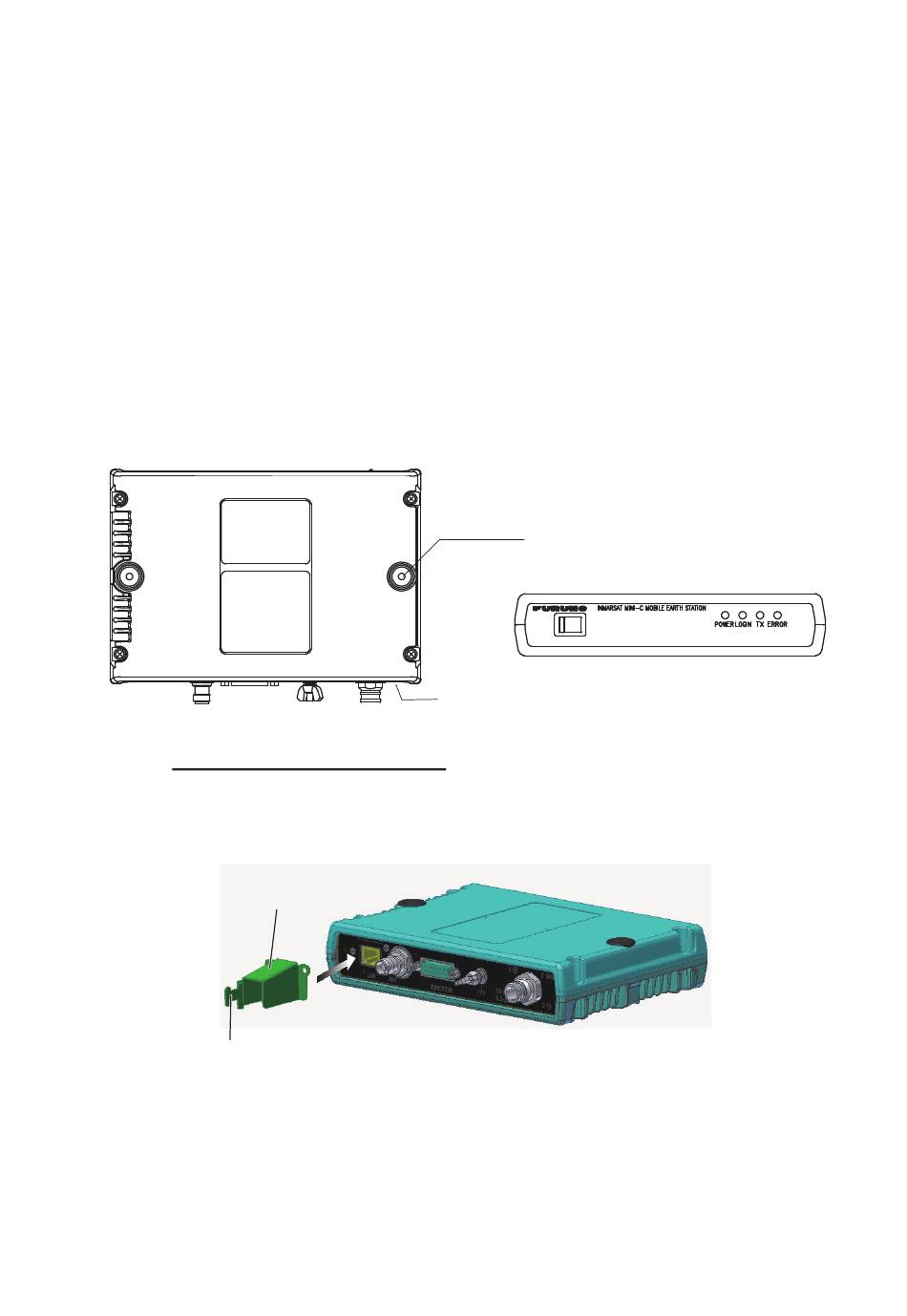

Mounting
Use two self-tapping screws (4x40, supplied) to fix the communication unit. The unit
can be mounted on a bulkhead, a tabletop or on the underside of table. Use the fixing
holes at the top for bulkhead mounting, or the fixing holes at the bottom for tabletop
mounting or underside of a table.
After mounting the unit, cover the screw heads with the cosmetic caps (2 pcs, sup-
plied) to fixing hole to cover the screw head. Note that the rear panel should be down-
ward when the communication unit is mounted on the bulkhead.
(top view)
How to connect the LAN cable
Use two binding screws (pre-attached) and the LAN cover to connect the LAN cable
to the communication unit. Use the cable tie (supplied) to fix the cable.
LAN cover LAN cover
Fix the cable here with a cable tie. Fix the cable here with a cable tie.
Fixing hole
(two, φ 4.5)
Rear panel
1. MOUNTING
(front view)
1-3
